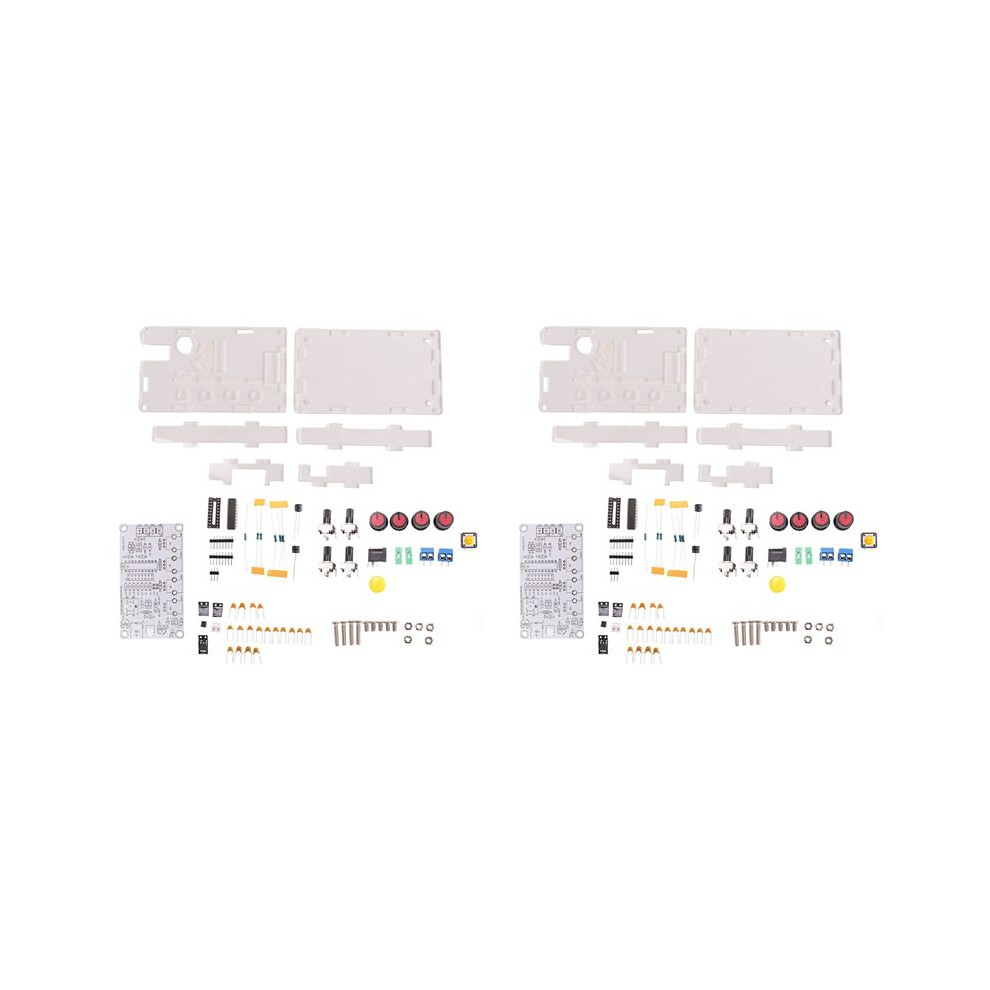

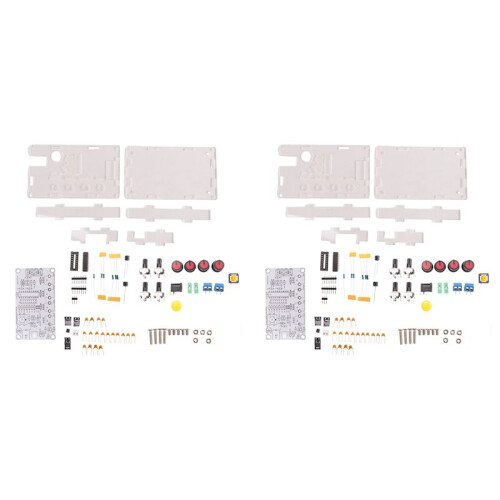

2X MAX038 Signal Generator DIY Kit 1Hz-20MHz Function Generator High-Speed Op-Amp Generator Sine/Rectangular/Sawtooth

2X MAX038 Signal Generator DIY Kit 1Hz-20MHz Function Generator High-Speed Op-Amp Generator Sine/Rectangular/Sawtooth Περιγραφή

The circuit op amp works in dual power state (dual power supply amplification does not require a blocking capacitor to ensure high and low frequency signals are not distorted).
It can output triangular wave, rectangular wave and sine wave, and forward and reverse sawtooth wave.
SYNC output with sync signal.
Switching the waveform output by push button, easy operation.

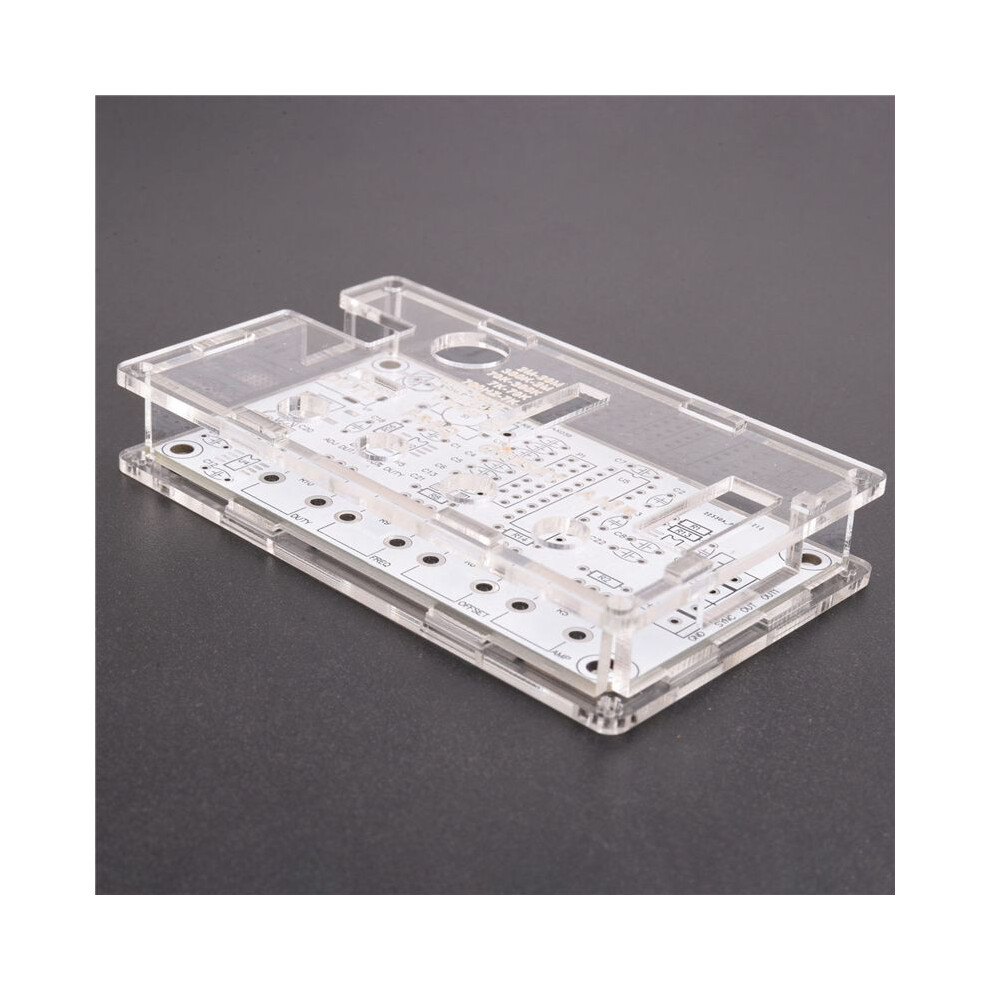

Adopts with clear shell, the signal generator is very beautiful and practical.

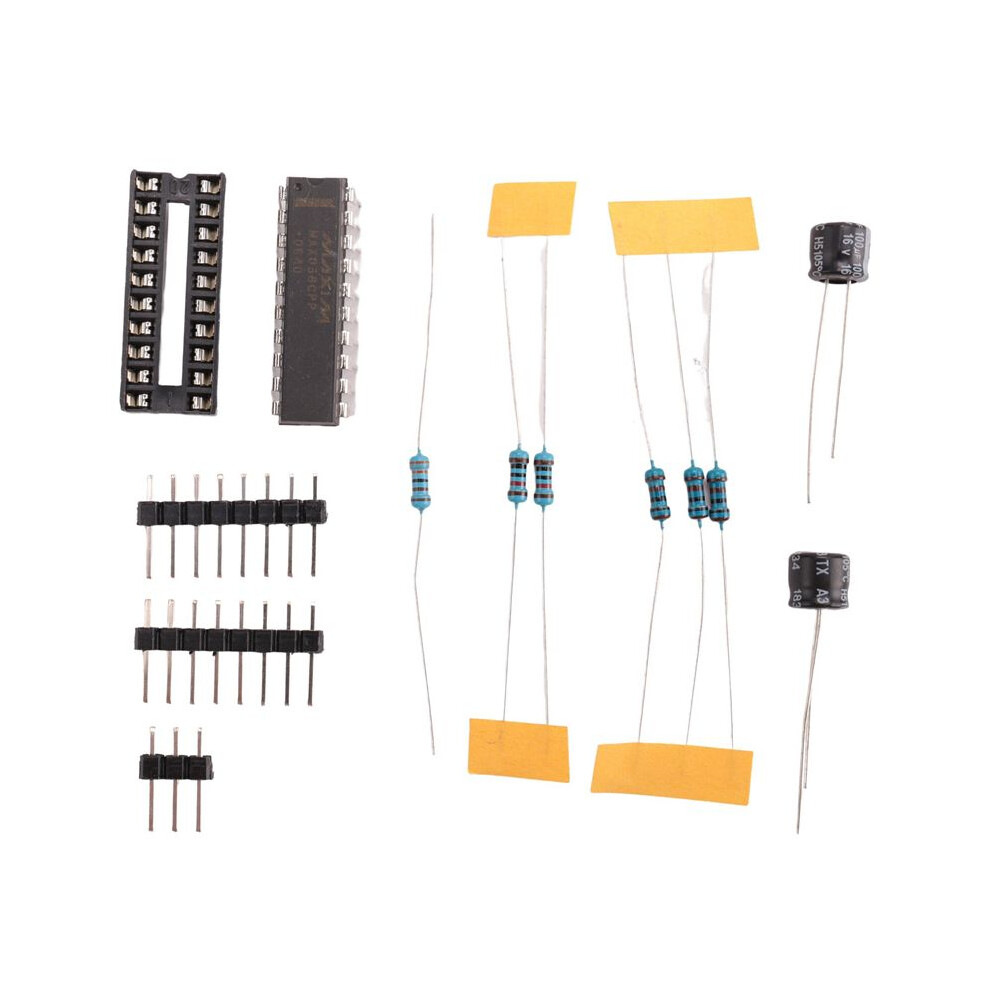

The product is a DIY kit, not a finished product
Temperature drift: 200ppm/Celsius.
DIY Supplies: Electrical
Model Number: Signal Generator
Single power supply operation (built-in dedicated power management IC): single power supply operating voltage 9-15V.
Frequency Adjustment Range: 1Hz-20MHz
Duty Cycle Adjustment Range: 15%-85%
Low Loss True Sine Wave: 0.75%
triple-cornered Wave Output Linearity: 0.1%
Low Impedance Output Buffer: 0.1ohm
Offset Adjustable: -5V-5V
Adjustable Output Amplitude: 0.1V-9.5VPP (operating voltage 9V)
Item Weight: 164g / 5.8oz
colour:White

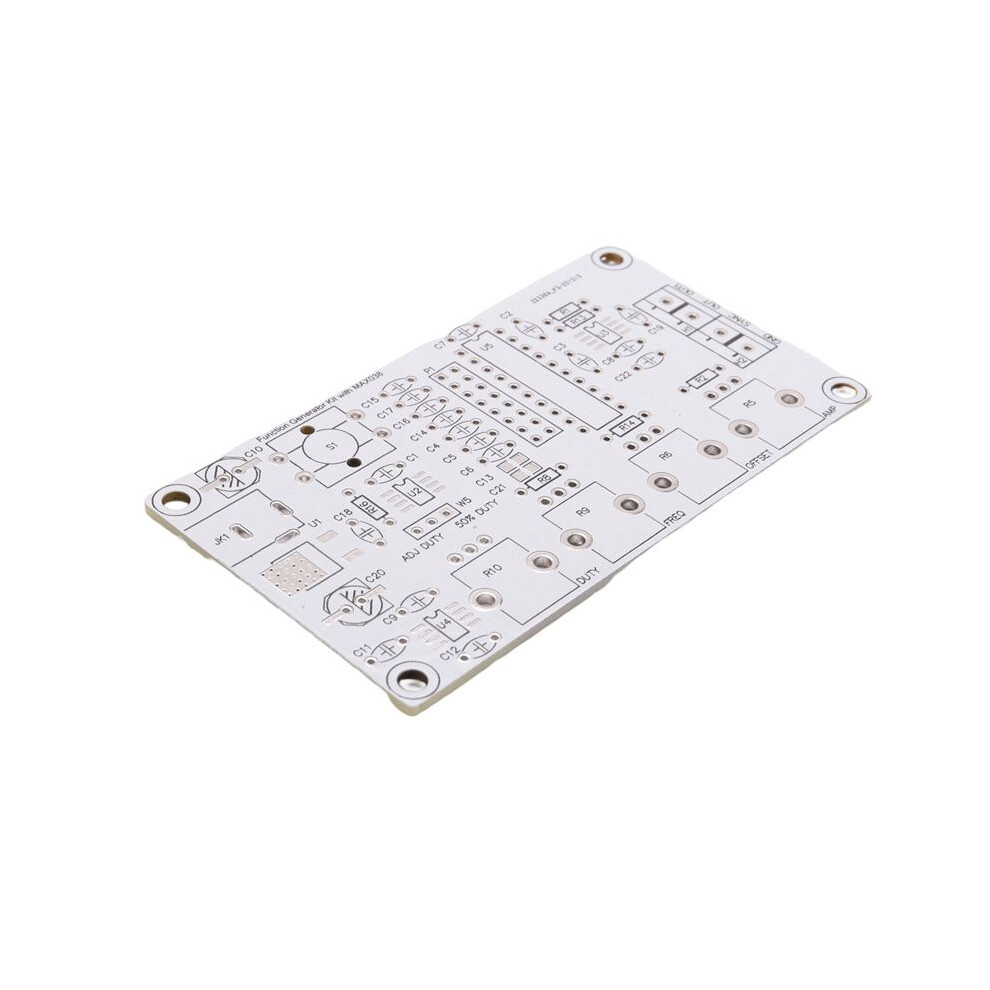

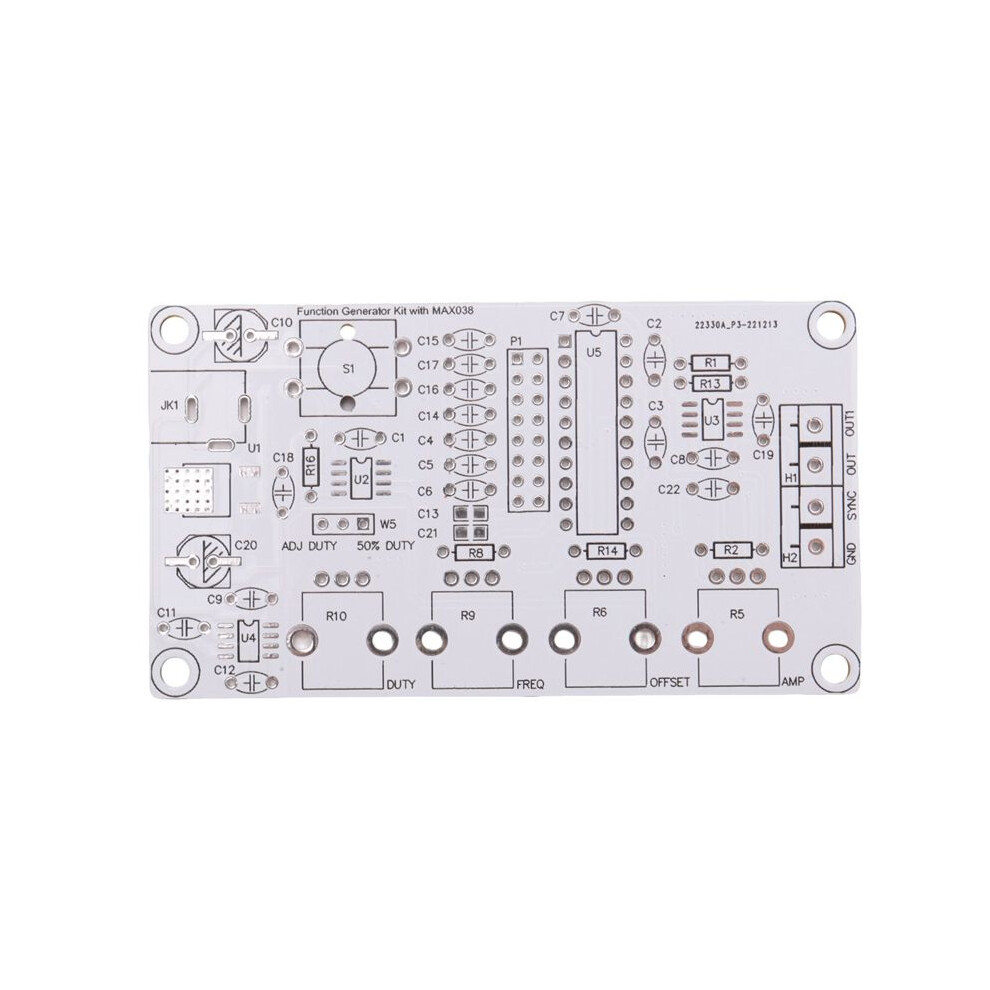

Material:PCB
size:99 x 59mm

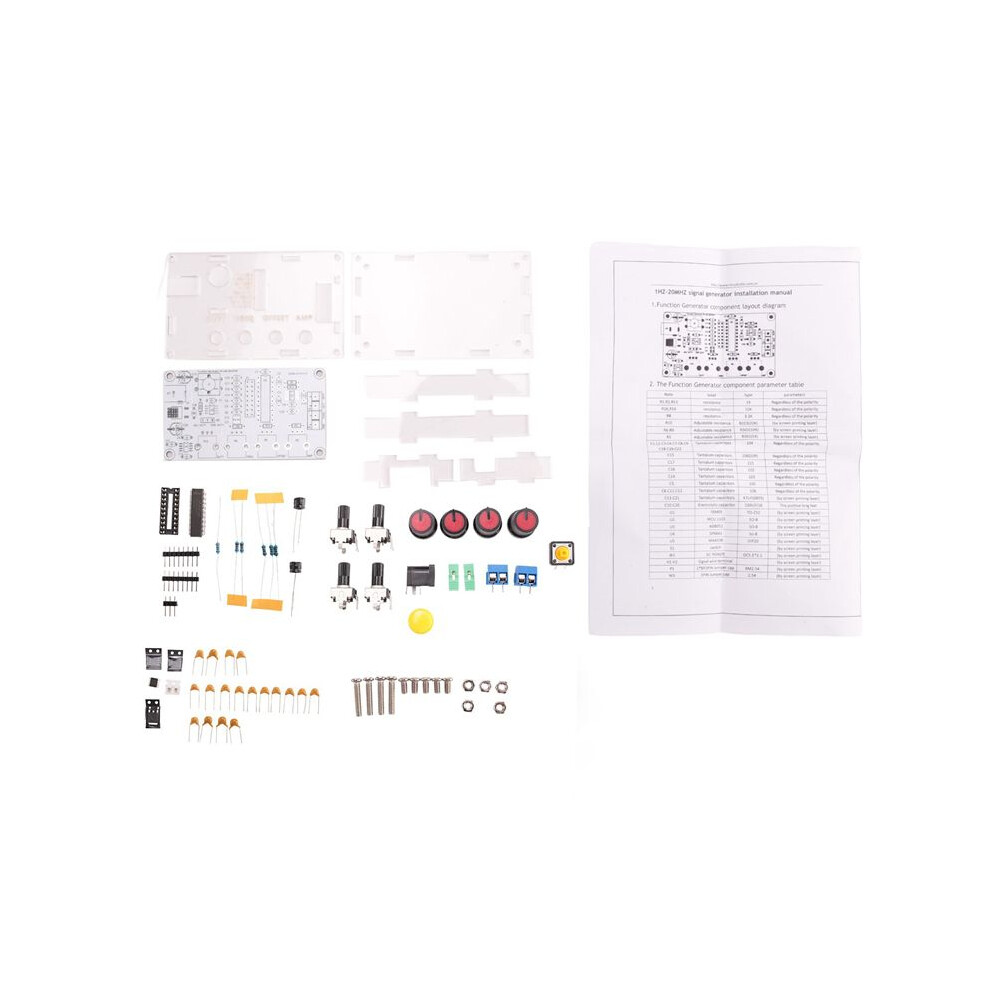

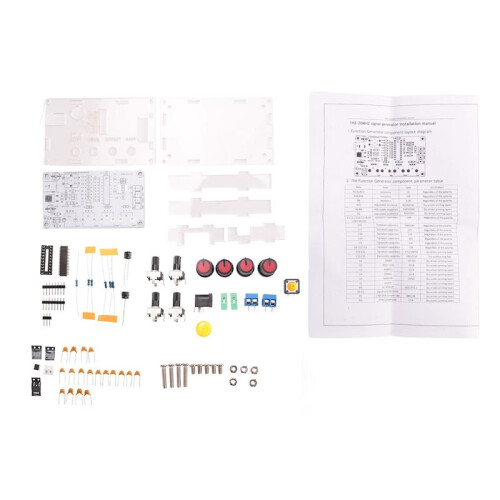

Package Contents:
2 x Signal Generator
2 x Manual (English)
