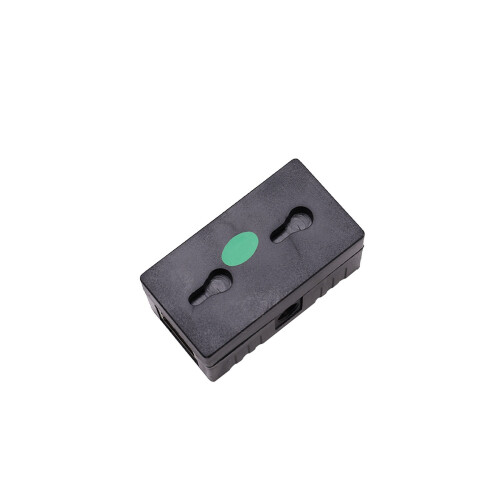

2X Poe Splitter Injector Passive Power Over Ethernet Rj45 10/100Mbp Wall Mount Adapter

2X Poe Splitter Injector Passive Power Over Ethernet Rj45 10/100Mbp Wall Mount Adapter Περιγραφή

Description 1:rj45 connector
Description 2:poe splitter for ip camera
Description 3:poe injector for security ip camera
Description 4:poe connector for ip camera
Usage1:wall mount adapter of poe power

Function 1: poe splitter
Function 2: injector
To achieve best performance of a Wireless LAN, the location of
Access Point(AP) must be carefully chosen.In most cases, finding
a power supply for AP is a common obstacle.
Power over Ethernet(PoE) technology provides the perfect power
solution to help overcome these obstacles.In Ethernet, four pairs
of C5 or C5E twisted pairs are used as the medium for transmission.
The actual data transmission, however,only takes 4-pairs of wires
(pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and
7-8 to conduct electricity.
Data PIN:1/2,3/6
Power PIN:4/5+ and 7/8-
Data in:Connects PC/HUB/
Ethernet Data rate:10/100 Mbp
Ethernet Cable:TIA/EIA 568 Cat.5
Ethernet Cable Connector:RJ-45
Operating Temperature:0- 40 Degree
Storage Temperature:-40-70 Degree
Operating Humidity:10%to80% RH
Storage Humidity:5%to90% RH
Note this one is for 10M/100M,without adapter, with out earthnet and power
connectiong cables.
colour:black
Dimensions:50mm x 25mm x 25mm
material:ABS+ electronic components

Package Contents:
2 x PoE injector Splitter
