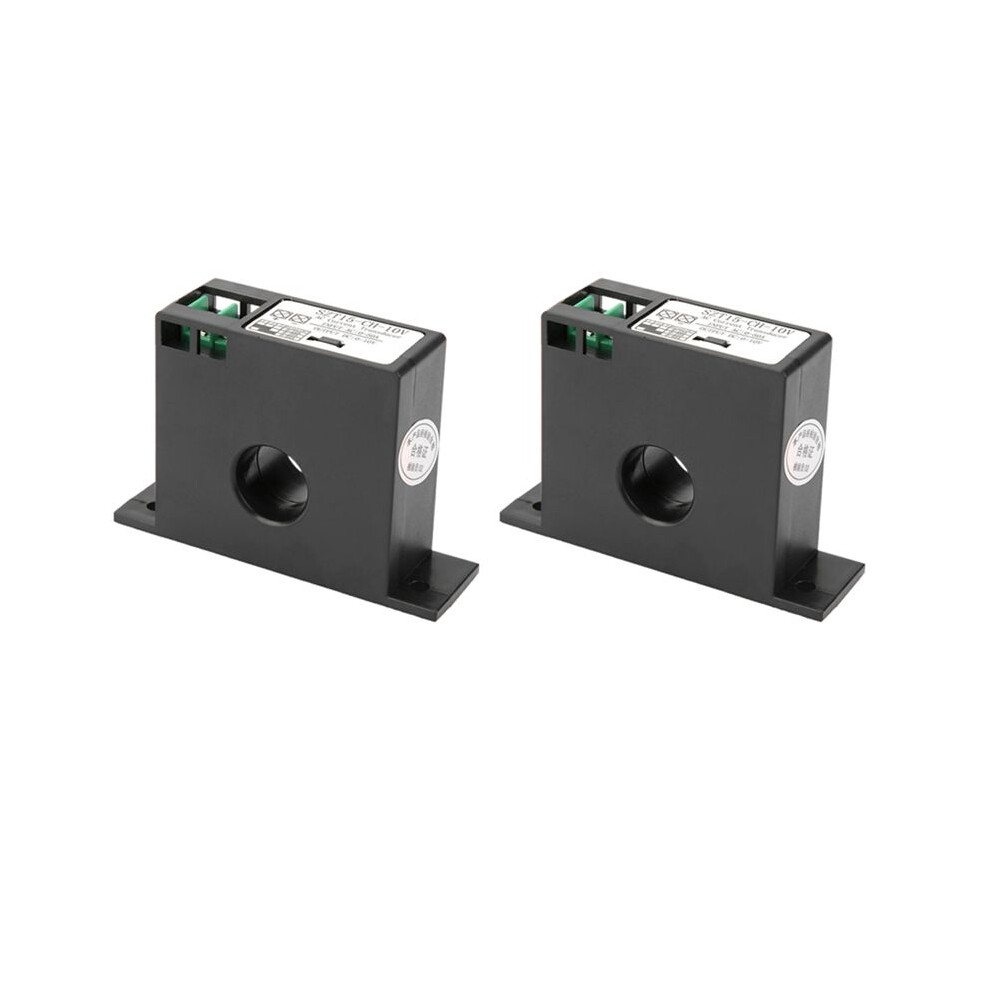

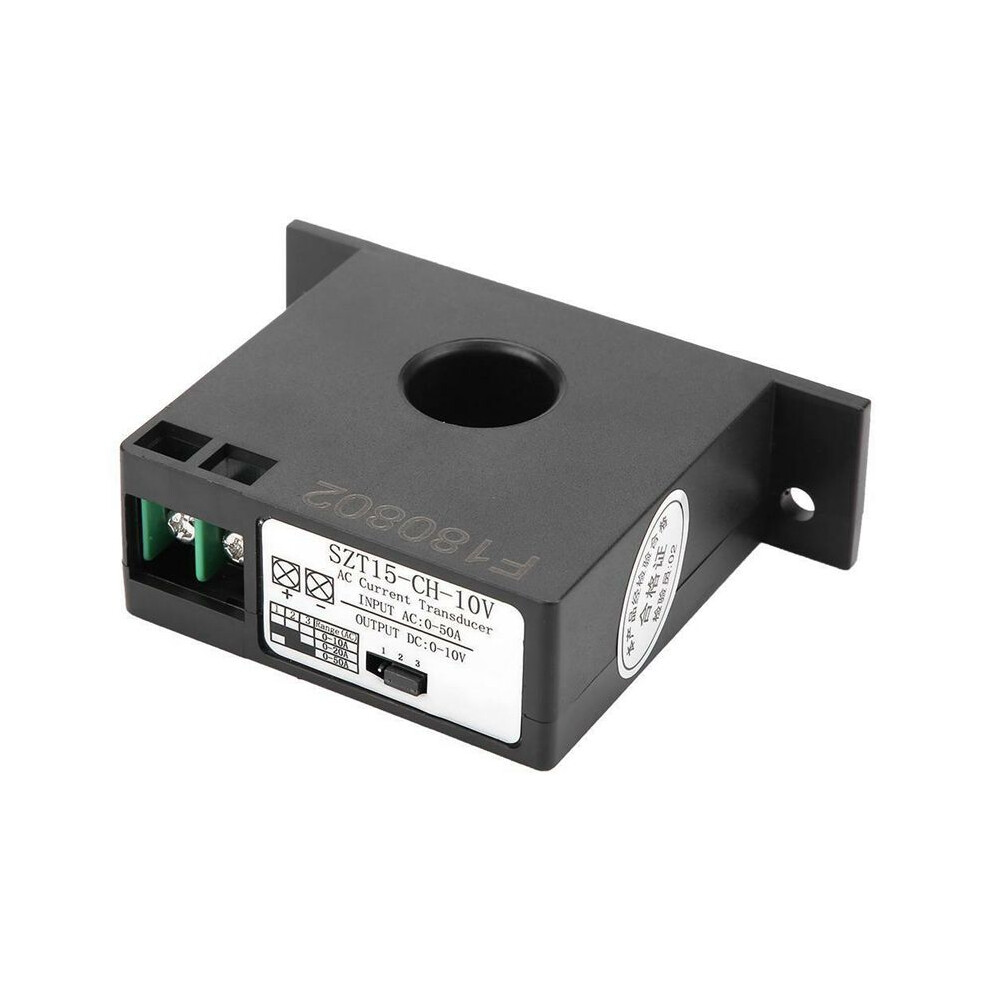

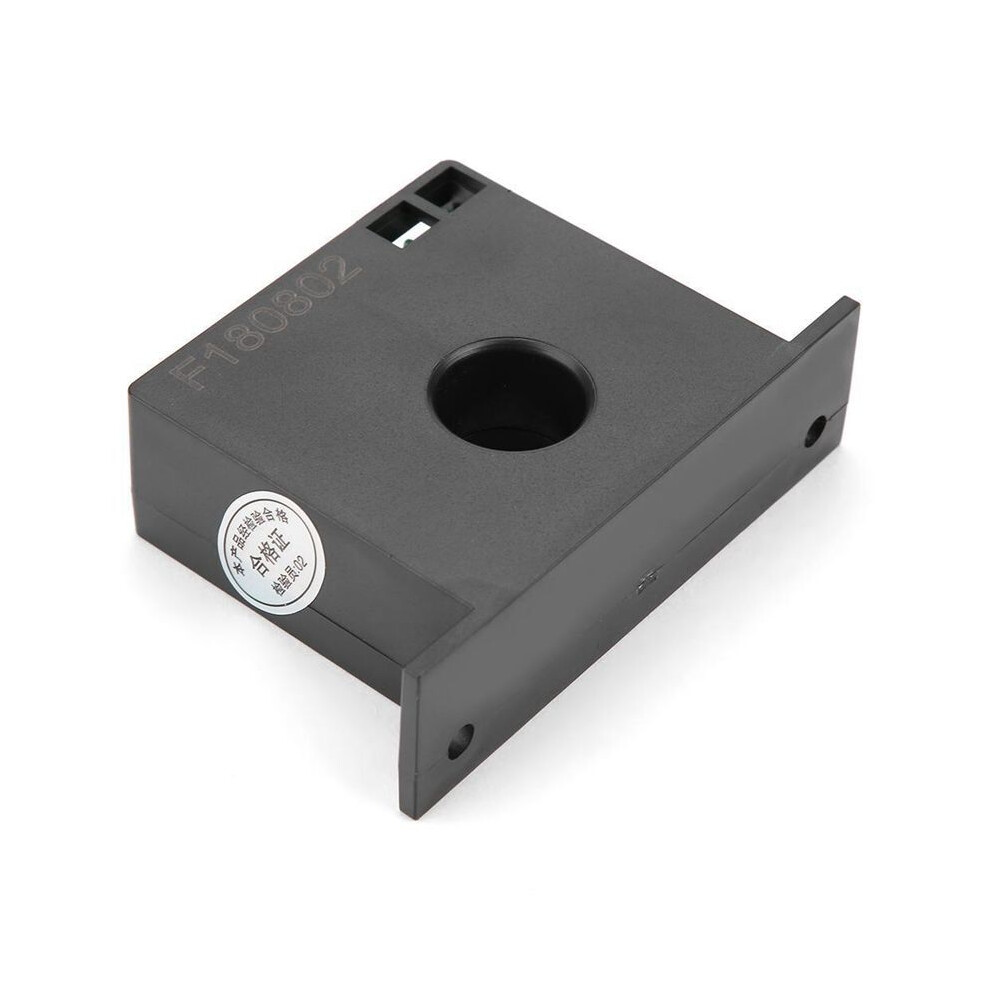

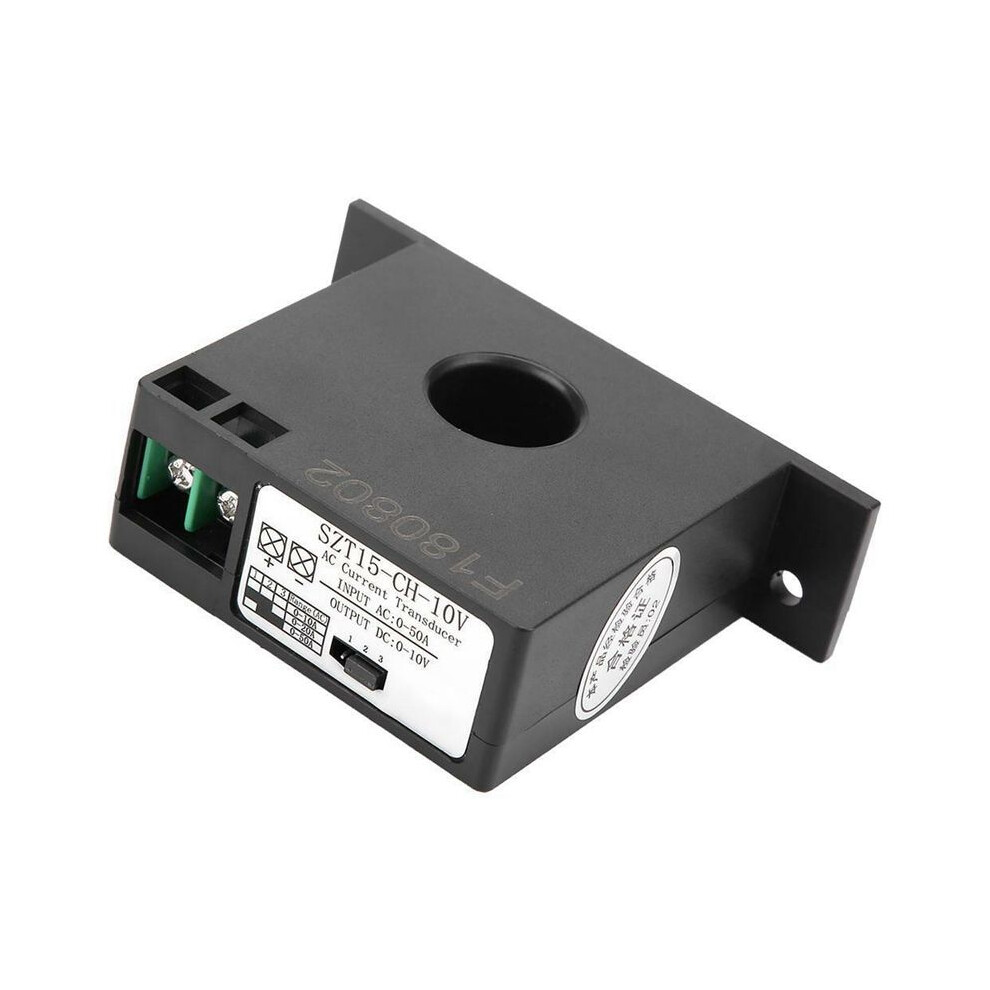

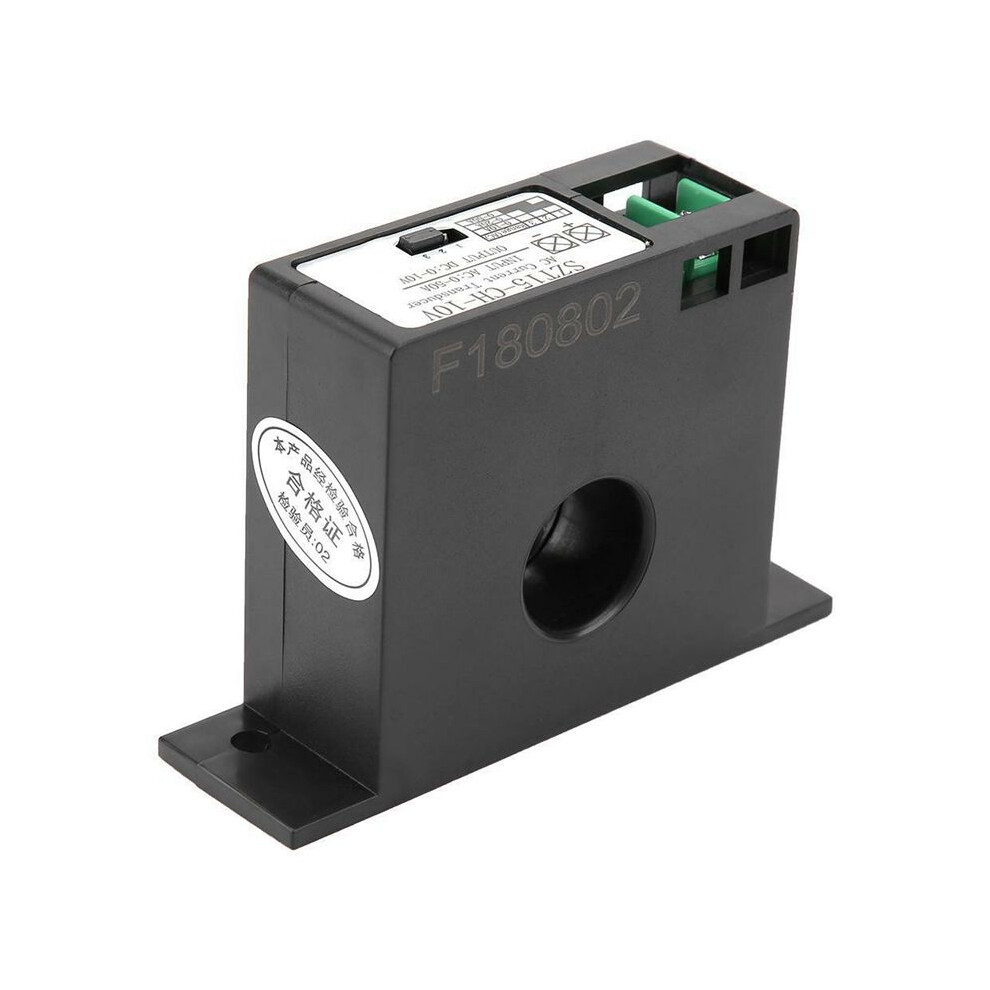

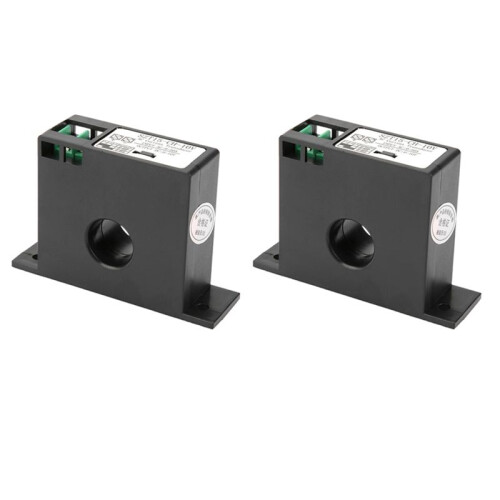

2X SZT15-CH-10V AC Current Transmitter Current Mutual Inductor AC 0-50A to 0-10V

2X SZT15-CH-10V AC Current Transmitter Current Mutual Inductor AC 0-50A to 0-10V Περιγραφή

1. Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.

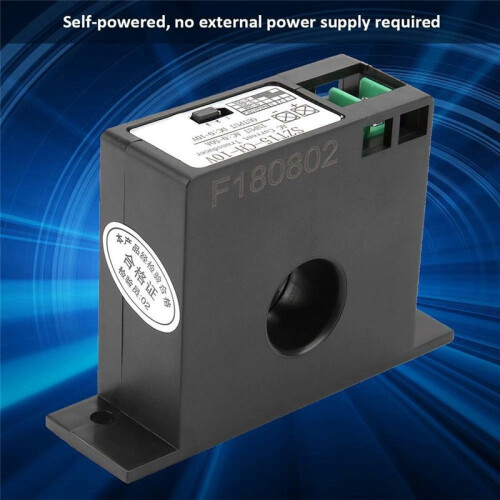

2. Self-powered, no external power supply required.
3. Easy to install and use, no need to connect into the circuit when measuring.

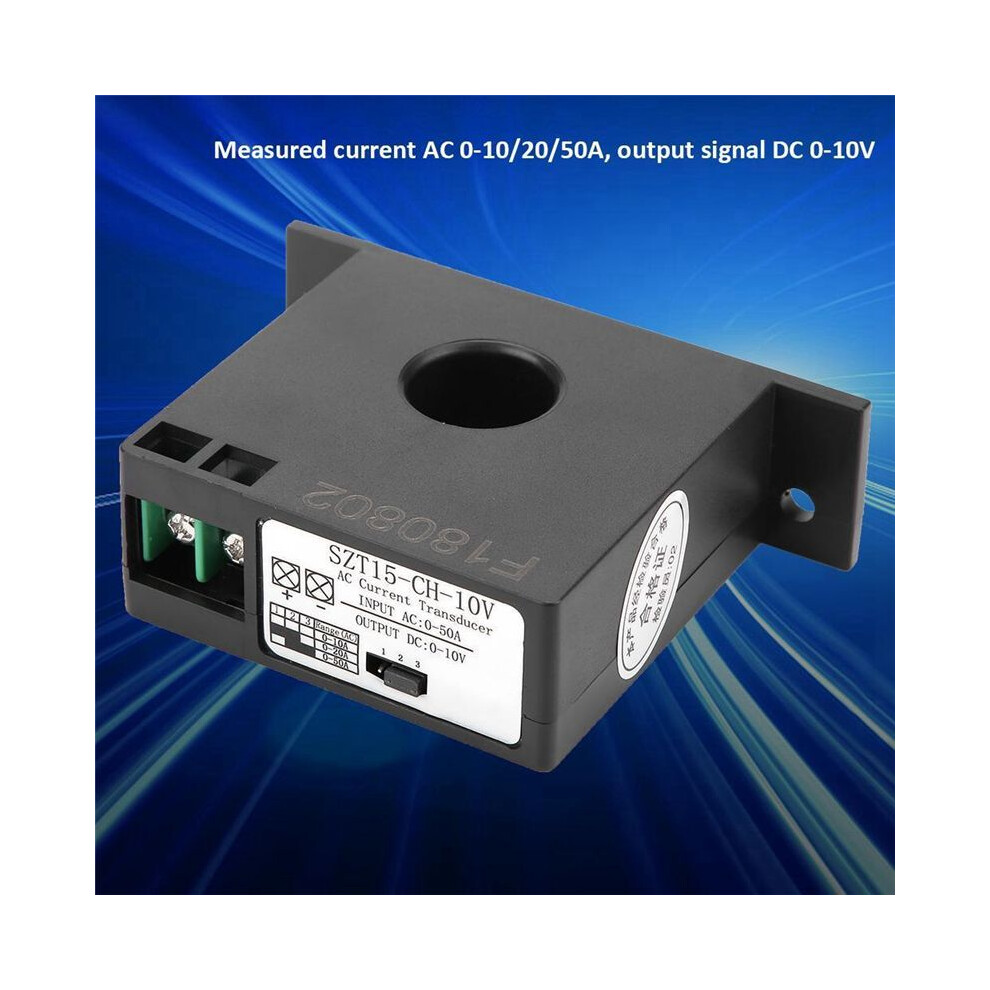

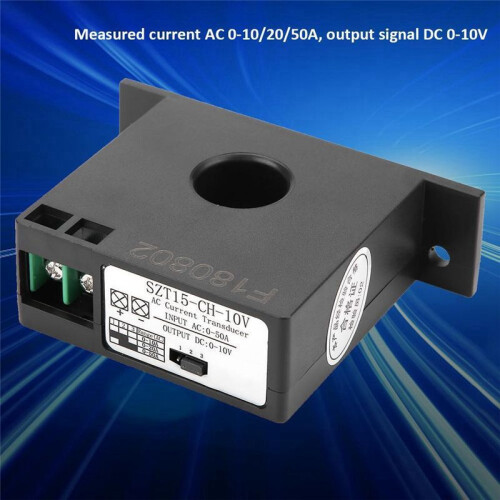

4. Measured current AC 0-10/20/50A, output signal 0-10V.
5. Straight-through structure design, isolation withstand voltage to 2000V.

Hysteresis is less than 1% and can be used under strong magnetic conditions.
The outer casing is made of self-extinguishing material ABS.
Suitable for AC current measurement and monitoring, AC motor overload protection, electronic of automatic control system and so .
Specification:

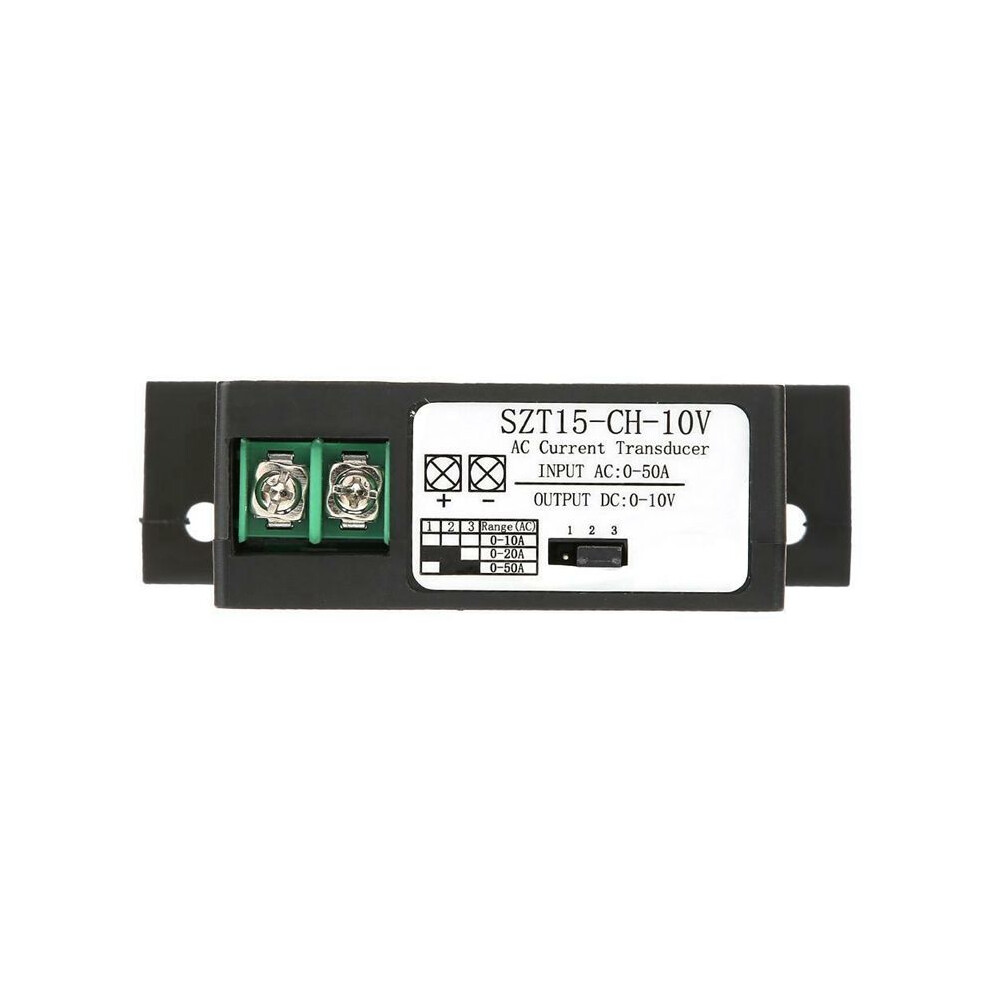

Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V
Input straight-through current: AC 0-10A/20A/50A
minimum: 0.50.2A
Maximum overload of straight-through current: 200%
Accuracy: 1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-
Straight-through wire diameter: 0.35-20mm
Response : 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60, 5-95%RH
Dimensions: 61.5 x 90 x 26mm / 2.4 x 3.5 x 1.0inch

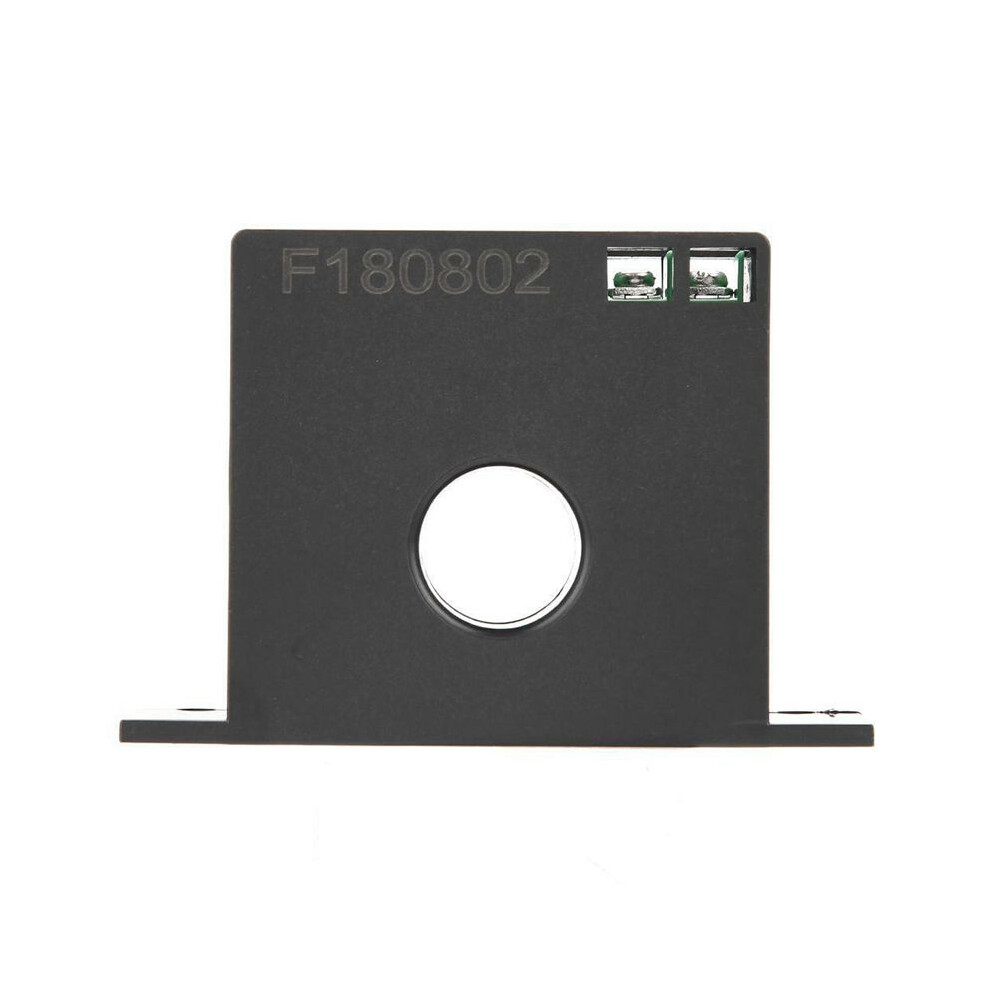

Hole diameter: 20mm / 0.8inch
Color: Black
Material: plastic + metal

Package Contents:
2 x AC Current Transmitter
