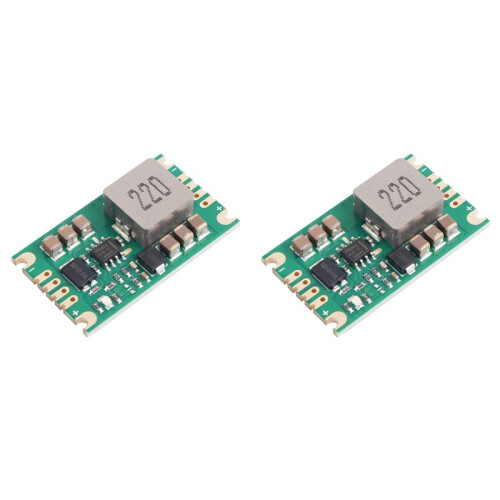

2X TPS54560 Power Module Low Ripple High Voltage - Power Supply 60V High Current DC5V 5AOutput Power Module

2X TPS54560 Power Module Low Ripple High Voltage - Power Supply 60V High Current DC5V 5AOutput Power Module Περιγραφή

This module adopts the TPS54560 chip, with a maximum current-carrying capacity of 5A, a maximum input capacity of 60V, and a theoretical conversion efficiency of to 90%.
The chip has overheat protection inside. When using for a long under high-power conditions, please pay attention to the heating of the module (chip, inductor, diode) to avoid overheating protection of the chip.
The module is laid out and wired in accordance with the official design specifications, with generous materials, small ripple, and is convenient and practical. Suitable for student competition modules and individual project development.

Module Type: BUCK step-down -, switching power supply, high-efficiency power supply
Main Power Supply Range: 7.5-60V
Output Voltage: 5V
Output Current: 5A
Minimum Voltage Drop Requirement: 2V, i.e., (VIN-VOUT) Greater than 2V
Output Enable Control: Supported, shorting EN and IN+ enables output, floating or grounding shuts off output
Maximum Conversion Efficiency: Greater than 90%
Protection Measures: Input reverse connection protection
PCB Process: Half-hole + immersion gold process
Mounting Method: Lead-in, surface mount, dual in- package
Module Spacing: Standard 2.54xN spacing
Operating Ambient Temperature:Greater than -25C,Less than +125C
Color: Green
Material: PCB

Package Contents:

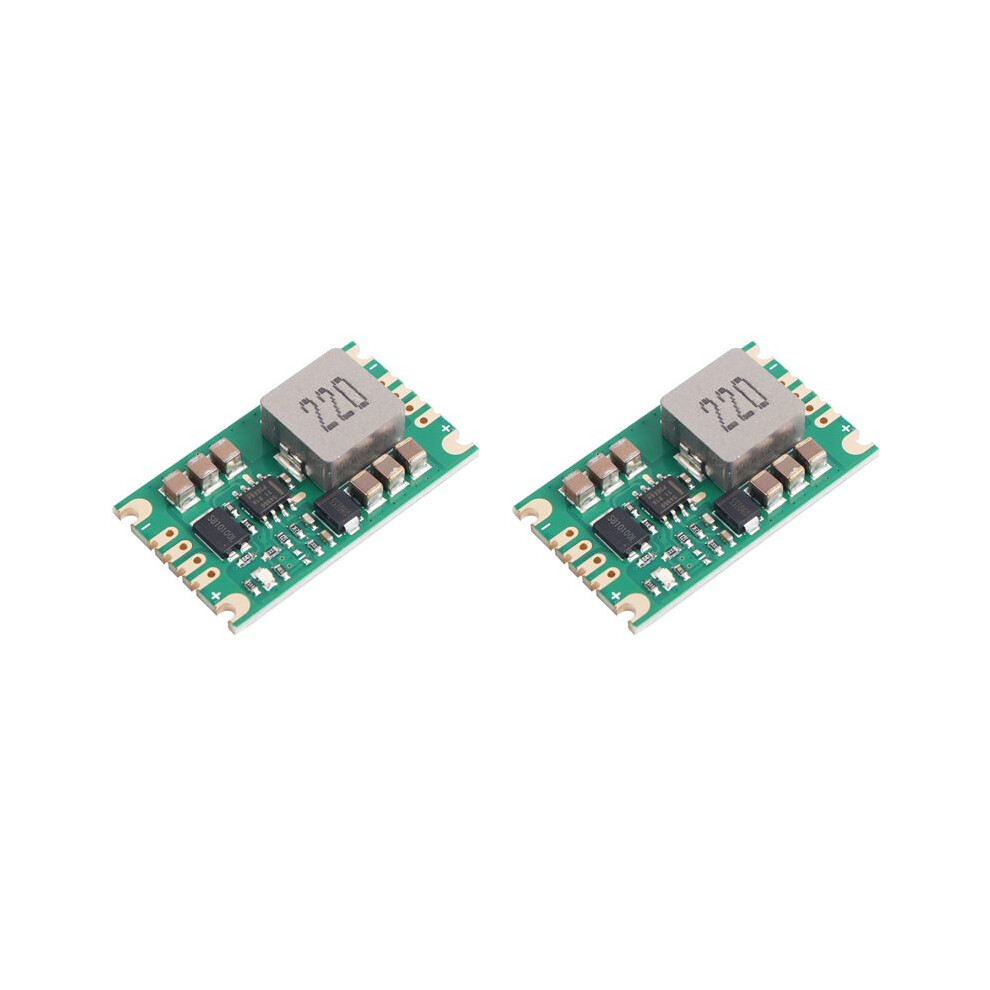

2 x TPS54560 module
