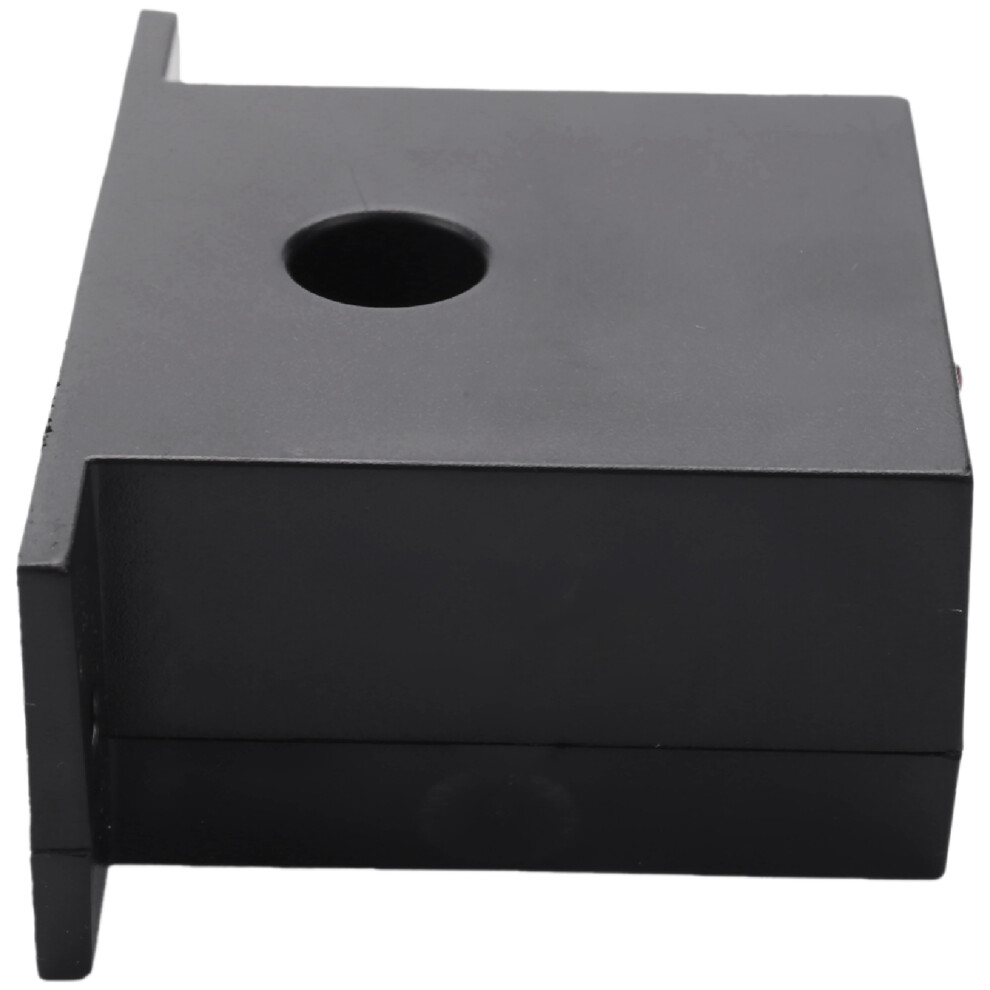

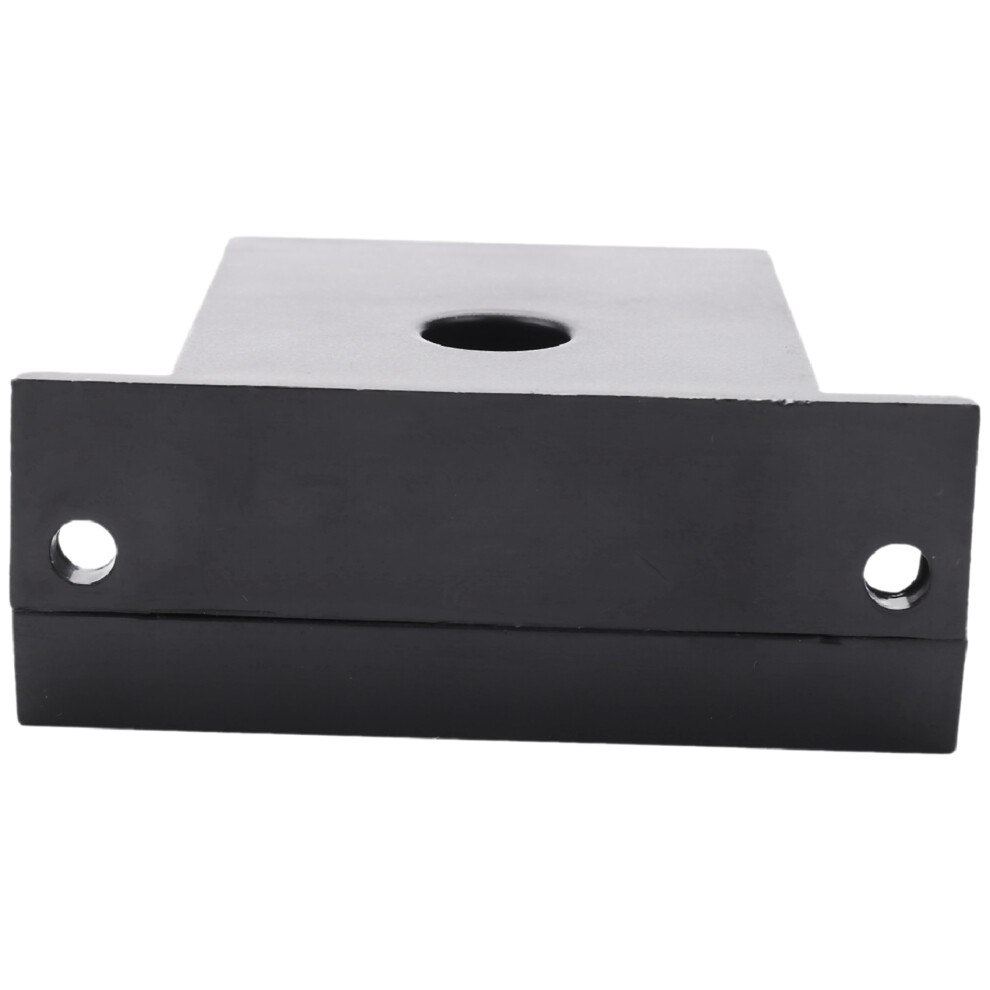

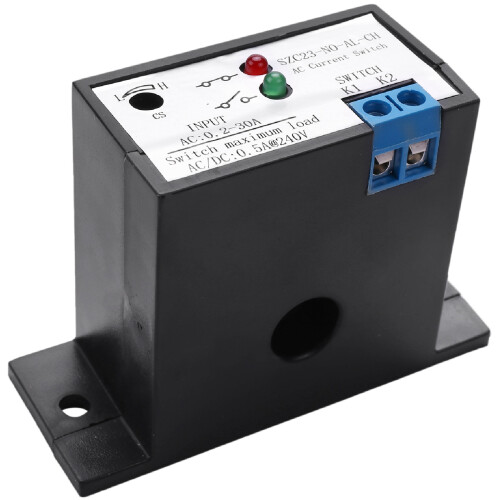

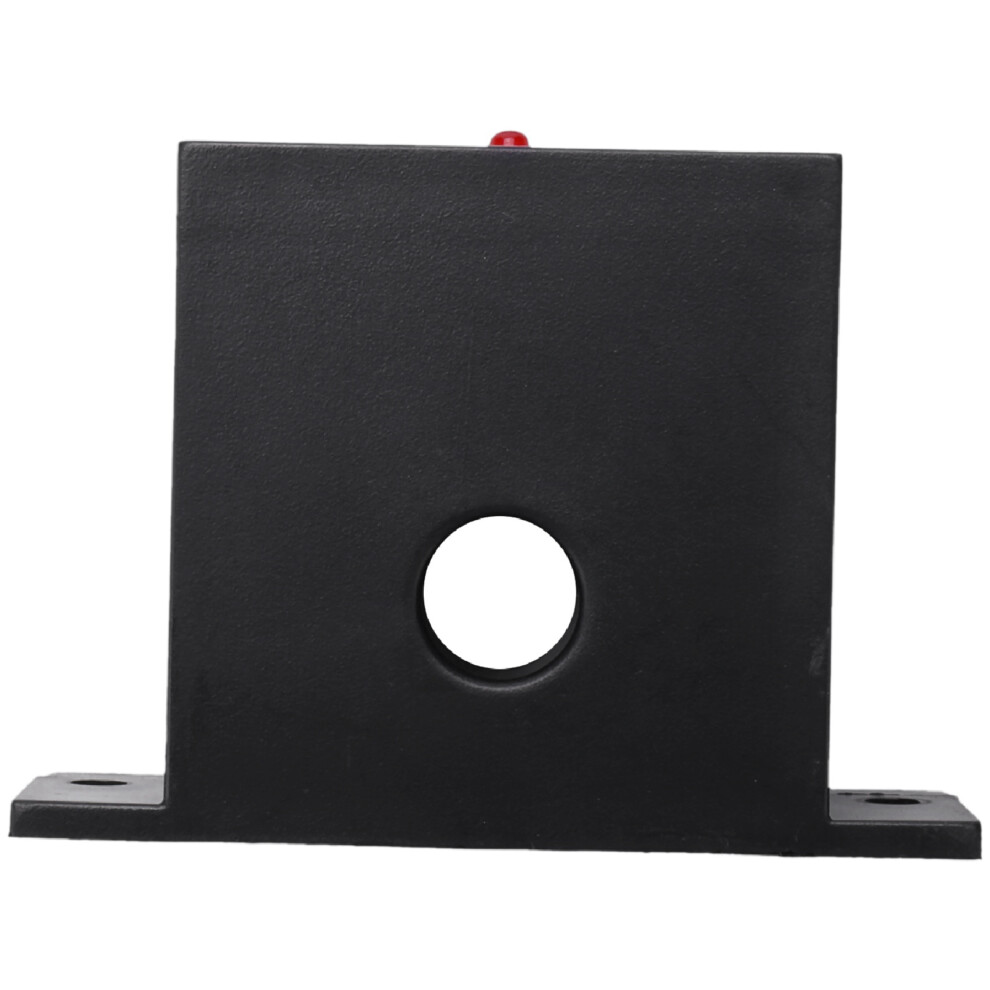

3X Current Mutual Inductance SZC23-NO-AL-CH Normally Open Current Detection for AC Current Current

3X Current Mutual Inductance SZC23-NO-AL-CH Normally Open Current Detection for AC Current Current Περιγραφή

Current Sensing
Type: Sensor
Item Type: Switches
SZC23 series AC current sensing is designed and manufactured to solve the AC current monitoring. It uses the principle of mutual inductance to sense the AC straight-through current, isolate the AC current, and output a normally open or normally closed switching signal to directly control various automation industrial equipment, such as flash, buzzer, relay, single-chip or other power load equipment.
Compared with traditional mutual inductors, thermal protectors and other devices, using this device can not only get more accurate and more timely control, but can also greatly simplify the design and reduce costs.

Model Number: SZC23-NO-AL-CH Current Sensing
1. Self-powered, no external power supply required.
2. Action current 0.2-30A AC, adjustable with a potentiometer.
3. LED indicator can conveniently and intuitively indicate the working status of the .
4. High-power MOS tube contactless electronic .
5. The has no limit the number of opening and closing, and the reaction speed reaches the ms level.
6. Straight-through structure design, isolation withstand voltage to 2000V.
7. Hysteresis is less than 1% and can be used under strong magnetic conditions.
Suitable for AC current measurement and monitoring, AC motor overload protection, electronic of automatic control system and so .
Power supply: Not required
Rated load: less than or equal to 0.5A 240V AC/
Input current: 0.2-30A AC
minimum: 0.5+/-0.2A
Maximum overload:
Leakage current: less than or equal to 0.1A
Accuracy: 1%
Hysteresis: less than or equal to 1%
Response : less than or equal to 200ms
Repeatability:
Working temperature: -20~60 Celsius
Wat
