400W BLDC 3 Phase Brushless Motor Controller Driver 6V-30V Hallless Motor Drive Board Power Supply

400W BLDC 3 Phase Brushless Motor Controller Driver 6V-30V Hallless Motor Drive Board Power Supply Περιγραφή

1.The product is made of high-quality materials with guaranteed quality
2.This is a multifunctional three-phase brushless sensorless drive controller with 6 modes and limit, with 3 types of speed control signal inputs
3.Stable product performance and long service life
4.Supports wide voltage range of 6-30V and high power of 400W
5.Equipped with over temperature protection, over current protection, locked rotor protection, etc

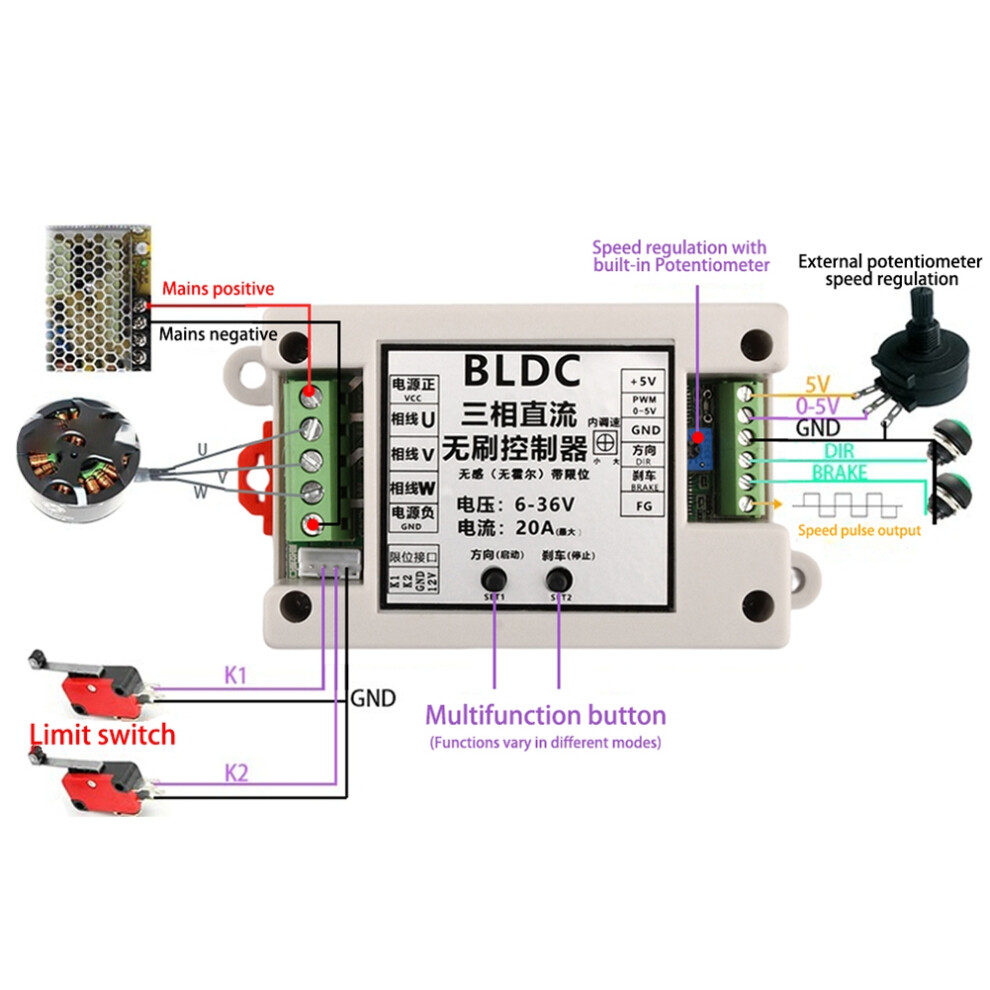

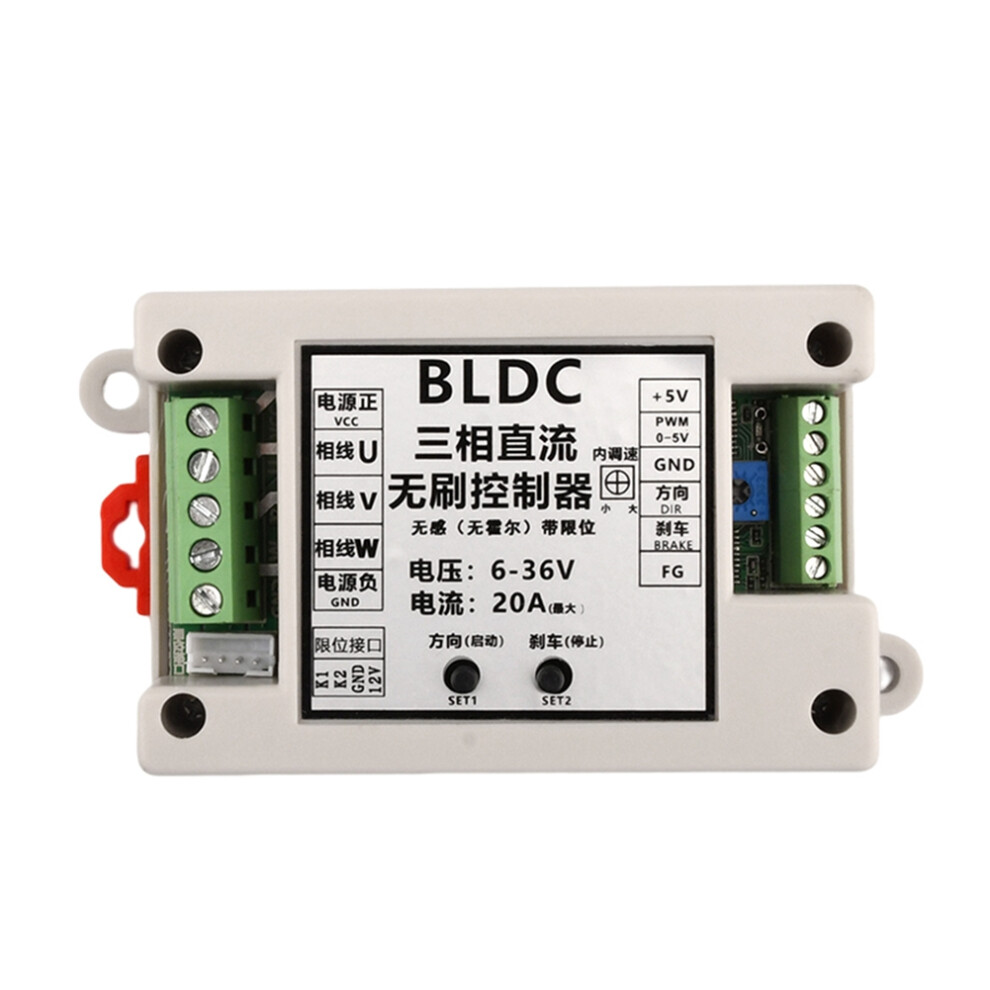

Interface Description:
1. U V W 3-phase output connected to brushless motor
2. 5V GND motherboard comes with 5V (external output current within 100MA)
3. VCC GND driver main power supply (external power supply)
4. FG speed pulse signal output
5. DIR forward and reverse control is effective at low levels (can be externally switched)
6. BRAKE brake control active brake low level effective (can be externally switched)
7.0-5V 1-4.2V PWM speed regulation control signal three input terminals (the board is equipped with a Potentiometer for speed regulation, and 0-5V analog PWM duty ratio signal can also be connected externally for speed regulation)
Parameters:
Product name: ZS-X14
Working voltage: 6-30V (limit 36V)
Drive current: rated 18A, with heat dissipation treatment of 25A
Power: rated 250W-300W, 400W (please leave margin for use)
Overcurrent protection: Yes
Locked rotor protection: Yes (after locked rotor, the current automatically drops and runs in isolation)
Over temperature protection: Yes (over temperature power reduced by half)
Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor)
Colour:Photo Color
Material:Plastic

Package Contents:
1 x Brushless Motor Controller Driver
