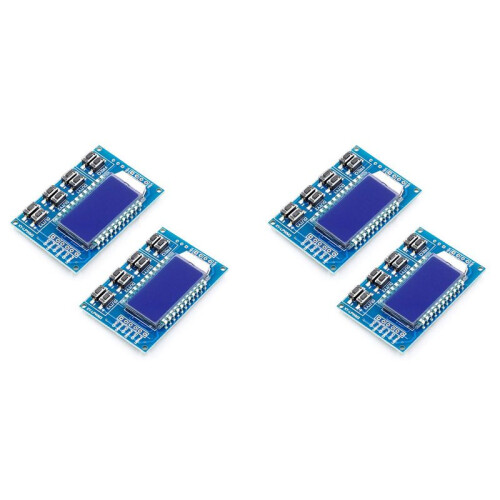

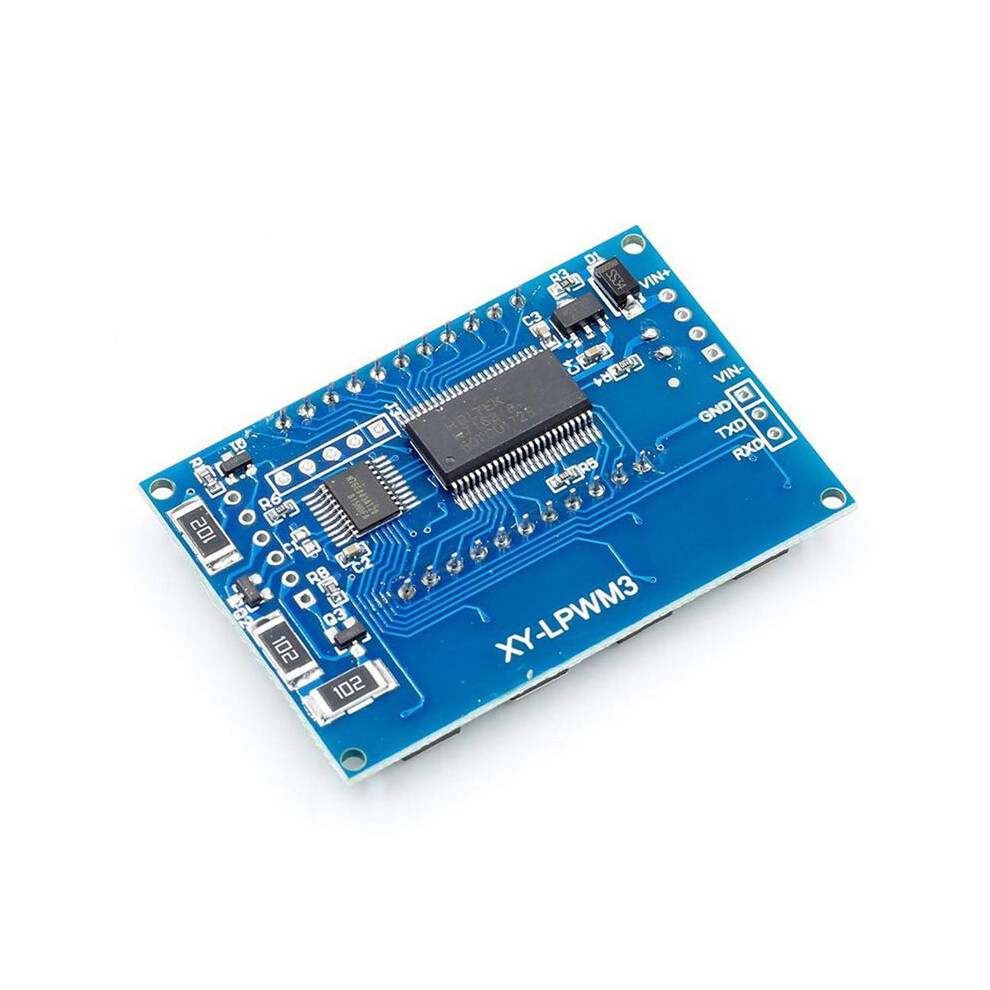

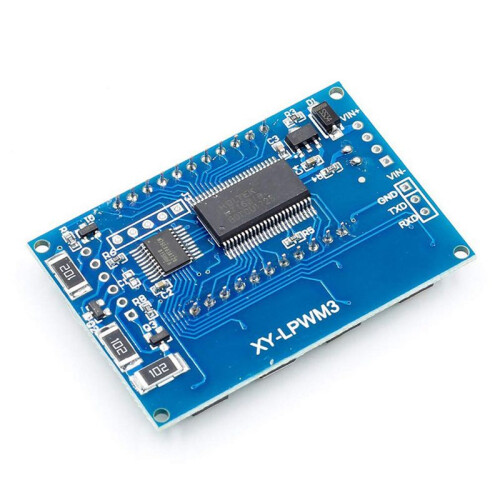

4Pcs 3 Channel PWM Pulse Generator Adjustable Frequency Square Wave Rectangular Wave Signal Generator Module

4Pcs 3 Channel PWM Pulse Generator Adjustable Frequency Square Wave Rectangular Wave Signal Generator Module Περιγραφή

Three-channel PWM is outputted,wide frequency range and the duty ratio can be adjusted independently
Frequency is divided into four areas,automatic switching: 1. XXX(No decimal point): 1HZ Stepping Unit,Range:1Hz~999Hz; 2. X.XX(The decimal is in place):0.01KHZ Stepping Unit,Range: 1.00Khz~9.99Khz; 3. X.XX(The decimal is in the tens place):0.1KHZ Stepping Unit,Range: 10.0Khz~99.9Khz; 4. X.X.X(The decimal is in the ones place):1KHZ Stepping Unit,Range: 1Khz~150Khz;
E.g. ,frequency display:100 the pulse of 100Hz ; 1.01 the pulse of 1.01KHz; 54.1 the pulse of 54.1KHz; 1.2.4 the pulse of 124Hz
The value range of dutyfactor: 0~, is represented by A0%.
All parameters setted can be automatically saved in case of power cut.

Parameter:

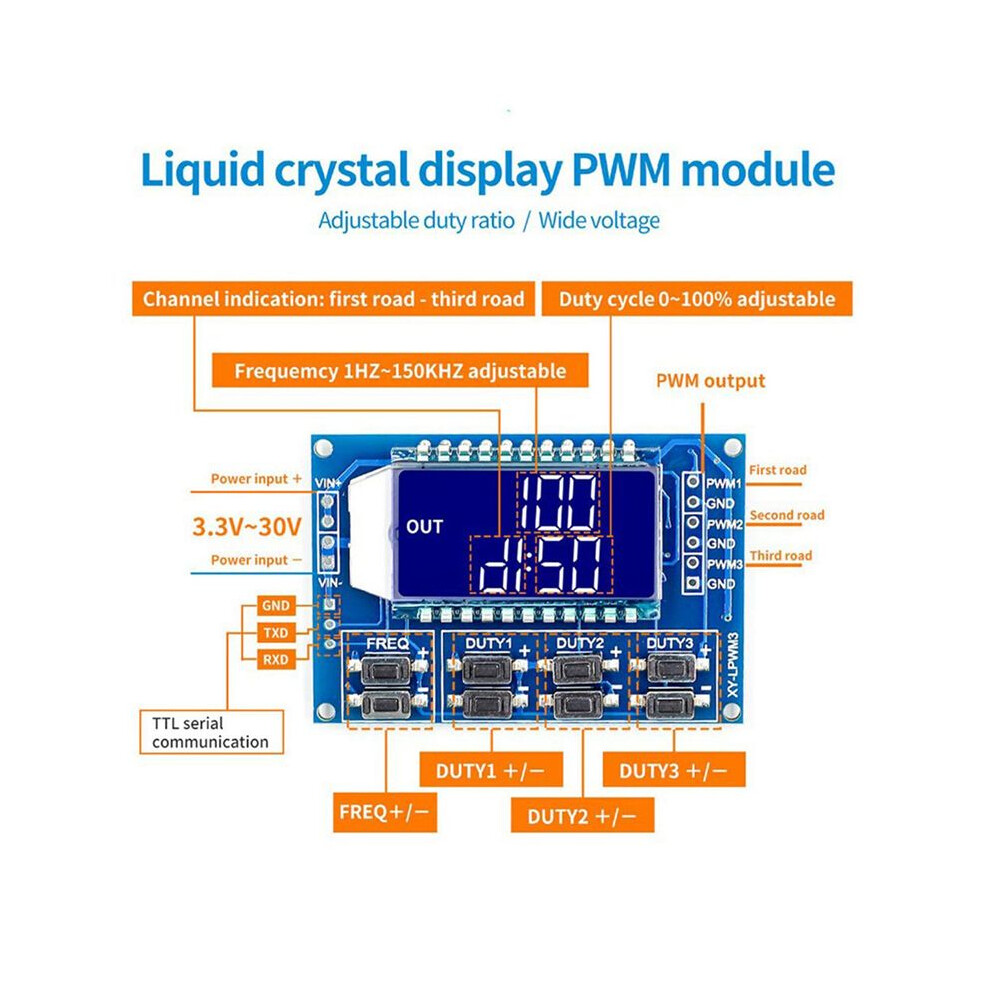

Has 8 independent keys,used to set the frequency and duty ratio,support short press (increase or decrease a unit) and long press (fast increase or decrease),very simple,set the parameters automatically save,power loss.
3-Way duty ratio button can be pressed at the same ,real- adjustment, liquid crystal display is the last pressed button duty ratio,real- is very strong,can be used as a simple several road duty ratio scan.
Applications:
1.Used as square wave signal generator to generate square wave signal for experiment development and use
2.Used to generate a square wave signal to control the motor driver;
3.Generating adjustable pulses for MCU use;
4.Generate adjustable pulse, control related circuit (PWM dimming speed and other applications).
color:Photo color
Material:PCB + electronic components

Package Contents:

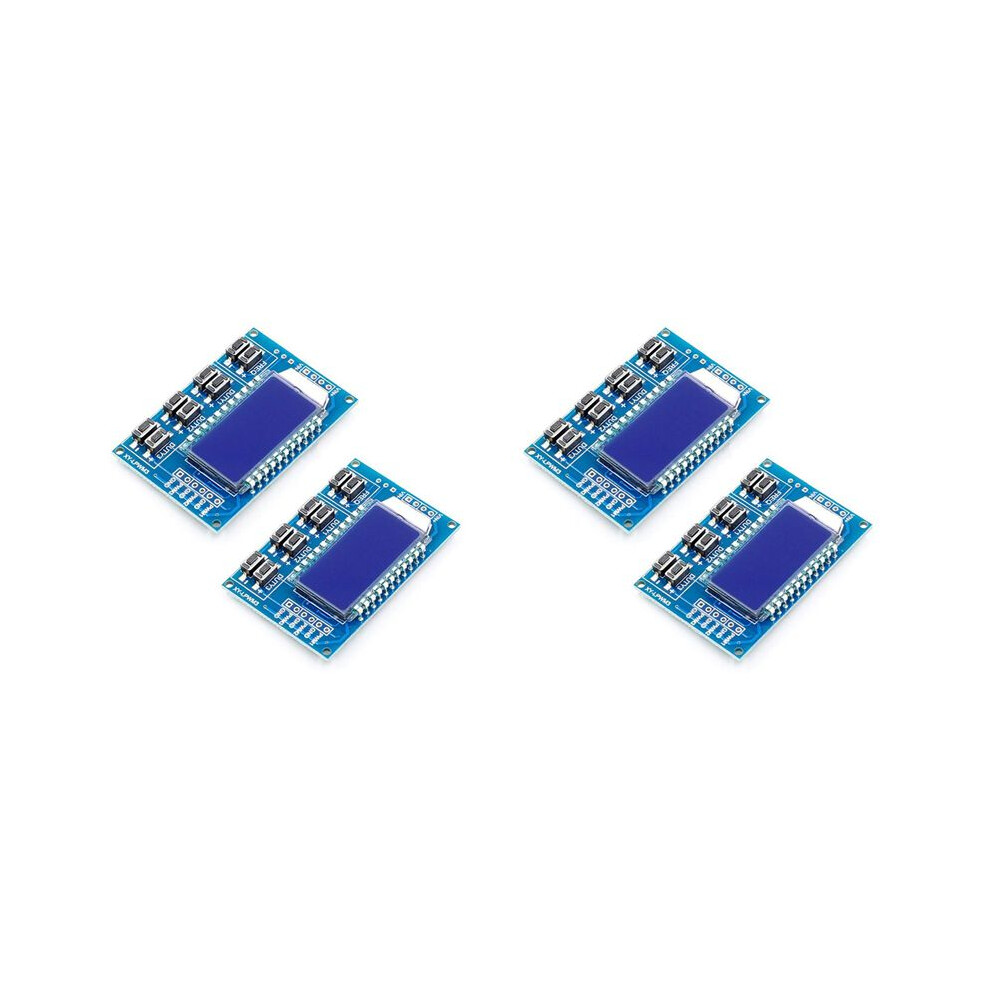

4 x 3 Channel PWM Pulse Generator Module
