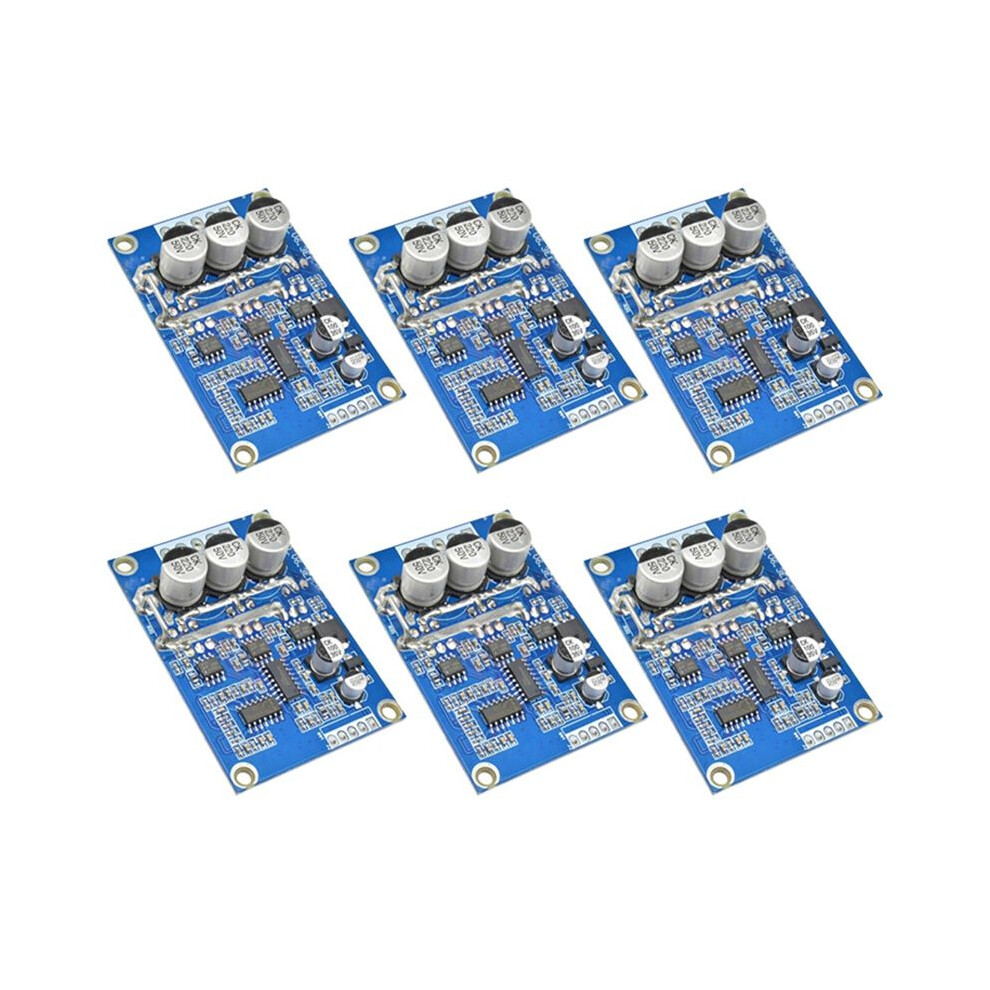

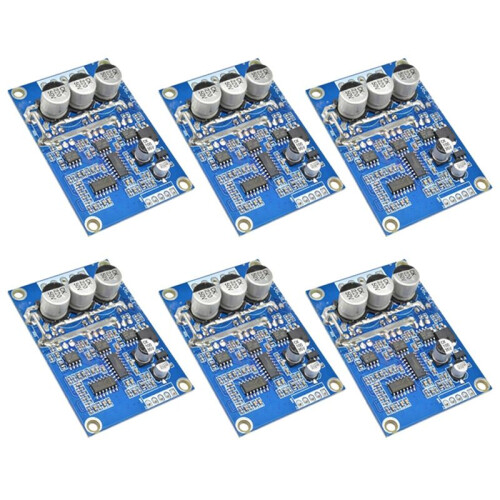

6X Brushless Motor Controller No Hall Motor 12V-36V 500W Balancing Balanced BLDC Car Driver Control Board

6X Brushless Motor Controller No Hall Motor 12V-36V 500W Balancing Balanced BLDC Car Driver Control Board Περιγραφή

1. VR speed control port connection method can be controlled by voltage regulation control or PWM control speed voltage regulation can be adjusted by the adjustable resistance (20K 3 pin bit VR port side of the port side of the 5V port to connect to the GND port through the regulation of voltage control)
2. positive reverse port connection method to connect 5V a direction to the direction of GND
3. Singnal speed pulse output port output of a circle of pulse = motor pole number x 3
4. 5V control terminal 5V voltage output port.

Drive plate type: JYQD_V6.3E1
Voltage range: 12V-36V
current: 20A
Drive power: less than equal 500W (related working voltage)
Speed control function: voltage speed regulation or single chip
microcomputer control PWM speed regulation
Power end connection:
1, VCC power positive input port (12V-36V)
2, GND power input port
3, MC brushless motor without a sense / no Holzer motor three W
4, MB brushless motor without a sense / no Holzer motor three V
5, MA brushless motor without a sense / no Holzer motor three U
size: 6.3 x 4.3 x 1.7cm
Material:PCB
colour:

Package Contents:
6 x motor controller
