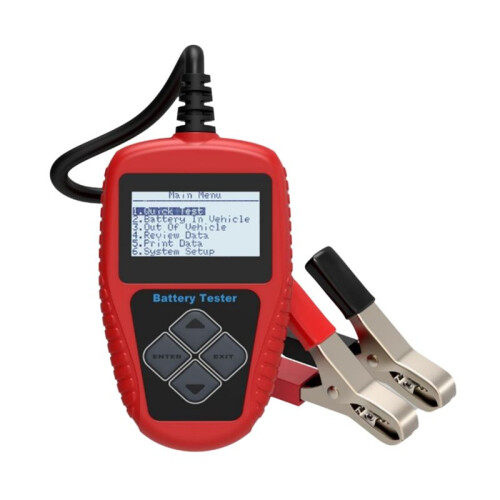

BA101 12V Car Battery Tester Analyzer Automotive Battery Load Tester 100-2000CCA Charging Circuit Load Diagnostic Tools

BA101 12V Car Battery Tester Analyzer Automotive Battery Load Tester 100-2000CCA Charging Circuit Load Diagnostic Tools Περιγραφή

1. Simple and easy to use

2. Test batteries and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace

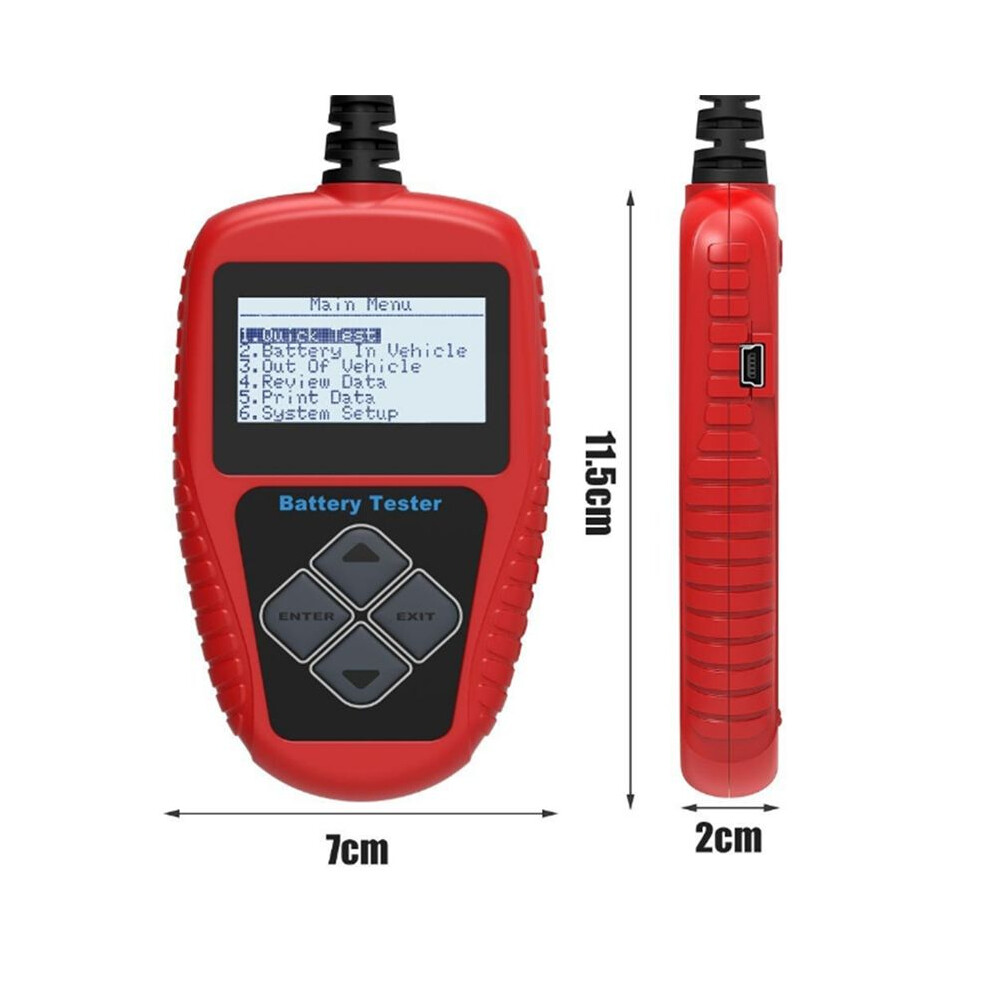

6. Large easy to read LCD display.
7. Test results based JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English,
9. Quick test-input battery volume (AH), then it can show the battery status.
10. Vehicle cranking system test--- cranking , voltage and status.
11. Vehicle charging system test-load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function
BA101 Automotive 12V Vehicle Battery Tester :
1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
4. Able to test condition of discharged battery.
5. Consistent and repeatable results.
6. Provides unique indication of battery conditions.
7. Provides check the Alternator's charging and 's cranking conditions. It is maintenance free and no internal batteries required.
8. Powers when connected to the battery posts during testing.
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
Operating Parameters:
System voltage: 12 Volts
Input voltage range: 9V~15V
Power requirements: No internal batteries required. Power when hooked during testing.
Testing range: 100 ~ 2000 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN
AH range: 30-220AH
Material: ABS
Colour: RED

Package Contents:
1PCS BA101 12V
