BugC2 Programmable Robot Base 4-Channel L9110S Motor Driver and Geared Motor with StickC PLUS2

BugC2 Programmable Robot Base 4-Channel L9110S Motor Driver and Geared Motor with StickC PLUS2 Περιγραφή

BugC2 is a programmable robot base compatible with the M5StickC series controllers. This base integrates a four-channel L9110S motor driver and geared motors, with the STM32F030F4 as its core control chip.
BugC2 features two programmable RGB LEDs, an infrared encoder, and a dedicated battery holder. Through its top slot, BugC2 can be tightly connected to the M5StickC controller, receiving precise control commands via the I2C protocol (address 0x38).
BugC2 In addition to providing basic mobility, BugC2 also includes advanced features such as a Type-C charging interface, battery reverse connection protection, and voltage detection, ensuring safety and convenience.
BugC2 built-in 700mAh 16340 rechargeable lithium battery ensures long-lasting operation, making it a versatile and efficient programmable robot platform suitable for various educational and innovative applications.
StickC-Plus2 is the iterative version of StickC-. It is powered by the ESP32--V3-02 chip, providing Wi-Fi connectivity. Within its compact body, it integrates a rich variety of hardware resources, including IR emitter, RTC, microphone, LED, IMU, buttons, buzzer, and more.

StickC-Plus2 features a 1.14-inch TFT display driven by the ST7789V2 with a resolution of 135 x 240. The battery capacity is 200mAh, and the interface is compatible with both HAT and Unit series modules.

BugC2 Features:
Programmable robot
Remote control
Four-channel motor driver (L9110S)
2x RGB LED
Infrared remote decoding
Battery voltage detection
Onboard Type-C battery charging
Battery reverse connection protection

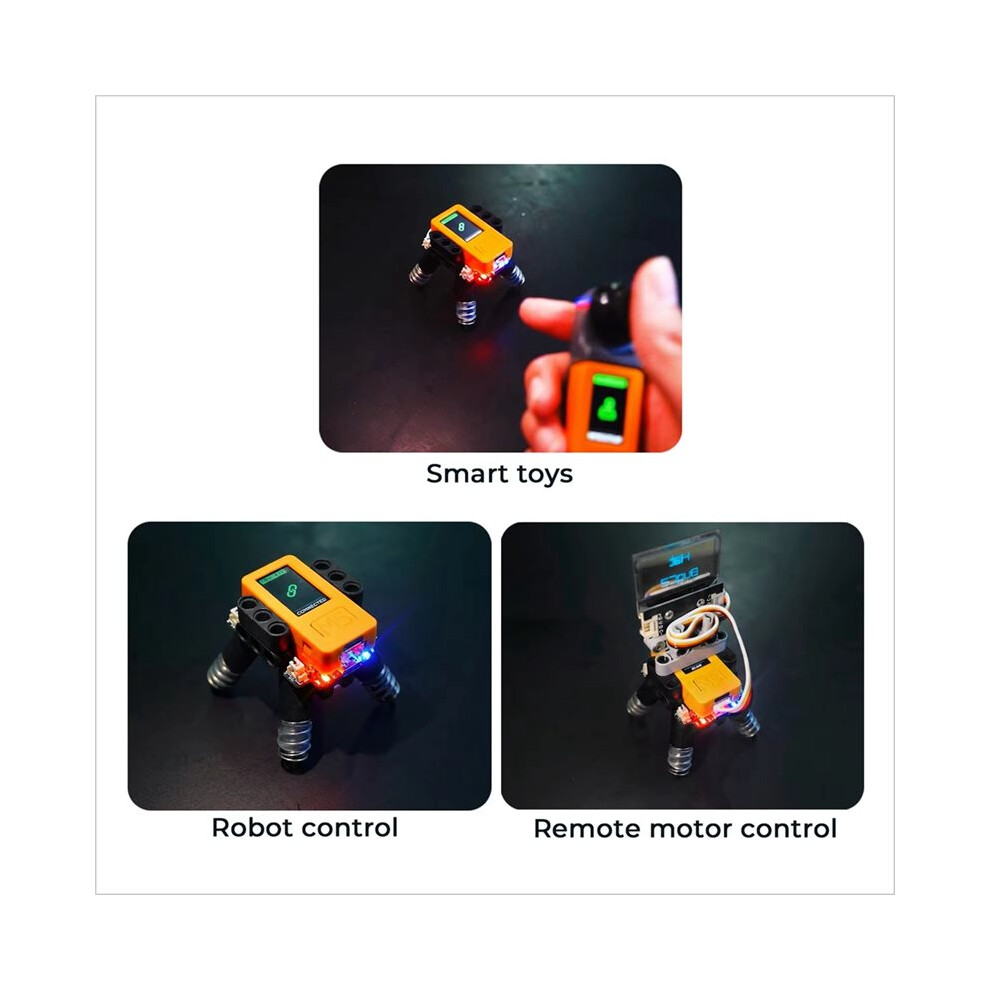

Applications:
Remote motor control
Robot control
toys

BugC2 Specifications:
MCU: STM32F030F4P6
Motor driver: L9110S
Infrared receiver: SL0038GD
RGB: WS2812C-2020
