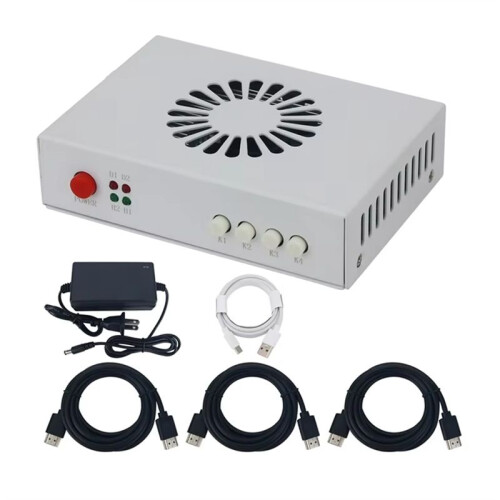

CapDMA Video Overlay Box -Compatible DMA Video Processor Support 2K144/1K240 High Quality Computer Compone US Plug

CapDMA Video Overlay Box -Compatible DMA Video Processor Support 2K144/1K240 High Quality Computer Compone US Plug Περιγραφή

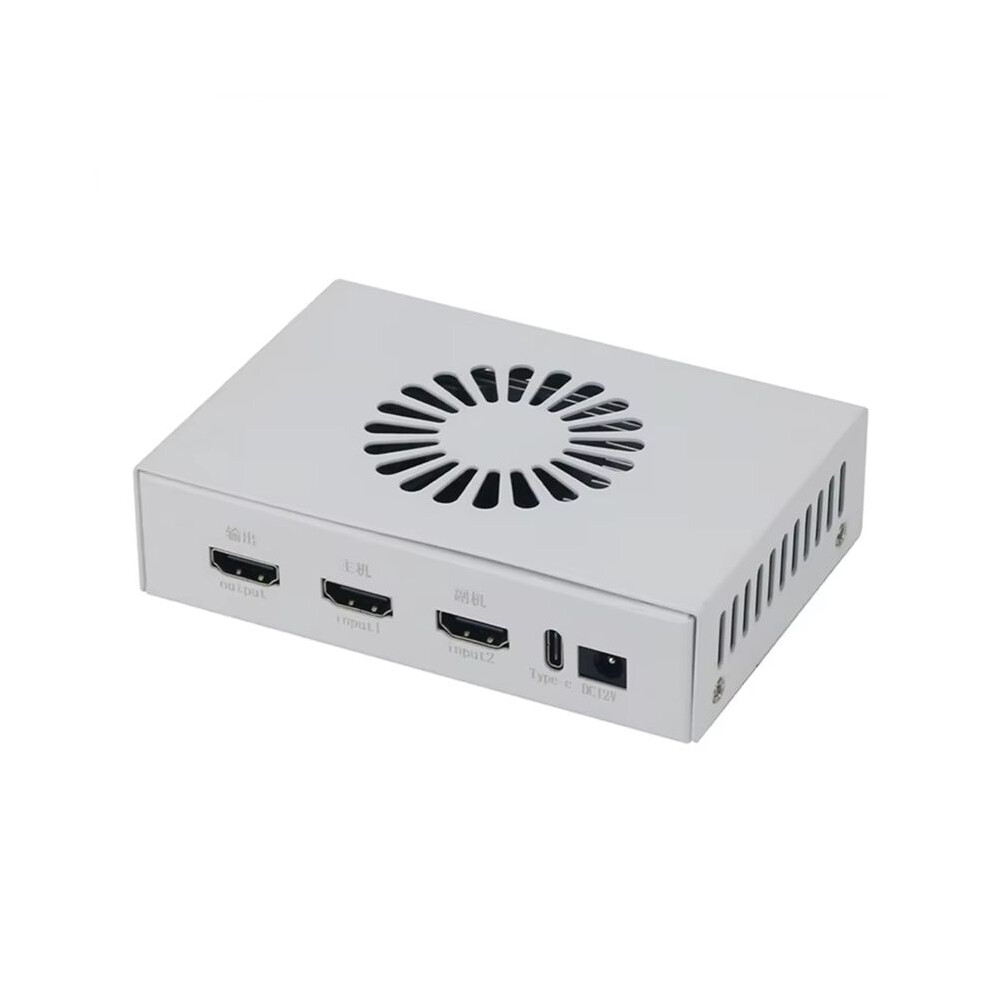

Interfaces: 1.-compatible output: to connect the main display,2.-compatible 1 host: to connect the host GPU,3.-compatible 2 secondary: to connect the secondary machine GPU,4.Type-C: to upgrade program and inject EDID (only used during upgrades),5. 12V: power supply (default 12V 2A),Note: the host GPU cannot be directly connected to the main monitor with a DP or -compatible cable. If there is a connection, it must be unplugged.

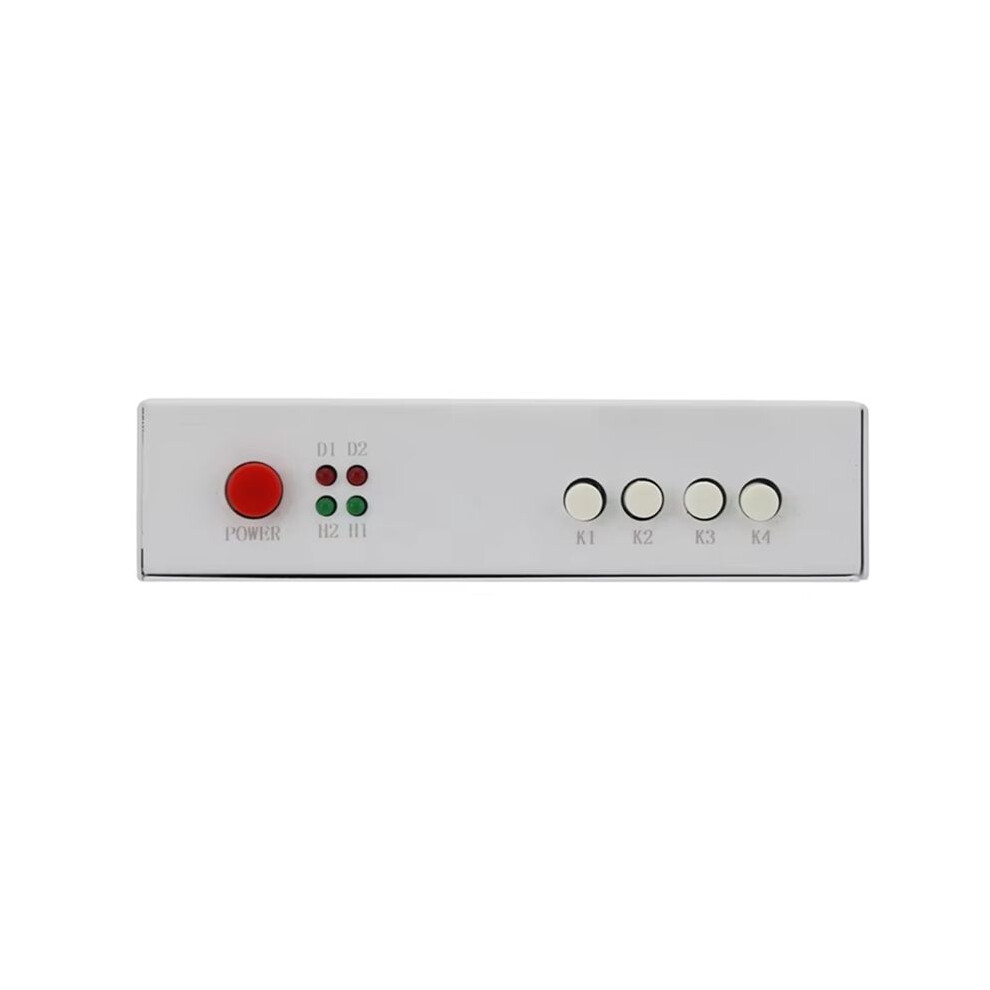

Indicators:D1: Power indicator (always for power ),D2: Fusion function /off indicator light,H2: -compatible 2 secondary machine input signal indicator (always : normal; off: no signal),H1: -compatible 1 host input signal indicator (always : normal; off: no signal),
Plug and , automatic standby, memory storage, temperature controlled cooling, picture output, extremely low latency.

Button Function:Power: power
K1: short press for switching resolution in cycle (1920 x 1080; 2560 x 1440; 3840 x 2460; 2560 x 1080; 3440 x 1440)
Note: long press and hold the K1 key for 3 seconds (hold until displayed): the current resolution and refresh rate are displayed in the upper left corner of the screen, with the host information the top and the secondary information the bottom.
: short press for switching the upper layer image matting intensity with a total of 21 levels from 0 to 20. (default 0, level 0 also matting)
K3: short press to restore the upper layer cutout strength to the factory default of 0.
K4: Short press for switching the fusion function.
Note: If you press the K4 key and the fusion light , but there are no perspective fusion, there are two ways to solve this problem. One is to set the background color of the secondary unit to pure black; The second is to press the key to enhance the RGB value.
Voltage: AC110V
Plug Type:US Pl
