DC12V -36V 4CH Wireless Remote Control LED Light Relay Output Radio RF Waterproof Transmitter & 433MHz Receiver

DC12V -36V 4CH Wireless Remote Control LED Light Relay Output Radio RF Waterproof Transmitter & 433MHz Receiver Περιγραφή

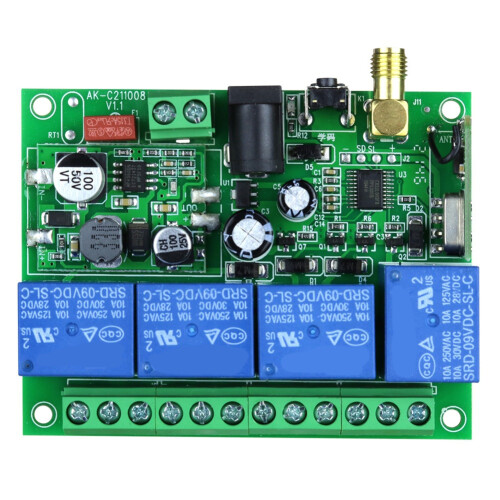

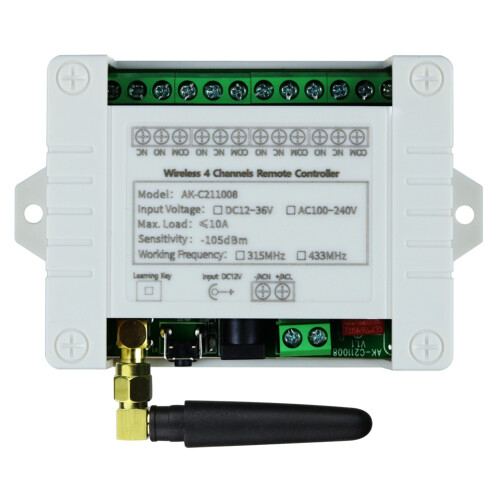

About Receiver:1. Working voltage: DC12V-36V;2. Quiescent condition: Less than 6mA; 3. Working temperature: -40 Degree +80 Degree; 4. Receiver sensitivity: more than -105dBm; 5. Working frequency: 433mhz; 6. Output voltage: and AC is optional; 7. Max load current: 10A
About Learning and clearing Method:Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need); Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond ,it means clearning code successful.

About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold - ; Release - Off.
Toggle: Press the Learning Button 2 times.
Relay: Press - ; Press same button again - Off·
Latched: Press the Learning Button 3 times.
Relay: Press - ; Press other button - Off.
2channel Momentary +2channel Latched: Press the Learning Button 4 times.
2channel Momentary +2channel Toggle: Press the Learning Button 5 times.
2channel Toggle +2channel Latched: Press the Learning Button 6 times.

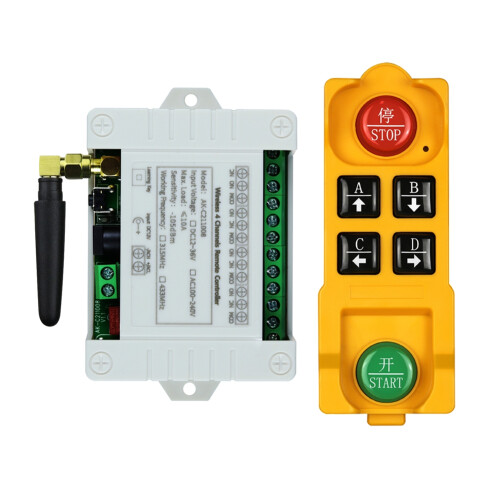

About Transmitter:
1.Buttons: 4 Buttons
2.Working Voltage:DC3V battery AA*2 not included
3.Operating frequency :433MHz
4.Remote Distance: 200-1000M
5.Operating Current: 13 mAh
6.Encode: EV1527 code
Due to different product batches, the appearance may vary, which does not affect the use
Colour:As Shown
Material:plastic

Package Contents:
1 x controller
1 x remote controller(Without 2 x AA batteries)
