DC5V High Precision Digital Inductance and Capacitance Measuring Instrument Frequency Meter with Case

DC5V High Precision Digital Inductance and Capacitance Measuring Instrument Frequency Meter with Case Περιγραφή

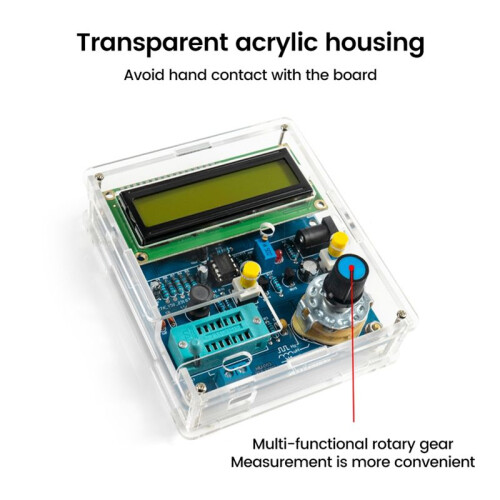

Features: 1. Avoid hand contact with the board, beautiful and durable.
2. Multi-functional measuring instrument electronic DIY kit, simple operation, easy to use.
3. High-definition liquid crystal display, large LCD, digital symbols show clearly, easy to read.

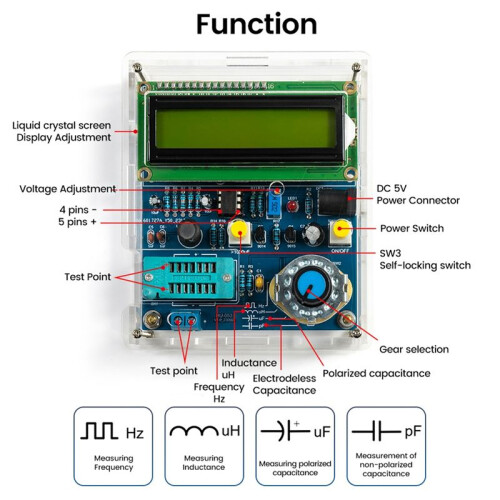

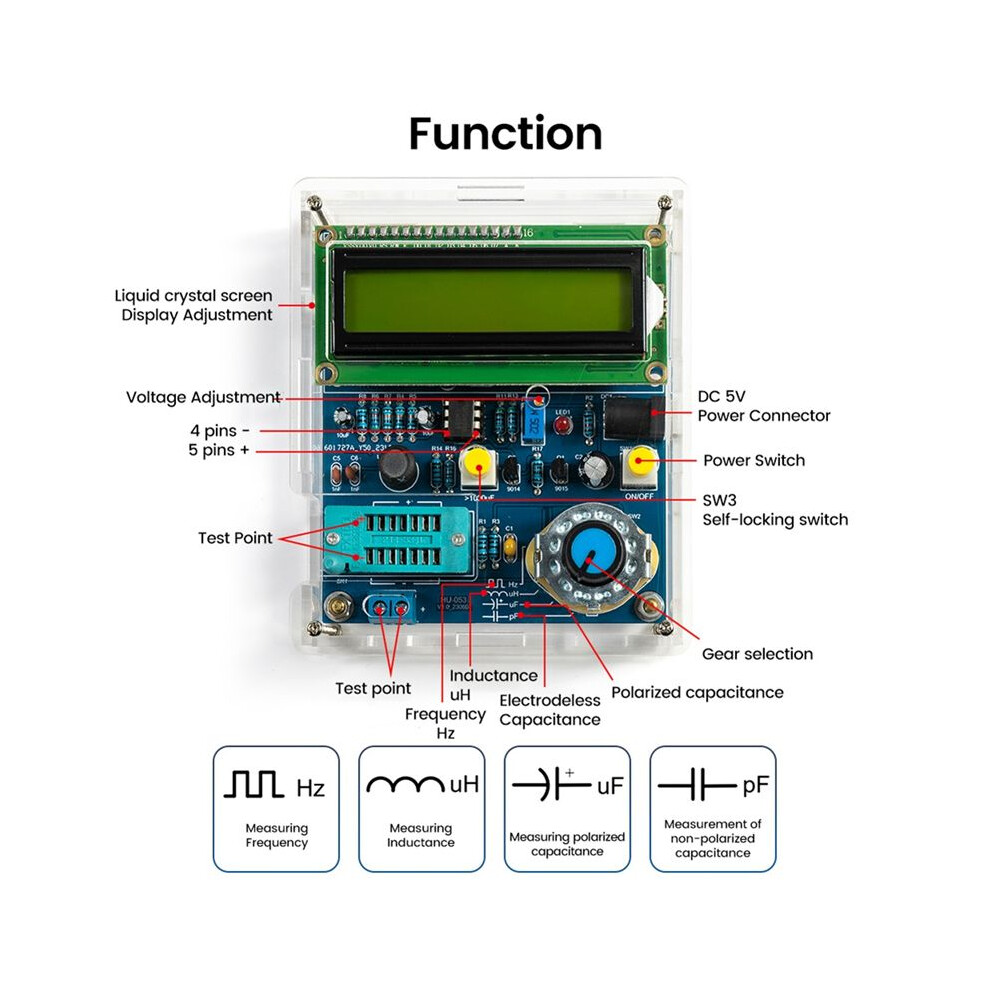

4. With multifunctional rotary gear, you can choose different functions, and measurement is more convenient.
5. Can measure various non-polarized capacitance, polarized electrolytic capacitance, inductance, and frequency.

Specifications:
Power supply voltage: USB-powered 5V ( power socket)
Measurement range of non-polar capacitance: 1pF~2200pF
Polarized capacitance measurement range: 1uF~12000uF
Inductance measurement range: 1uH~1H
Frequency measurement range: 20Hz~400KHz
PCB board size: 91 x 80mm
Use tips:
1, the kit supply voltage is voltage 5V, try to use a power supply with fewer stray waves and stable output.
2, each before powering , all switches should -, and power about 2 seconds before the display.
3, after the display, before installing the shell, adjust the potentiometer so that the voltage between pin 4 and pin 5 of the LM393 is 3.16V.

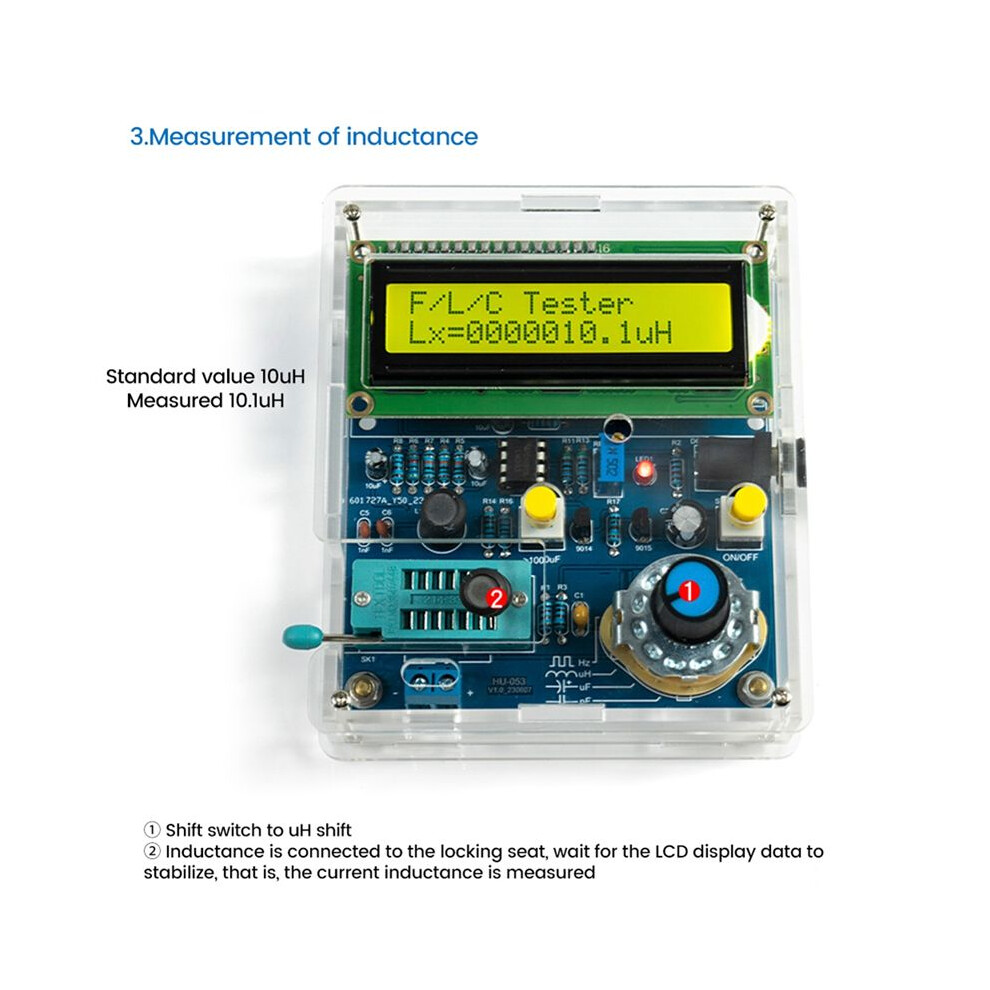

4, measure what components are rotated to the corresponding gear.
5, measurement of non-polarized capacitance, inductance does not distinguish between positive and negative, frequency and electrolytic capacitors to distinguish between positive and negative contact to determine good.
6, the tail number of the readings are not rounded and fictitious optimization, all the tail number has jumped is normal.
Whether with a shell: with Case
Material: PCB+components
colour: As shown

Package Contents:

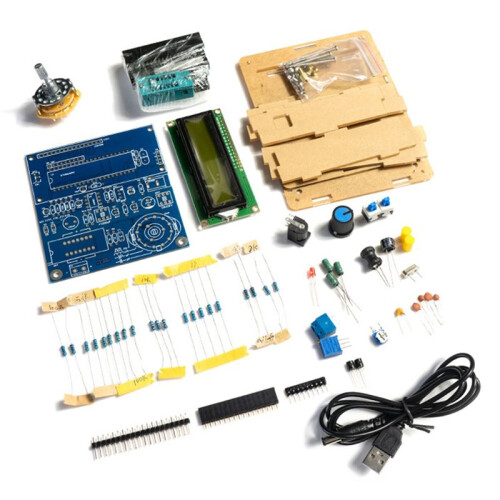

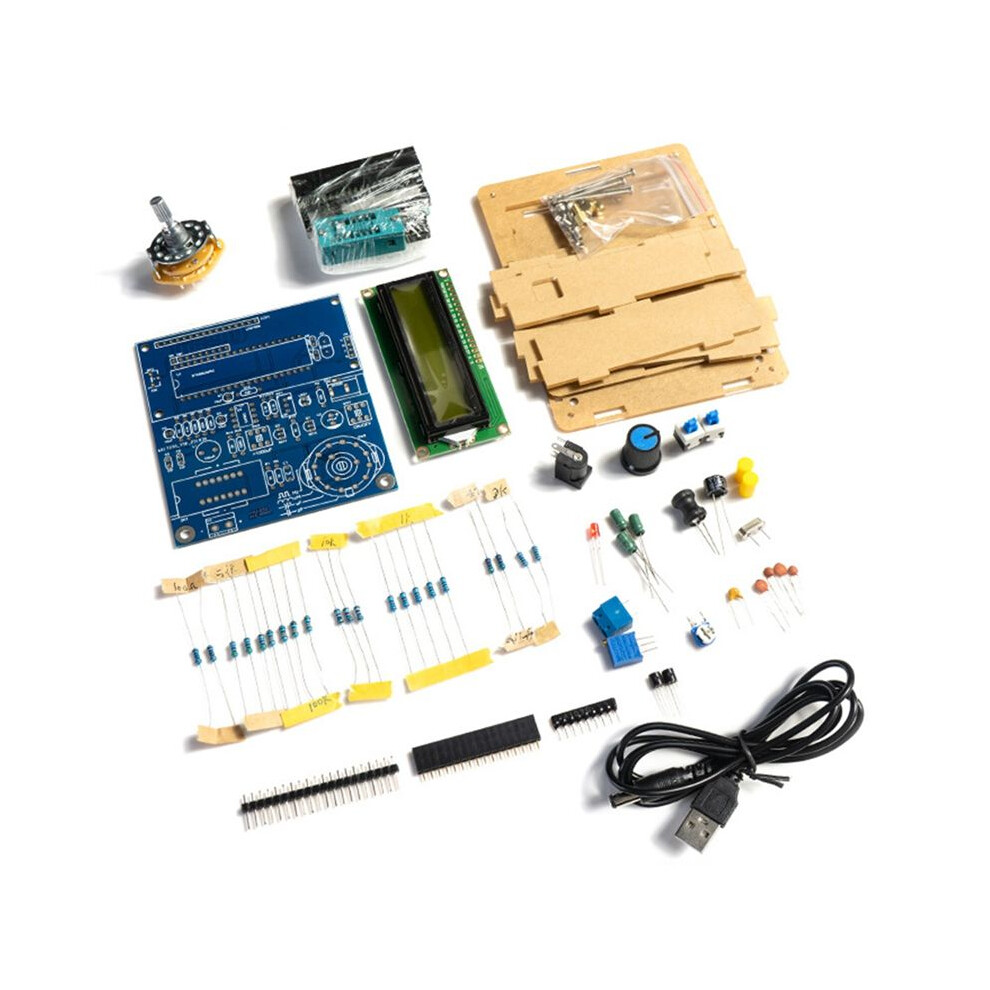

1 x DIY Kit
