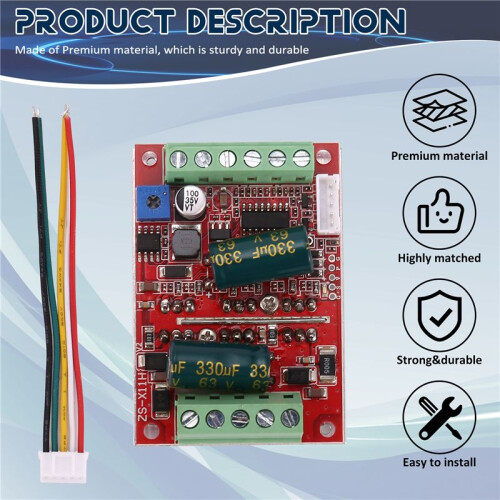

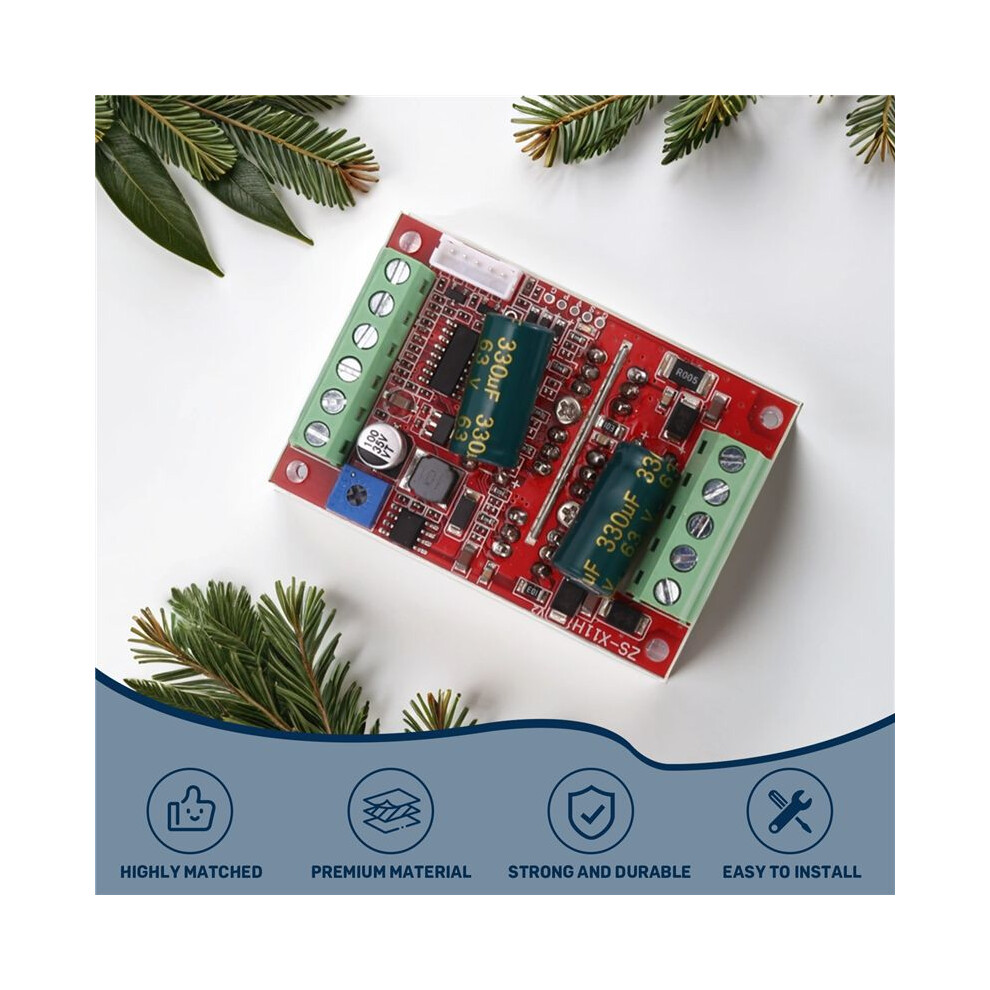

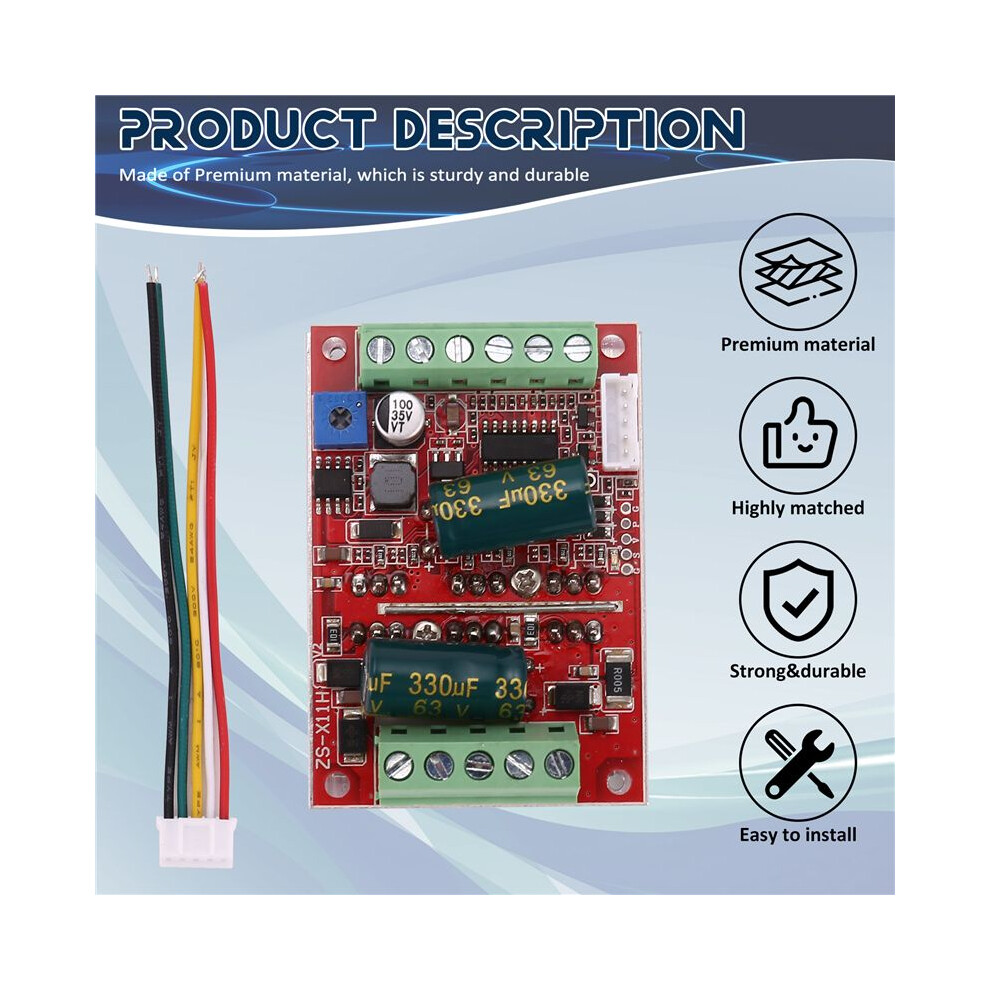

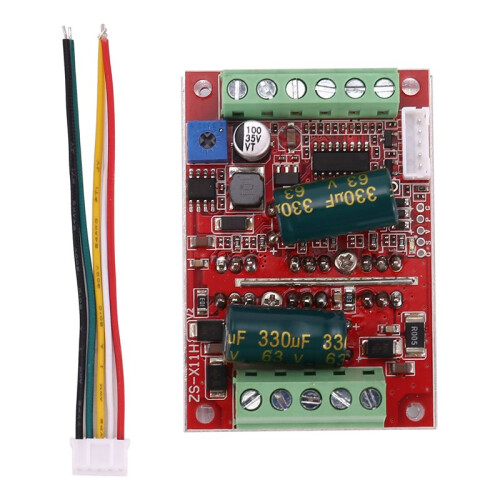

DC6-60V 400W BLDC Three Phase Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V

DC6-60V 400W BLDC Three Phase Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V Περιγραφή

Precautions:1. The power supply circuit the main board has no fuse, and the built-in self-addition will cause permanent damage to the chip the board (even 2 seconds is not allowed).
2. During normal operation, there is sampling overcurrent protection at the motor output. Since the module power and current are very large, please do not short circuit when the module is not working normally.
Once the short circuit has the possibility of burning the , the first wiring test machine Please use small current and low voltage test, after ok, then pass high current and high voltage, because it is bare board module for sale, pay attention to the wiring insulation, strong voltage is not allowed to Press the board parts.
3. Do not connect the motor that is obviously inconsistent with the voltage and current of the drive module or is far away from the motor to avoid inexplicable damage.

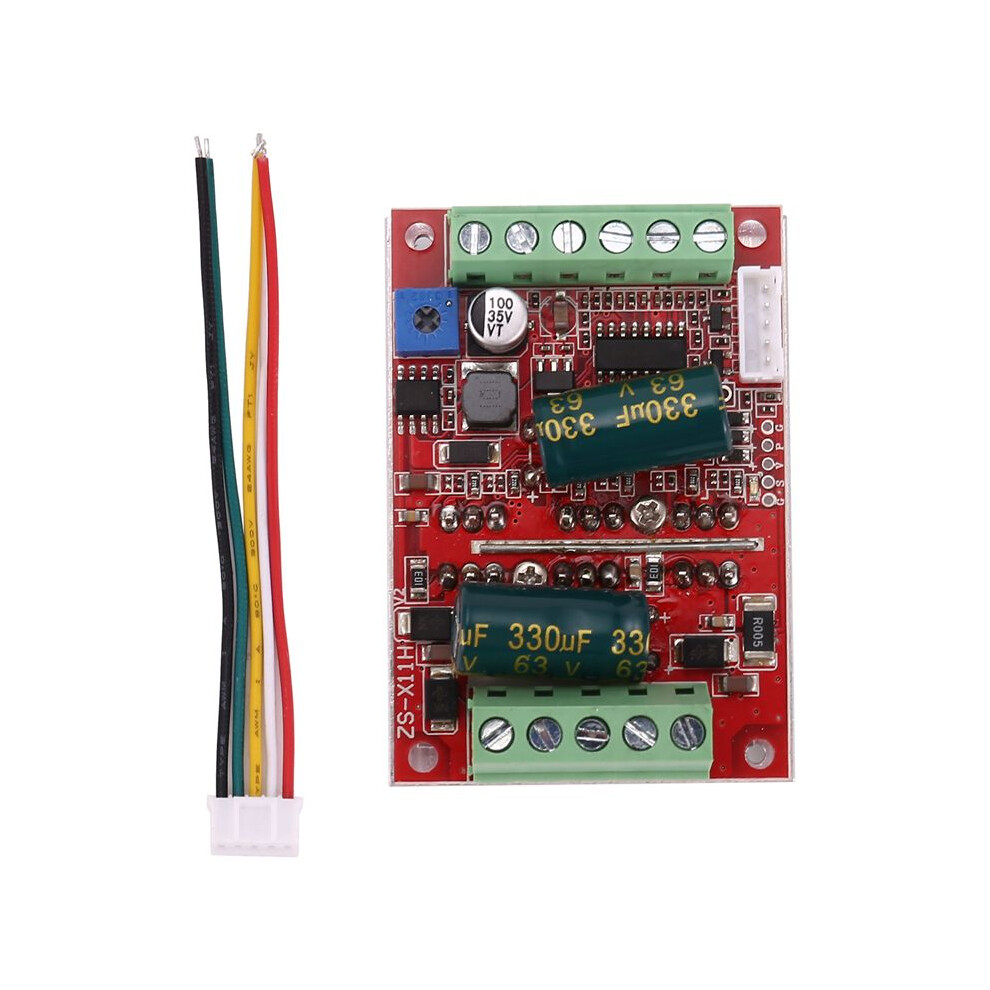

1.MA MB MC phase output connection motor

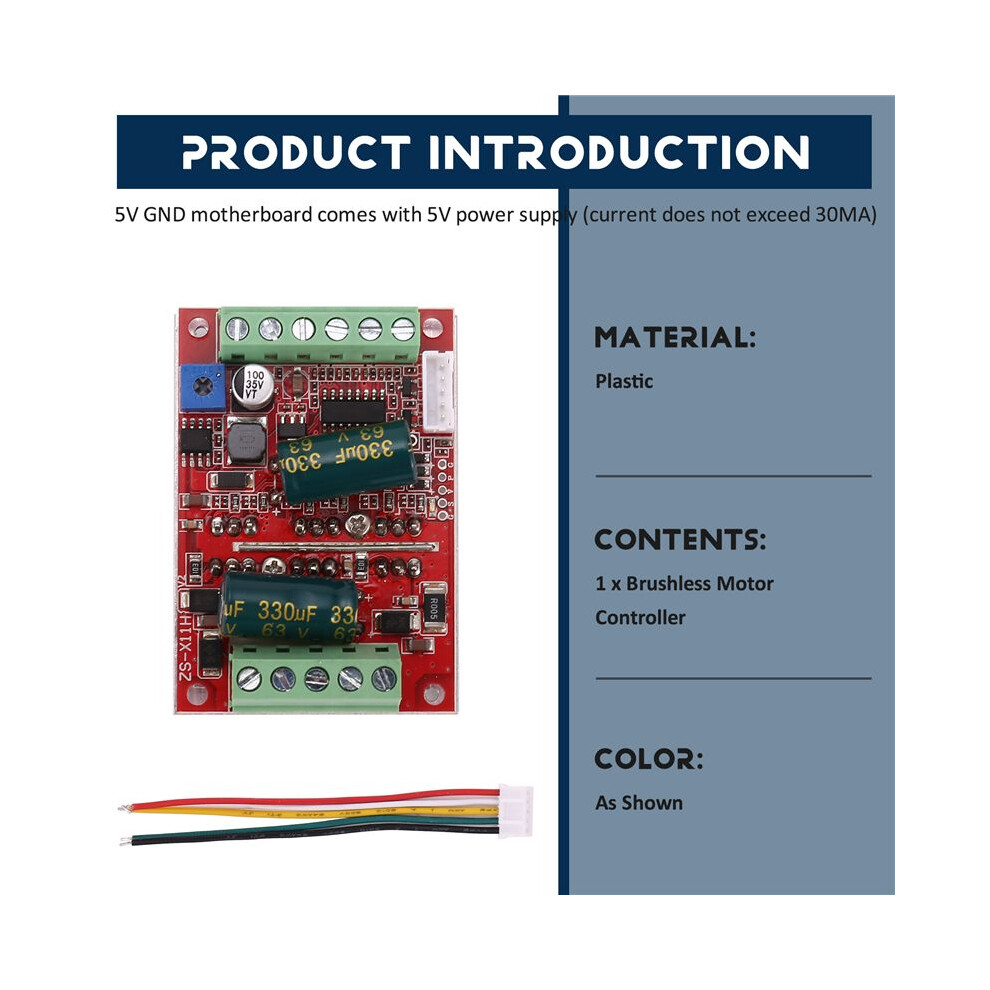

2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
3.VCC GND motor main power supply (external power supply)
4.SC speed pulse signal output
5 positive and negative reversing control interface (also can be connected to the external )
6.VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation)
7.Ha Hb Hc +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines

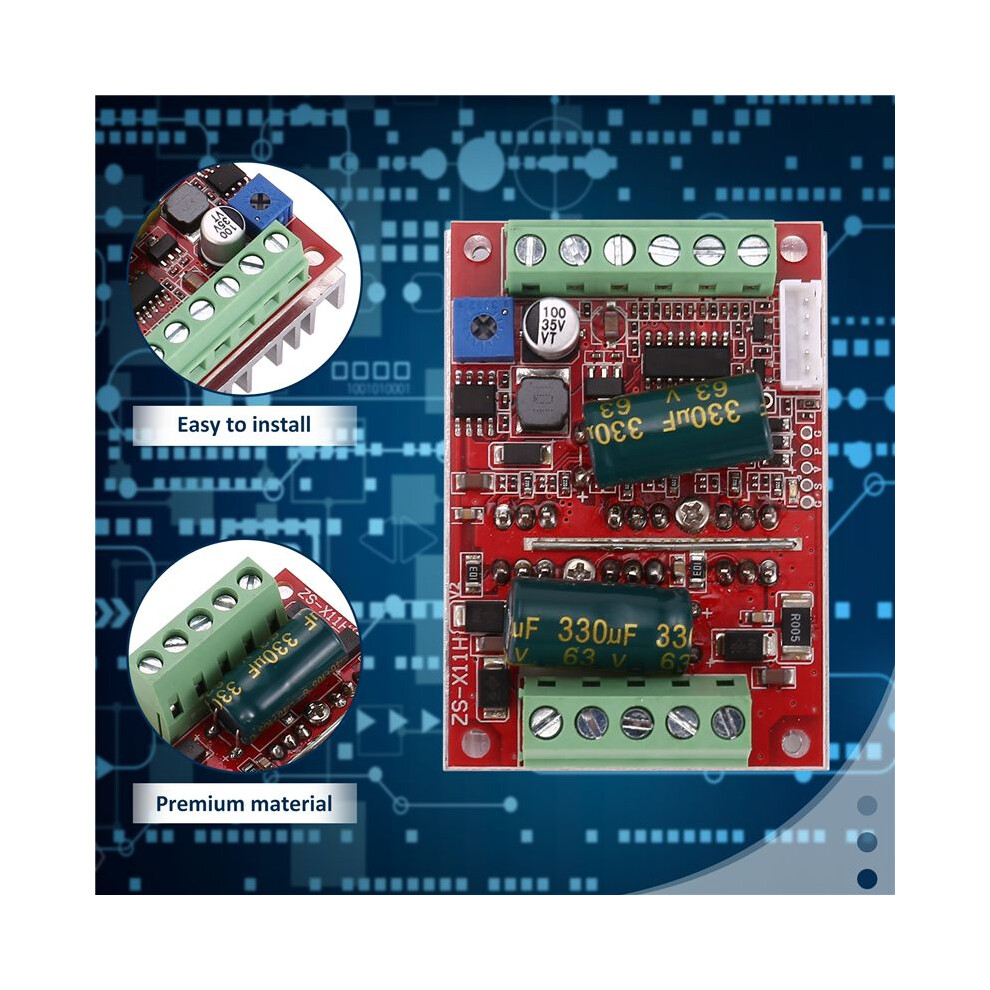

Motherboard specifications:
Product Name: 450W Brushless Hall Motor Driver
Operating voltage: 9-60V
Maximum current: rated 16A 20A
Maximum power: 450W
Overcurrent protection: Yes
Colour:Red
Material:plastic

Package Contents:
1* Brushless Motor Controller
