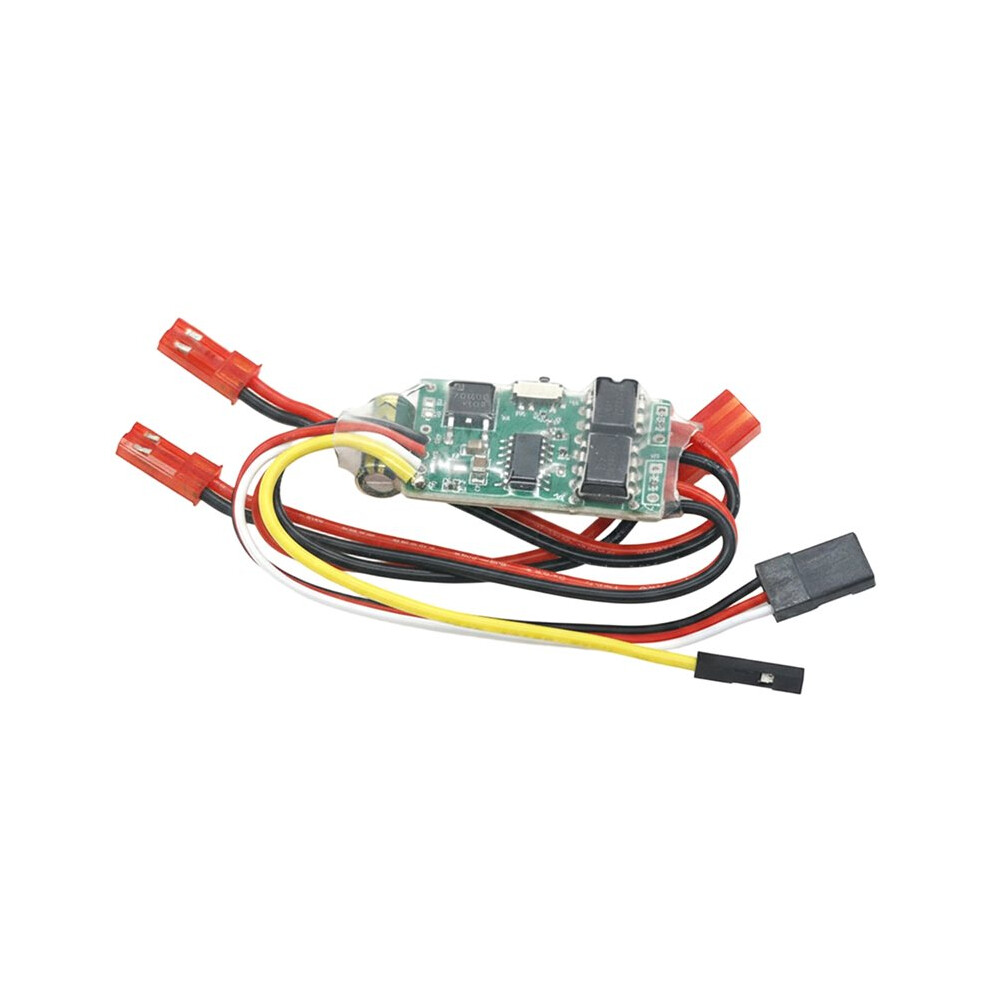

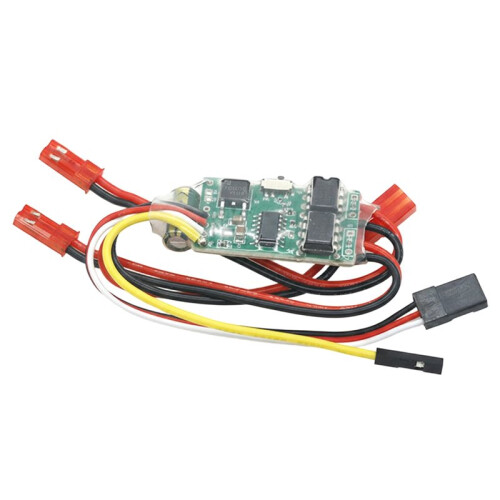

Dual Way Bidirectional Brushed Electric Speed Controller 40A X 2 Mixed Control ESC for RC Tank/Speed Difference Boat

Dual Way Bidirectional Brushed Electric Speed Controller 40A X 2 Mixed Control ESC for RC Tank/Speed Difference Boat Περιγραφή

Mixing mode (default) (throttle/steering mode): 2 or 3 channels (2 channels are recommended, because 2 channels automatically return to the center) to control the throttle, 1 channel (or 4 channels) to control the speed difference steering, the throttle ratio is , the steering ratio is , and the steering priority is given.
Suitable for: Tanks (in this mode, control can tanks), 4-wheel drive cars;Support voltage/current: 6v-14v single 5A, single 7A (for 2/3S lithium battery);ESC size/weight: 33*20*6.5mm /12g (including cable);
With runaway protection (loss of signal (in an accident, the signal is broken), for safety, motor protection, the accelerator needs to be returned to the center and unlocked again.
Power failure protection: The power supply voltage is lower than 4V, the ESC restart protection (for example: high current discharge, the voltage drop of the battery with poor performance is too large, the ESC protection, the motor stops after the protection, and after the motor stops, the battery voltage recovers, Back to the neutral point
The bec outputs 5v and the maximum is 1.5A to meet your needs for power supply to the receiver and flight control (Note: the onboard microcontroller is also powered by 5V , if you plug the 2S lithium battery directly into the receiver, the microcontroller will burn in seconds. )
Color: Green
Material: plastic

Package Contents:
1*Electric Speed Controller
