Electronic Load Tester 150W 20A Resistor Adjustable Constant Current Battery Capacity Tester Resistance Power Tester

New

52,02 €

Παρόμοια προϊόντα που πιστεύουμε ότι θα σου αρέσουν

Άλμα γκαράζ αυτοκινήτων οδηγεί

Would you like us to let you know when it's back?

Προσθήκη στο καλάθι

Περιγραφή & Λεπτομέρειες

Περίληψη

Prevention of burning warning: When inputting voltage battery and high power test, you must first use two current adjustment knobs counterclockwise to the minimum to zero, and then when connecting, adjust the current knob slowly according to the current power priority, and the transmission must be dissatisfied immediately, so it will There is a risk of excessive instantaneous power discharge tube burnout!

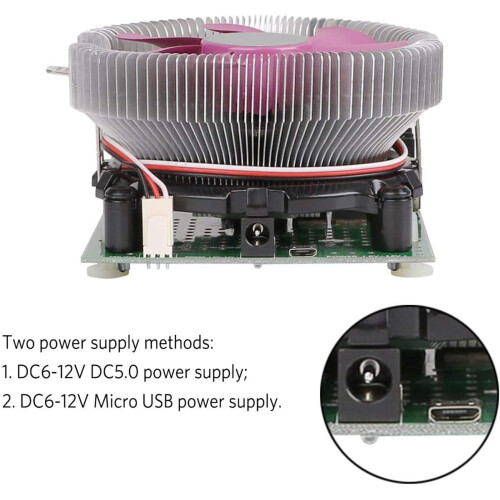

Two power modes: DC6-12V DC5.0 power supply; DC6-12V Micro-USB power supply.

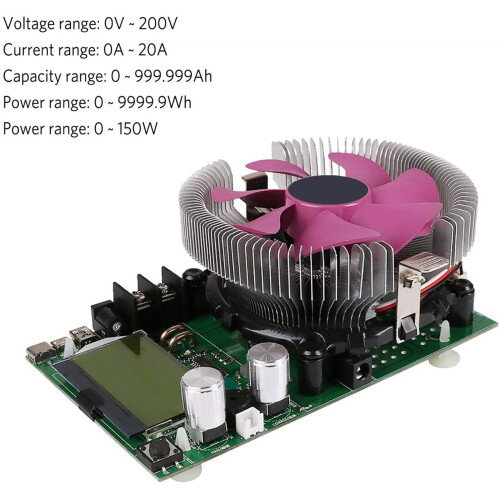

Voltage measurement range: 0.00V - 200V, current measurement range: 0.00A - 20A.
Operation method: set capacity, power supply, time, use keystroke method to reset: 1. Reset all data of the long button (mAh, Klitschko, 00:00); 2. Quick button double capacity reset (mAh); Quick button three power reset (); 4. Quick button four reset (00: 00:00); 5. Five kinds of quick buttons set automatic standby, regular discharge countdown; no load output, no load, fast seven keys, current zero current, accurate calibration of ambient temperature.
150W power reference: According to the calculation method P=UI (power=voltagexcurrent); 10V input about 18A discharge current, 20V input about 9A discharge current, 30V input about 6A discharge current.

Electronic Load Tester 150W 20A Resistor Adjustable Constant Current Battery Capacity Tester Resistance Power Tester Περιγραφή

Prevention of burning warning: When inputting voltage battery and high power test, you must first use two current adjustment knobs counterclockwise to the minimum to zero, and then when connecting, adjust the current knob slowly according to the current power priority, and the transmission must be dissatisfied immediately, so it will There is a risk of excessive instantaneous power discharge tube burnout!
Two power modes: DC6-12V DC5.0 power supply; DC6-12V Micro-USB power supply.
Voltage measurement range: 0.00V - 200V, current measurement range: 0.00A - 20A.
Operation method: set capacity, power supply, , use keystroke method to reset: 1. Reset all data of the long button (mAh, Klitschko, 00:00); 2. Quick button double capacity reset (mAh); Quick button three power reset (); 4. Quick button four reset (00: 00:00); 5. Five kinds of quick buttons set automatic standby, regular discharge countdown; no load output, no load, fast seven keys, current zero current, accurate calibration of ambient temperature.
150W power reference: According to the calculation method P=UI (power=voltagexcurrent); 10V input about 18A discharge current, 20V input about 9A discharge current, 30V input about 6A discharge current.

colour:Black
Material:plastic

Package Contents:
1 x Electronic Load Battery Tester
