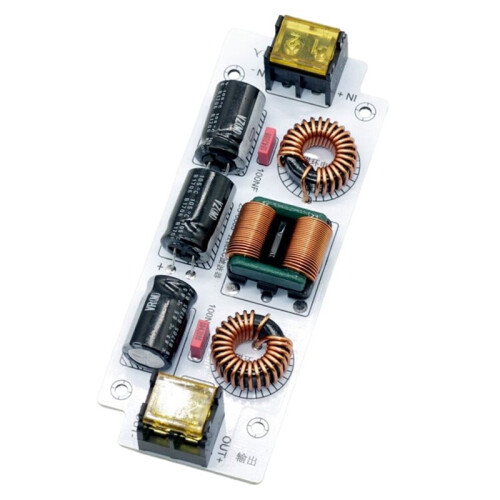

EMI Filter LC Filter Low-Pass Electromagnetic Interference EMC Car Audio Switching Power Supply Ripple Filter 6A

EMI Filter LC Filter Low-Pass Electromagnetic Interference EMC Car Audio Switching Power Supply Ripple Filter 6A Περιγραφή

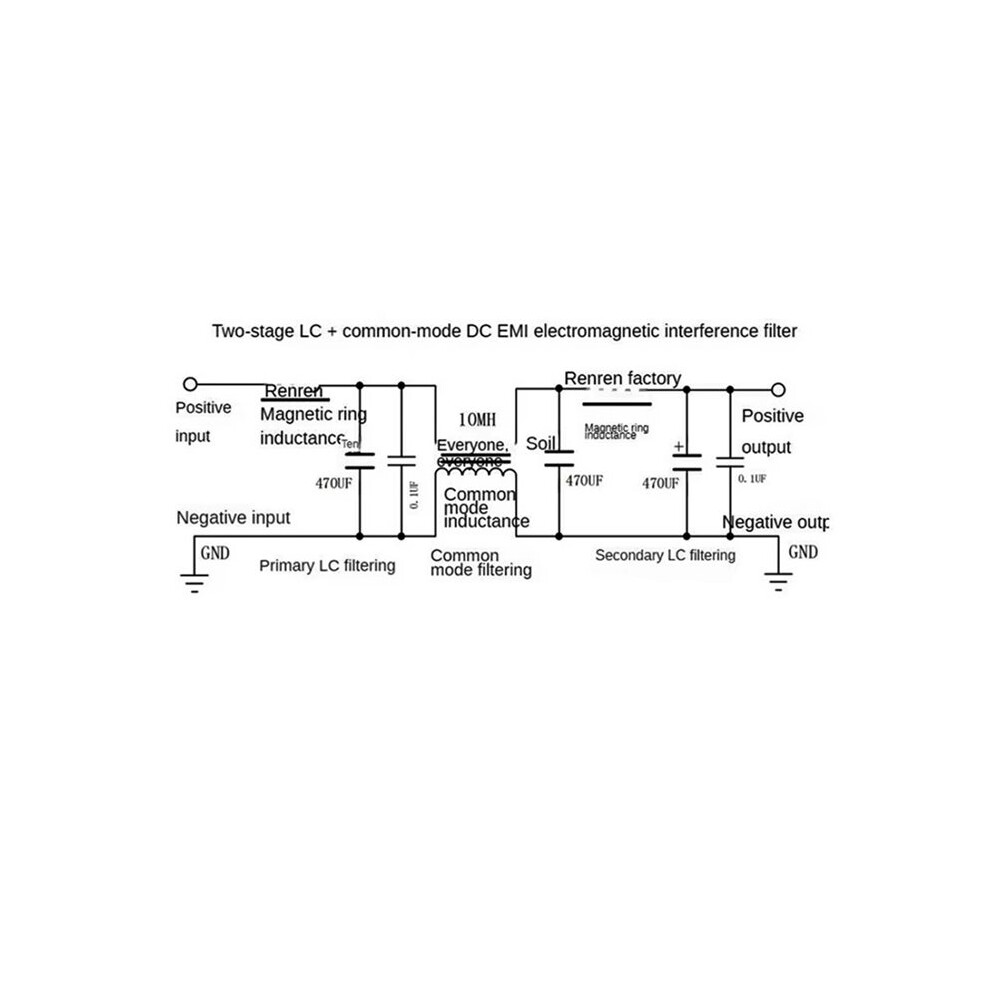

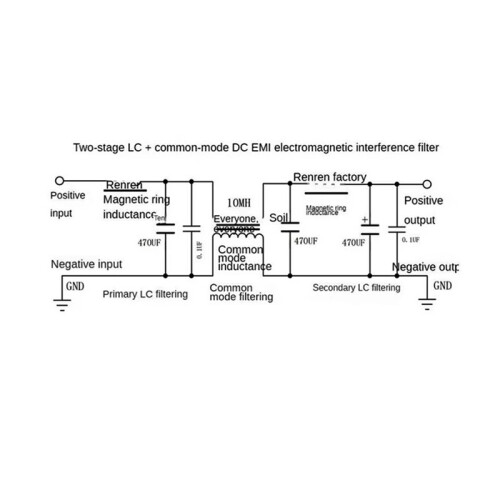

power filter circuit introduction: The circuit is composed of three filters, the first part is a level LC filter; The second part is a common-mode EMI filter, and the third part is a two-stage LC filter.
LC filters, generally called passive filters, are traditional power supply harmonic compensation devices composed of inductors and capacitors. They can filter out harmonics in the power supply once or multiple times, purify the power supply, and perform common-mode filtering.
They can suppress fast transient burst interference with repetition frequencies of several kilohertz in some user environments.
This module is suitable for eliminating electromagnetic interference in power supplies. It can be applied to filtering after the output of switching power supplies, automotive, motorcycle, and circuits with strong electromagnetic interference.

Input:
Output:

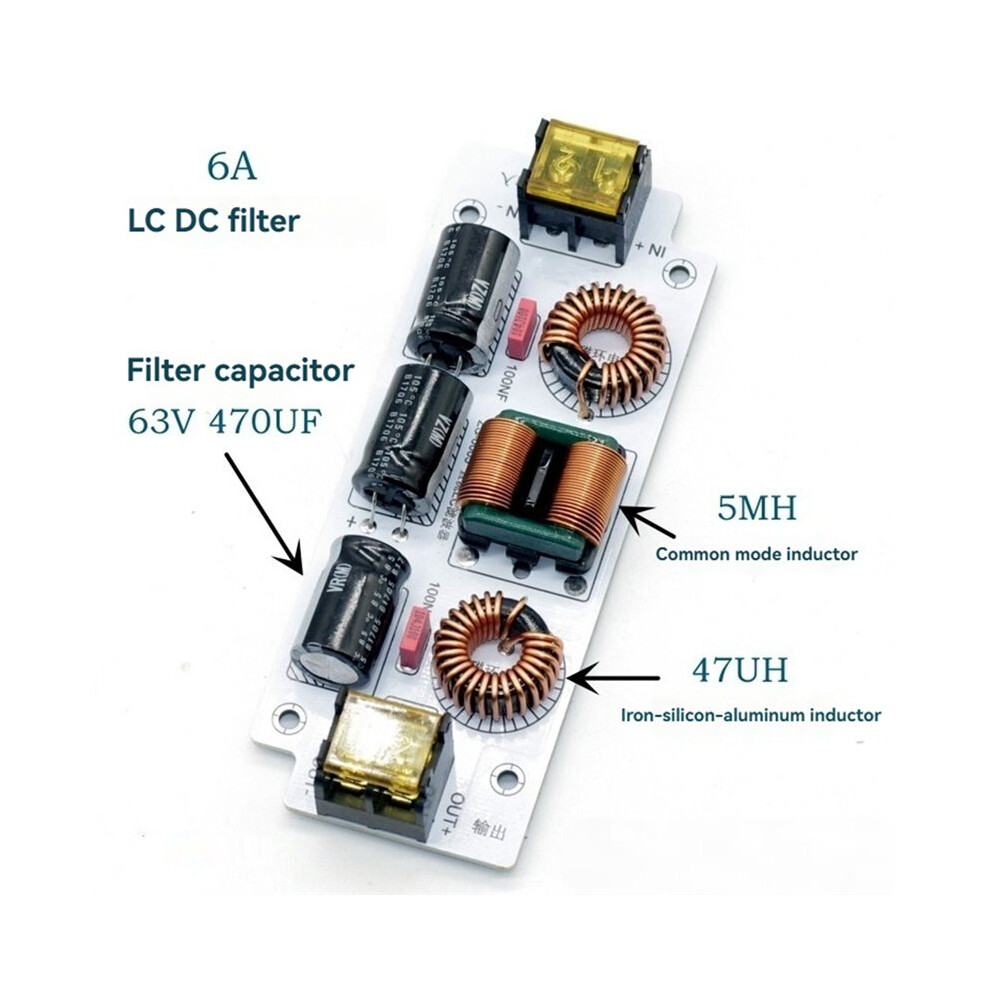

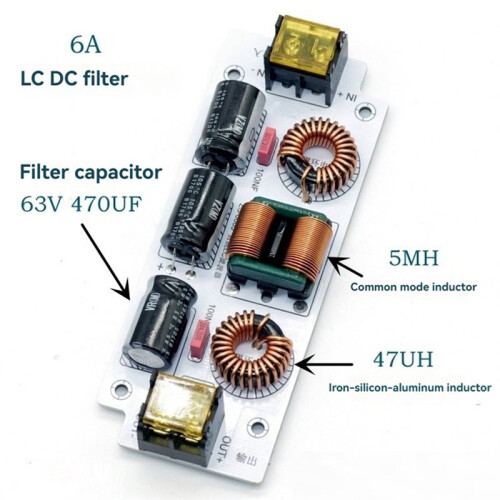

Voltage: 63V (Higher voltage can be replaced with electrolytic capacitor lift)
Current: 6A
Color: White
Material: PCB+Plastic+Metal

Package Contents:
1 * Power Filter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
