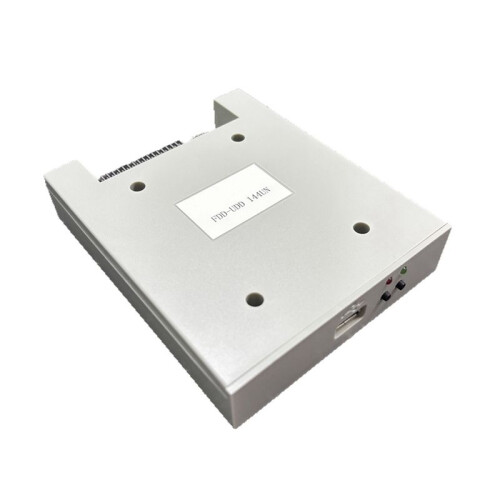

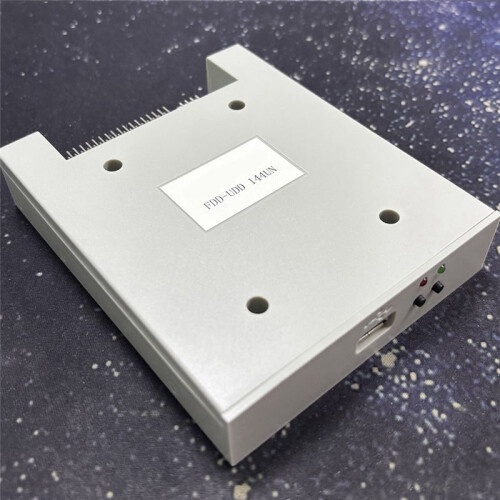

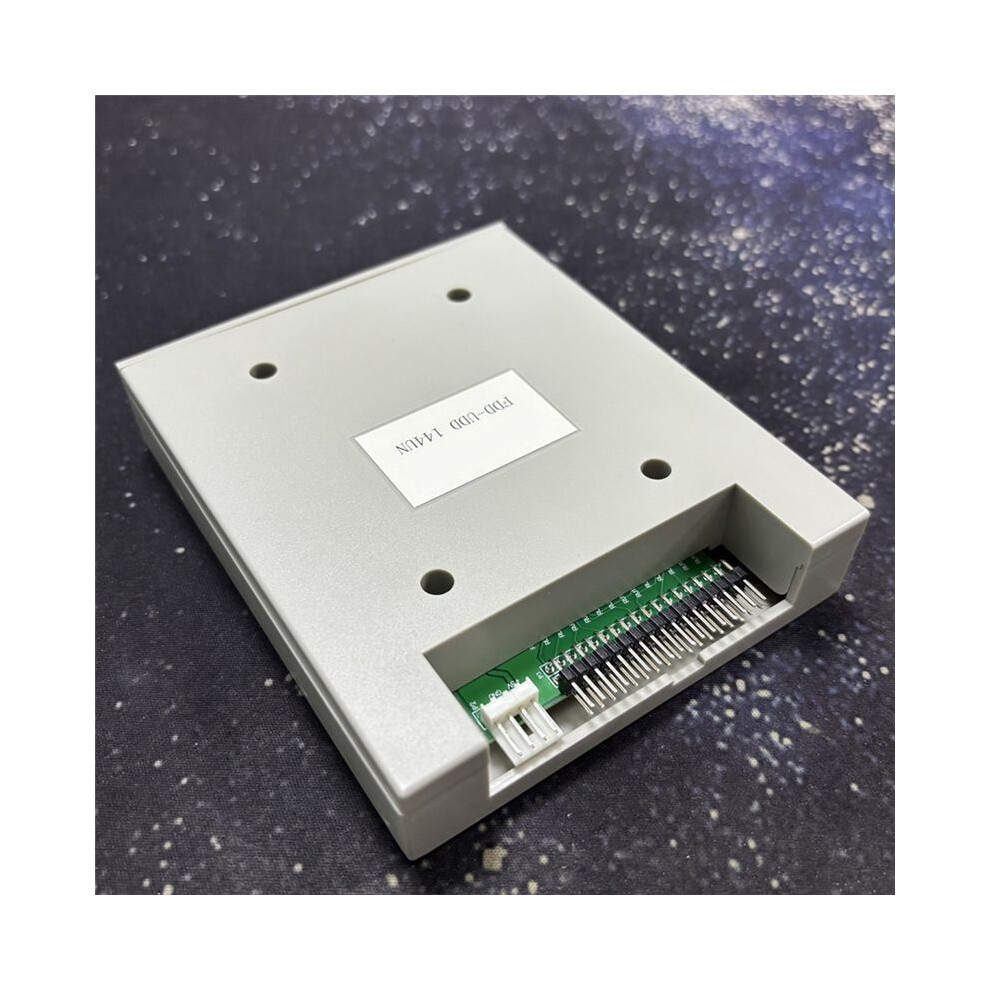

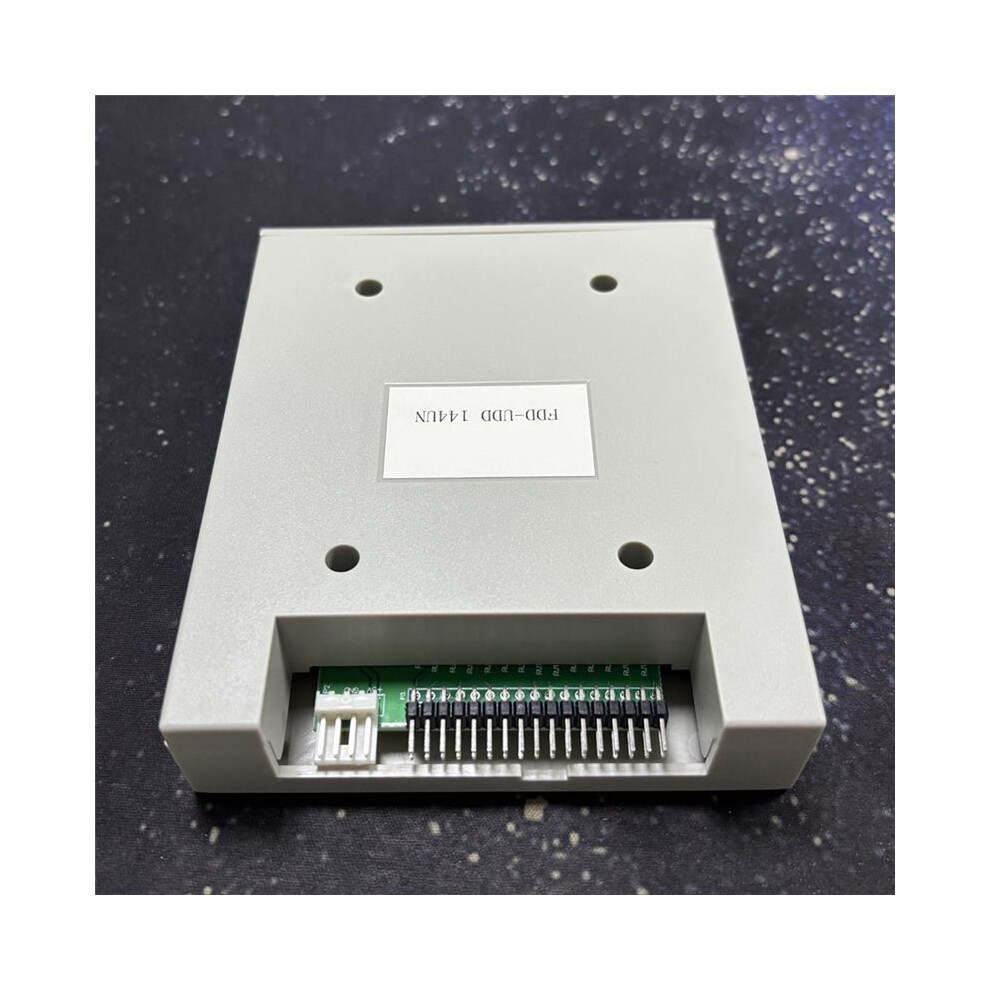

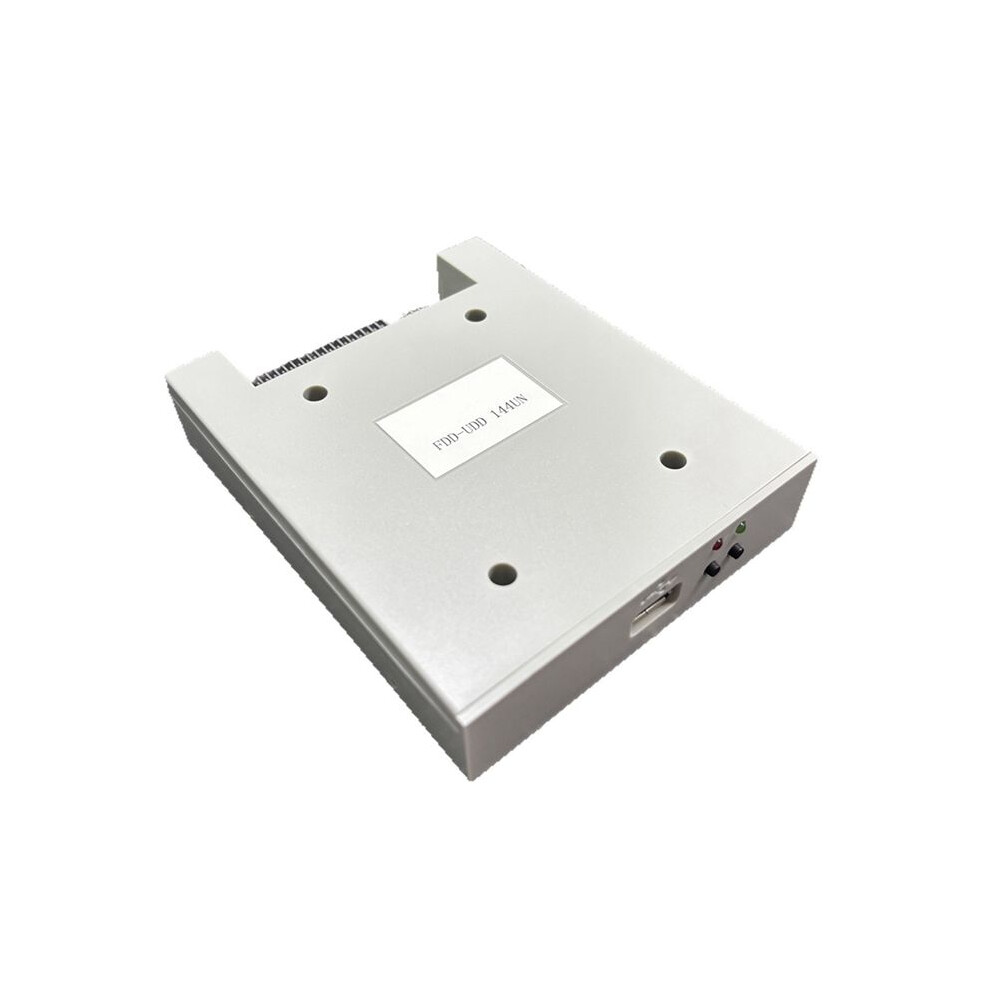

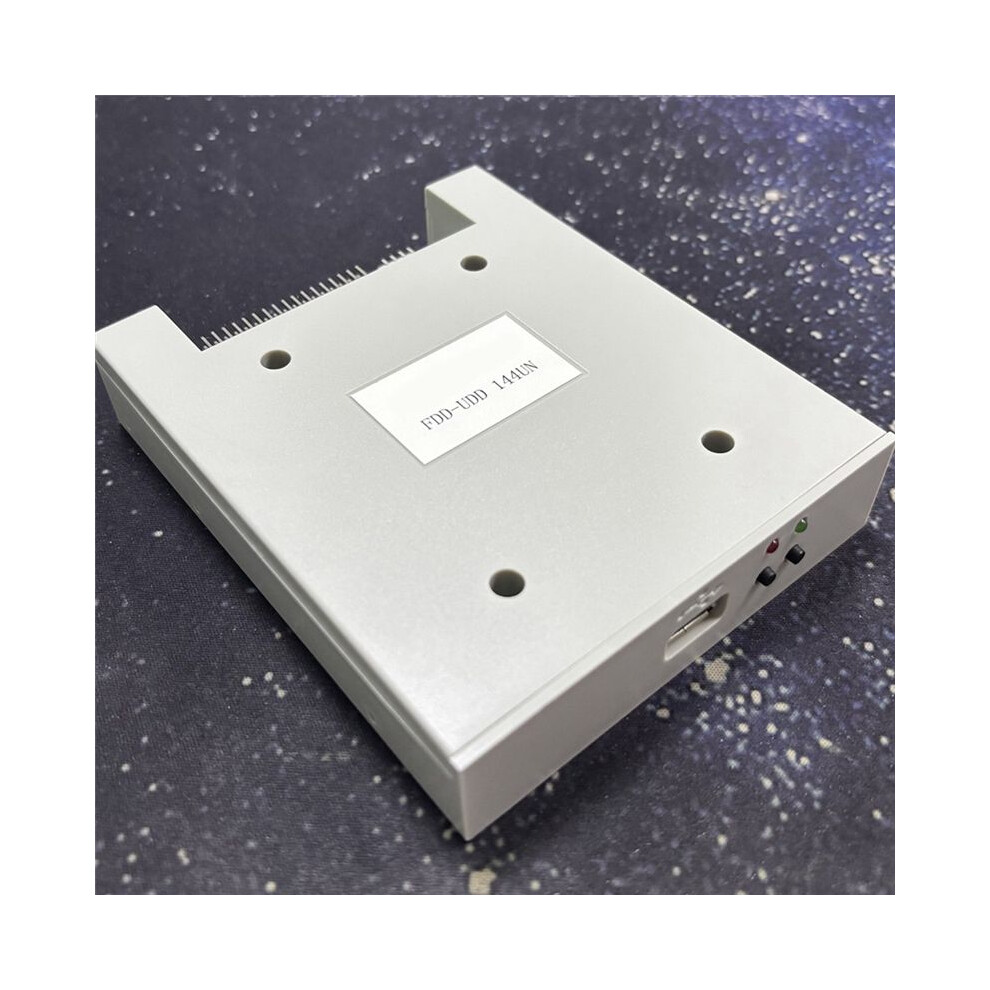

FDD-UDD 144UN Simulation Floppy Drive Industrial Control Equipment USB Disk 1.44MB USB Floppy Drive Emulator

FDD-UDD 144UN Simulation Floppy Drive Industrial Control Equipment USB Disk 1.44MB USB Floppy Drive Emulator Περιγραφή

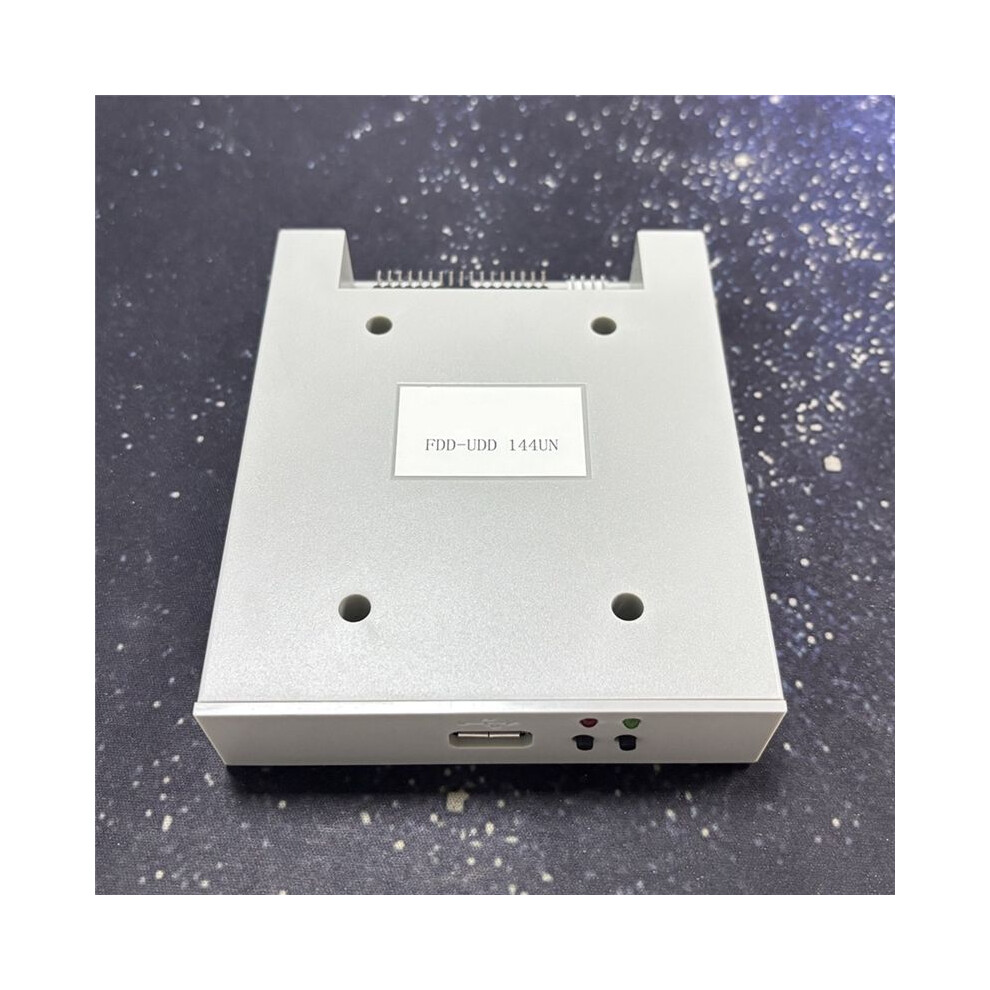

Model: FDD-UDD 144UN
Mainly suitable for various computers, industrial computers, textile machinery, CNC machine tools and other equipment using ordinary 1.44MB floppy drives. Plug and , no need to format the U disk, simple, easy to use and professional.
Main control chip: equipped with imported STM32 series industrial-grade MCU, with high performance, low power consumption and other characteristics, with -10-65 wide temperature operation capability.
Plug and : No need to manually format the USB flash drive, supports USB flash drives in 1.1, 2.0, and 3.0 formats, and supports hot-swap operations.

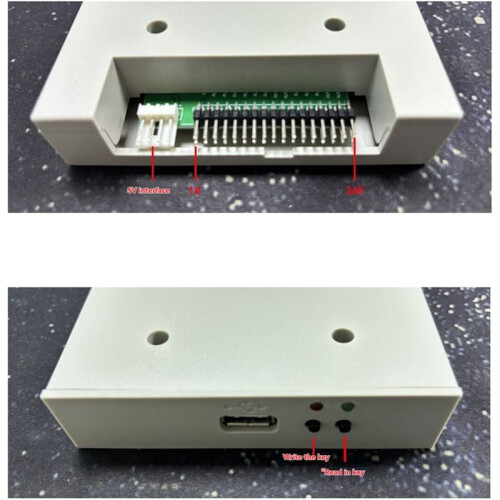

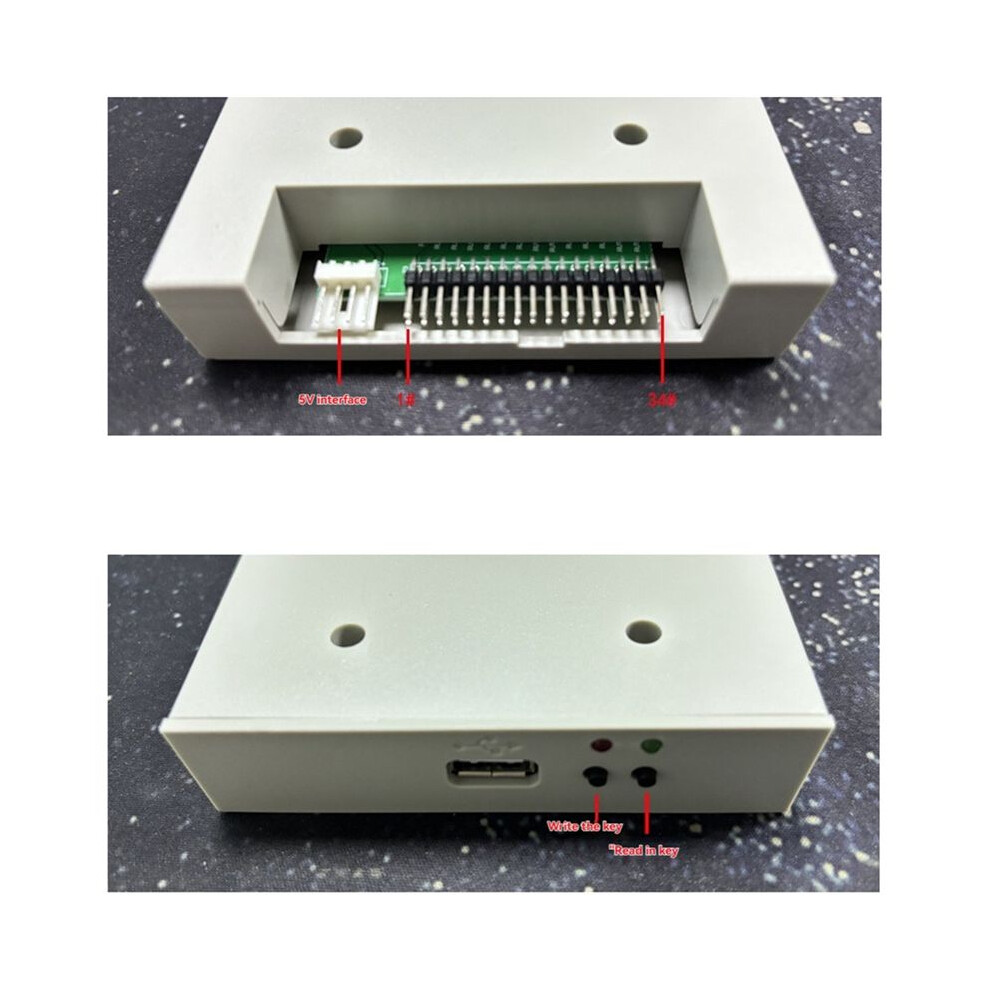

When reading USB flash drive files:1. When you plug in the USB flash drive for the first , you don't need to press the right key (read in) button. The red light will be . At this , the USB flash drive is being read. Wait for the red light to go out.
2. Operate the device to read the files in the USB flash drive and find the required files.
3. After the files are stored in the simulated floppy drive memory, unplugging the USB flash drive will not be affected.
When writing USB flash drive files:
1. Plug in the simulated floppy drive, an indicator light will be , wait for it to go out
2. Press the write button, the red light will always be
3. Copy the file to drive A in the system, the green light will be during this period, wait for it to go out
4. Press the write button, wait for the red light to go out, you can unplug the USB flash drive, and the file is in the USB flash drive.
If reading or writing is abnormal, please convert the USB flash drive format to FAT or FAT32. For details.
Color: As Shown
Material: ABS

Package Contents:
1 x Simulation Floppy Drive
1 x CD
4 x Screw
3 x jump caps
