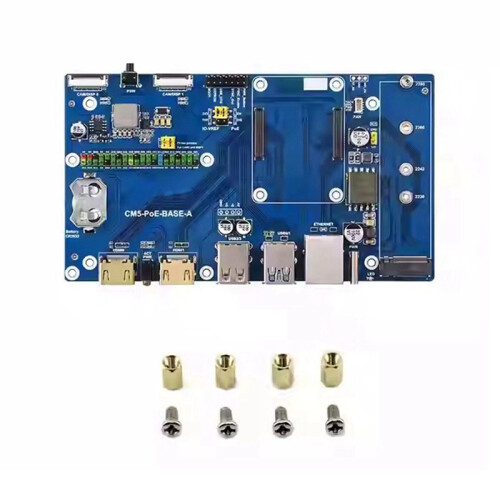

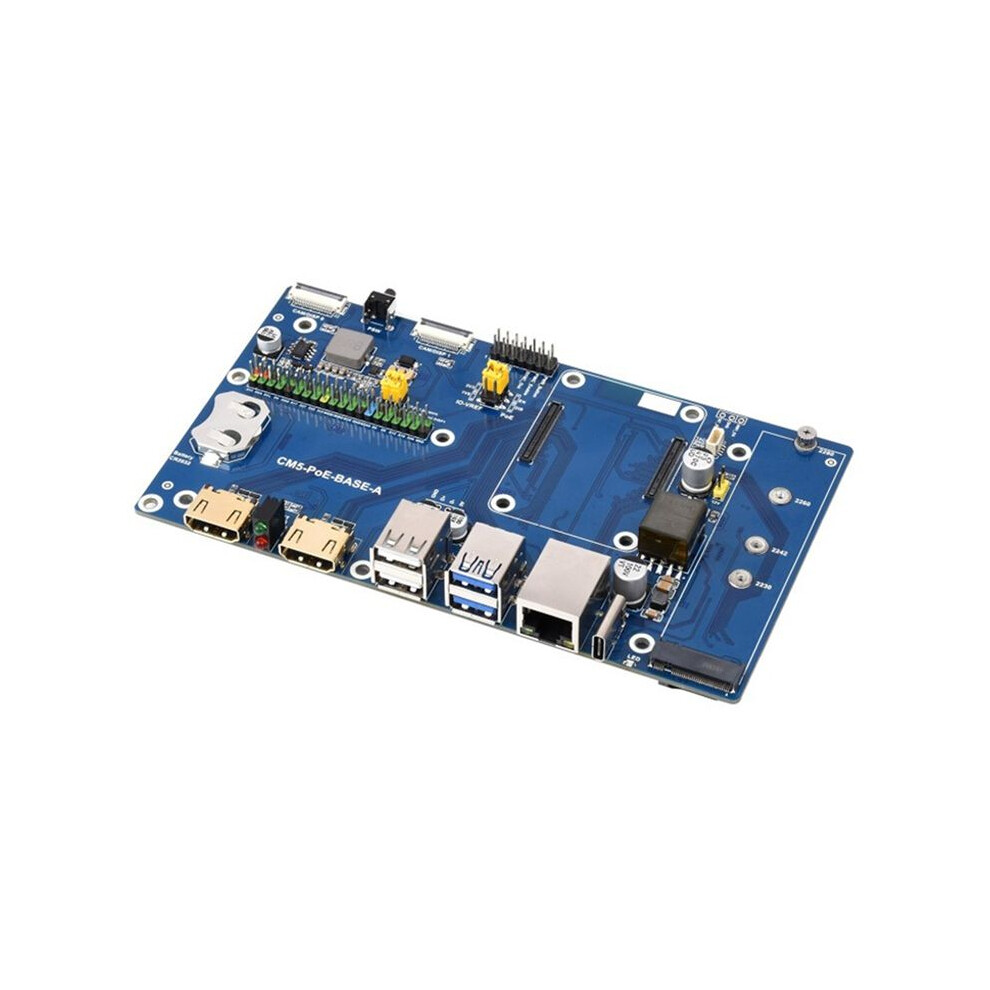

For Raspberry Pi Compute Module 5 IO Board with PoE Feature, for All Variants of CM5

For Raspberry Pi Compute Module 5 IO Board with PoE Feature, for All Variants of CM5 Περιγραφή

suitable for evaluating the Raspberry Pi CM5 or being integrated into end products, PoE Base Board for all Compute Module 5 Variants.
Connecting with Compute Module 5: Standard CM5 socket and Raspberry Pi 40PIN GPIO header, suitable for all variants of Compute Module 5.
Power Over Ethernet: Providing both network connection and power supply for your Raspberry Pi in one cable.
Supports M.2 NVMe Solid State Drive: Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive.

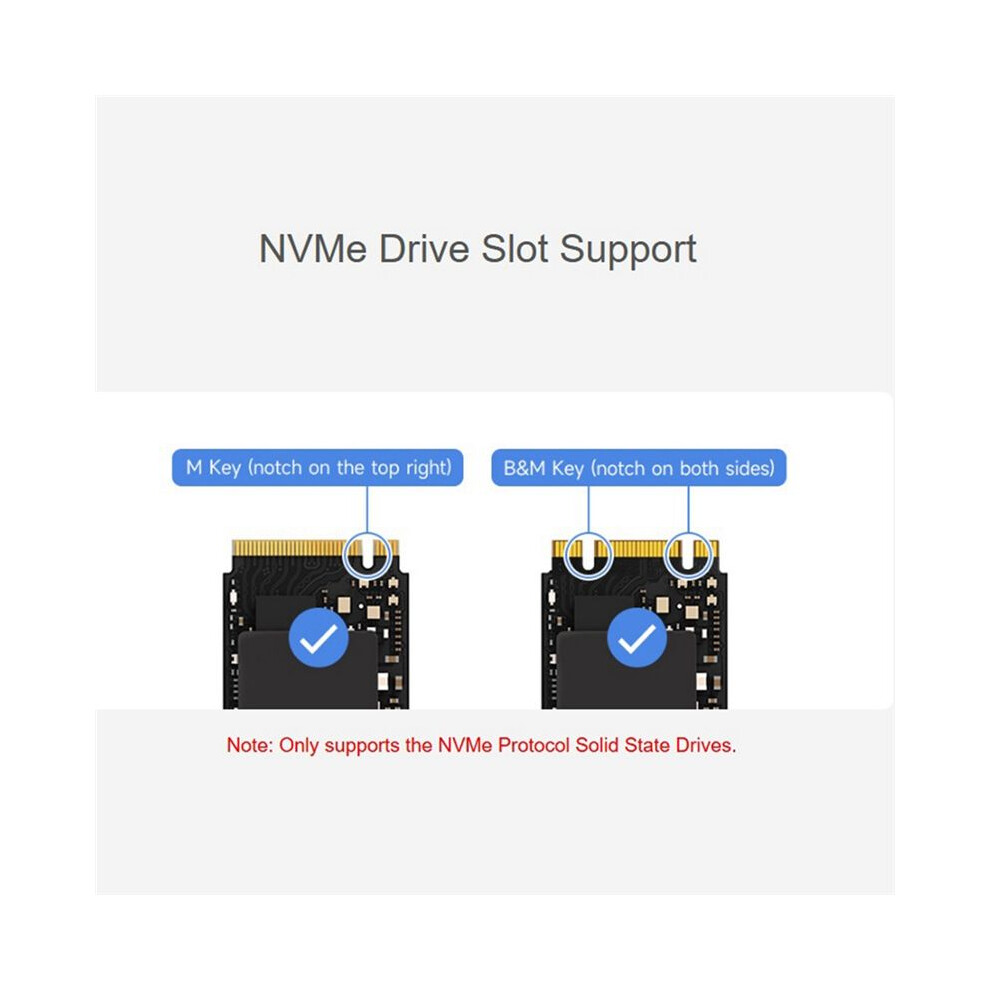

Compatible with 2230/2242/2260/2280 sizes, NVMe Drive Slot Support.(Note: Only supports the NVMe Protocol Solid State Drives.).

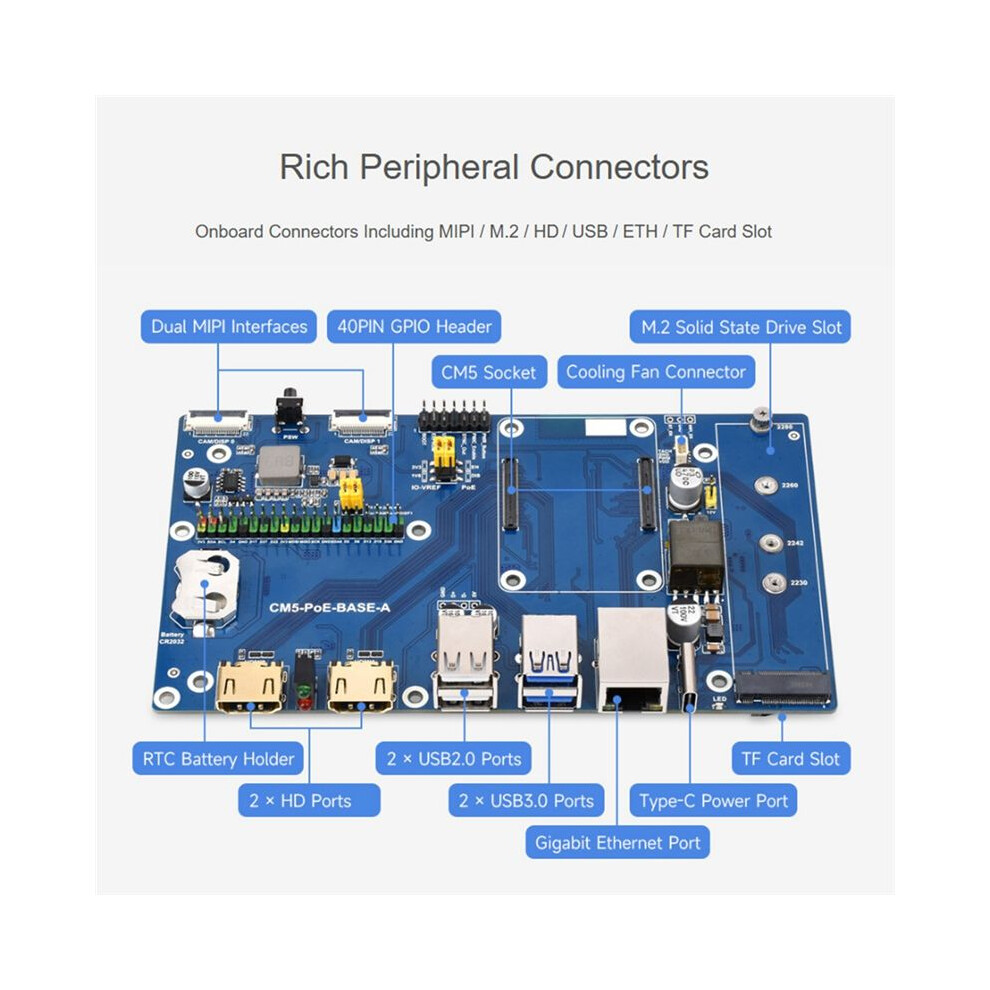

Rich peripheral connectors: Onboard connectors including MIPI / M.2 / -Compatible / USB / ETH / TF Card Slot.
Specifications:
CM5 socket: suitable for all variants of Compute Module 5
Networking: Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A)
Connector: Raspberry Pi 40PIN GPIO header
USB: USB 3.2 Gen1 x 2, USB 2.0 x 2
MIPI: 4- MIPI interface x 2 (22pin 0.5mm FPC connector)
Video: port x 2, supports 4K output
RTC: CR / ML2032 battery holder
Storage: TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan connector: 5V, JST-SH PWM 4PIN connector
NVMe: PCIe Gen2/3 x 1
Power input: 5V 5A
Colour:
Material:PCB+Components
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.

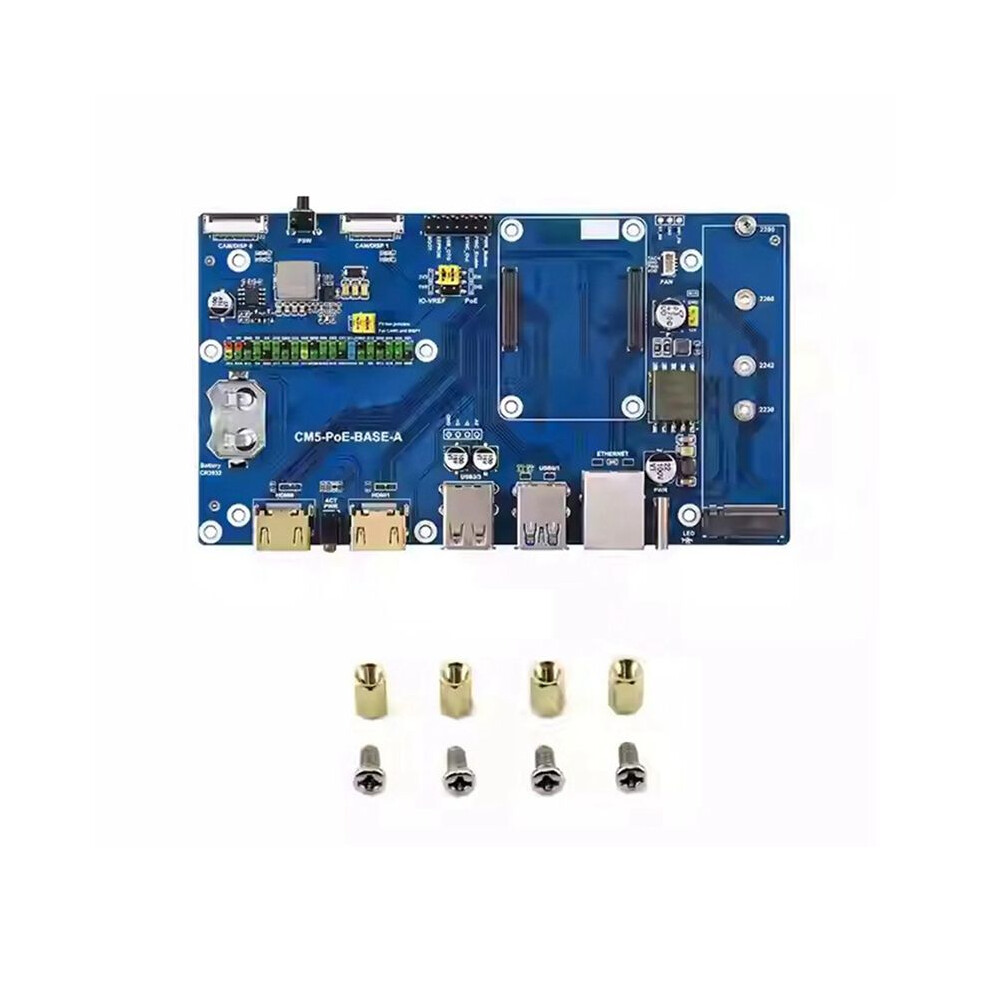

Package Contents:
1 * Compute Module 5 PoE Base Board
1 * Screw bag(Screw color random, don't accept the specified color)
