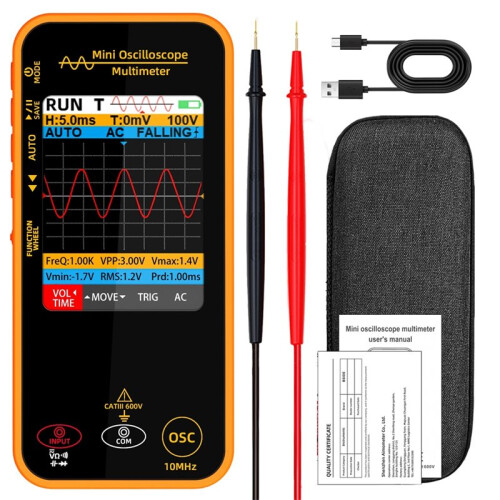

Graphic Digital Multimeter Oscilloscope High-Precision Multitester Resistance Voltage Capacitance Hz Continuity Tester

Graphic Digital Multimeter Oscilloscope High-Precision Multitester Resistance Voltage Capacitance Hz Continuity Tester Περιγραφή

Comprehensive Measurement Capabilities: Equipped to measure to 1000V and 750V AC, the is ideal for a wide range of high-voltage applications. This multimeter also features an auto-ranging mode for seamless operation across diverse electrical environments.
Enhanced Safety and Certification: Safety is paramount which boasts certifications from CE, EAC, FCC, RoHS, and UL. This ensures it meets rigorous safety and quality standards, making it suitable for both professional and DIY electrical tasks.
Advanced Capacitance and Resistance Ranges: With the ability to measure capacitance to 99.99mF and resistance to 60MOhm, this device caters to intricate electronic diagnostics and repairs, ensuring high precision in every reading.
Portable and Durable Design: The compact dimensions of 14.3*6.7*2.1cm make the an excellent tool for fieldwork. Its robust construction is designed to withstand the rigors of daily use in various environments, from workshops to industrial sites.
User-Friendly Digital Display: The digital display promotes ease of use with clear, readable measurements. This feature, combined with a battery-included setup, allows for immediate use right out of the box, enhancing convenience for all users.

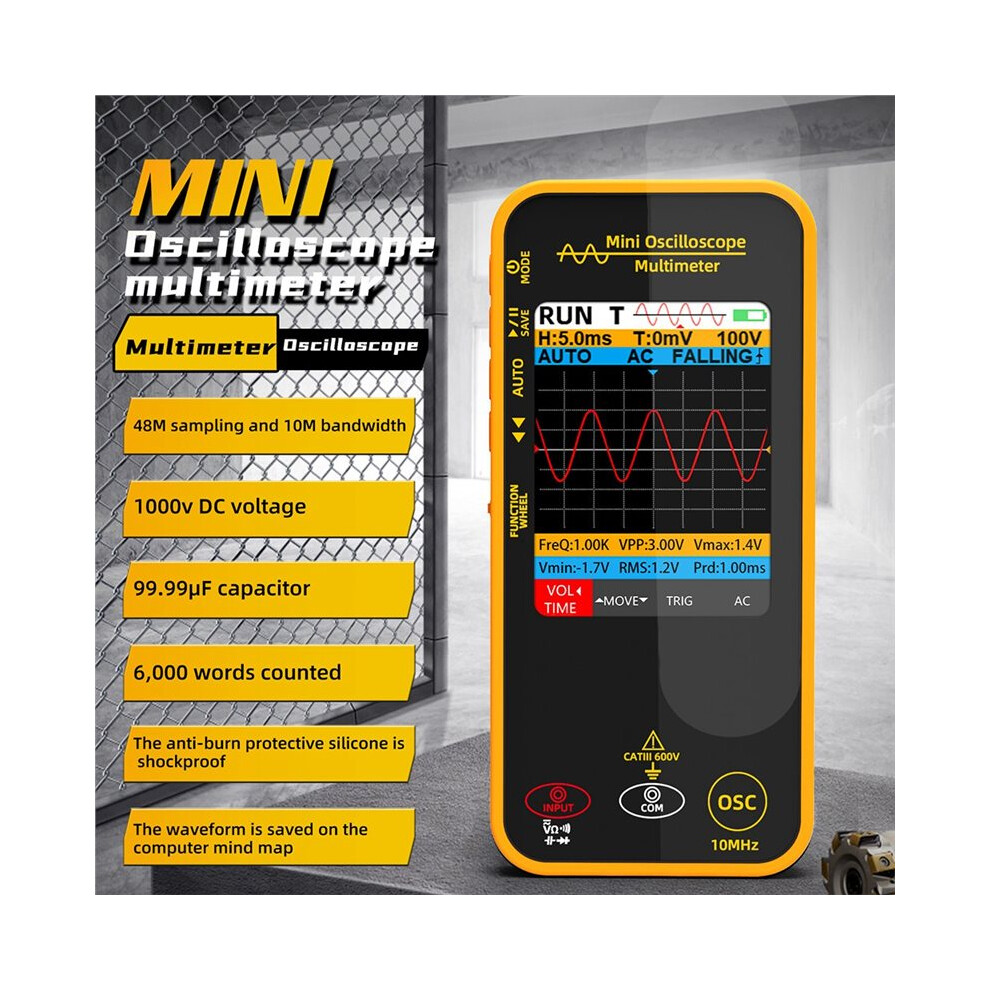

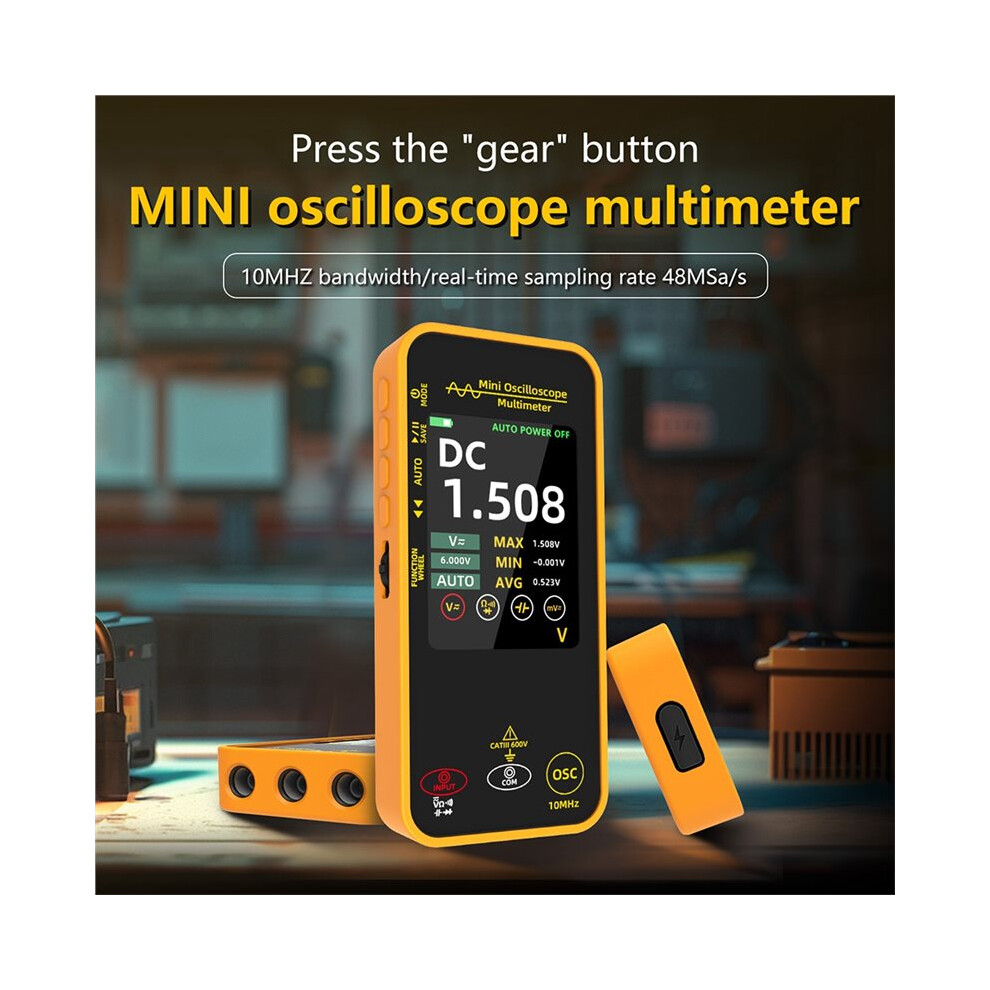

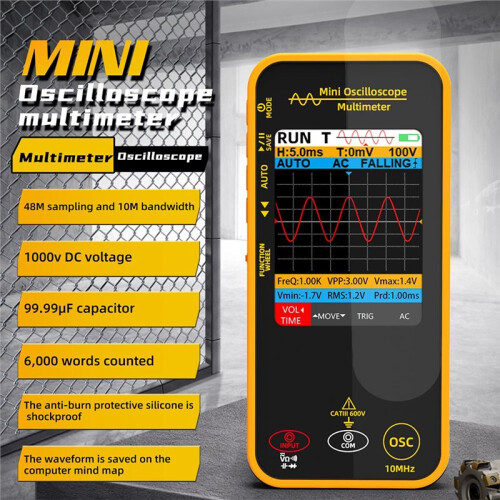

10MHZ real- sampling, real- sampling rate 48NSa/s;
The oscilloscope can measure the attenuation voltage of the input AC impedance probe;
Input Coupling: AC/;
Input impedance: 1MΩ;
Input Attenuation: x1, x10;
Maximum input voltage: 300V for earth;
Horizontal sampling rate range: 1.5Sa/s-48MSa/s;
Waveform interpolation sweep speed range: 100ns/div- 20s/div;
-based accuracy: 20ppm;
Sampling depth: 64KB;
record length;
Vertical sensitivity: 20mV/div-100V/div;
Rise : less than 10ns;
Gain accuracy: 3% of soil;
Displacement range Analog bandwidt
