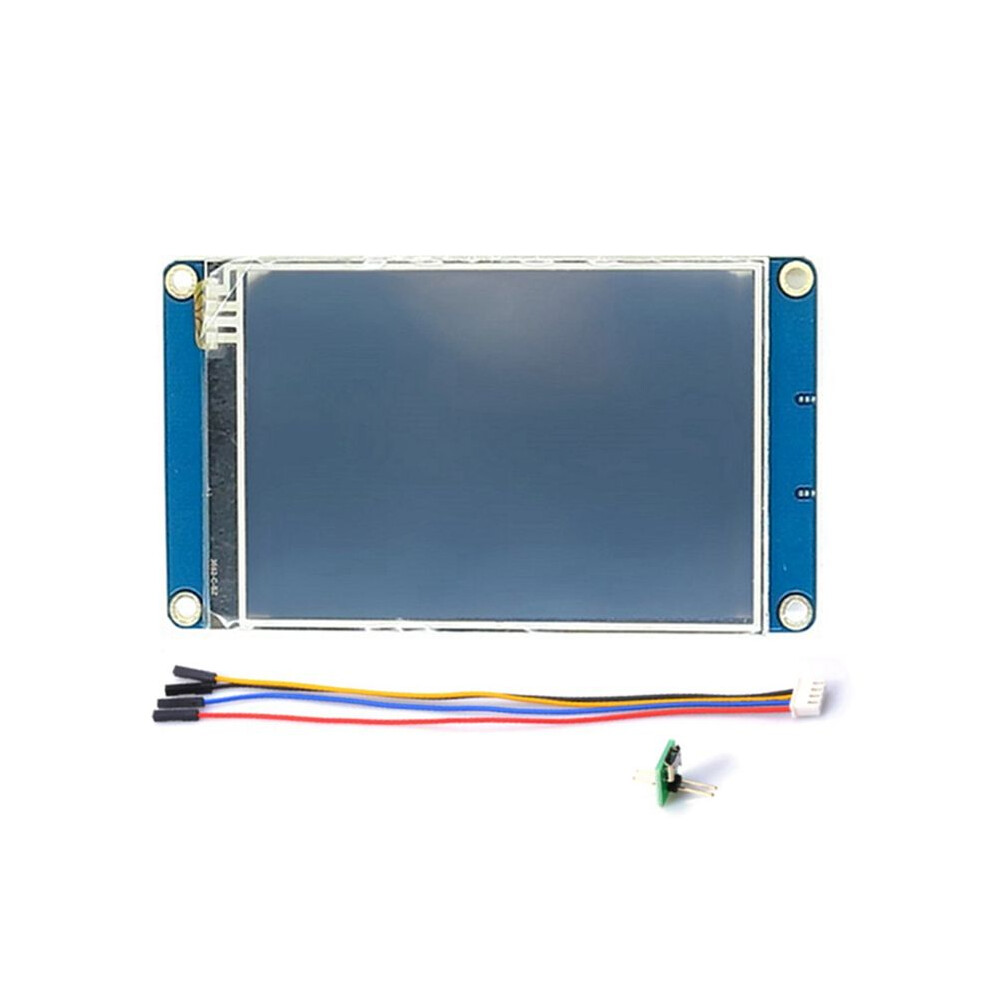

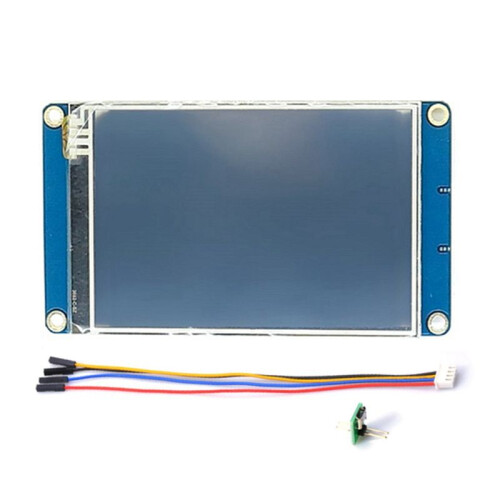

HMI LCD Touch Display NX4832T035 3.5-Inch Human-Machine Interface HMI Resistive Display Enhanced Series

HMI LCD Touch Display NX4832T035 3.5-Inch Human-Machine Interface HMI Resistive Display Enhanced Series Περιγραφή

1. Display is a seamless human-machine interface (HMI) solution that provides control and visualization interfaces between humans and processes, machines, applications or devices.
2. Display is mainly used in the field of Internet of Things or consumer electronics. It is the best solution to replace traditional LCD and LED digital tubes.
3. Through Editor software (official download), users can create and design their own display interface.
4. Working with insufficient power can easily damage the model with blurred and flickering screen You may be suffering from a power shortage.
5. Power off the first No more repeated attempts to damage models A small connector is included in the package. Please try to power the Display with a phone charger through the connector to check if the Display is working properly. A high quality usb cable is required.

Product Description
color:
Material: ABS
Color: 64K 65536 colors 16-bit 565, 5R-6G-5B
Resolution: 480x320 pixels can also be set to 320x480
touch resistive
Number of touches: Greater than 1 million
Backlight: LED
Backlight life: (average) Greater than 30,000 hours
Brightness: 200nit (NX4832T035_011N) 0% to 100% in 1% steps
180 nit (NX4832T035_011R) 0% to 100%, adjusted in 1% steps
Operating voltage: 4.75 5 7 V
Operating current: VCC=+5V, 100% brightness - 145 - mA
Sleep Mode: - 15 - mA
Recommended power supply: 5V, 500mA,
Working temperature: 5V, humidity 60%-20 25 70C
Storage temperature: -30 25 85 C
Working humidity: 25 10% 60% 90% RH
Serial port baud rate: standard 2400 9600 115200 bps
Output high voltage: IOH=-1mA 3.0 3.2 V
Output low voltage: IOL=1mA 0.1 0.2 V
Input high voltage: 2.0 3.3 5.0 V
Input low voltage: -0.7 0.0 1.3 V
Serial mode: TTL
