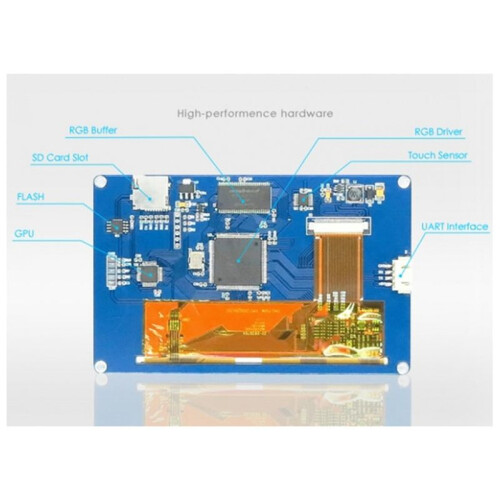

HMI LCD Touch Display NX8048T050 5-Inch Human-Machine Interface HMI Resistive Display Enhanced Series

HMI LCD Touch Display NX8048T050 5-Inch Human-Machine Interface HMI Resistive Display Enhanced Series Περιγραφή

1. Is a seamless human-machine interface (HMI) solution that provides control and visualization interfaces between humans and processes, machines, applications or devices.
2. Is mainly used in the field of Internet of Things or consumer electronics. It is the best solution to replace traditional LCD and LED digital tubes.
3. Through Editor software (official download), users can create and design their own display interface.
4. Working with insufficient power can easily damage the model with blurred and flickering screen You may be suffering from a power shortage.
5. Power off the first No more repeated attempts to damage models A small connector is included in the package. Please try to power the with a phone charger through the connector to check if the is working properly. A high quality usb cable is required.

Color:64K 65536 colors 16-bit 565, 5R-6G-5B
Effective area:(A.A.) 118.50mm (length) x 77.55mm (width)
Visual area:(V.A.) 108mm (length) x 64.8mm (width)
Resolution:800x480 pixels can also be set to 480x800
Touch type:Resistive
Number of touches:Greater than 1 million
Backlight:LED
Backlight life (average):Greater than 30,000 hours
Brightness:250 nit (NX8048T050_011N) 0% to , adjustable in 1% steps
Working temperature:5V, humidity 60%-20 25 70C
Storage temperature:-30 25 85 C
Working humidity:25 10% 60% 90% RH
Serial port baud rate:standard 2400 9600 115200 bps
Output high voltage:IOH=-1mA 3.0 3.2 V
Output low voltage:IOL=1mA 0.1 0.2 V
Input high voltage:2.0 3.3 5.0 V
Input low voltage:-0.7 0.0 1.3 V
Serial mode:TTL
Serial port:4Pin_2.54mm
card slot:Yes (FAT32 format), maximum support 32G Micro- card
Flash memory:16 MB for storing fonts and images
RAM memory:store variables 3584 BYTE
