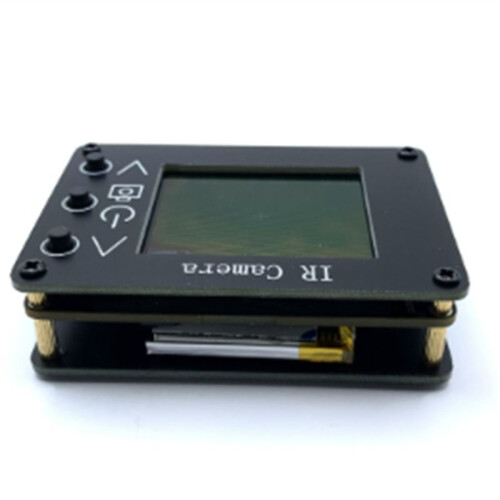

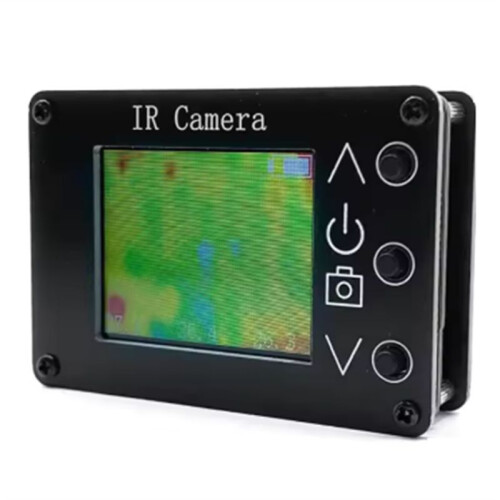

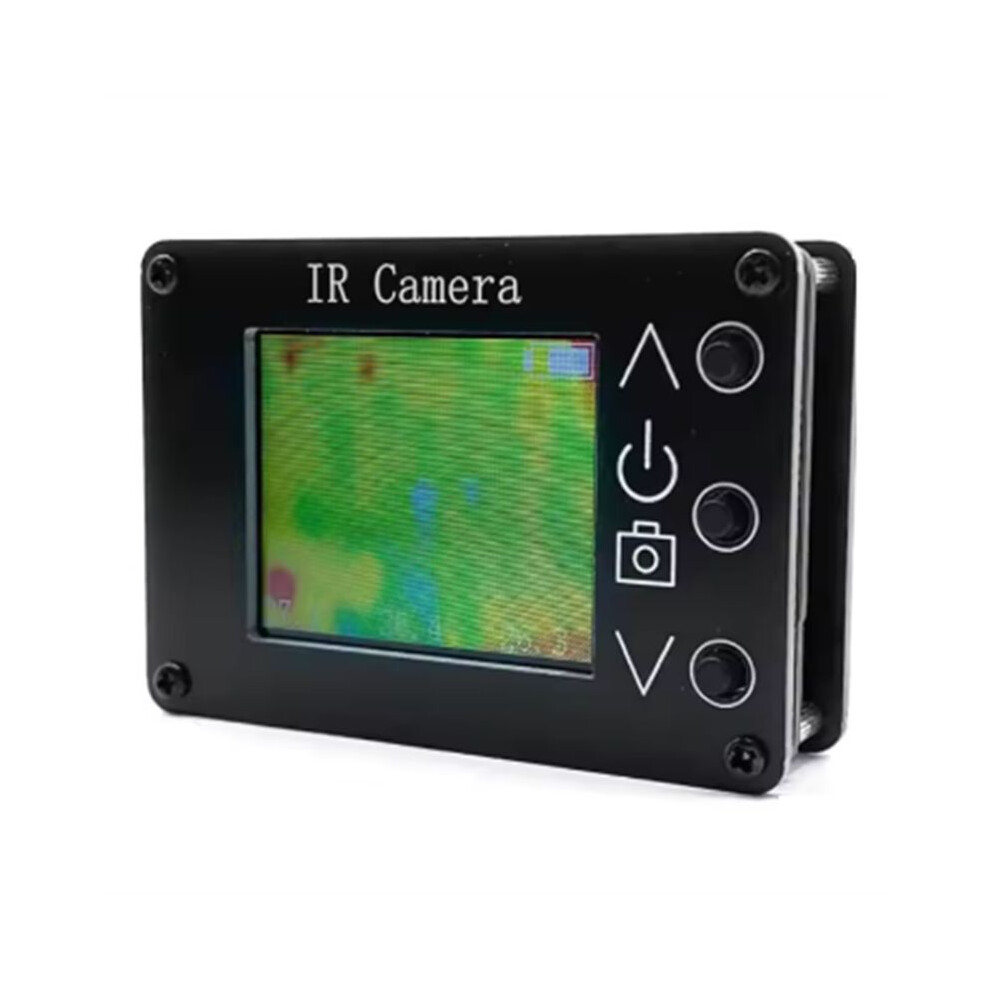

Infrared Thermal Imager Camera 1.8 Inch LCD Display Digital Temperature Measurement Sensor USB Charging MLX90640

Infrared Thermal Imager Camera 1.8 Inch LCD Display Digital Temperature Measurement Sensor USB Charging MLX90640 Περιγραφή

No calibration required.
Using MLX90640ESF_BAB infrared sensor.

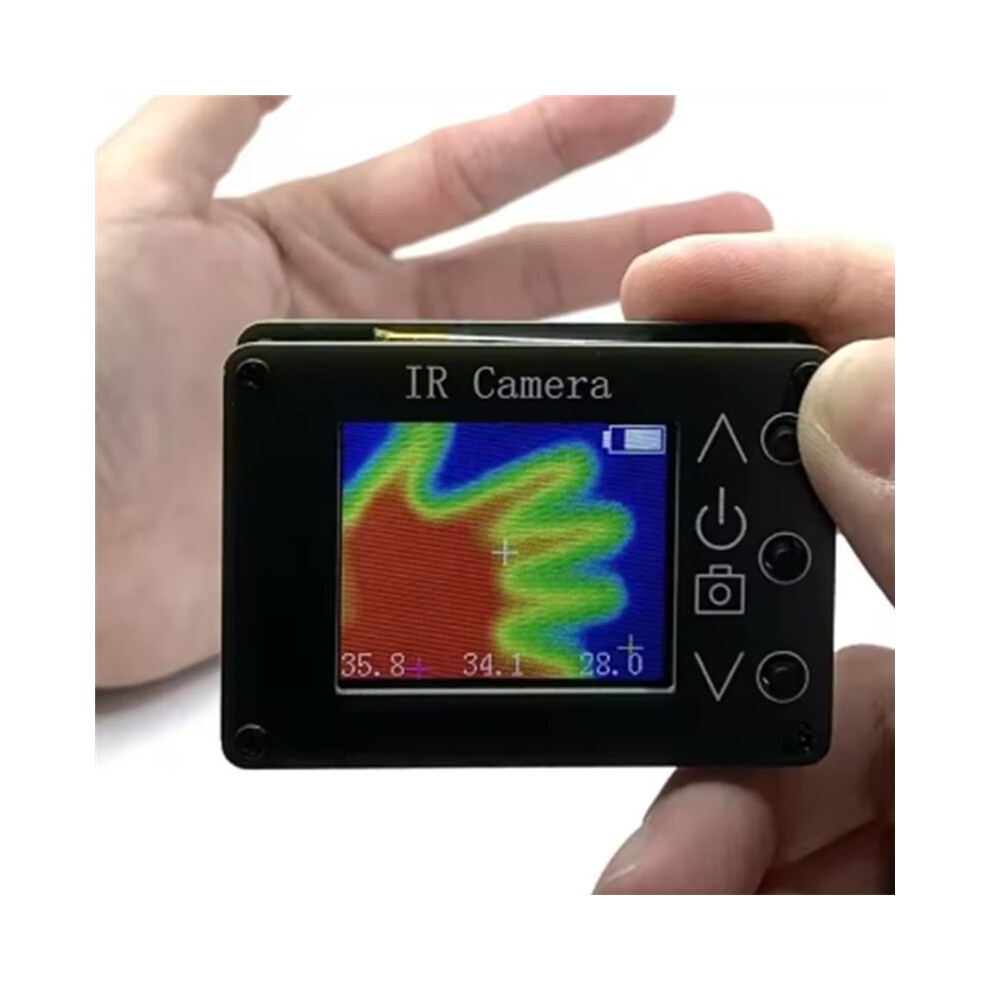

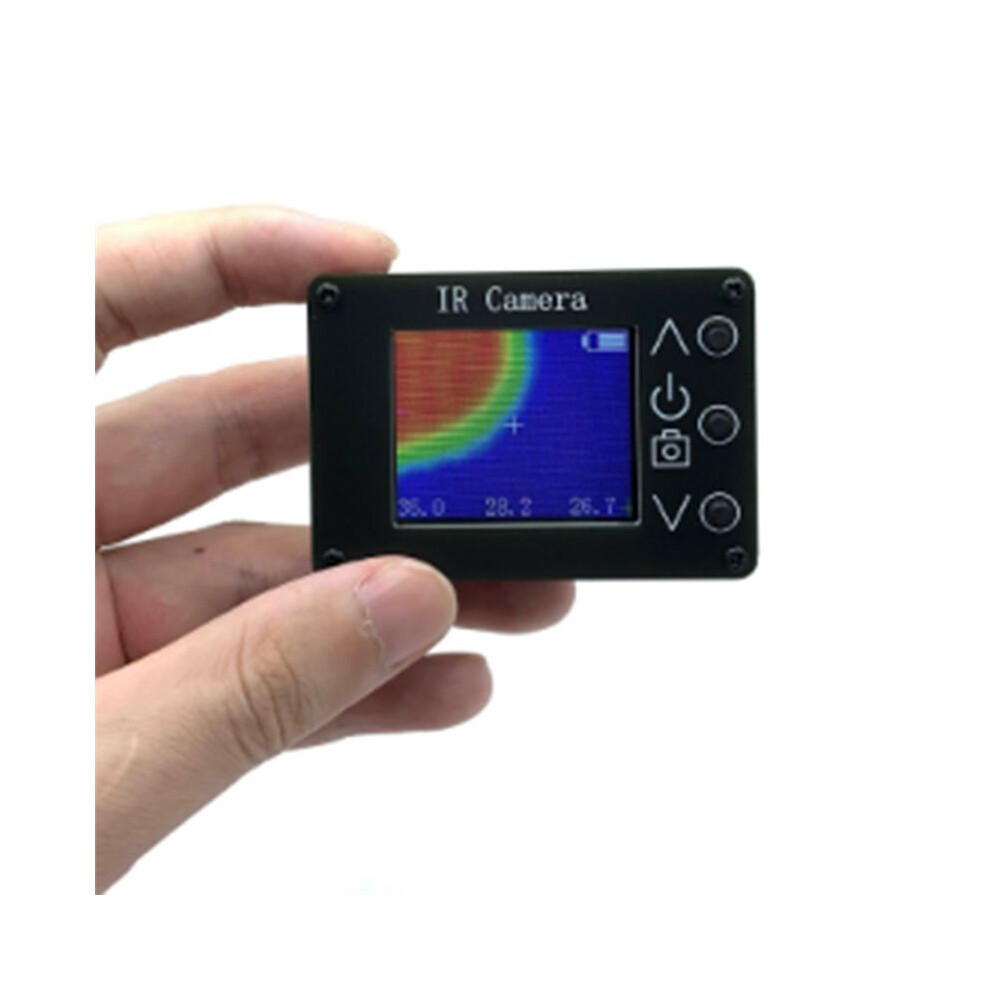

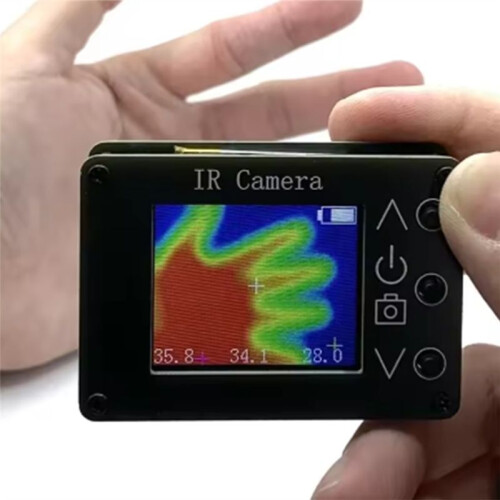

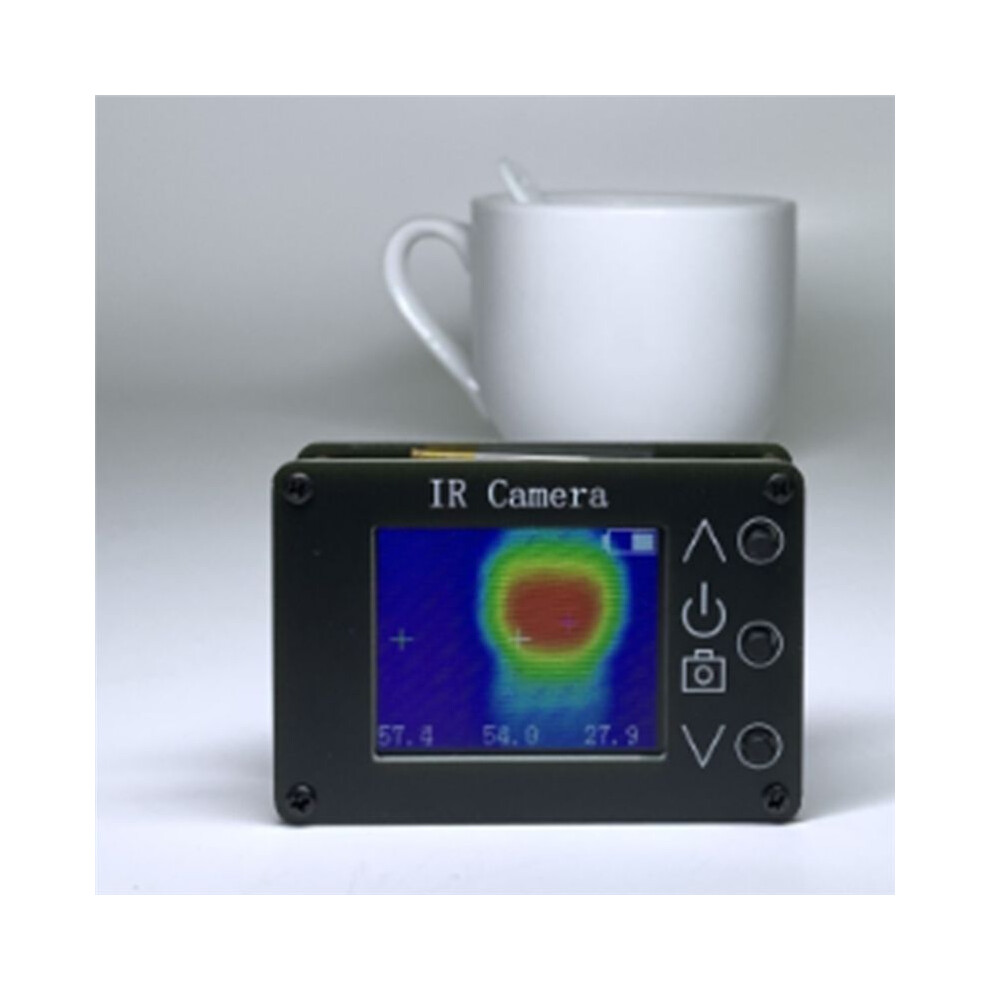

Displays center point, maximum and minimum temperatures.
Take photos (can save 90 photos, can be connected to the computer, can be copied and deleted). Rechargeable battery (200mAh).
Application: High-precision non-contact temperature measurement; Security and intrusion detection; Temperature detection; Intelligent building environment temperature measurement and control; Car air conditioning control; Microwave and oven temperature detection and control; Temperature monitoring of industrial parts; Visual temperature sensor; Floor heating equipment side leakage and maintenance; Thermal detection of circuit boards and components

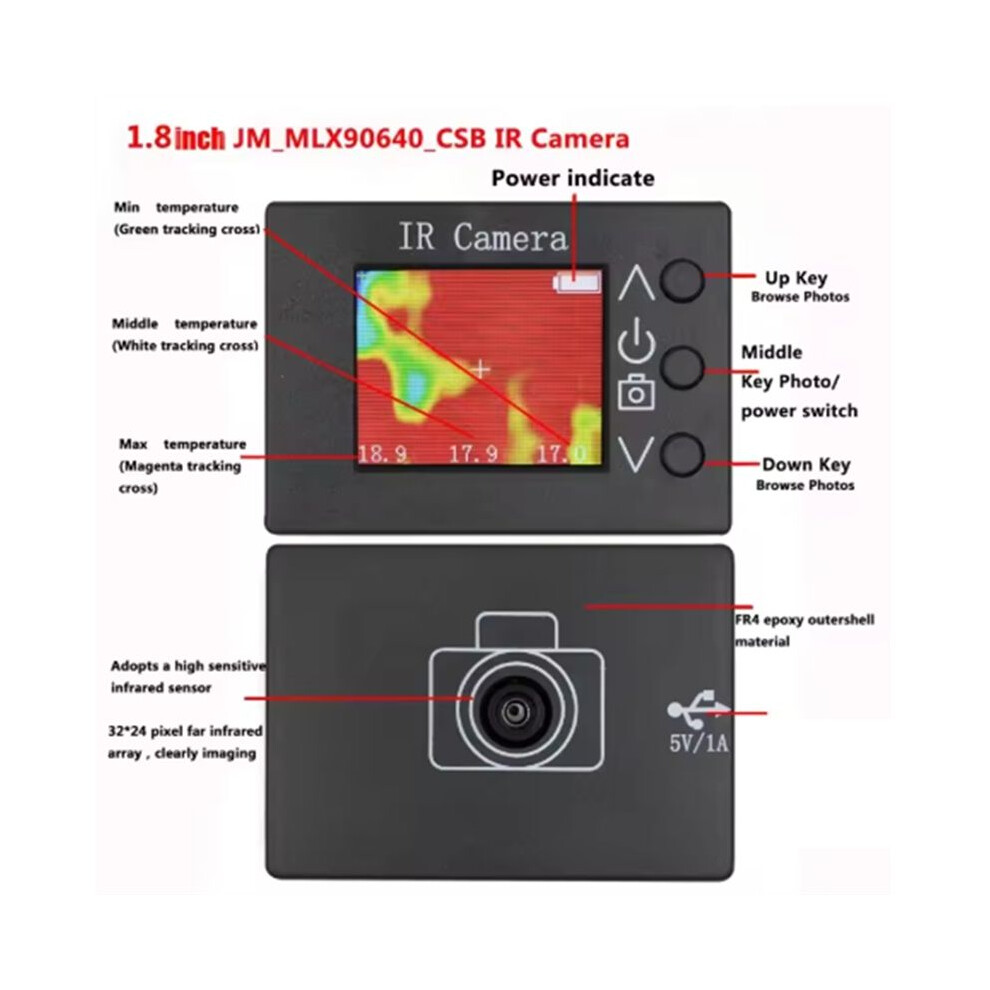

Instructions:
1. Charging: Use USB Type-C cable, 5V/1A
2. Turn /off: long press the middle button
3. Take photos: Press the middle button
4. View photos: Press the or down button
5. Exit photos: Long press the or down button
6. Copy photos: Connect the computer with a USB cable, and the computer will get a disk.
Note:You cannot change the photos the disk or put other files the disk. Please fully charge and shut down before connecting to the computer.
Name: Portable Thermal Imager
Module: JM_MLX90640_CSB
TFT display: 1.8 inches
Display resolution: 160x128
Resolution: 32x24
Refresh rate: 8HZ
Field of view: 55x35
Power port: USB Type-C 5V/1A
Rechargeable battery capacity: 200 mAh
Working hours: greater than equal 4 hours
Temperature measurement range: -40-300
Measurement accuracy: +/-2 (center area, 0-100)
Operating temperature: 10-50
Operating humidity: less than equal 70%

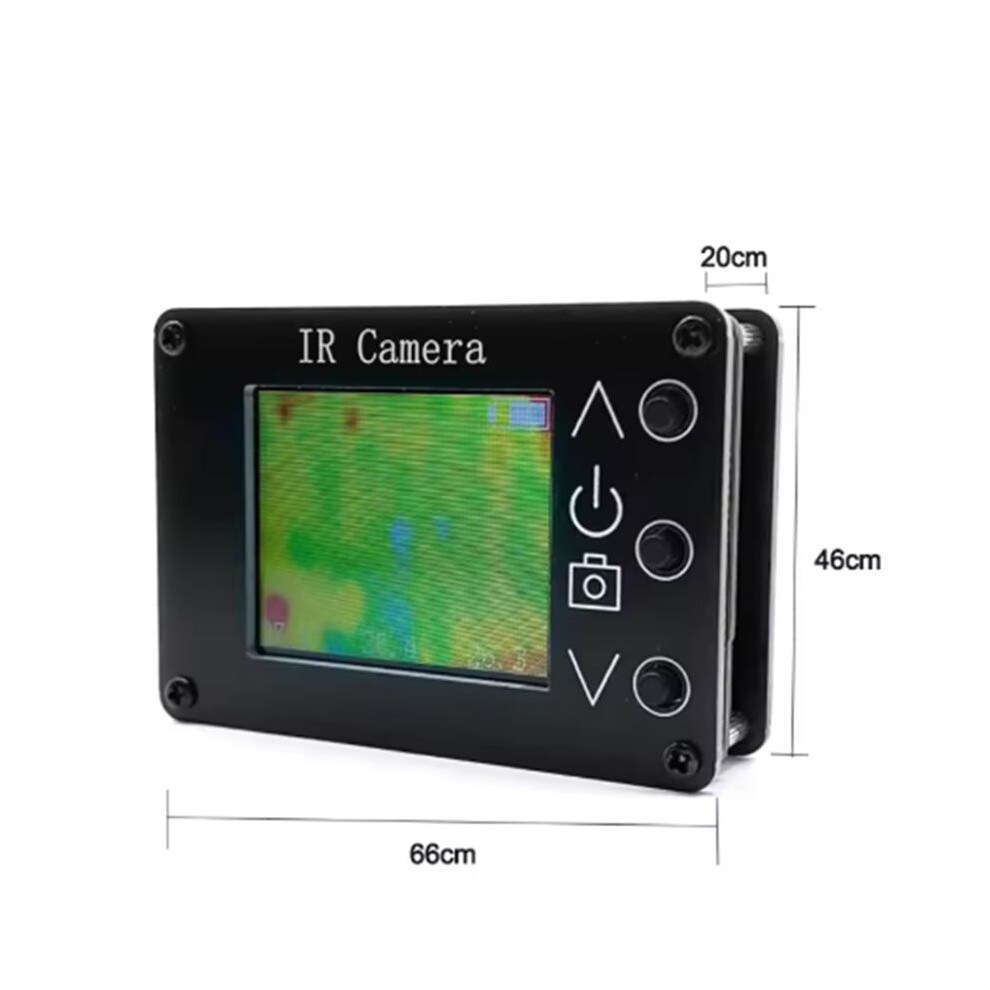

Dimensions:66x46x20mm
Colour:Black

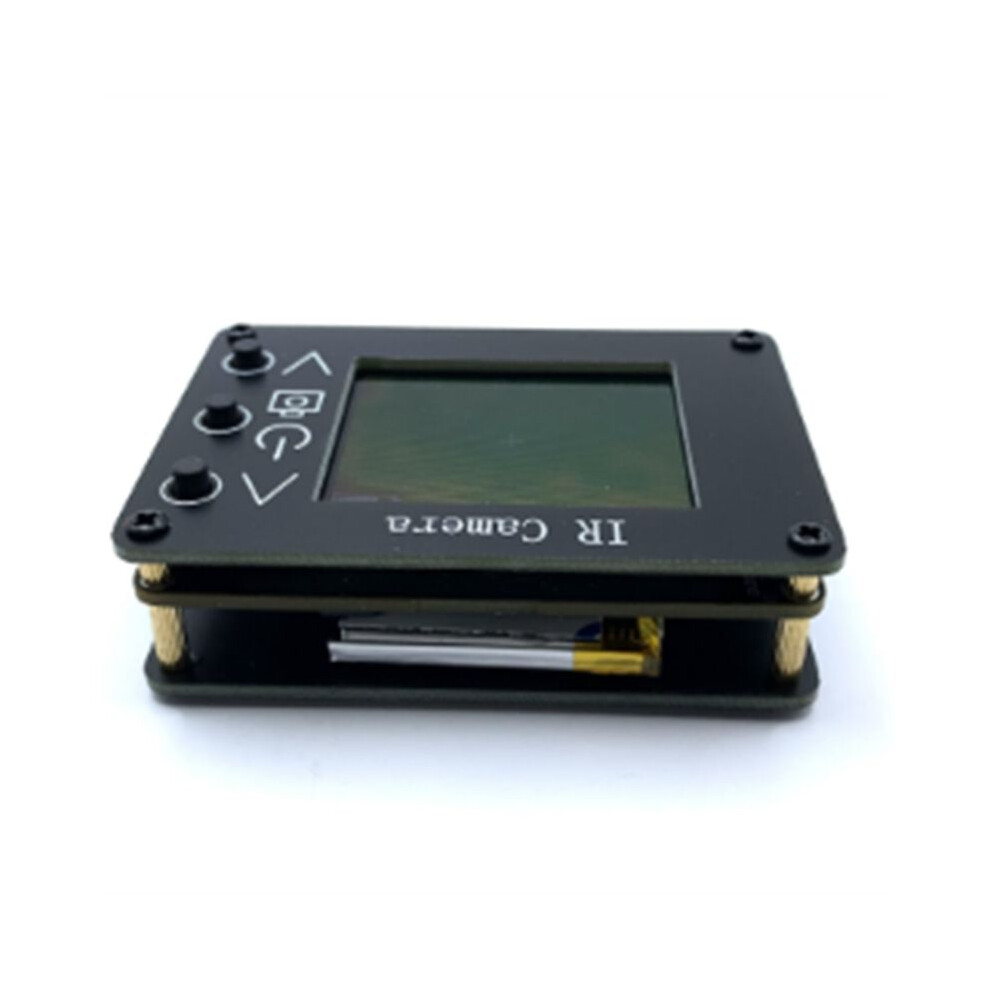

Material:epoxy board

Package Contents:
1 * MLX90640 thermal imager
