LD2410C 24G Human Presence Sensor+CH340 Adapter FMCW Millimeter Wave Motion Detection Module DC5V

LD2410C 24G Human Presence Sensor+CH340 Adapter FMCW Millimeter Wave Motion Detection Module DC5V Περιγραφή

LD2410C is a high-sensitivity 24GHz human presence sensing module. The working principle is to use FMCW frequency modulated continuous wave to detect human targets in a set space, combined with signal processing and precise human body sensing algorithm to achieve high sensitivity of human presence status.
The sensor can identify the human body in motion and at rest and can calculate auxiliary information such as the distance to the target. The product is mainly used in indoor scenes to sense whether there is movement or micro-movement of the human body in the area and output the results in real .

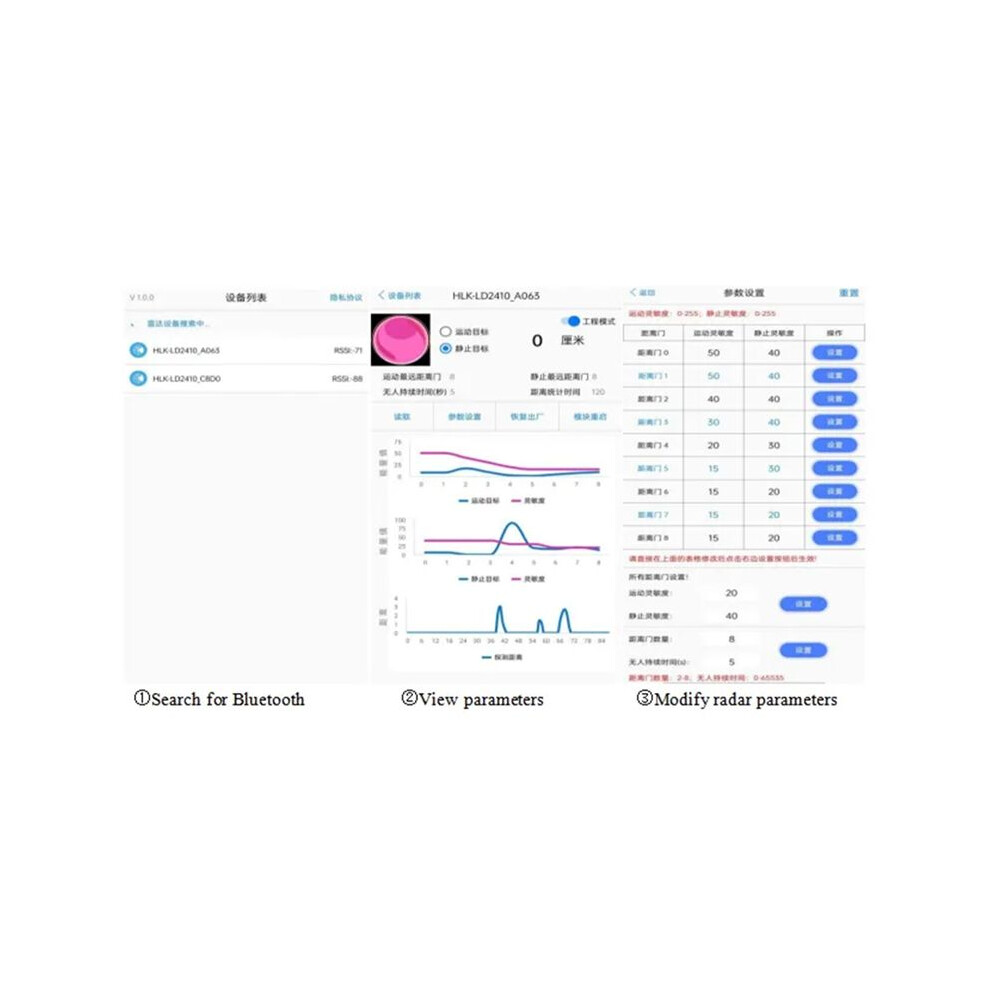

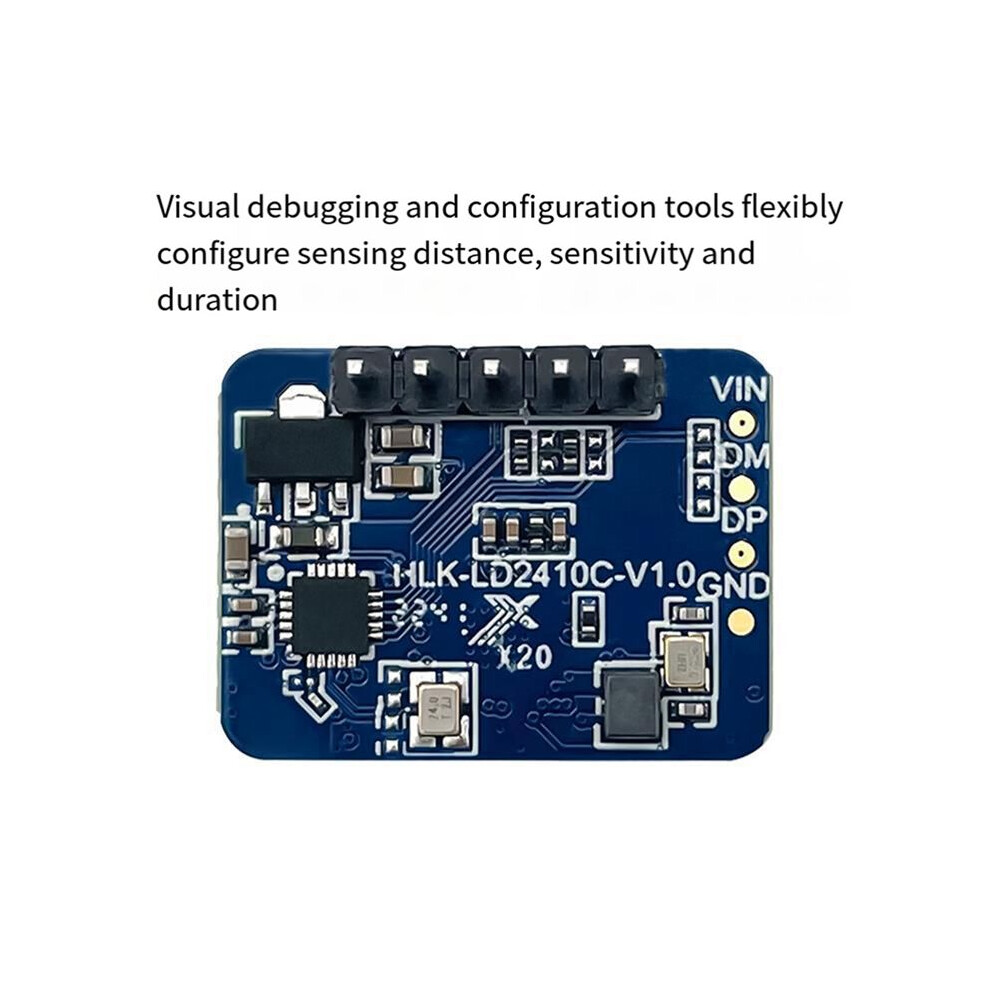

The longest sensing distance is to 6 meters, and the resolution is 075m. A configuration tool is provided to configure the sensing distance range, sensing sensitivity in different intervals, unattended delay , etc. Supports GPIO and UART output plug-and- and can be flexibly applied to different scenarios and terminal products.

Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.
Colour:
Material:PCB

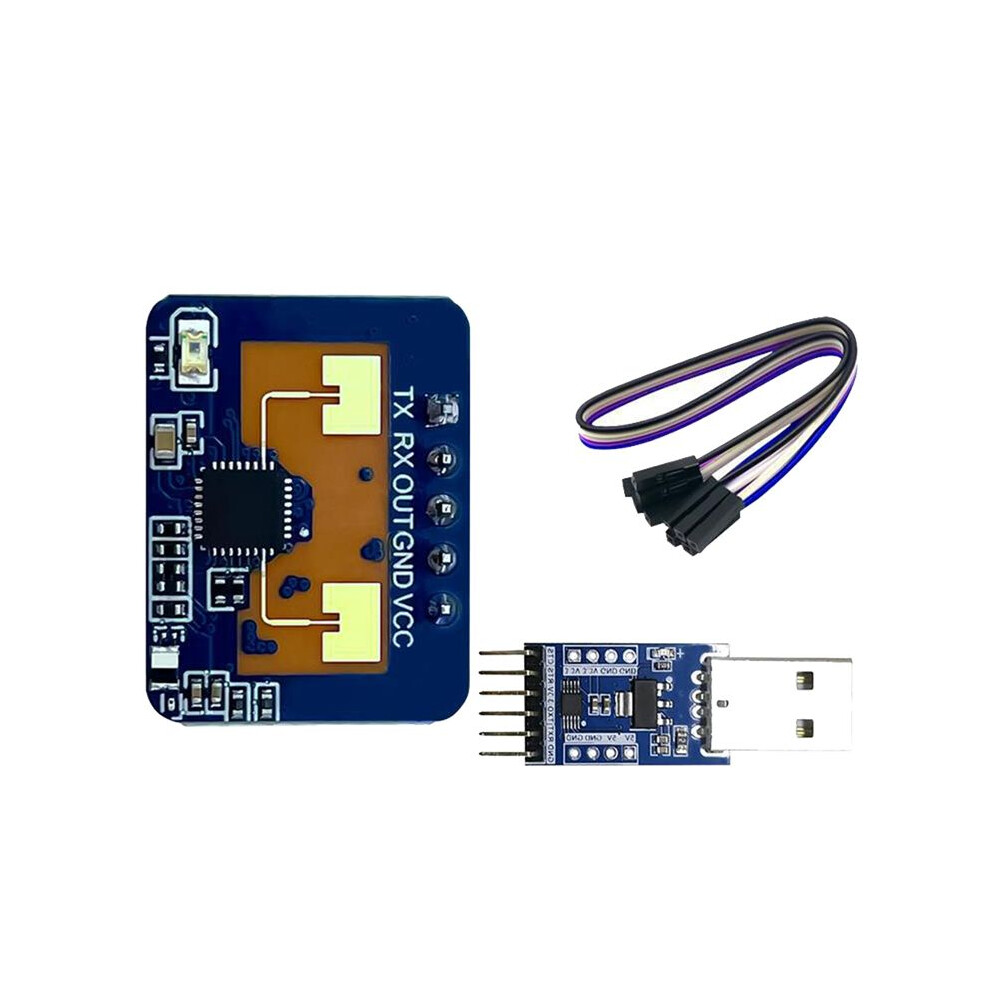

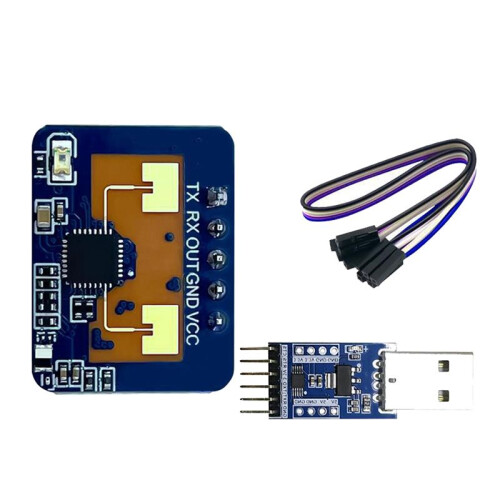

Package Contents:
1 * Module
1 * DuPont connecting cable
1 * Serial port small board CH340
