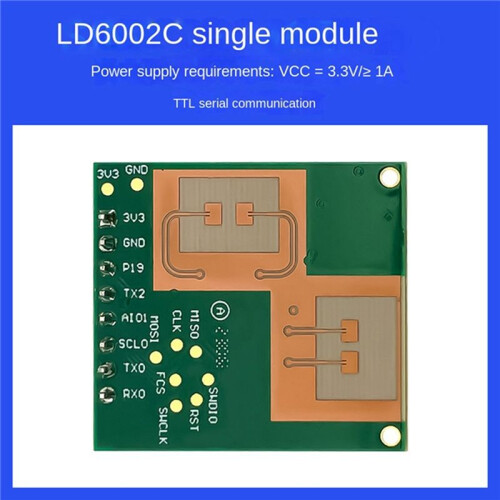

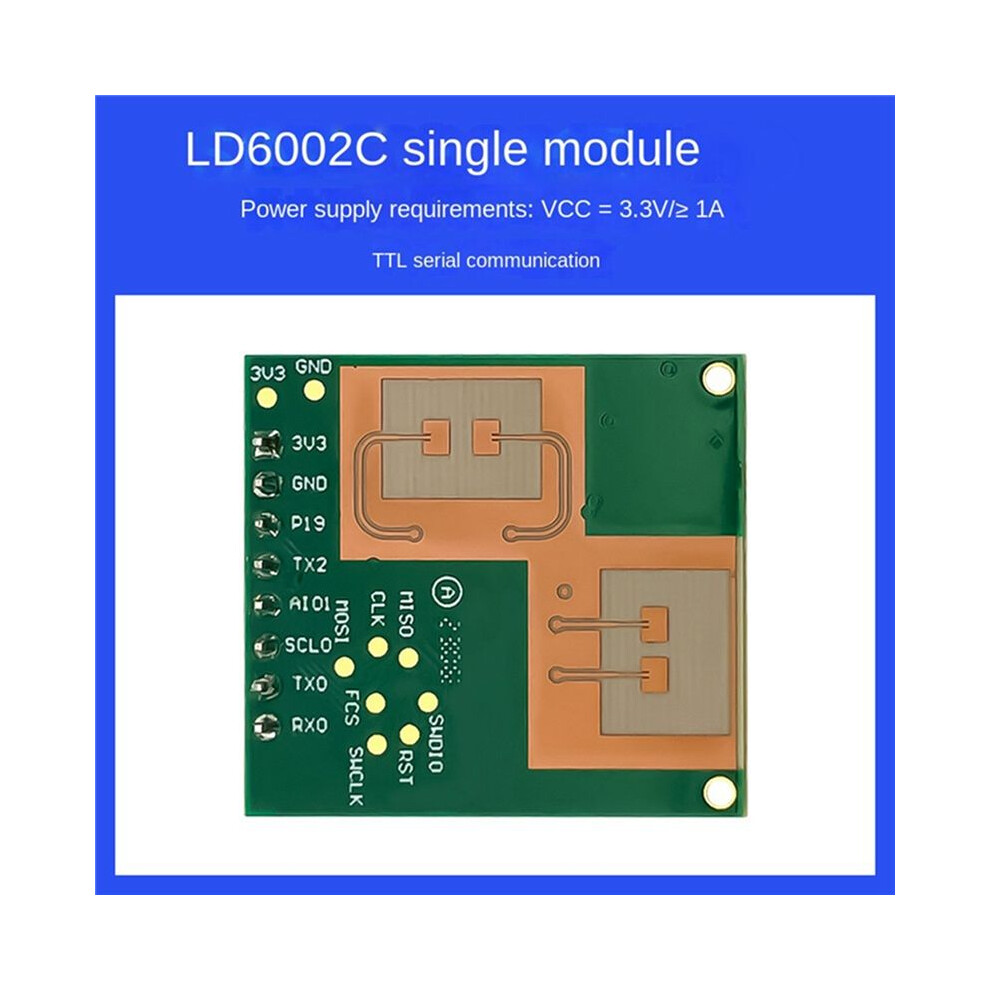

LD6002C 60G Millimeter Wave Sensor Fmcw Non-Contact Sensor for Fall Detection

LD6002C 60G Millimeter Wave Sensor Fmcw Non-Contact Sensor for Fall Detection Περιγραφή

LD6002C is a 60G Millimeter Wave Module based FMCW (Frequency Modulated Continuous-Wave) mechanism. Integrated with advanced signal processing algorithms, it provides accurate sensing of an individual's status in a specified location and ensures timely fall detection, making it an essential asset for any home system or healthcare facility.
This sensor is perfect for numerous scenarios including nursing care facilities, especially in toilets and bathrooms, home security systems, and comprehensive home intelligence units. Its functionality and design cater to a wide range of environments requiring enhanced security and monitoring.
LD6002C boasts an impressive detection angle of 60azimuth/60pitch angle and an effective detection distance of less than 2 meters (when hung between 2.2 meter and 3 meter). Its fall recognition accuracy stands at 90% (Typical), thus providing reliable and superior performance for your safety requirements.
Our FMCW Module can detect one person at a and operates at a voltage of 3.3V(Typical), drawing Greater than 1A of current. Its transmitting power stands at 12dBm, using FMCW modulation mode, and has an antenna gain of 4dBi. The data output is provided in a Serial ASCII format.
Power supply requirements for the module are critical, within a range of 3.1-3.5V, ripple less than equal 50mV, sufficient current greater than equal 1A. Ensure use of a DCDC power supply with a switching frequency no lower than 2MHz. For best performance, the product must be appropriately integrated into the application scene to effectively eliminate any interference.

Working frequency:60G(58-62GHz)
Transmit power:12dBm
Modulation method:FMCW
Antenna gain:4dBi
Detection angle:azimuth angle 60/ elevation angle 60
Detection distance:Less than 2m (hanging height
