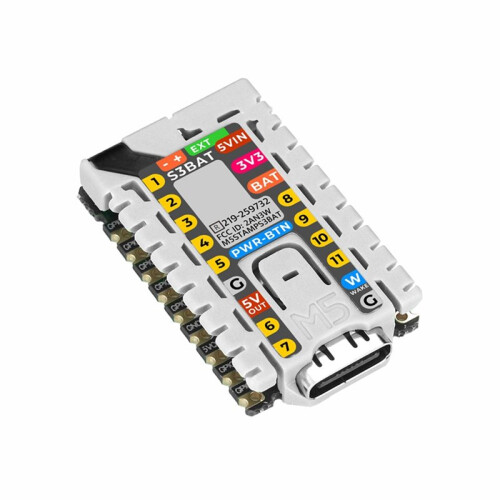

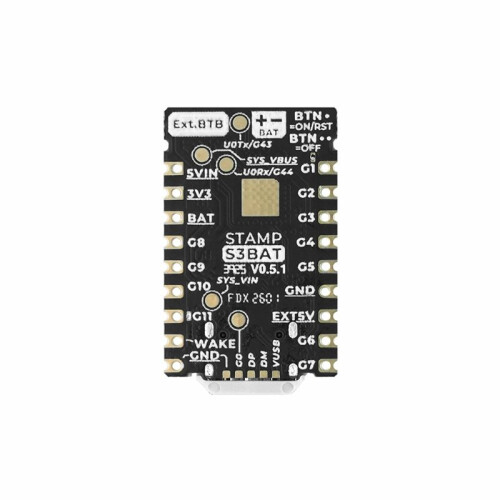

M5StampS3 BAT Module with Battery Connector ESP32-S3 Stamp-S3Bat Embedded Core Module with Integrated Power Management

M5StampS3 BAT Module with Battery Connector ESP32-S3 Stamp-S3Bat Embedded Core Module with Integrated Power Management Περιγραφή

Stamp-S3Bat is an embedded core module with integrated power management. It uses the ESP32-S3--1-N8R8 as the main control core, supporting 2.4GHz Wi-Fi, with built-in 8MB Flash and 8MB PSRAM.

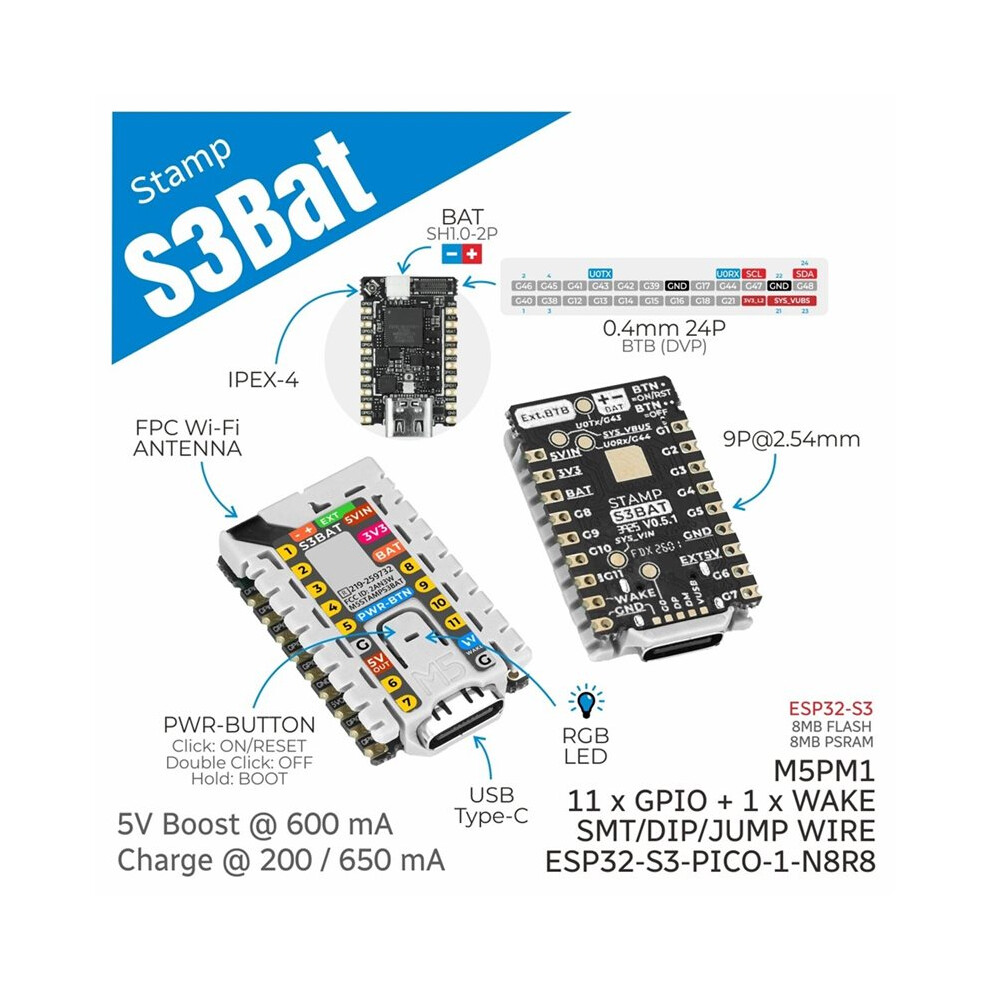

The module leads out a total of 11 GPIOs and 1 wake- IO, and is equipped with a 24P BTB connector (supporting DVP interface). The onboard battery power interface is used for external 3.7V lithium battery power supply.
It features the built-in M5MP1 multi-level power control design, supporting power input/output control, lithium battery charging management, and status detection such as input voltage and battery voltage.
It also supports external low-power wake- functions; after the main controller enters a low-power sleep state, the power can be restarted via the external wake- IO.
The module features an onboard programmable RGB LED and adopts a 2.54mm standard pitch half-hole pad design, supporting various integration methods such as SMT and DIP, making it convenient for developers to quickly build IoT applications.

Features:
Integrated ESP32-S3--1-N8R8 controller
8MB Flash and 8MB PSRAM
24P BTB connector (supports DVP interface)
M5PM1 low-power power management
11 x GPIO leads + 1 x wake- IO
1 x RGB LED
2.54mm standard pitch
Power Supply: 3.7V battery power supply (not included), USB Type-C / 5V
Applications: IoT project development

Specifications:
SoC: ESP32-S3--1-N8R8 @Dual-core Xtensa LX7 processor, main frequency to 240MHz
Flash: 8MB
PSRAM: 8MB
Wi-Fi: 2.4 GHz Wi-Fi
Input Power: 3.7V battery power supply / USB Type-C / 5V
RGB LED: 1 x WS2812
Battery Interface: SH1.0
Pad GPIO Leads: 11 x GPIO (G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11) + 1 x Wake- IO (PY_G4_WAKE)
BTB Interface GPIO Leads: 19 x GPIO (G40/G38/G12/G13/G14/G15/
