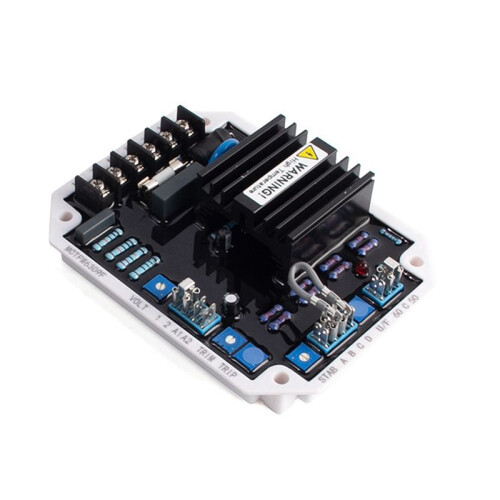

Features: Adjustable Voltage Regulator Module: MCTFW6309F
Less than 1% voltage regulation accuracy; 220/400VAC input
Strong and durable; With low frequency protection function
Slow start;Built-in harmonic suppressor
Built-in 8A fuse

Technical Parameters
Sampling input 220/400VAC (short-circuit )
Voltage input 180-276VAC
Excitation output voltage Maximum 90VDC@240v
Continuous current 5A
Non-continuous 8A10 seconds
Resistor minimum 15 ohms
Voltage regulation accuracy is less than +/-1% (frequency changes within 4%)
The voltage establishment residual magnetization voltage must be greater than 5V25 Hz
External voltage adjustment maximum +/-10%@1KΩ1W potentiometer
Voltage build- 4 seconds
Static power consumption maximum 8 W
EMI built-in harmonic suppressor
Low frequency protection 50Hz knee value is 46 Hz
60Hz knee value is 56 Hz
Overexcitation protection factory default value 75VDC
Simulation voltage input (A1, A2)
Input impedance greater than 2 KΩ
Maximum input +/- 5 Vdc or + 0 -10 Vdc
Sensitivity 5% per 1 Vdc (TRIM adjustable)nvironment
Vibration 3G@100~2K Hz Relative Humidity Less than 95%
Operating Temperature -40~65 Storage Temperature -40~85
Tips: The product may be updated constantly, The Actual Product May Have Slight Differences Or Color Differences the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.
Material: Plastic
colour: As shown

Package Contents:
1 x Adjustable Voltage Regulator Module
