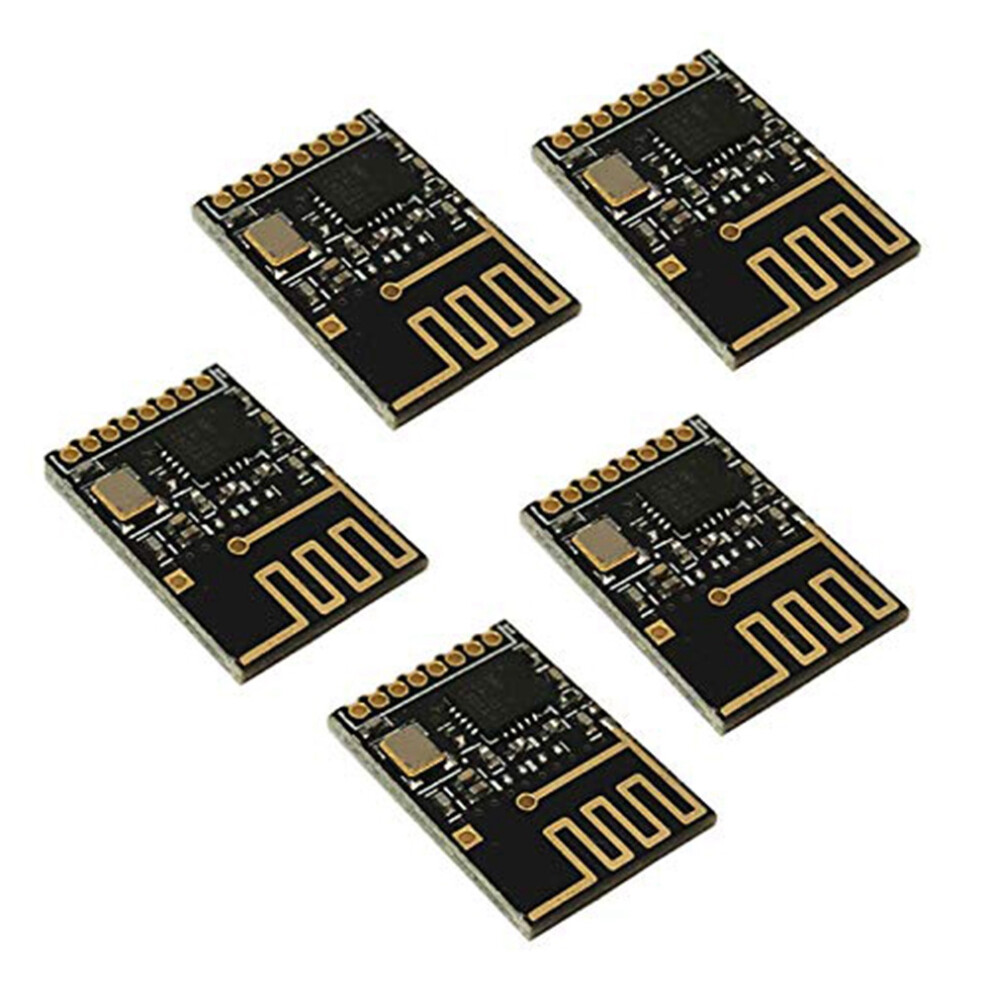

NRF24L01 + 2.4GHz SMD Wireless Transceiver Module for (5Pcs)2.4G Wireless Transceiver Module
Σε απόθεμα
Γιατί θα λατρέψεις τις αγορές στην OnBuy :
- Κέρδισε Επιστροφή Ποσού σε κάθε αγορά – ξόδεψε το άμεσα στην επόμενη παραγγελία σου
- Δωρεάν παράδοση – σε εκατομμύρια προϊόντα σε όλο το site
- Οι πελάτες μας λατρεύουν – 126,000 κριτικές με βαθμολογία « Άριστα »
Οι τιμές για τα είδη που πωλούνται από την OnBuy περιλαμβάνουν ΦΠΑ.
Διαθέσιμες άτοκες επιλογές πληρωμής
Δες την πλήρη περιγραφή & λεπτομέρειες του προϊόντος
Παράδοση: Κανονικό (2,01 €) | Δευ 22 - Σαβ 27 Ιουν
Πωλείται από: Zemaoxia
Επιστροφές: 30 ημέρες
Προστασία πληρωμής 180 ημερών
Περίληψη
- NRF24L01 + wireless module 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options MultiCeiver hardware to provide the 6 receiver functions at the same time + / - 60 ppm crystal Only need an external inductance when match antenna No multi-layer PCB 5V input tolerance level No need external level converter
- Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU No MCU with SPI Interface 20 pin 4x4mm QFN leadless package very few external components
- The 2Mbit / s rate when the peak current 12.5mA received The 2Mbit / s rate @ 0dBm output current of 11mA peak 2Mbit / s rate of only a small average current 400nA
- Power-down mode, power consumption Power consumption of 32uA in standby mode 130us fast switching and wake-up time With on-chip voltage regulator oltage regulators In the 1.9 to 3.6V low voltage operation Possible to reduce noise
- Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.
NRF24L01 + 2.4GHz SMD Wireless Transceiver Module for (5Pcs)2.4G Wireless Transceiver Module Περιγραφή
NRF24L01 + wireless module 2Mbit / s 1Mbit / s 250Kbit / s transfer rate options MultiCeiver hardware to provide the 6 receiver functions at the same + / - 60 ppm crystal Only need an external inductance when match antenna No multi-layer PCB 5V input tolerance level No need external level converter
Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU No MCU with SPI Interface 20 pin 4x4mm QFN leadless package very few external components
The 2Mbit / s rate when the current 12.5mA received The 2Mbit / s rate @ 0dBm output current of 11mA 2Mbit / s rate of only a small average current 400nA
Power-down mode, power consumption Power consumption of 32uA in standby mode 130us fast switching and wake- With -chip voltage regulator oltage regulators In the 1.9 to 3.6V low voltage operation Possible to reduce noise
Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.
Colour: as shown
Material: PCB
Size: 18 x 12 x 2mm
Package Contents:
5 x Module
Λεπτομέρειες
| OPC | PRMWBNV |
|---|---|
| Κωδικοί | 6031264444402 (EAN) |
Στοιχεία Προϊόντος
| Height | 1cm |
|---|---|
| Width | 9cm |
| Length | 8cm |
| Weight | 0.007kg |
| Colour | as shown |
| Material | PCB |
