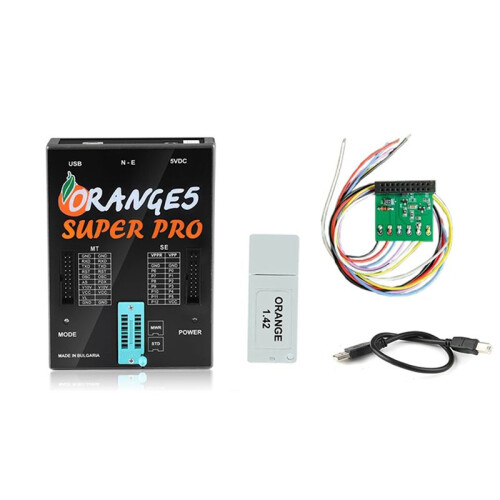

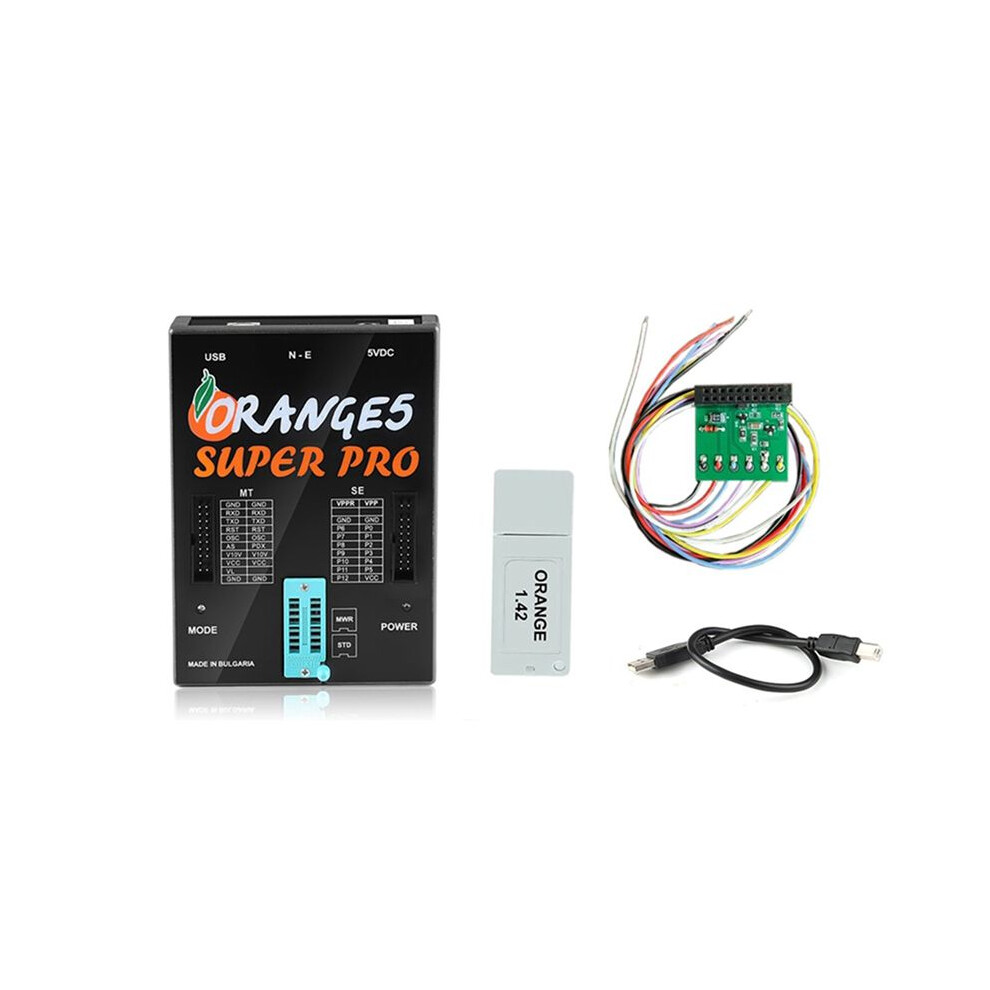

Orange5 V1.42 Main Unit 5C38 ECU Programmer Adds More Ecu Mcu List Program for Upgrade Orange 5 Super Pro

Orange5 V1.42 Main Unit 5C38 ECU Programmer Adds More Ecu Mcu List Program for Upgrade Orange 5 Super Pro Περιγραφή

NEWEST Version:V1.42:
1, Updated the basis of v1.38, adding more supported chips, compatible with 1.38 hardware, it is more professional and the programmer you want. 2, V1.42 dongle and V1.42 software need to be used together. 3, If you want detailed information about 1.42, please contact us. 4, add V850E2-S BYPASS Adapter
Orange5 Technical Info:
USB power supply (USB2.0/3.0); Universal easy to plug panel ZIF16 for EEPROM; Control of contacts in the sockets; Two expansions compatible with Orange4 and MTRK; Protection against overcurrent; Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply); Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K- (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM .
Description:
NOTE: Orange5 cannot work Win11, requires Win10 64 bit and Win7!!!
Highlights:
Software Version:V1.42, orange 5 full function. Activate full Authorizations
Language:English
Systems:WIN7 (32bit and 64 bit)
it can do ECU Programmer, Key Progrmmer, correction, immo pin, srs reset
Colour: Picture Color
Material: Plastic

Package Contents:
1*
