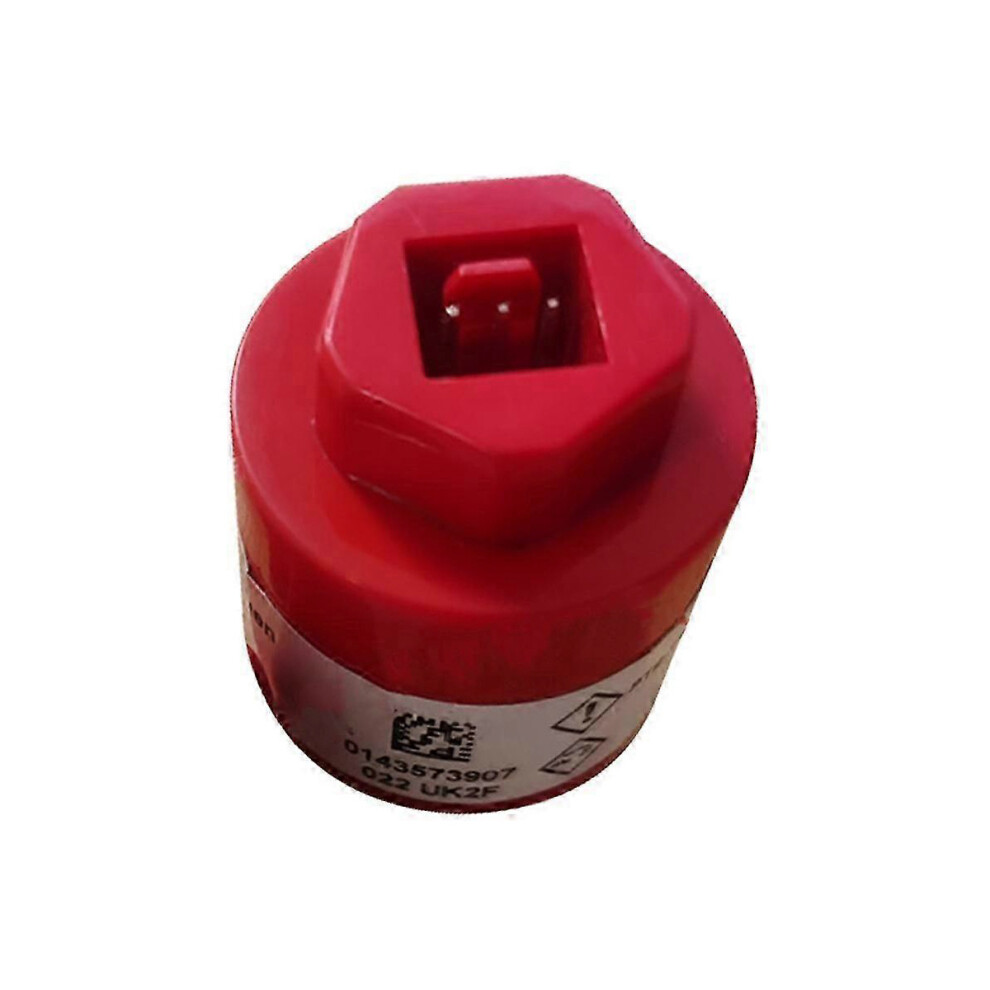

Oxygen Sensor AO-02 Gas Detector Compatible with AO2 AA428-210 AO2PTB-18.10

Oxygen Sensor AO-02 Gas Detector Compatible with AO2 AA428-210 AO2PTB-18.10 Περιγραφή

The output of the AO2 sensor changes with temperature, but the thermistor is gradually integrated to compensate for these changes. The thermistor is used to give the AO2 a very stable output over a wide temperature range.

The AO2 PTB-18.10 oxygen sensor used in the oxygen index meter is a consumable item. When it comes into contact with air, a chemical reaction begins.

AO2 Product Parameters:

(1) Output:9-13mV in air

(2) Range:0-100%O2

(3) Accuracy:0.01%O2

(4) Expected service life:360,000%O2 hours at 20, 286,000%O2 hours at 40, or two years in air at STP

(5) T90 response time:Less than 5 seconds

(6) T99.5 response time:Less than 40 seconds

(7) 100% oxygen in signal:1001%

(8) Linearity:0-100%O2

(9) Zero offset:Less than 20V

(10) Temperature range:-20-+50

(11) Temperature compensation:Less than 2% variation 0 to 40(as shown)

(12) Differential pressure range:0-500mbar Max

(13) Absolute pressure range:500-2000mbar

(14) Relative humidity range:0-99% non-condensing

(15) Long-term output drift:Less than 10% signal loss\/year

(16) Recommended load resistance min:10kohm

Note:Due to different production batches, the product appearance slightly, which does not affect the use.

Colour:Red

Material:Plastic

Package Contents:

1 * Oxygen Sensor

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
