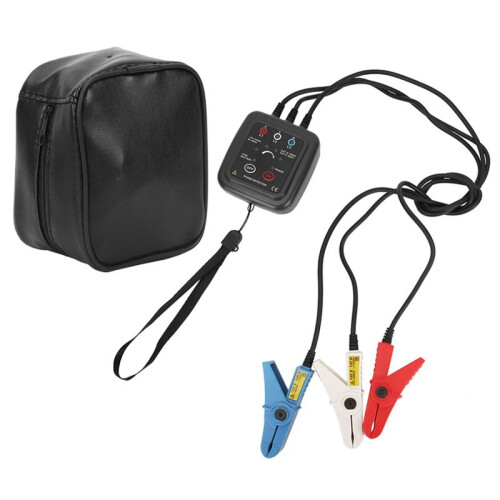

Phase Rotation Monitor Phase Sequence Meter ETCR1000C Non Contact Phase Sequence Detector Magnetic Base Phase Meter

Phase Rotation Monitor Phase Sequence Meter ETCR1000C Non Contact Phase Sequence Detector Magnetic Base Phase Meter Περιγραφή

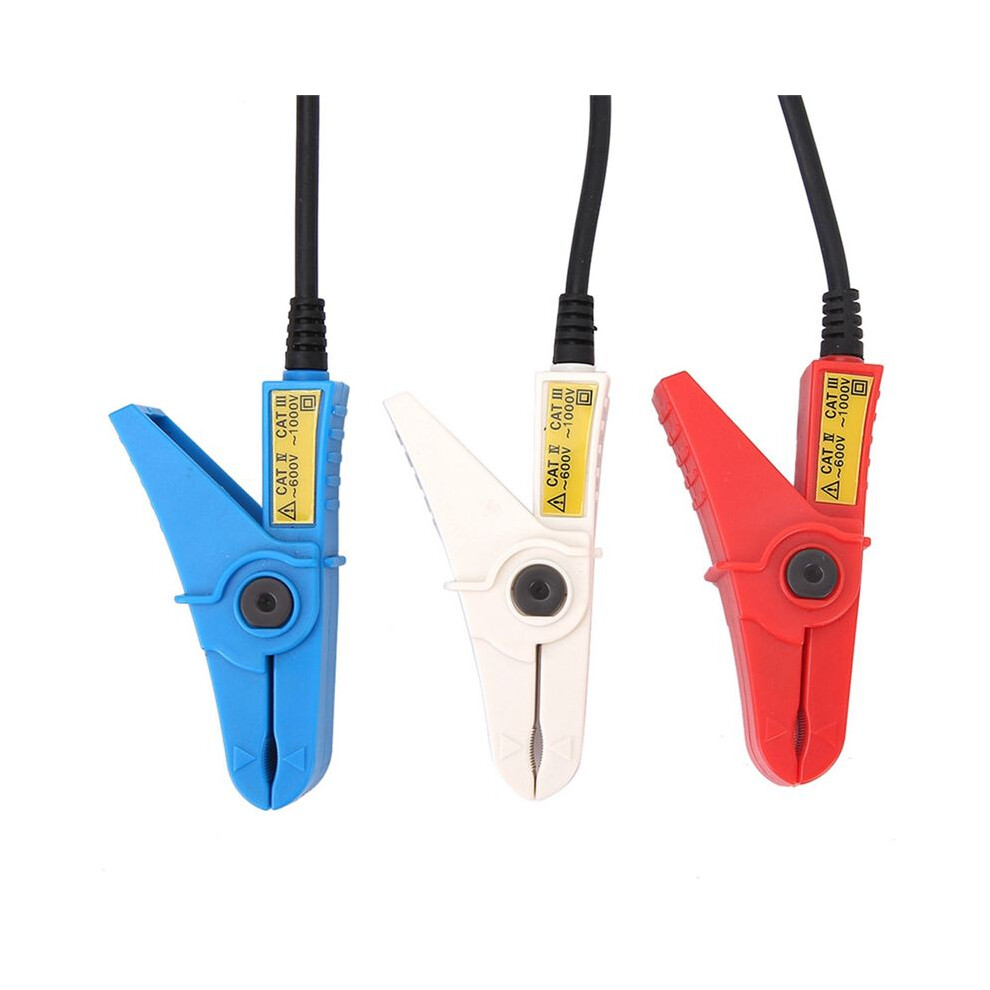

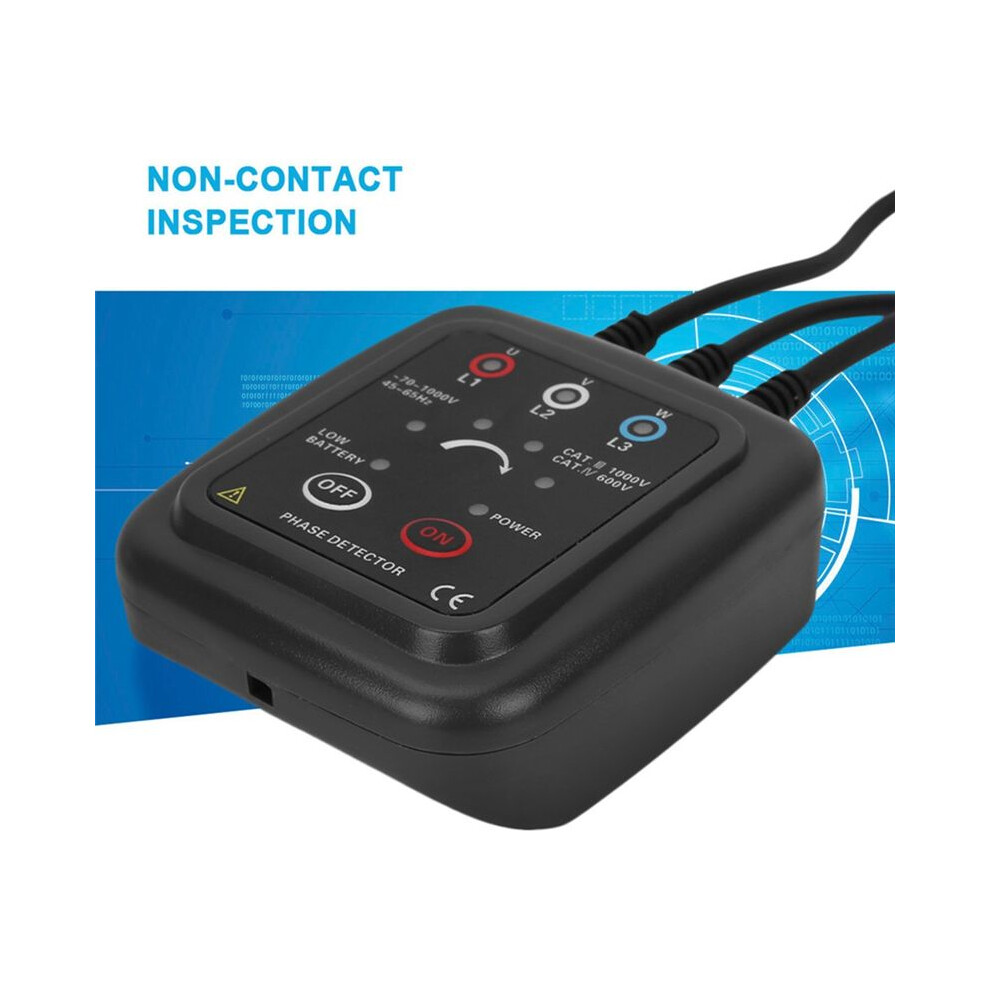

Clamp-type non-contact inductive measurement, no need to open the wire, no need to touch the high-voltage exposed fire wire, directly sandwich the three super-inductive high-insulation clamps to the insulation skin of the three-phase live wire to detect the phase sequence.
Non-contact inspection for safe and fast productivity.
The dynamic sound and light indicates the positive or negative phase of the phase sequence of the three-phase power supply, which is clear at a glance.
Product model: non-contact phase detector
Model: ETCR1000C

Function: phase detection (positive phase, reverse phase, missing phase), live check, recommended power detection, phase detection (positive phase, reverse phase, missing phase), live check, recommended power detection,
Power supply: DC3V 2 No. 5 alkaline batteries (LR6)
Live power range: AC70-1000V, 45-65Hz

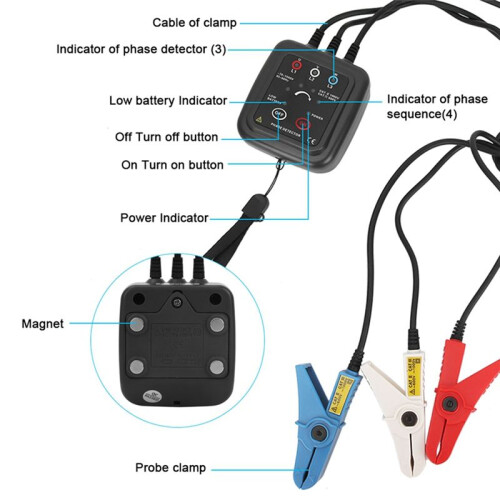

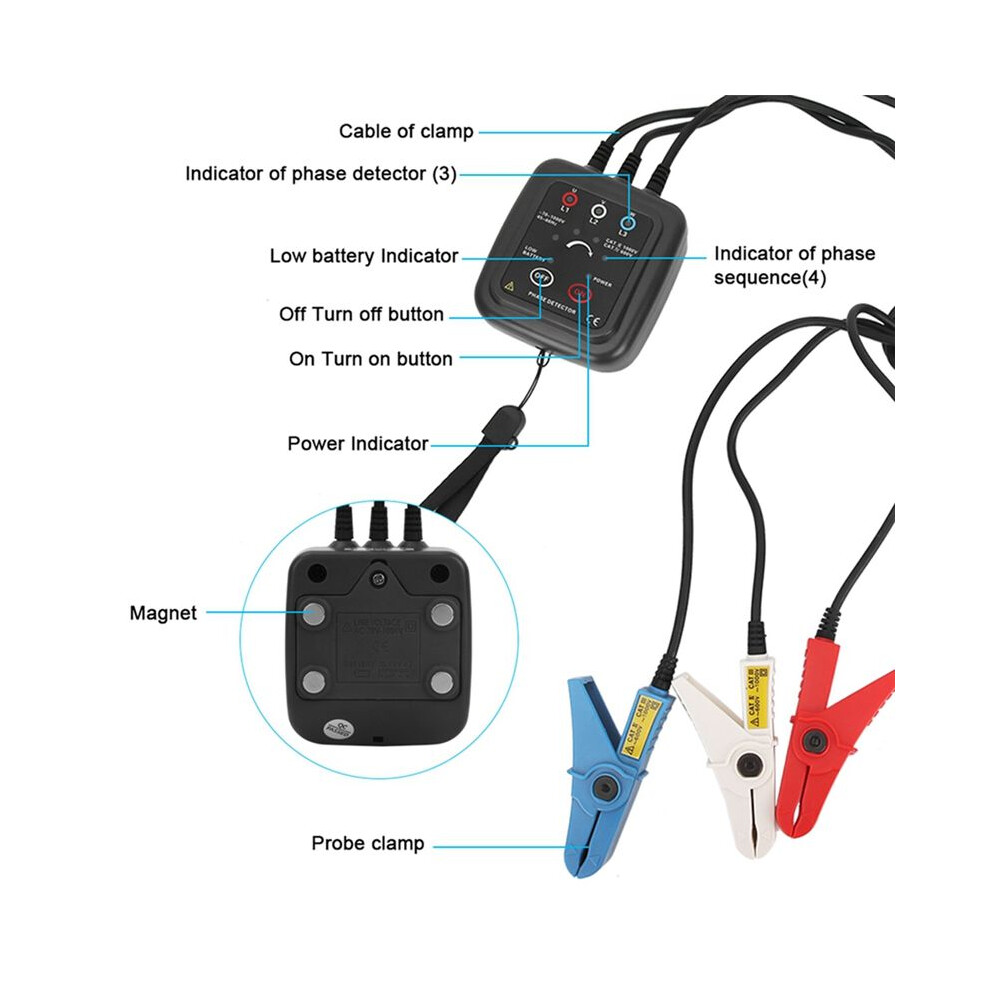

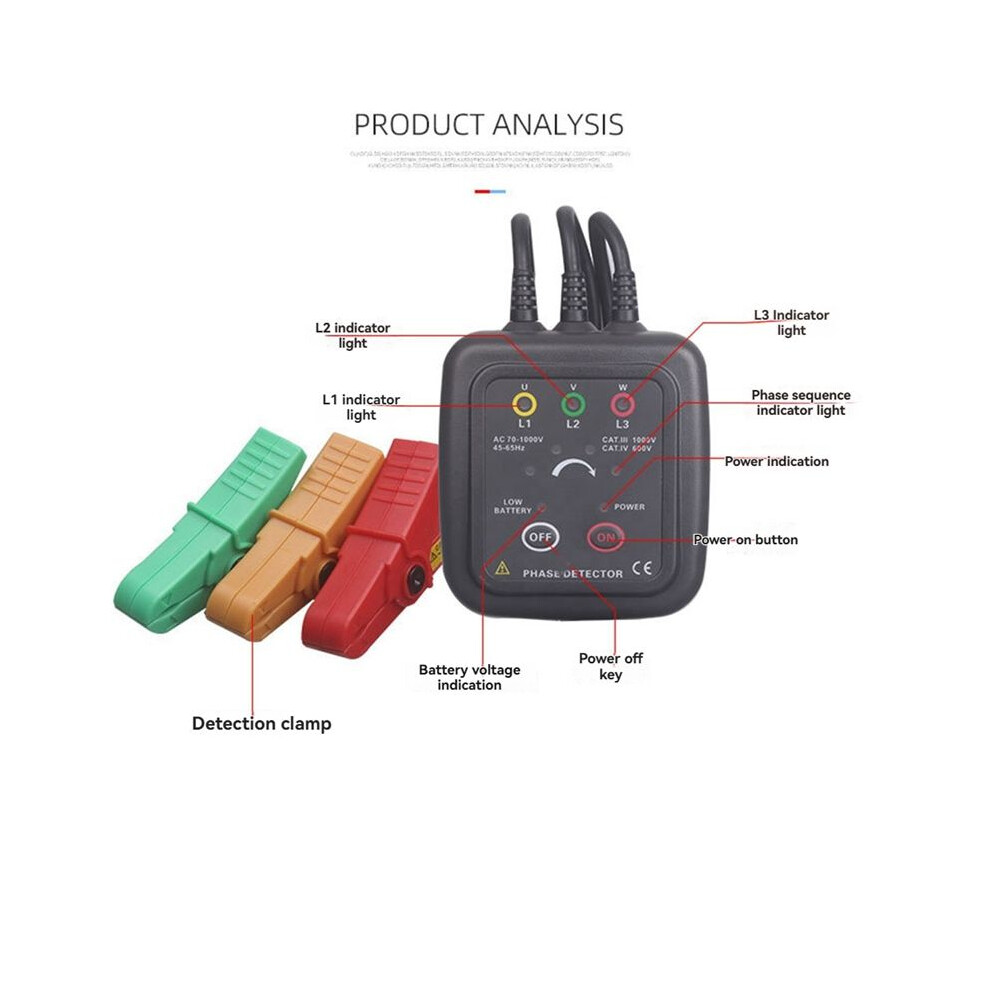

LED display: [positive phase] 4 phase detection lights light in clockwise direction
[reverse phase] 4 phase detection lights light in counterclockwise direction
[Live power] L1, L2, lights light within the voltage setting range
[missing phase] L1 or L2 or lights are off
[open circuit] L1 or L2 or lights are off
Buzzer: [positive phase] The instrument emits intermittent short beeps
[reverse phase] The instrument emits continuous long beeps
Battery check: After turning the power, the POWER indicator light is : low battery LOW BATTER light
Automatic shutdown: The meter automatically shuts down after about 5 minutes of power
Working temperature and humidity: -10C-55; below 80%RH
Storage temperature and humidity: -20C-60; below 90%RH
Measurement maximum voltage AC 1000V
Insulation strength 5.4KV/rms
Maximum rated power 300mVA
Color: As Shown
Material: plastic

Package
