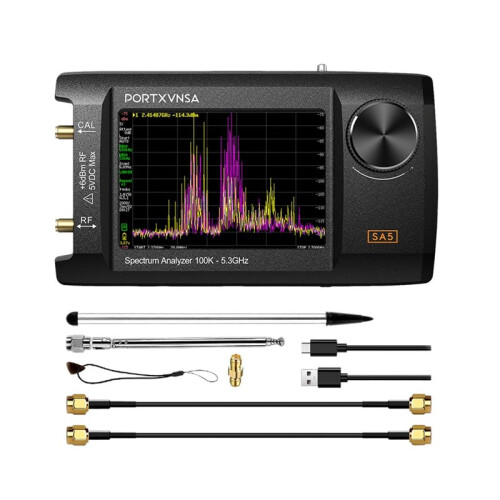

PORTXVNSA 4inch IPS LCD SA5 Multi-Function Handheld Spectrum Analyzer 100k-5.3GHz Signal Generator with Battery

PORTXVNSA 4inch IPS LCD SA5 Multi-Function Handheld Spectrum Analyzer 100k-5.3GHz Signal Generator with Battery Περιγραφή

The upgraded IPS LCD 4-inch high-definition display and knob design make the operation easier, more sensitive to touch, and more accurate, helping you to read data quickly.
The SA5 analyzer has a built-in large-capacity 5000mAh rechargeable battery, providing 10 hours of portable use , with a Type-c charging cable, no need for frequent charging.
[2-in-1 multi-function] SA5 is a compact frequency harmonic analyzer and signal generator with many impressive functions.
[Frequency harmonic analyzer] The frequency range is 0.1-800MHZ. After turning Ultra mode, it provides a signal frequency of to 5.3GHz that can be calibrated, and can monitor a signal frequency of to 12GHz.
[Signal generator] When not used as a frequency analyzer, it can output a sine wave of 0.1-800MHz, a square wave of to 4.4GHz, or a RF test signal of to 5.3GHz.

[Switchable resolution bandpass filter] Resolution bandpass filter range from 200Hz to 850kHz.
[Optional LNA] Built-in 20dB low noise amplifier (LNA).
[Frequency harmonic display] Displays to 450 points, showing 4 independently configured curves
[Storage] Micro- card slot for storing measurement data, settings and screenshots.
[Input attenuator] Step attenuator adjustable from 0dB to 31dB (cannot be used with LNA)
[Calibration]: Built-in calibration signal generator for automatic self-test and input calibration,
[PC connection] Connect via USB, function as a PC-controlled frequency harmonic analyzer or signal generator. Convenient data transfer directly to the computer.
Note:This does not come with a 32G memory card
Colour:Black
Material:PC+ABS+Metal

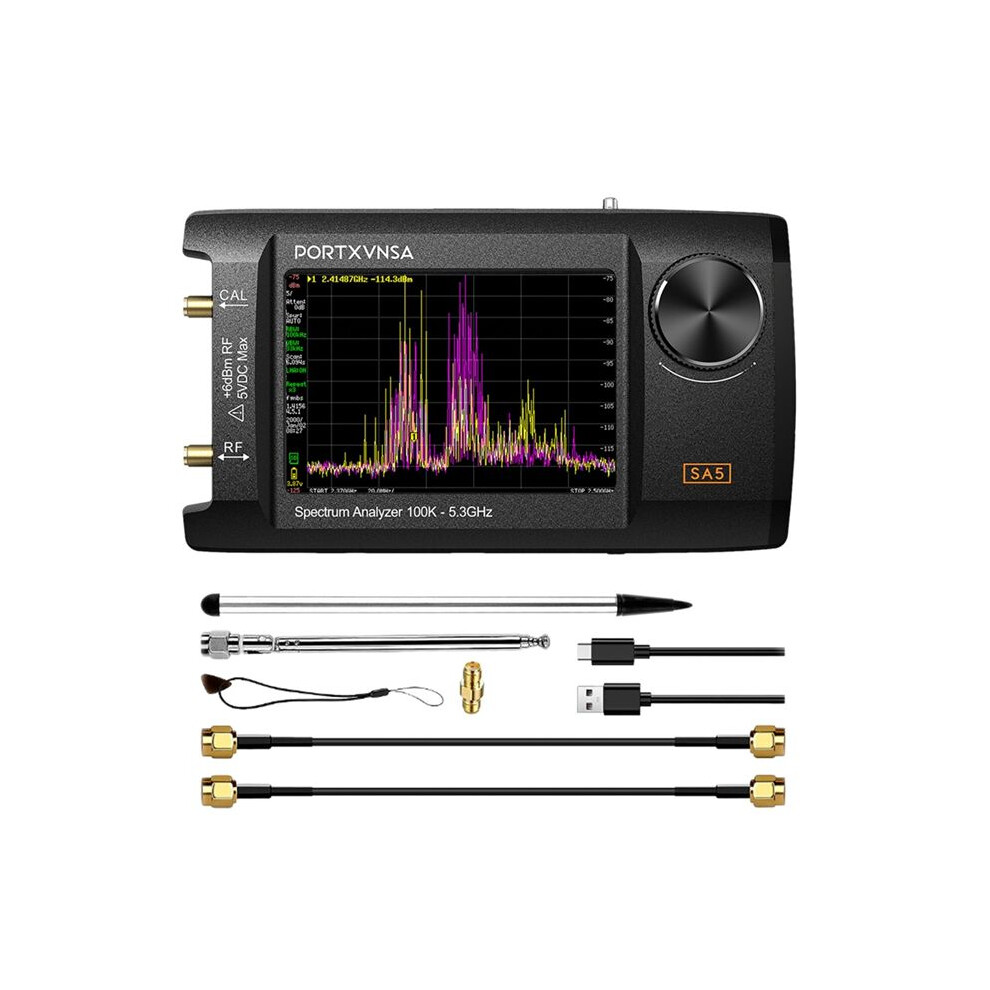

Package Contents:
1 * host
1 * USB Type-C data cable
2 * RG405 SMAJB2/SMAJB2 RF cable
1 * SMA-SMA connector
1 * antenna with SMA connector
1 * hanging ro
