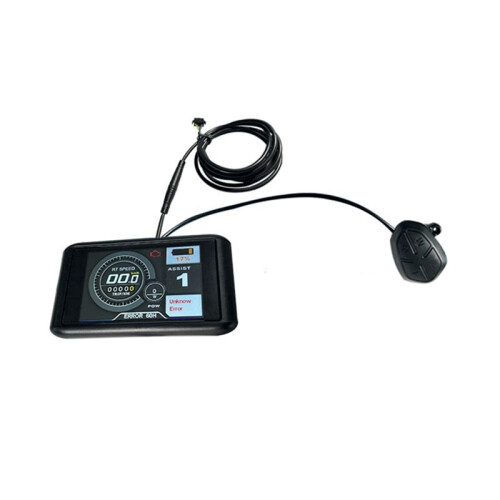

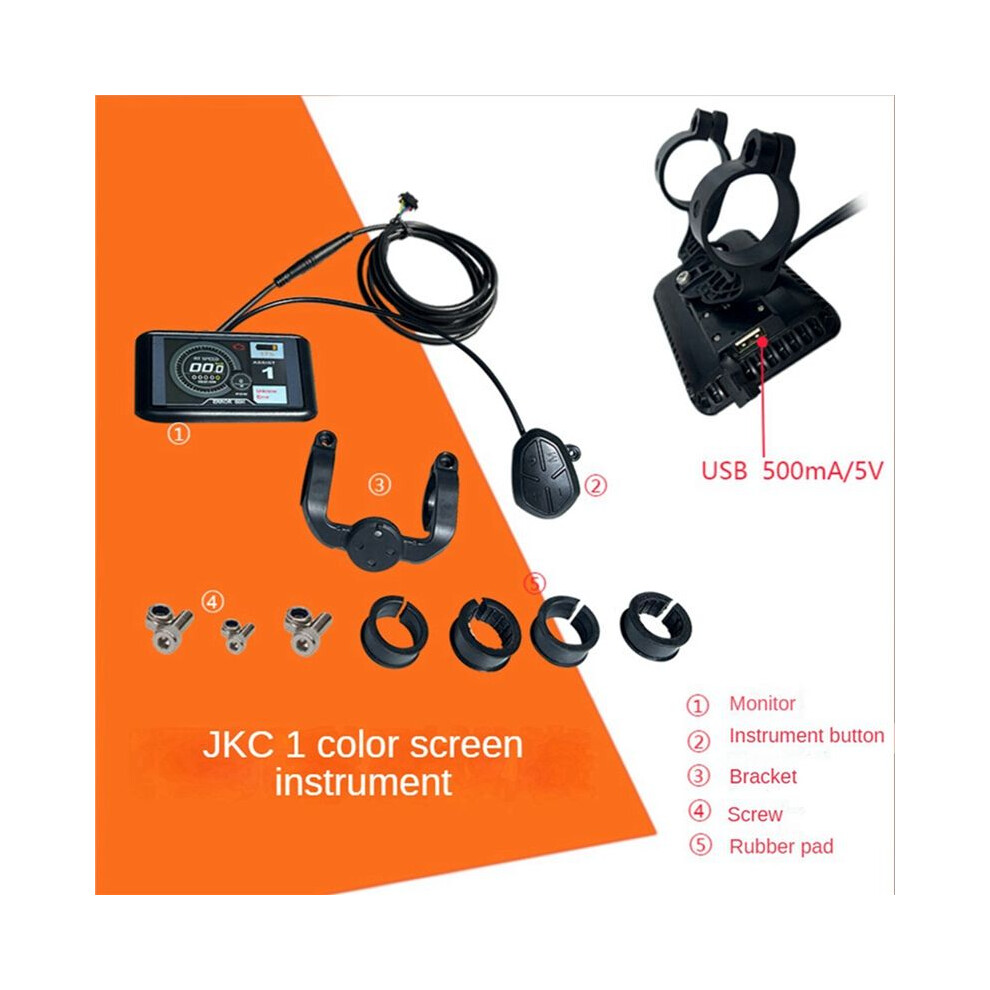

Protocol Lithium No.2 Protocol 3.5Inch TFT-UKC1 Colorful Display 36V 48V 60V 72V for Sabvoton Controller,SM Connector

Protocol Lithium No.2 Protocol 3.5Inch TFT-UKC1 Colorful Display 36V 48V 60V 72V for Sabvoton Controller,SM Connector Περιγραφή

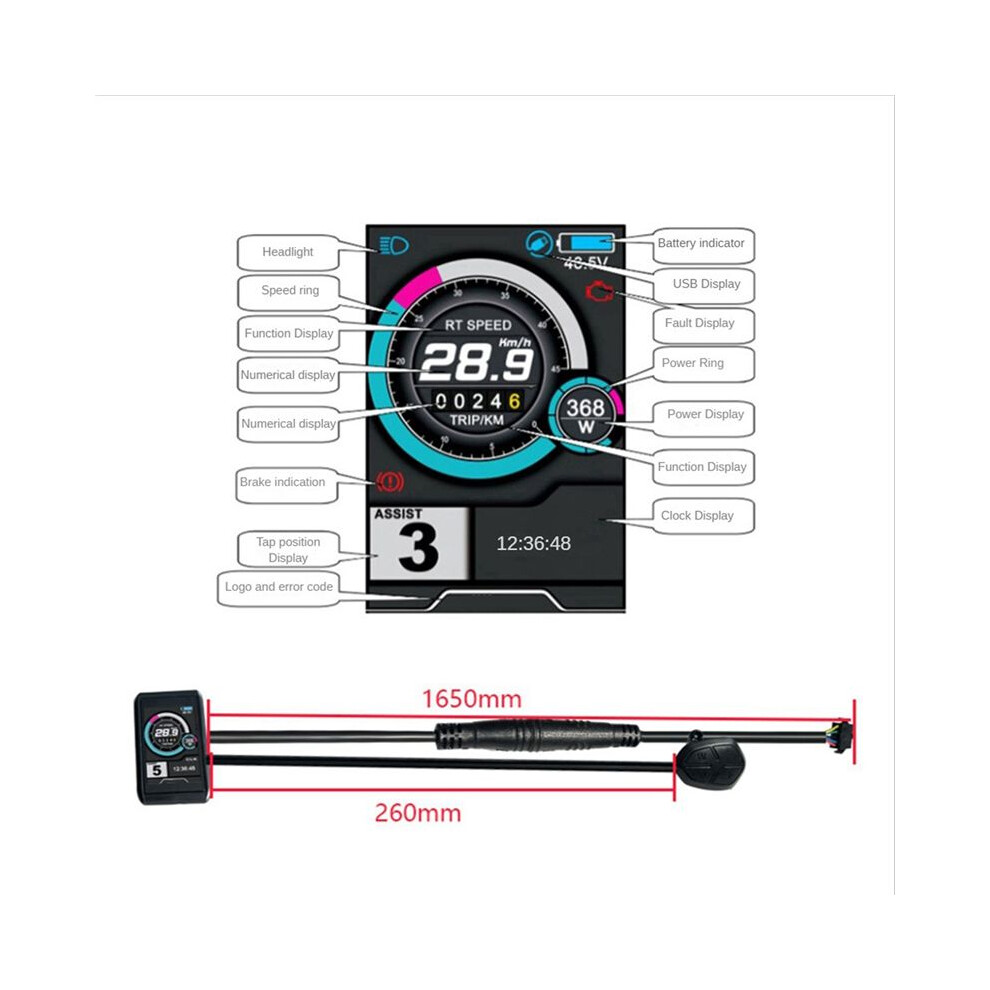

Kilometer/mile selection:The kilometer/mile display can be set according to customer habits.
Intelligent power indication:Provide stable power indication through optimization algorithms, and the power is not affected by motor start/stop fluctuations. If the system supports battery communication, it can display an accurate percentage of power.
5 levels of backlight brightness adjustment:Set the backlight brightness according to customer usage habits, with Level 1 being the darkest and Level 5 being the brightest.
Maximum 9 gear control:The number of gears can be set according to user requirements, 3/5/9/6 gears.
Mileage display:It can display accumulated mileage ODO, single mileage Trip, riding , and range of continued mileage (with battery communication function).

This instrument is based the OMD No. 2 communication protocol

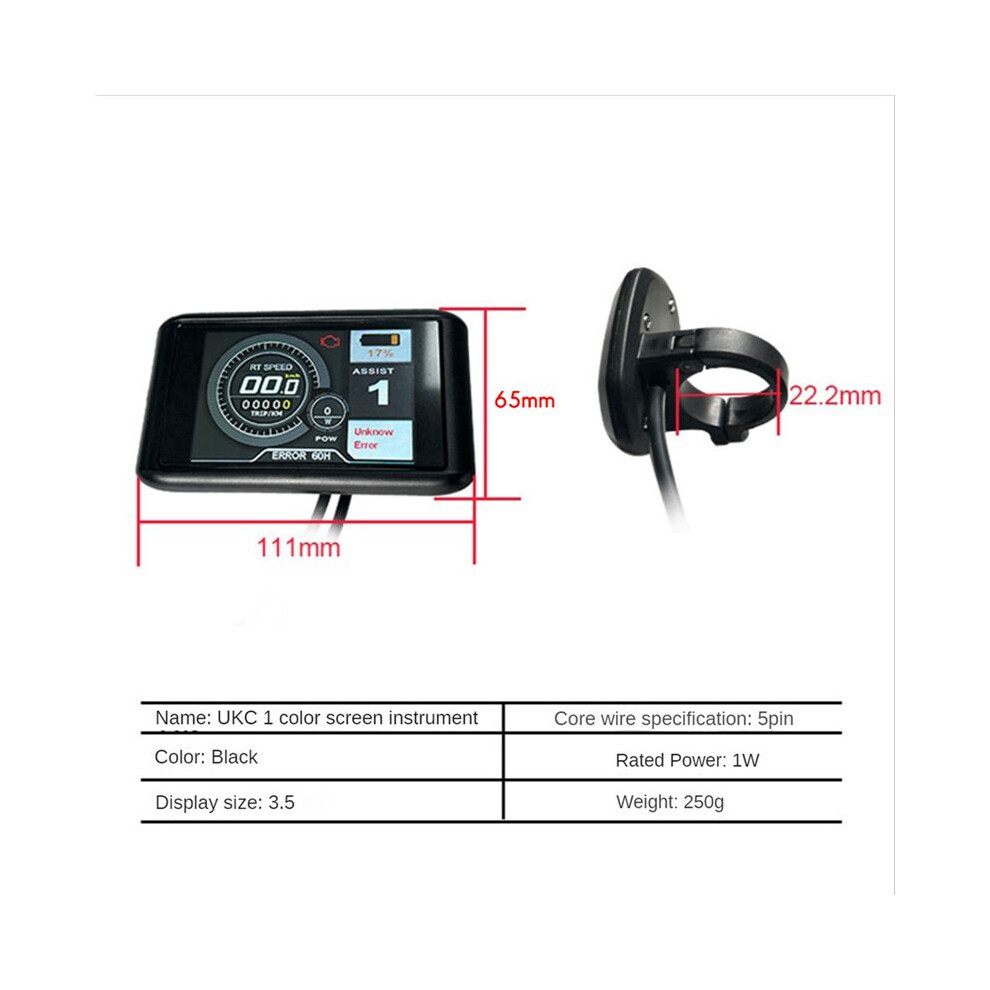

Screen size:Color 3.5 inch TFT screen.

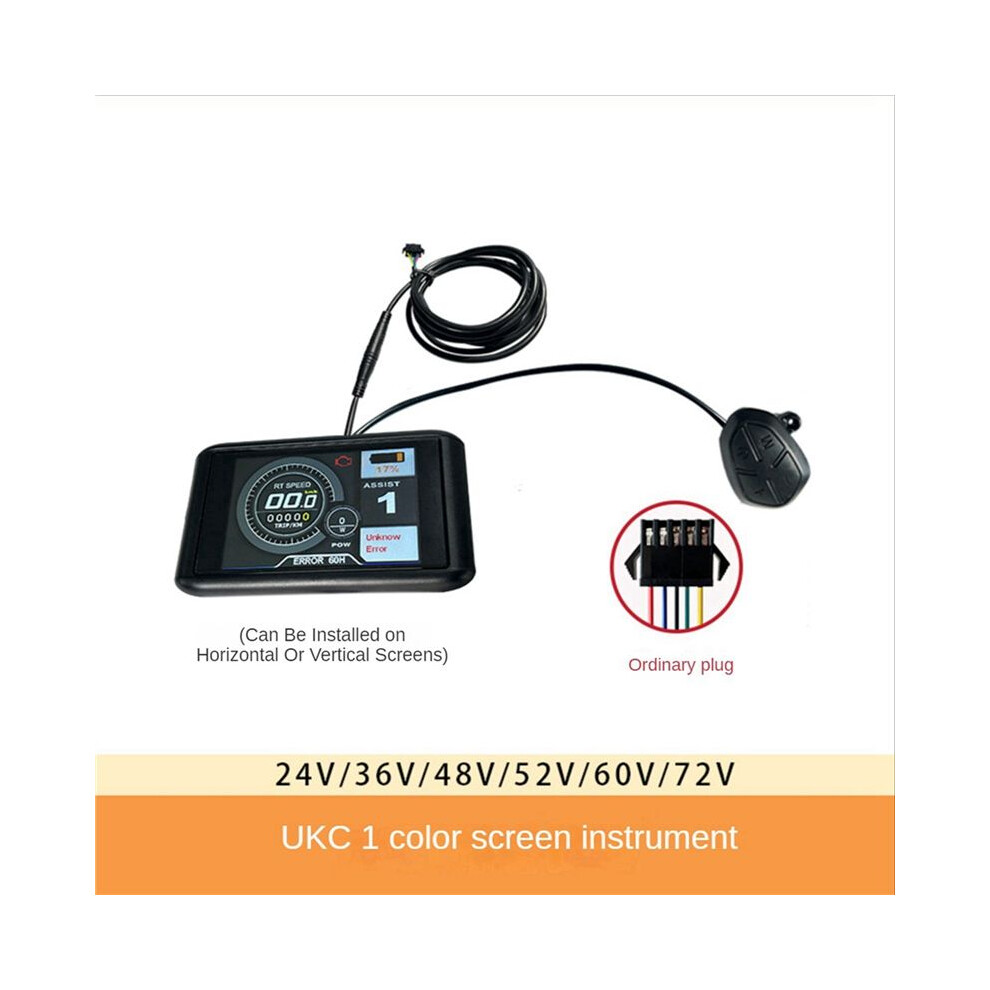

Rotatable screen:horizontal and vertical can be freely switched.
Speed display:including real- speed RT SPEED, maximum speed MAX SPEED, and average speed AVG SPEED.
Clock display:Built-in battery, shutdown retention.
Output power indication:real- display of output power (battery output power).
Fault prompt:Provide a text description.
Speed limit adjustment function:speed limit can be set.
Current limiting adjustment function:current limiting can be set.

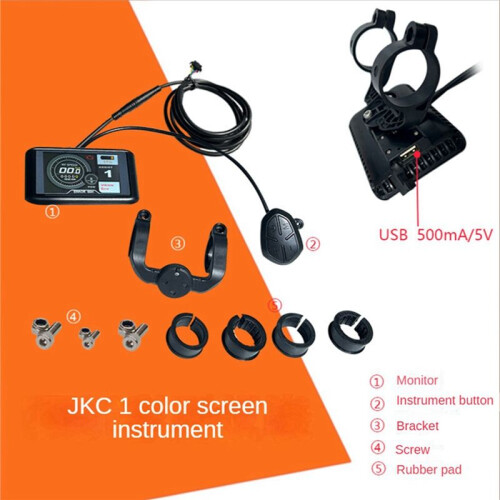

USB charging port, which can provide rated charging for mobile devices, current: 500mA/5V.
Program upgrade:You can upgrade the program through the serial port. Please refer to the documentation for details.
Speed measuring magnetic steel adjustment function: the number of speed measuring magnetic steel can be set.
Power assist magnetic steel adjustment function: The number of power assist magnetic steel can be set.
Type:SM Connector
