PWM150 Dual Channel Signal Generator for Servo Motor Drivers Frequency Meter Adjustable Square Wave Pulse Frequency

PWM150 Dual Channel Signal Generator for Servo Motor Drivers Frequency Meter Adjustable Square Wave Pulse Frequency Περιγραφή

Product Features:

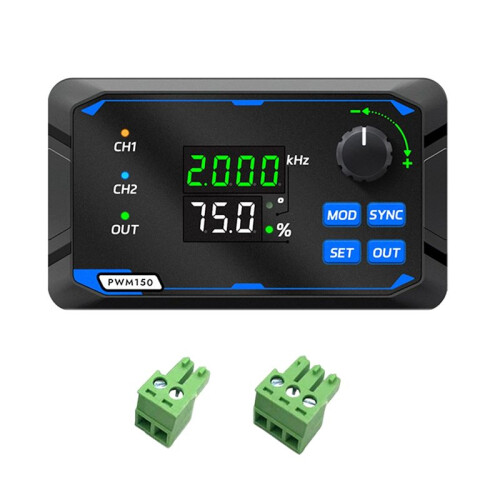

1. Dual-channel PWM signal generator: Features dual independent outputs, adjustable duty cycle, and adjustable phase difference.

2. Dual-screen dynamic display: 4-digit green (frequency) + 3-digit white (duty cycle/phase) digital tubes, real- synchronous display of parameters, 120Hz refresh rate.

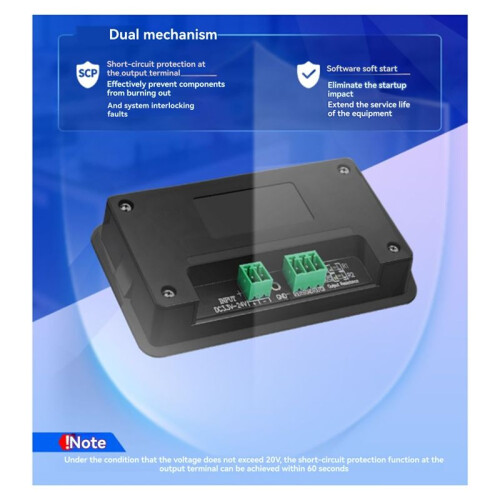

3. Multiple safety features: Output short-circuit protection within 60 seconds, provided the voltage does not exceed 20V.

4. Intelligent human-computer interaction: Rotary encoder (with pushbutton) + four-function button (MOD/SYNC/SET/OUT), supporting multi-channel switching and synchronization mode.

5. Wide range of applications: Suitable for electronic laboratories, industrial automation, education and training, DIY, and other fields.

Product Parameters:
Output frequency: 1Hz-150kHz
Duty cycle accuracy: 0-100%, 0.1% step adjustment
Rise : 20ns
Phase adjustment: 0-360 (1 step, synchronization mode available)
Output voltage: 5-24V, maximum output current 0.2A
Display: 4-digit green + 3-digit white LEDs
Power supply: External power supply ( 5-24V)
1Hz-10kHz (accuracy: 0.2%)
10Hz-50kHz (accuracy: 0.4%)
50Hz-150kHz (accuracy: 2%)
Color: Black
Material: ABS

Package Contents:
Packaging Contents:
Display meter *1
2P terminal *1
3P terminal *1
