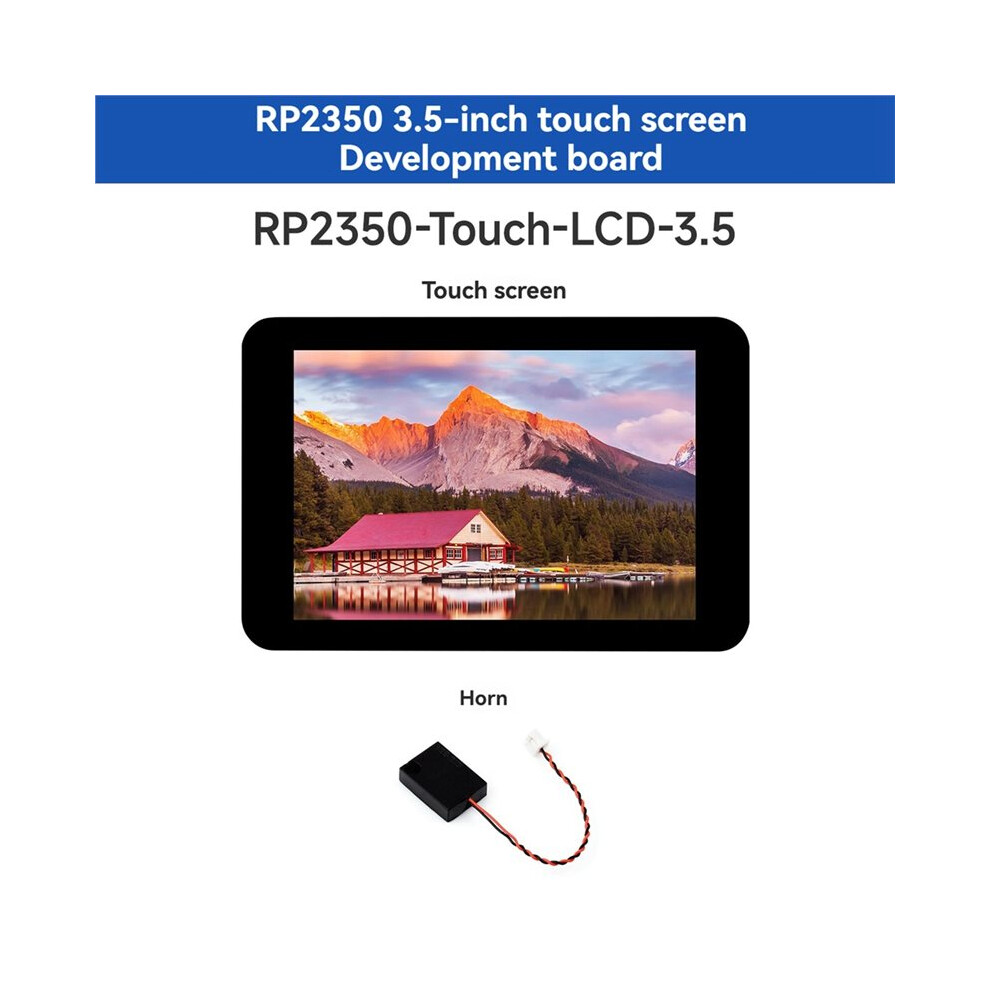

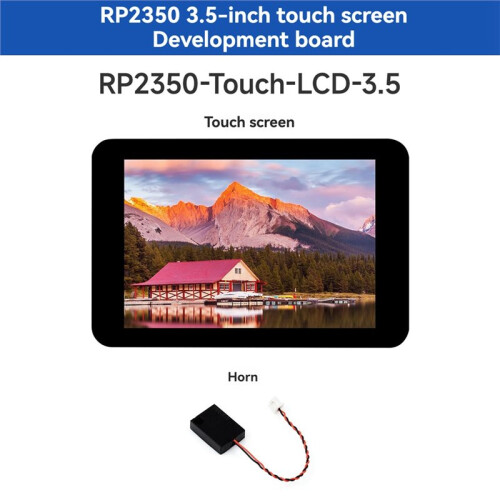

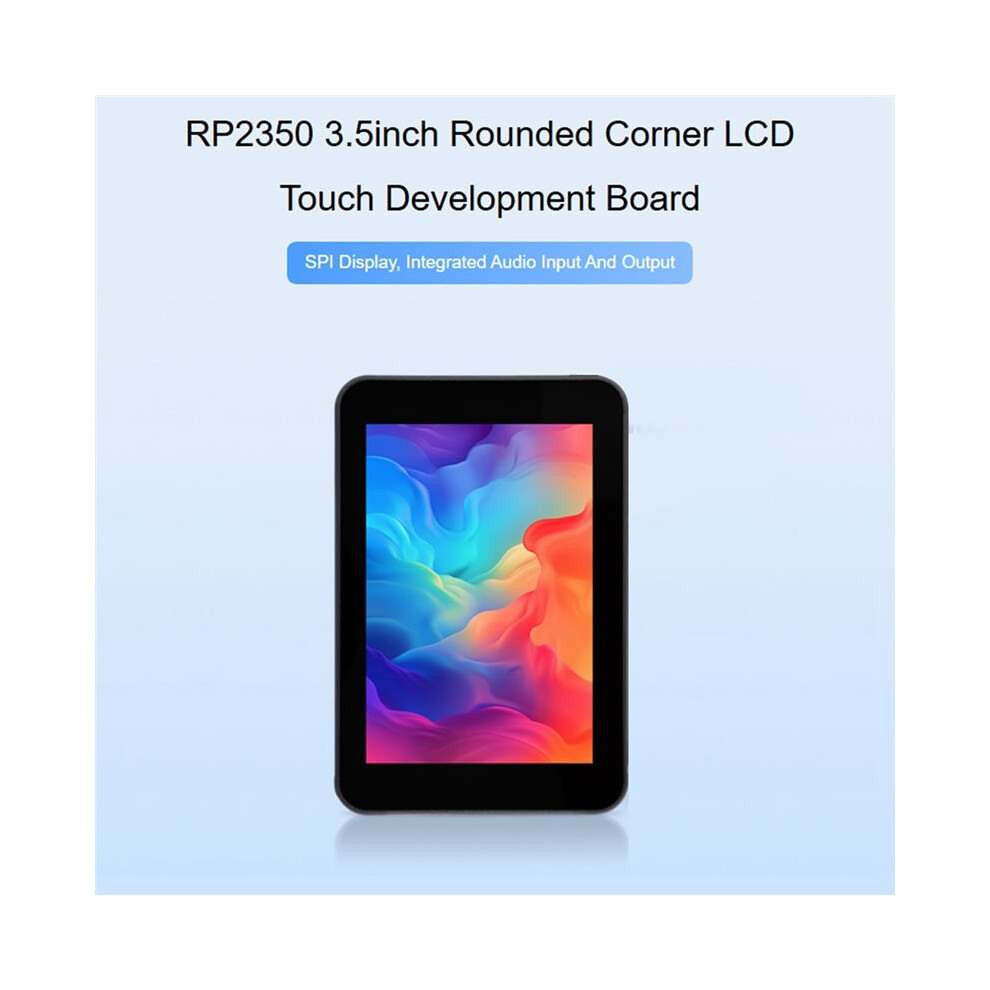

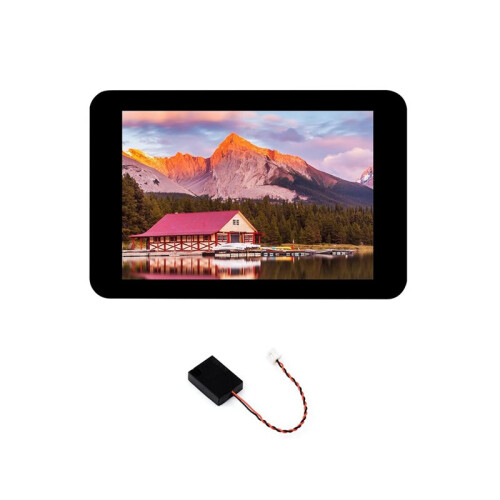

RP2350 3.5inch LCD Display Development Board, 320 X 480 Resolution, 65K Color, Onboard Camera Interface Without Case

RP2350 3.5inch LCD Display Development Board, 320 X 480 Resolution, 65K Color, Onboard Camera Interface Without Case Περιγραφή

The RP2350-Touch-LCD-3.5 is a high-performance, highly integrated microcontroller development board. RP2350B microcontroller chip.
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running to 150 MHz.

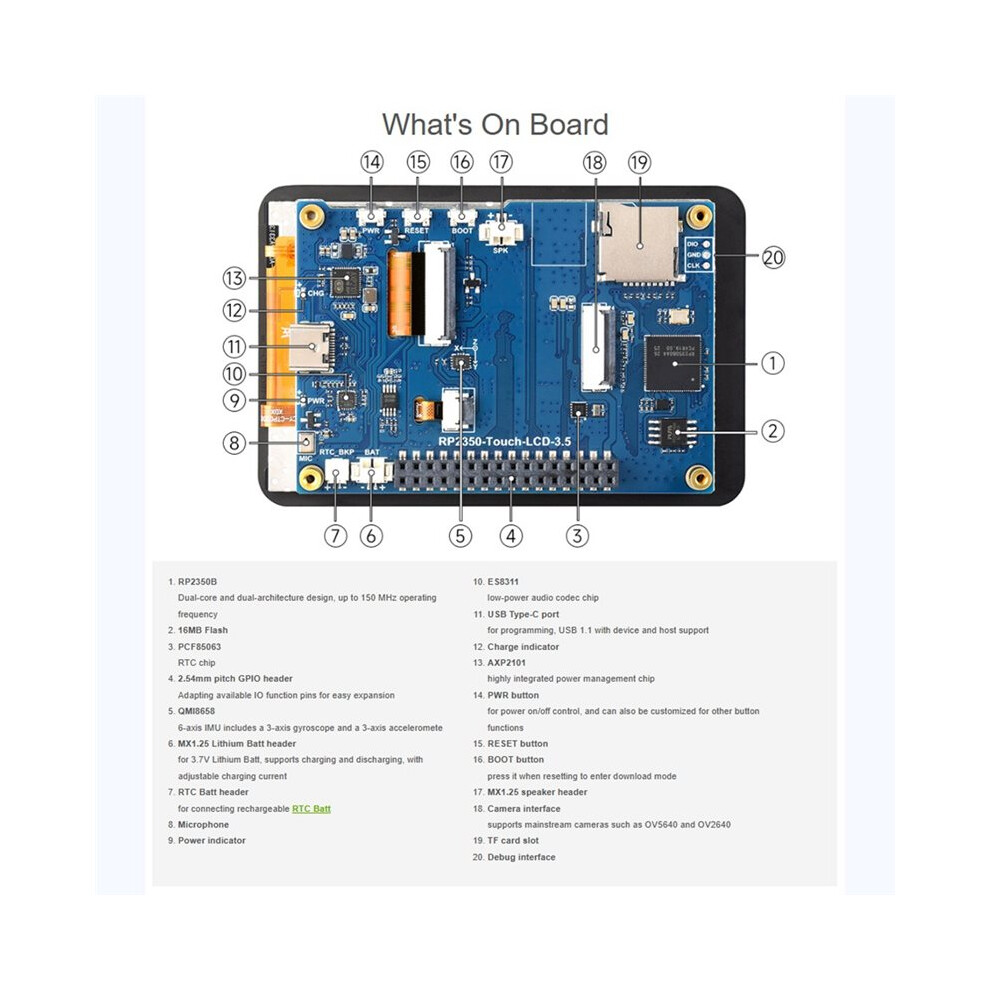

Tiny size with onboard 3.5inch capacitive touch IPS display, highly integrated power management chip, low-power audio codec chip, camera interface, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, TF card slot, and so , which makes it easy for you to develop and integrate into the products quickly.

Built-in 520KB Static RAM, with onboard 16MB Flash
Onboard Type-C port, easy to use

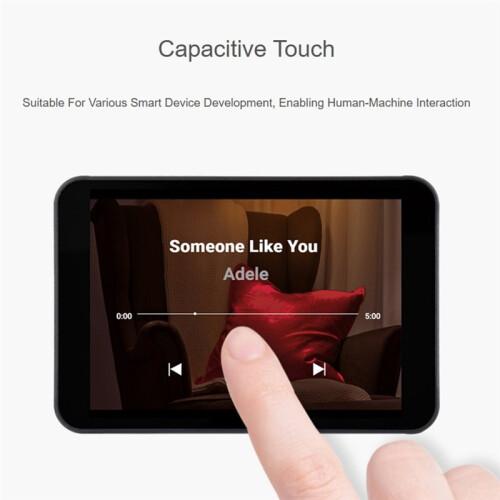

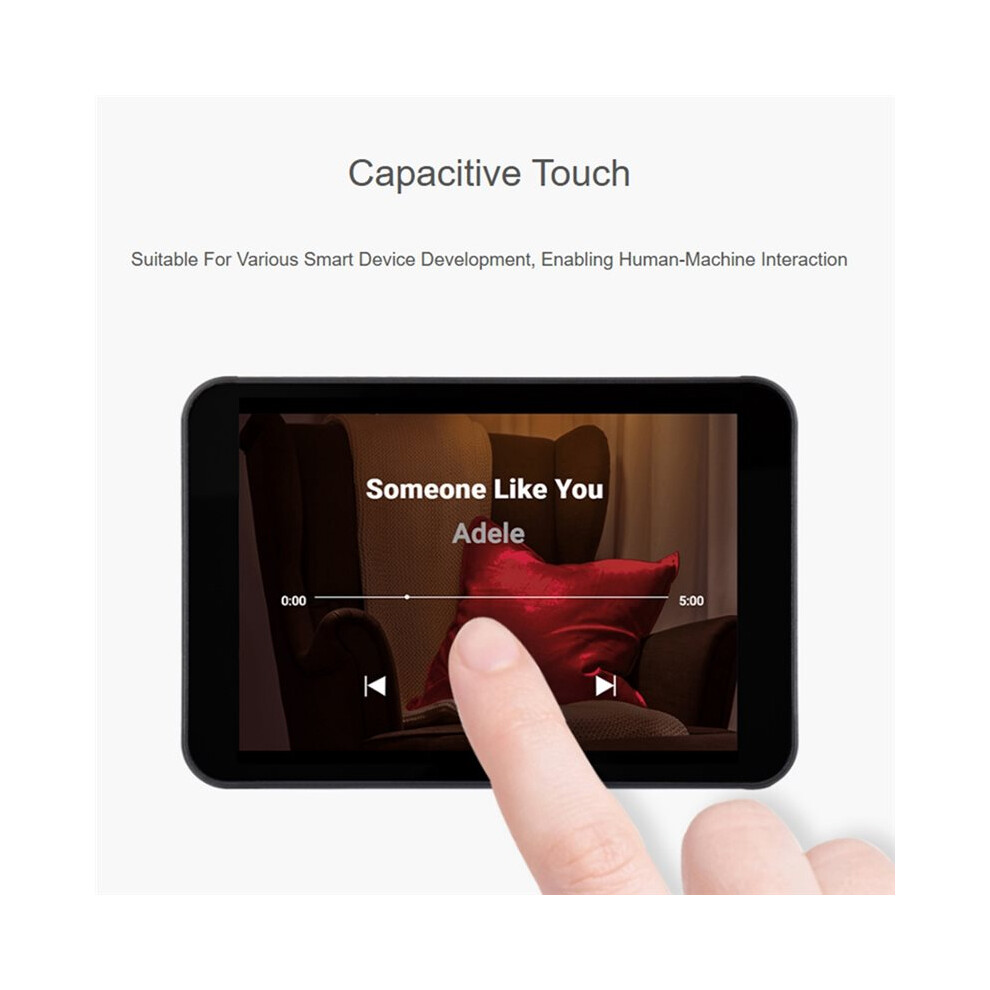

Onboard 3.5inch capacitive touch IPS display for clear color picture display, 320 x 480 resolution, 65K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources

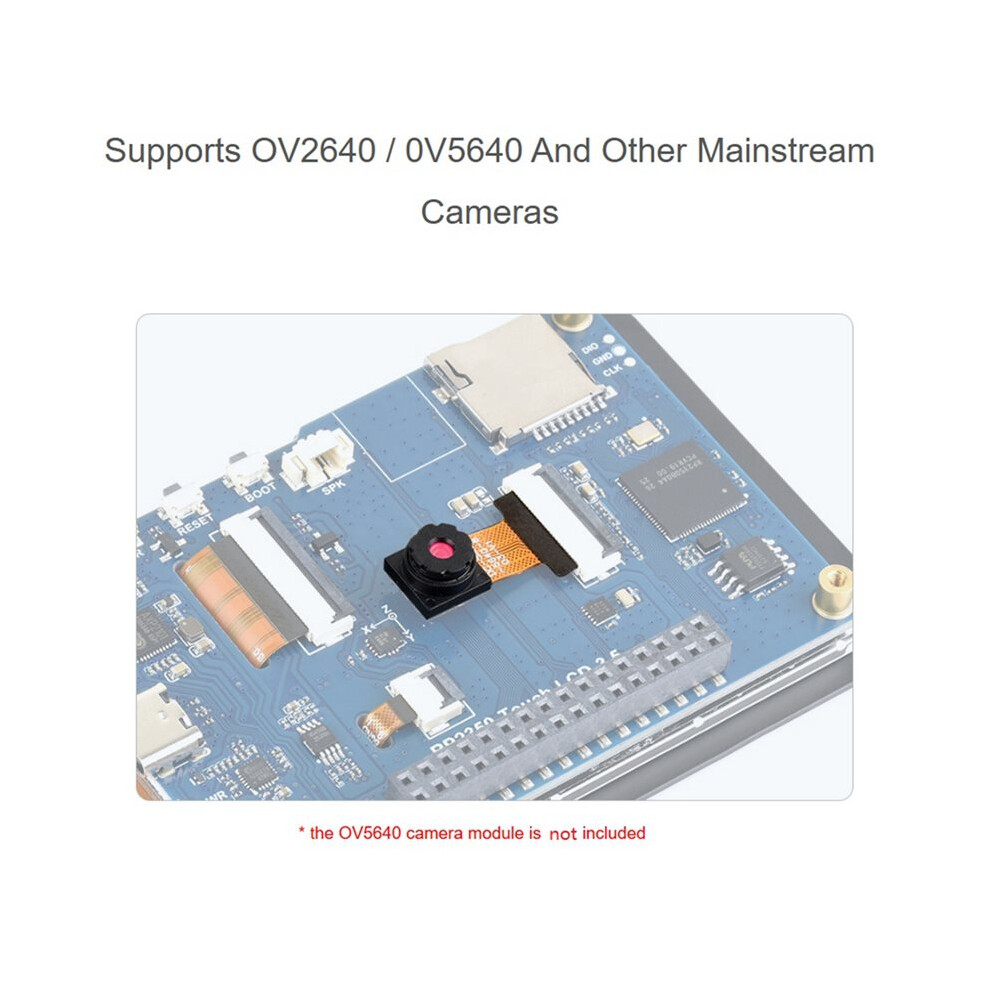

Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video capture
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 22 x multi-functional GPIO pins
2 x SPI, 2 x I2C, 2 x UART, 7 x 12-bit ADC, 18 x controllable PWM channels
Accurate clock and timer -chip
Built-in temperature sensor for real- monitoring of chip temperature
12 x programmable I/O (PIO) state machines for custom peripheral support

LCD Specifications:

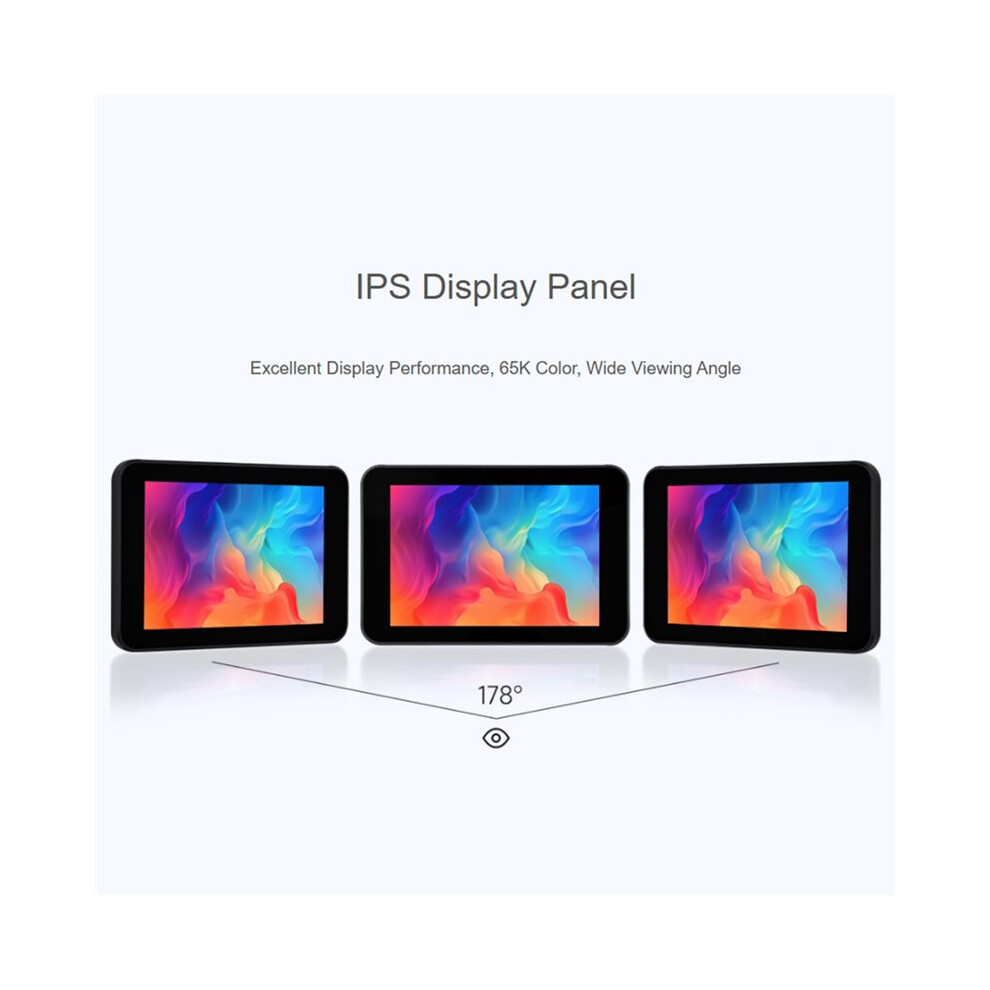

DISPLAY PANEL: IPS
DISPLAY SIZE: 3.5inch
Display Resolution: 320 x 480 resolution
Display color: 65K
Brightness: 220cd/
Contrast Ratio: 1100:1
Communication Interface: SPI
Display Driver: S
