RV1106 Linux Development Board RISC-V Architecture 256MB Flash 100Mbps Ethernet Port Artificial Intelligence Board A

RV1106 Linux Development Board RISC-V Architecture 256MB Flash 100Mbps Ethernet Port Artificial Intelligence Board A Περιγραφή

1. Cortex A7+MCU supports 0.5T computing power and 128MB DDR3L memory.
2. Equipped with Ruixin Micro's self-developed 4th generation NPU, it has high computational accuracy and supports mixed quantization of int4, in8, and int16. The computing power of int8 is 0.5TOPS, while the computing power of int4 can reach 1. OTOPS. It supports various development environments such as C, C++, and Micro-Python.
3. Supports multiple interfaces such as GPIO, UART, SPI, I2C, USB, etc., facilitating development and debugging.
4. Built in RISC-V MCU design, supports low-power fast startup, supports 250ms fast capture, and simultaneously loads AI model library, enabling facial recognition to be completed within 1 second.
5. The onboard 100Mbps Ethernet port has high computational accuracy, and the RV1106G2 chips are equipped with the 4th generation NPU of Ruixin .

Product Introduction:

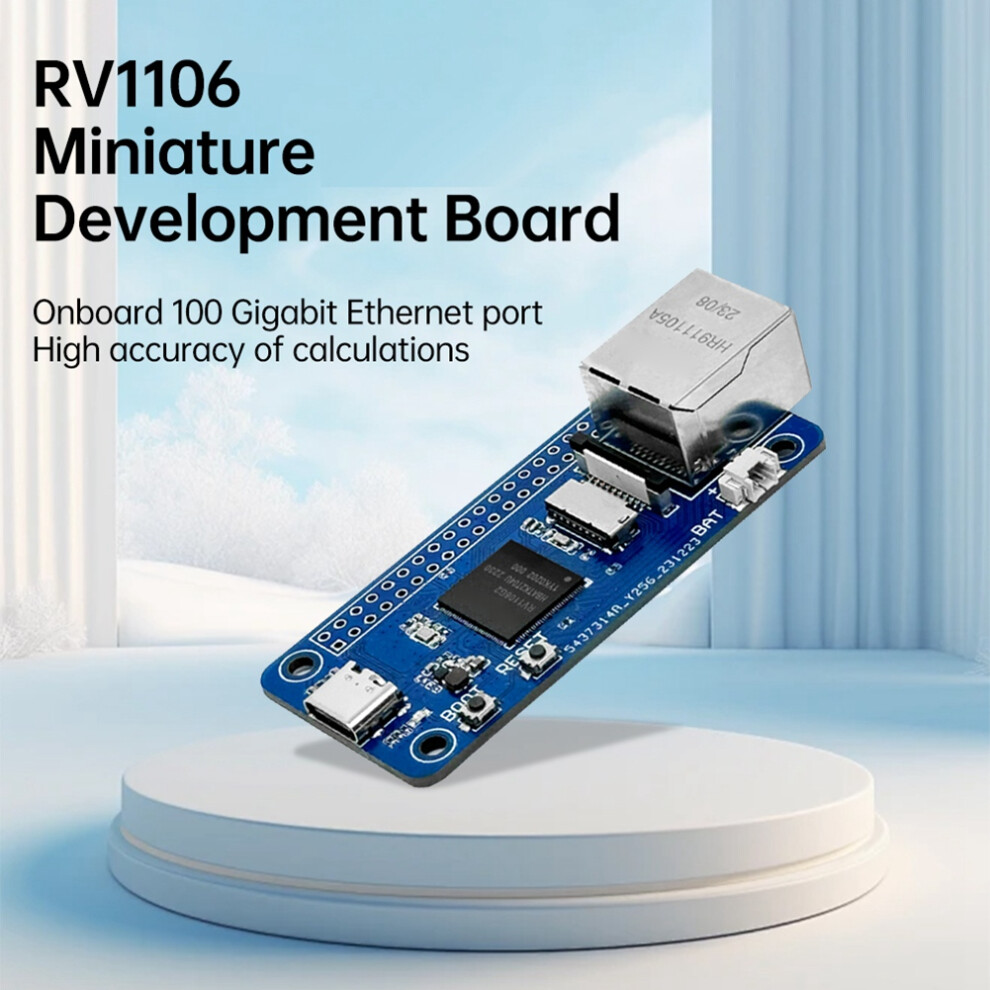

The RV1106 LINUX development board is developed based the Ruixin micro-RV1106G2 chip, with a 100Mbps Ethernet port and 256MB onboard
NAND FLASH memory card slot and camera interface. Support NAND FLASH image burning development board to export various IOs, including GPIO, UART, SPI, I2C, etc., for developers to quickly develop and debug. The module supports USB recognition and burning image files through a USB data cable.
Parameter:
1. Type-C port: power supply port+burning port
2. UART serial port: Connect USB to TTL module for serial port debugging
3. BOOT button: Press and hold the power button to enter the burning mode
4. Micro- card holder: mounting card storage
5. SPL Flash Memory: Used for SPI NAND FLASH image burning
6. Camera interface: compatible with SC3336 3MP Camera (A) camera
7. ETH Ethernet interface
8. LED indicator lights
9. MCU: RV1106 (LQFN-128)
Battery model: RTC battery
