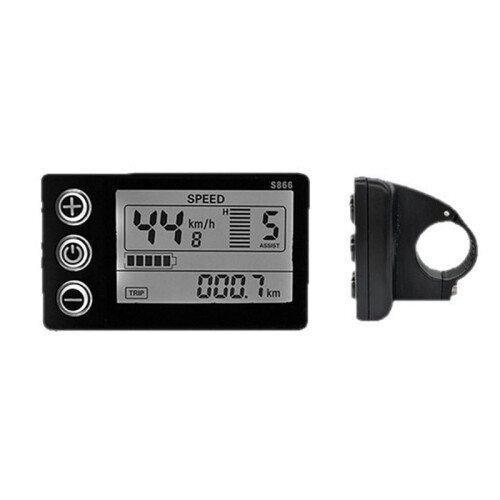

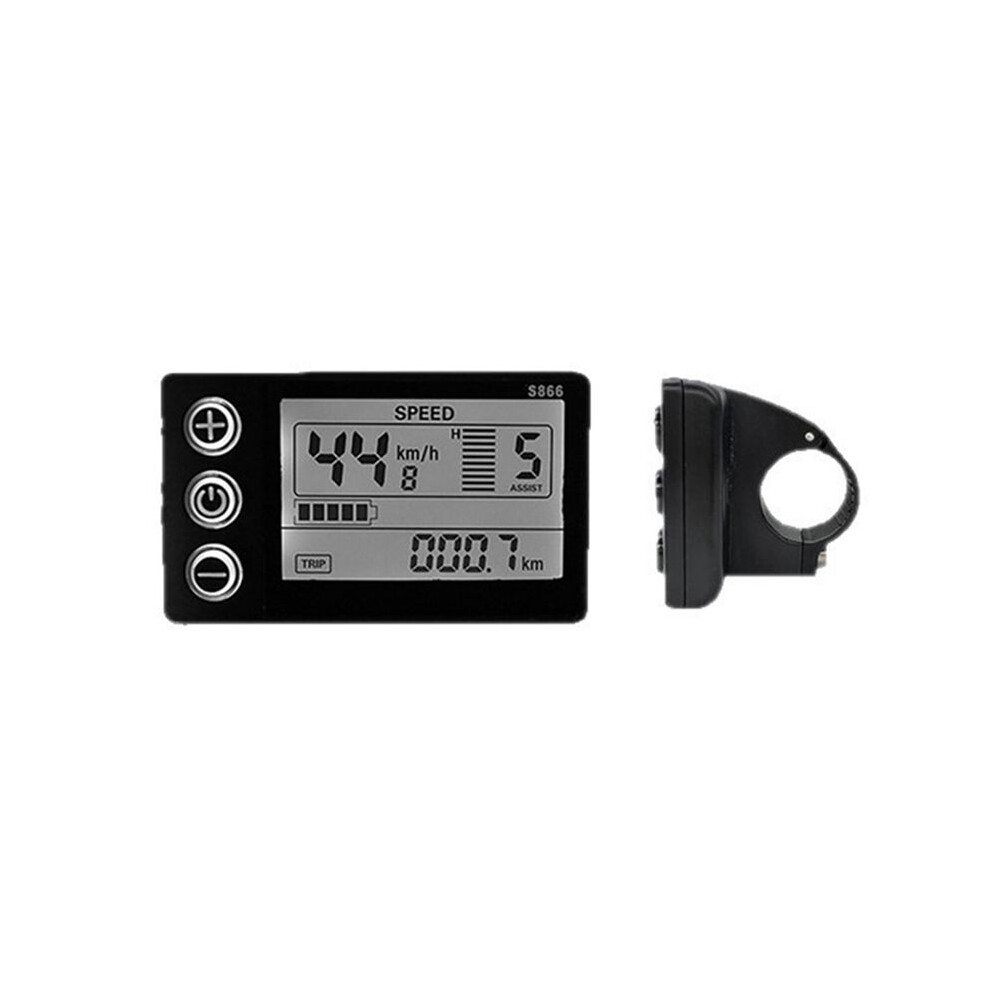

S866 Electric Bicycle Display LCD Meter for Intelligent Controller Ebike Panel SM Plug Electric Bike 48V

S866 Electric Bicycle Display LCD Meter for Intelligent Controller Ebike Panel SM Plug Electric Bike 48V Περιγραφή

LCD electronic display instrument: The LCD instrument is beautiful and stylish, suitable for daily use day and night, with clear and visible data and sensitive response, allowing you to observe various parameters during riding at any , Speed display, power indication, fault prompt, total mileage, single mileage.
Control and setting function: Power control, wheel diameter setting, idle automatic sleep setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller current limit value setting
Battery power and BMS remaining power display
AVG: average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, /h speed signal is taken from the Hall signal in the motor and sent to the instrument through the controller, ( of a single Hall cycle, unit: 1MS) The instrument will calculate the actual speed based the wheel diameter and signal data (the motor Hall also needs to set the number of magnetic steels)

Model:LCD S866 LCD monitor
Waterproof rating: IP65
Communication protocol: UART
Bracket diameter: 22.2mm
Display type: segment
(The product printed words may vary depending the batch, but this does not affect use)
Specification:48V
Color:As Shown
Material:plastic

Package Contents:
1 * LCD instrument with accessories
