Seeed Studio Ochin CM4v2 Tiny Carrier Board V2 for Raspberry Pi Compute Module CM4, for Robotics Home Automation IoT Projects

Seeed Studio Ochin CM4v2 Tiny Carrier Board V2 for Raspberry Pi Compute Module CM4, for Robotics Home Automation IoT Projects Περιγραφή

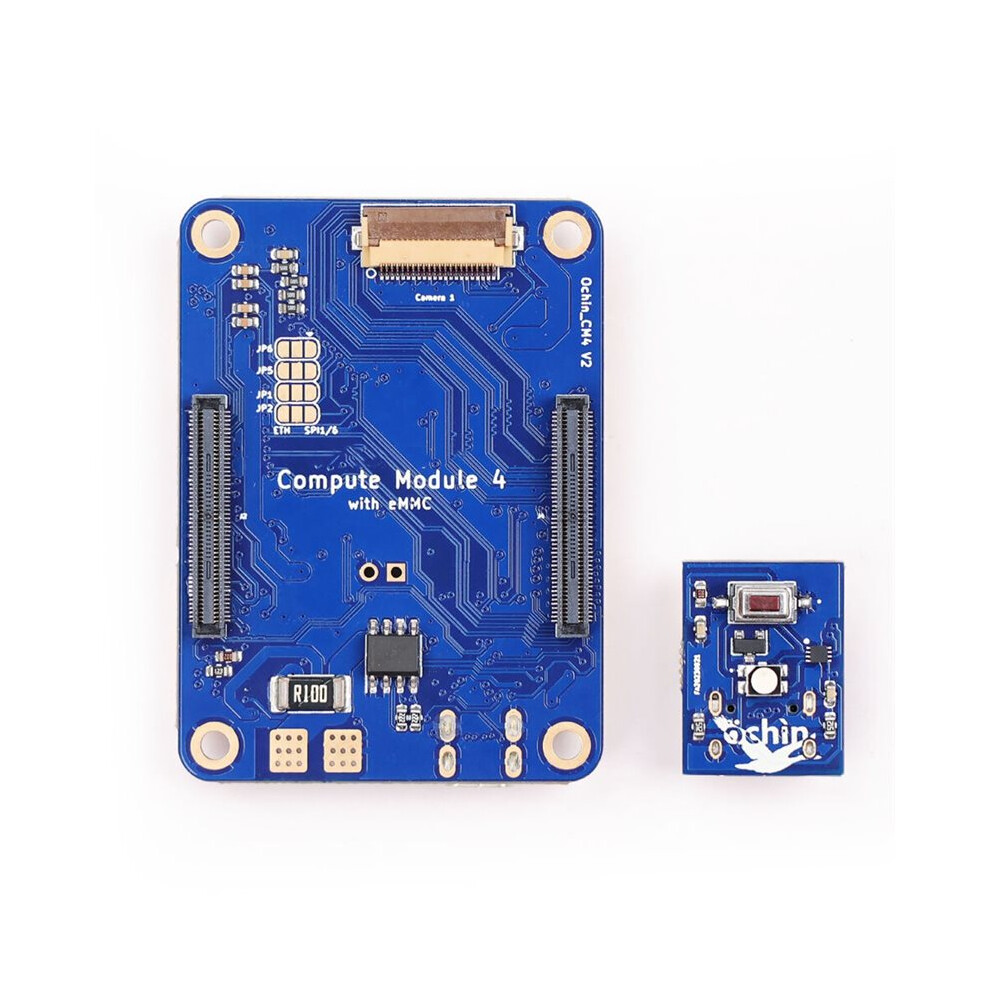

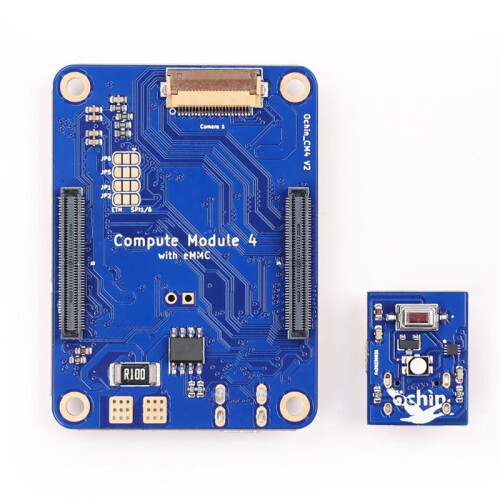

The Ochin CM4v2 is a tiny carrier board for Raspberry Pi Compute Module equipped with powerful Quad-core Cortex-A72 CPU and GPU, which features a RAM size, the CODECs, and Graphic Accelerators. It's designed for a wide range of applications such as robotics, home automation, and IoT projects. The Raspberry Pi Compute Module 4 is not included.
High-performance: Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz.
High Resolution Supported: 265 (HEVC) ( to 4Kp60 decode), H.264 ( to 1080p60 decode,1080p30 encode) and OpenGL ES 3.0 .
Rich Interfaces: 1xUSB 2.0 port (highspeed); MIPI CSI-2: 1x2- MIPI CSI camera port, 1x4- MIPI CSI camera port; 1xUSART, 3xUART, 1xI2C port, 1xSPI port, Analog Video Output.
Strong Compatibility: Compatible with for Raspberry Pi Compute Module(CM4) with faster eMMC flash with to 100 MB/s transfer rate, 4x faster than CM3+.

Description

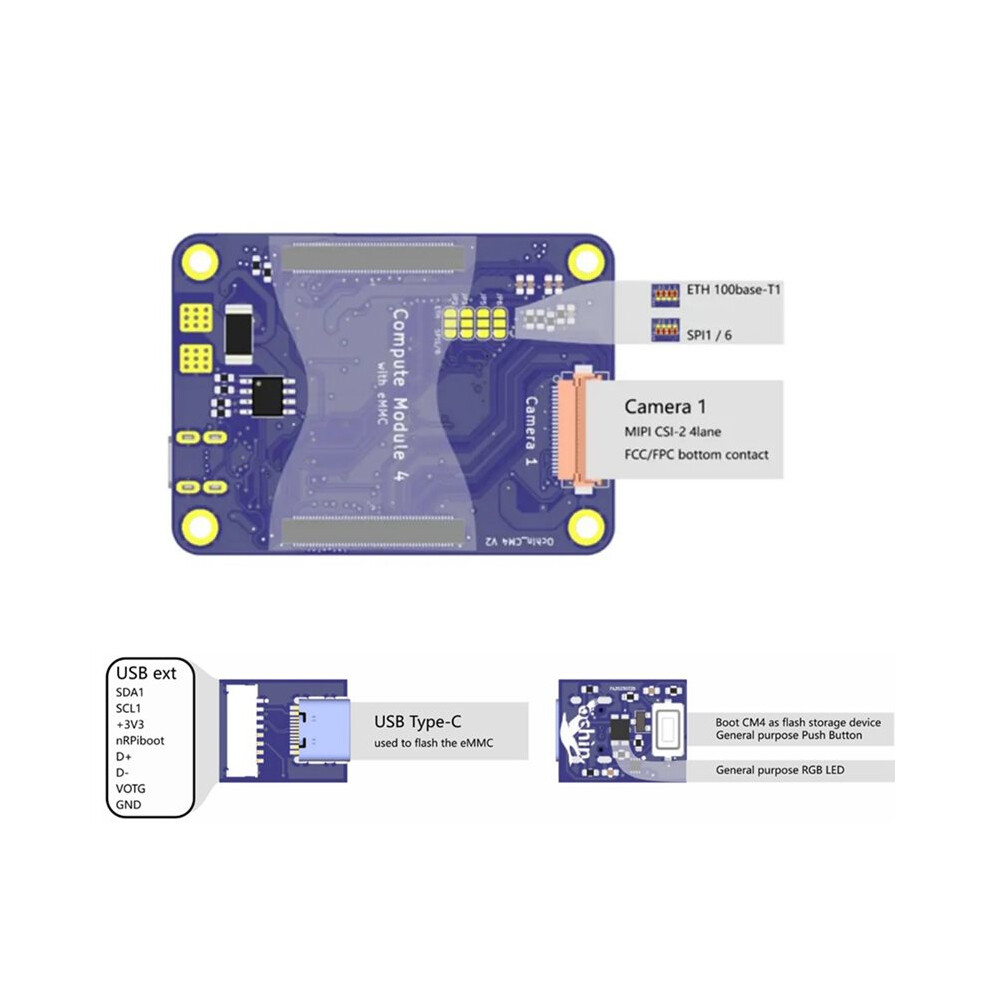

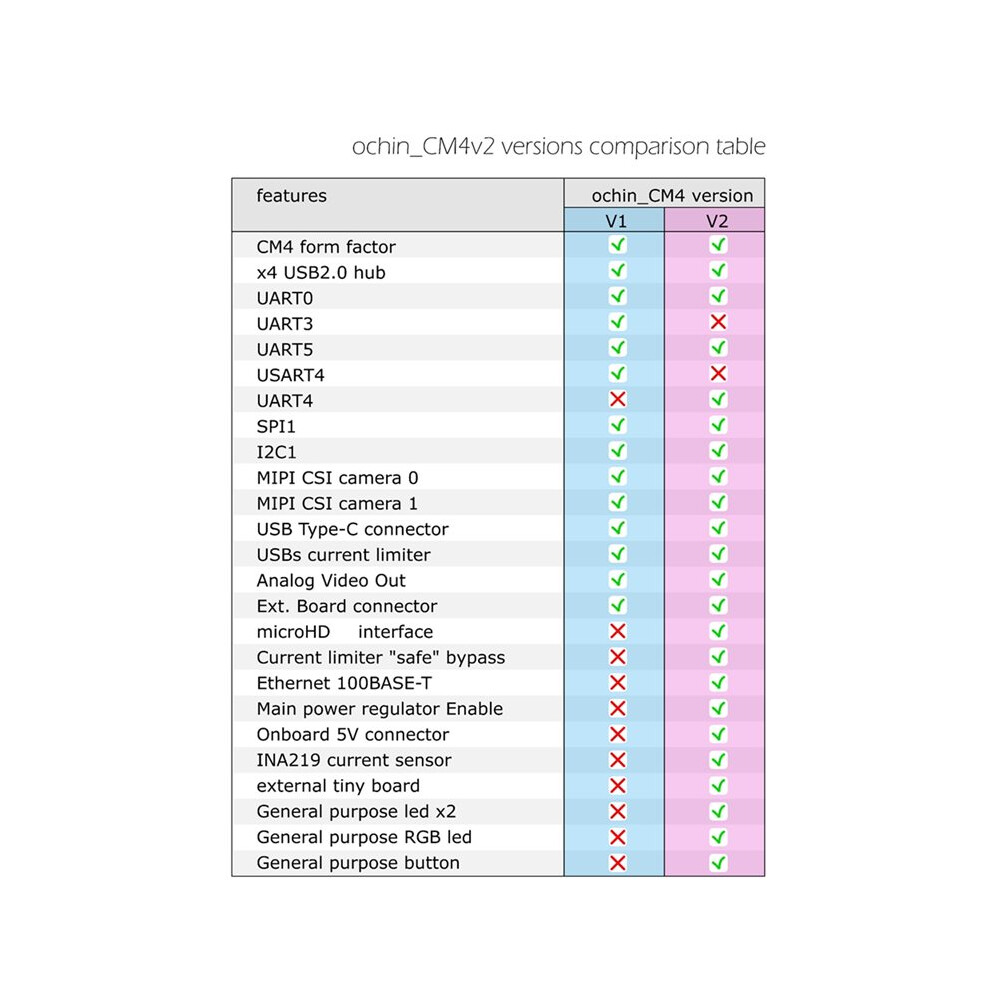

This is version 2 of the now well-known carrier board for integrated robotics ochin_CM4. In the new version, all the main features already present in v1 are retained, many innovations that make it more flexible and interesting for even more applications.
Some examples are the presence of the microHDMI-Compatible port, which allows it to be used together with a monitor and therefore makes it usable not only in headless devices but also in user-side applications. A transformerless Ethernet interface is also available, in case one wants to connect to a device equipped with an Ethernet interface.
In version v2, a small external board has been added that allows the flash to be programmed, but also its use during normal operation thanks to an RGB LED and a user button, making it very useful as a minimal interface to the system (once the flash has been programmed, you can simply decide not to connect it if not in use).
