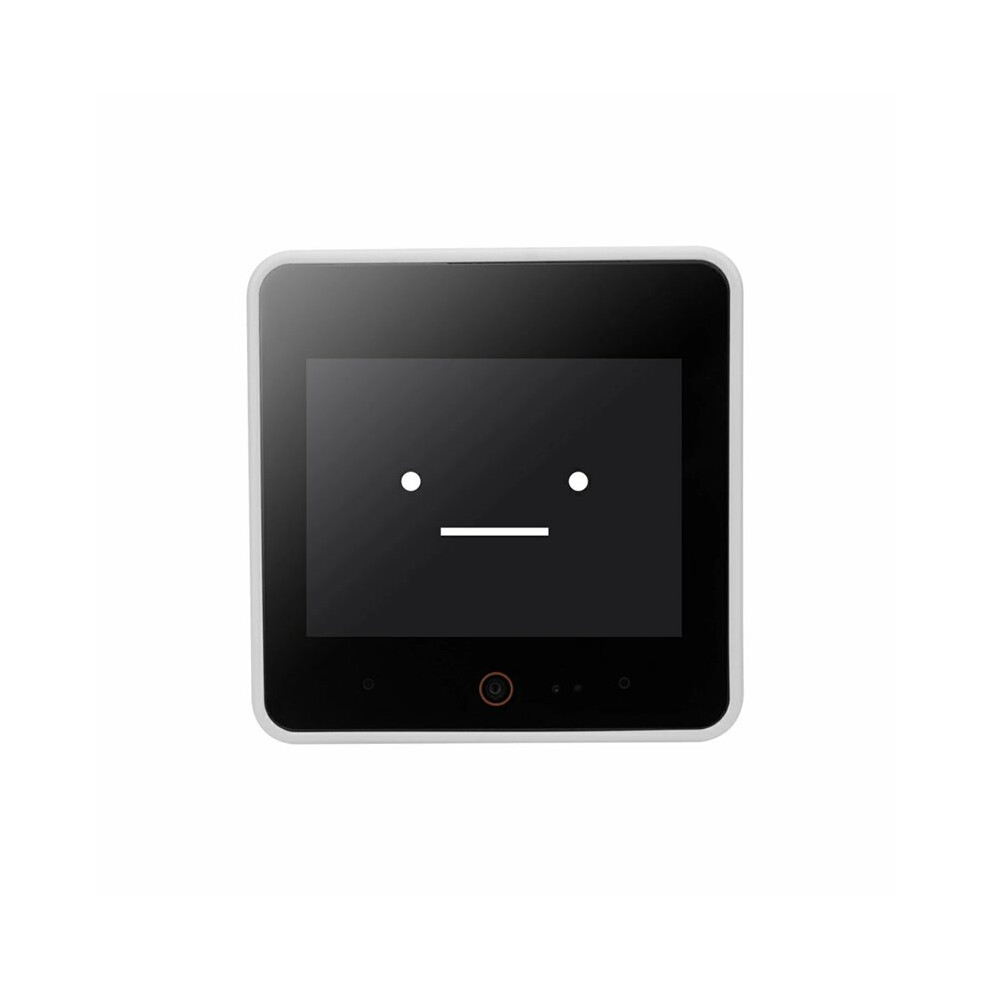

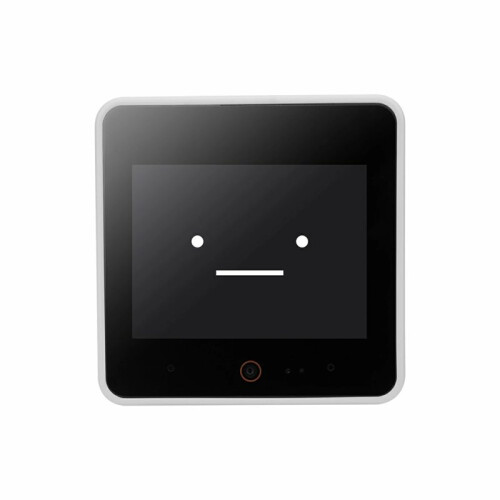

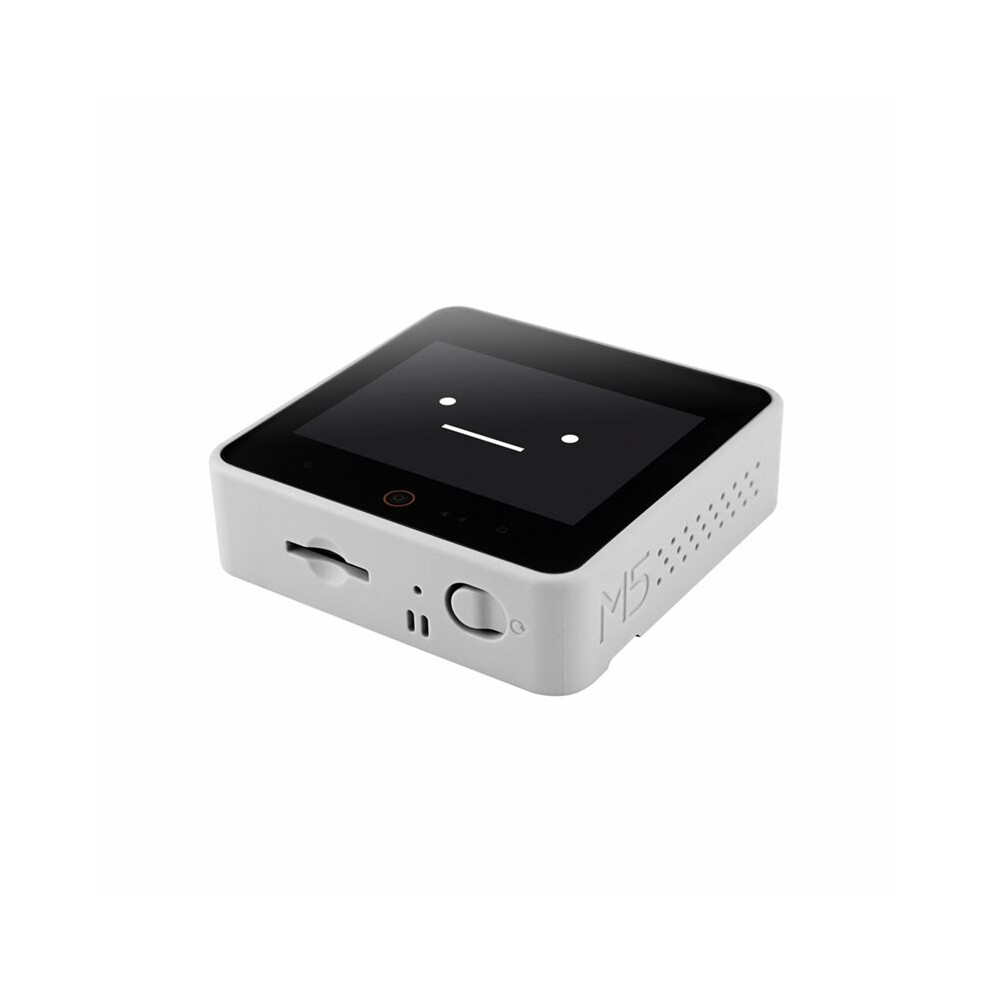

StackChan Core for StackChan Robot ESP32-S3 16MB Flash 8MB PSRAM Wi-Fi+BLE with 2inch Touchscreen for StackChan Repair

StackChan Core for StackChan Robot ESP32-S3 16MB Flash 8MB PSRAM Wi-Fi+BLE with 2inch Touchscreen for StackChan Repair Περιγραφή

For StackChan main controller repair and replacement
Based the ESP32; supports Wi-Fi; features 16MB Flash and 8MB PSRAM
Includes built-in camera, proximity sensor, speaker, power indicator, RTC, I2S power amplifier, dual microphones, capacitive touchscreen, power button, reset button, and gyroscope
Supports OTG and CDC functions
Utilizes AXP2101 power management; features a low-power design

Specifications:
The StackChan Core serves as the central controller for the StackChan robot and is suitable as a replacement unit for the main controller. Powered by an ESP32-S3 chip featuring a 240 MHz dual-core processor, it includes 16MB of Flash and 8MB of PSRAM, with native support for Wi-Fi and BLE wireless communication. The device integrates a wide range of peripherals: a 2.0-inch capacitive touchscreen with high-strength glass and a 0.3 MP camera, along with proximity, ambient light, and 9-axis attitude sensors. It also features a microSD card slot, a built-in 1W speaker, dual microphones, and physical power and reset buttons. Designed to replace the original main unit, it is fully compatible with the StackChan AI desktop robot.

SoC: ESP32-S3 (Dual-core Xtensa LX7 processor, 240 MHz)
Flash: 16 MB
PSRAM: 8 MB Quad
Wi-Fi: 2.4 GHz Wi-Fi
Touch IPS LCD: 2.0" @ 320 x 240 (ILI9342C)
Camera: GC0308 @ 0.3 MP
Proximity Sensor: LTR-553ALS-WA
PMIC: AXP2101
6-axis Motion Sensor: BMI270
3-axis Magnetometer: BMM150
RTC: BM8563
Speaker: 16-bit I2S with AW88298 amplifier (1 W)
Audio Codec: ES7210 (dual-microphone input)
Note:The StackChan Core comes pre-installed with the StackChan firmware.
Color: As Shown
Material: Glass+ABS

Package Contents:
1 x StackChan Core
1 x L-shaped hex key, 1.5mm (for M2 screws)
1 x L-shaped hex key, 2.5mm (for M3
