Stamp-C5 DIP Highly Integrated Wireless Connectivity Module Powered By ESP32-C5HF4 Dual Band WiFi6 IoT Module

Stamp-C5 DIP Highly Integrated Wireless Connectivity Module Powered By ESP32-C5HF4 Dual Band WiFi6 IoT Module Περιγραφή

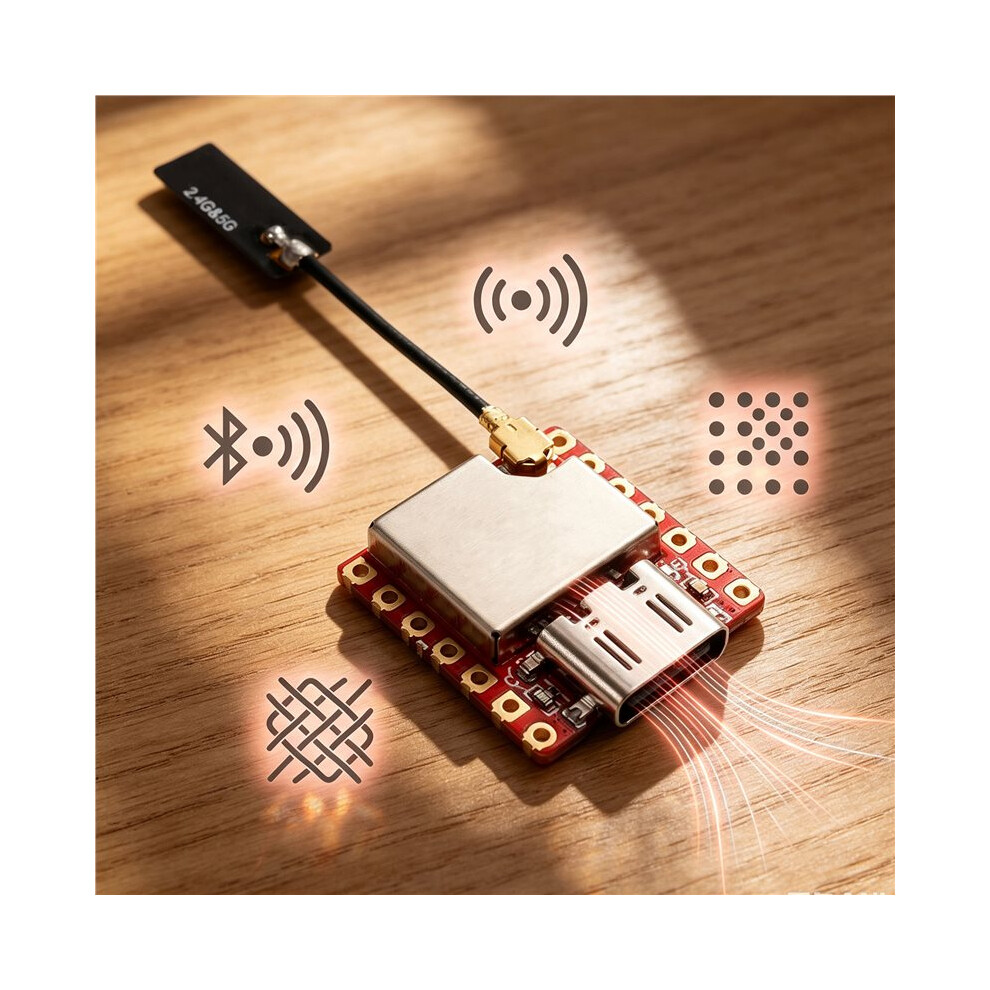

The Stamp-C5 DIP is a highly integrated wireless connectivity module based the ESP32-C5HF4, designed for IoT applications requiring efficient and stable communication.
It supports dual-band Wi-Fi 6 (2.4 GHz and 5 GHz), BLE 5, and IEEE 802.15.4 (Zigbee, Thread) protocols, meeting device connectivity needs across diverse network scenarios.
The module features a RISC-V 32-bit single-core processor clocked at to 240 MHz and includes 4 MB of onboard Flash. It integrates hardware resources such as a USB Type-C port, a battery power interface, an FPC expansion interface, and an IPEX-1 antenna connector.
Designed with a 2.54 mm pin pitch and equipped with two standard 2.54-7P pin headers, it facilitates rapid connection to various peripherals and functional expansions. It ensures robust connectivity and security while enabling developers to accelerate prototype validation and product deployment.

Features
・ESP32-C5HF4 Core Controller
・RISC-V 32-bit single-core processor, clock speed to 240 MHz
・4 MB Flash
・Wireless Connectivity
・2.4 & 5 GHz dual-band Wi-Fi 6
・BLE 5
・IEEE 802.15.4 (Zigbee, Thread)
・Interfaces and Hardware Design
・USB Type-C
・DC 3.7V battery power interface
・2.54 mm pad pitch

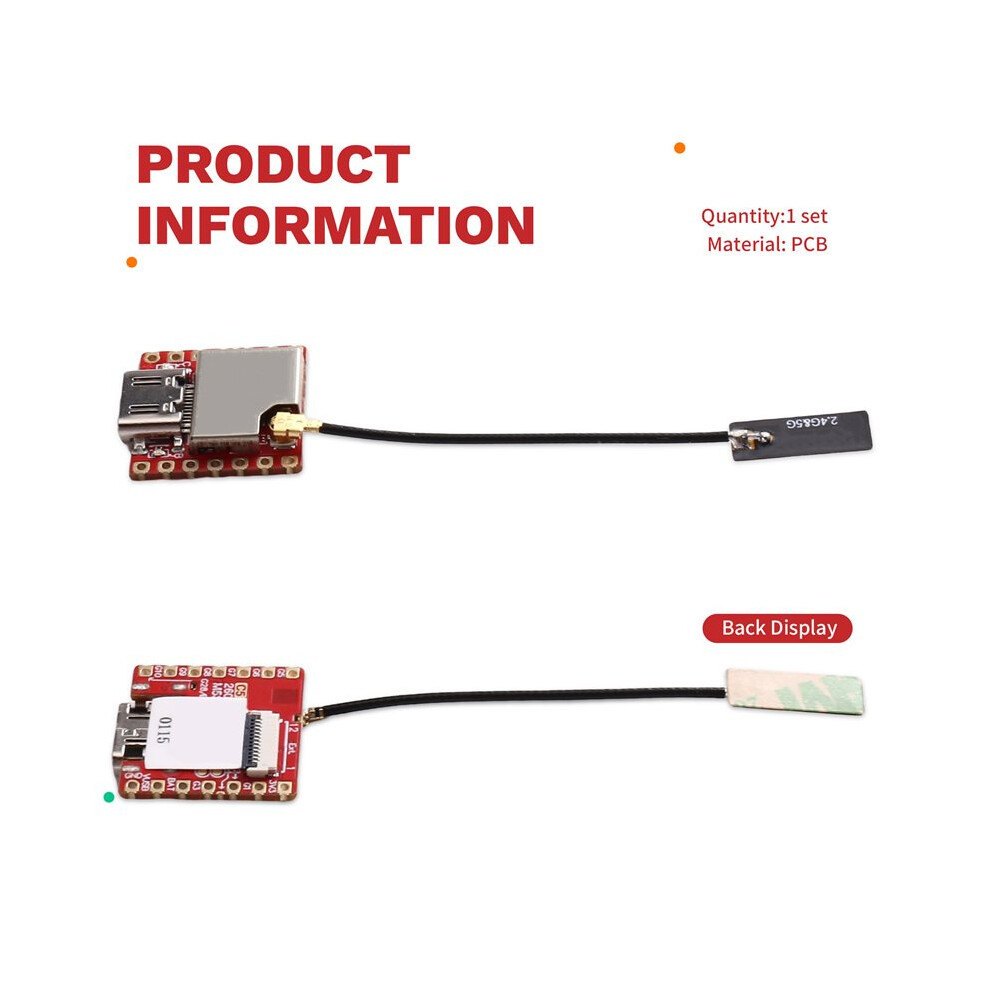

・IPEX-1 antenna connector
・Rear FPC 0.5 mm 12-pin interface
・SGM40567-4.2XG/TR charging IC
・2.4 & 5 GHz antenna multiplexing
・Status Indicators
・RED: Charging indicator (flashes during charging; turns off when fully charged)
・BLUE: G28 / BOOT indicator

Application Scenarios
Dual-band Wi-Fi 6 IoT devices
Zigbee / Thread zones
Low-profile wireless sensing devices
Color: As Shown
Material: PCB

Package Contents:

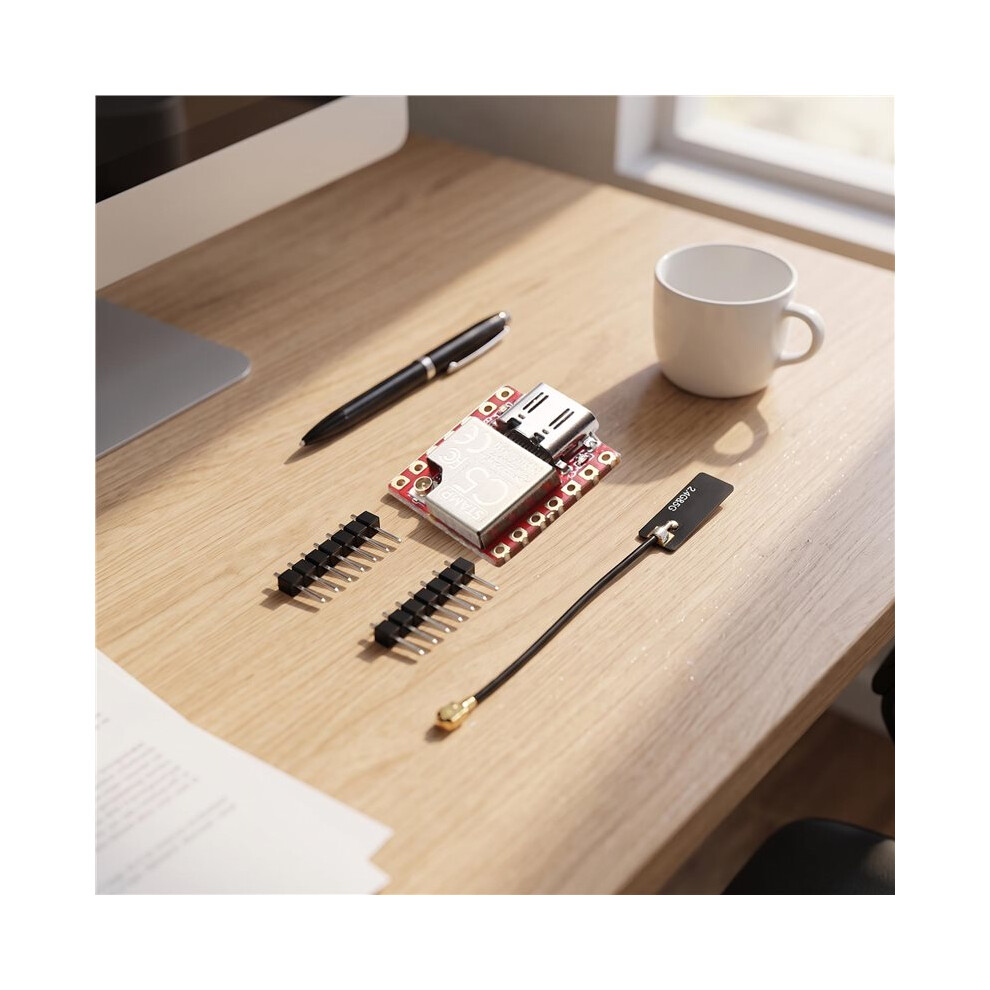

1*Stamp-C5 DIP 2*Pin header
