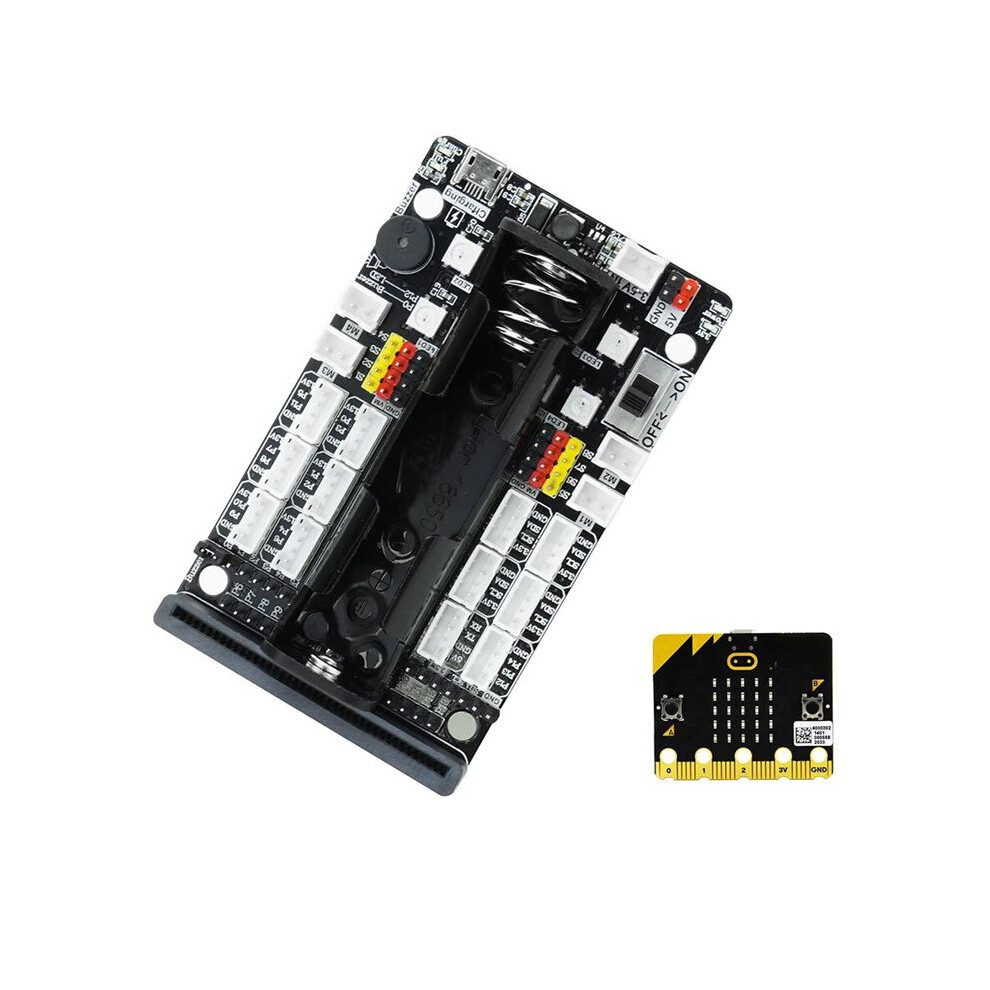

Superbit Micro-Bit Expansion Board Comes with IIC UART WIFI Sensor Interface and RGB Light for BBC Micro-Bit V2 V1

Superbit Micro-Bit Expansion Board Comes with IIC UART WIFI Sensor Interface and RGB Light for BBC Micro-Bit V2 V1 Περιγραφή

This expansion board be designed with bilateral symmetry, board micro-bit board socket, 18650 battery socket, USB power supply interface, 3-5v external power interface, 4 programmable RGB lights, buzzer, I2C interface , WIFI camera serial port, all kinds of motor interfaces and so , which is an expansion board designed for micro-bit.

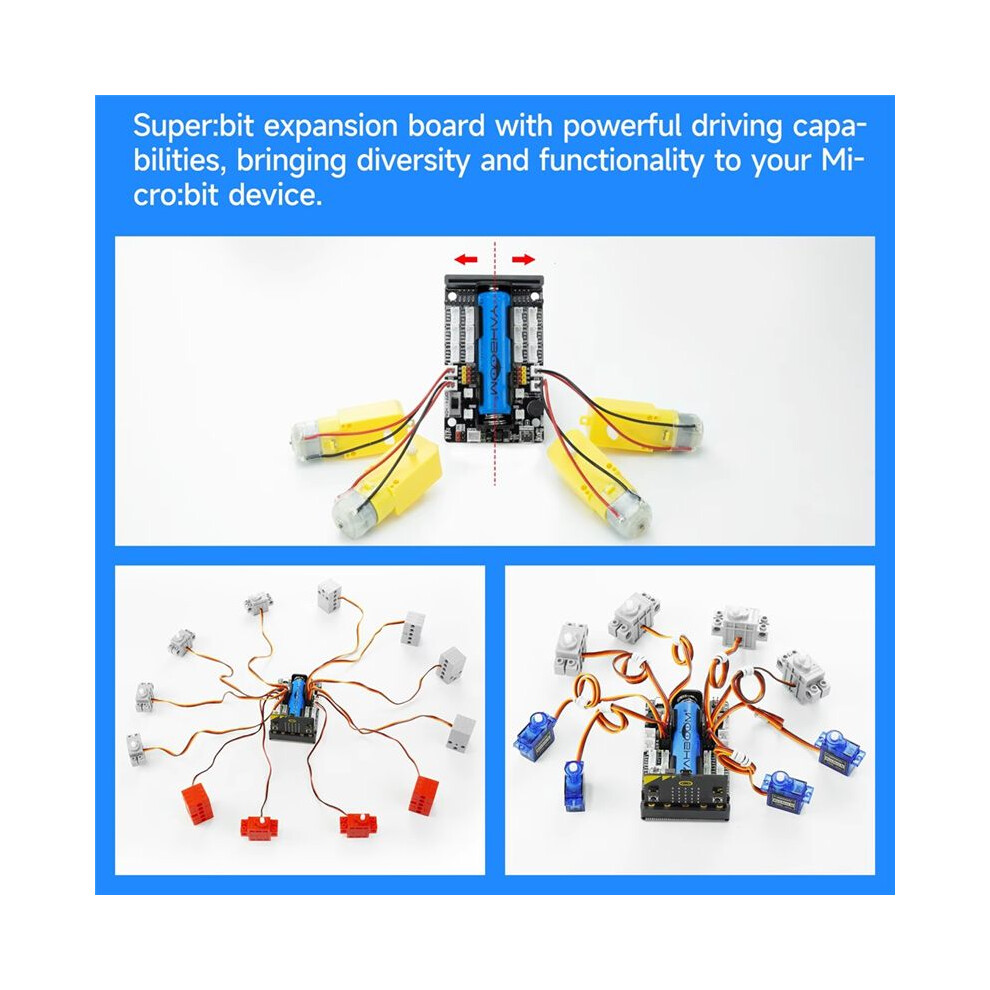

It also can be connected with 2 channel stepper motors, 4 channel motors, 8 channel servos, coupled with stable power supply scheme and various protection circuits, this expansion board has a powerful ability to drive motor.
We expand 17 pin header IO to support our sensor modules. The WIFI camera serial interface, IIC interface and holes make it possible for users to expand into more interesting projects.
You can build your own shape with the bricks, connect some electronic devices, and control it by micro-bit programming. It is an excellent choice for your robotic projects based Micro-bit.

board I/O device: passive buzzer, 4 programmable RGB lights
Motor interface: four motors (voltage from battery, current 1-3A)
Servo interface: 8-channle steering gear
Expansion interface: 17Pin expansion IO port, module interface(serial port)x1, module interfaces (I2C)x4, module interfaces(single/two-channle IO)x6, module interface(3-channle IO)x1
Protection scheme: reverse connection protection, low voltage protection, over-current protection
Special socket: micro-bit gold finger interface x1
Power supply interface: 18650 battery socket, external 3-5 V power supply, Micro-USB power supply
Output power supply: 5V (MAX: 1A), 3.3V (MAX: 0.5A)
Colour:Photo Color
Material:plastic

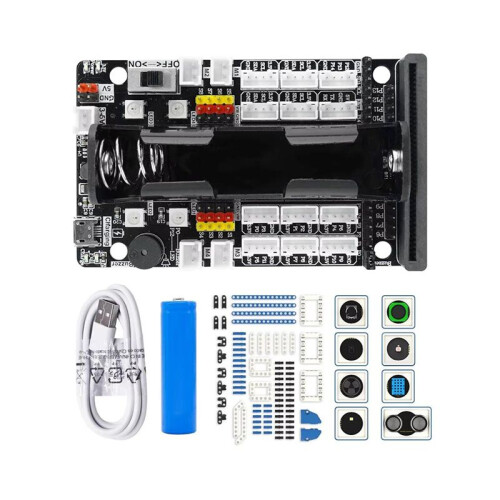

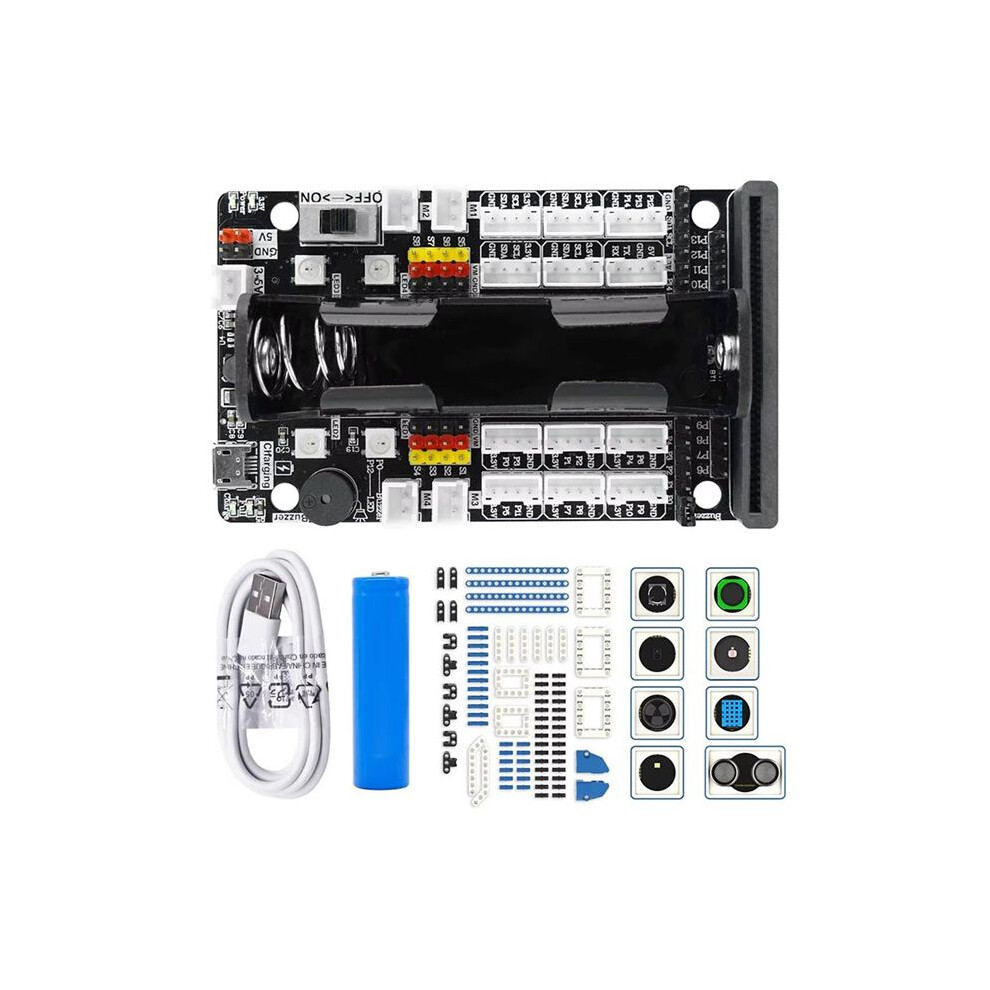

Package Contents:
1 x expansion board
1 set x accessories
