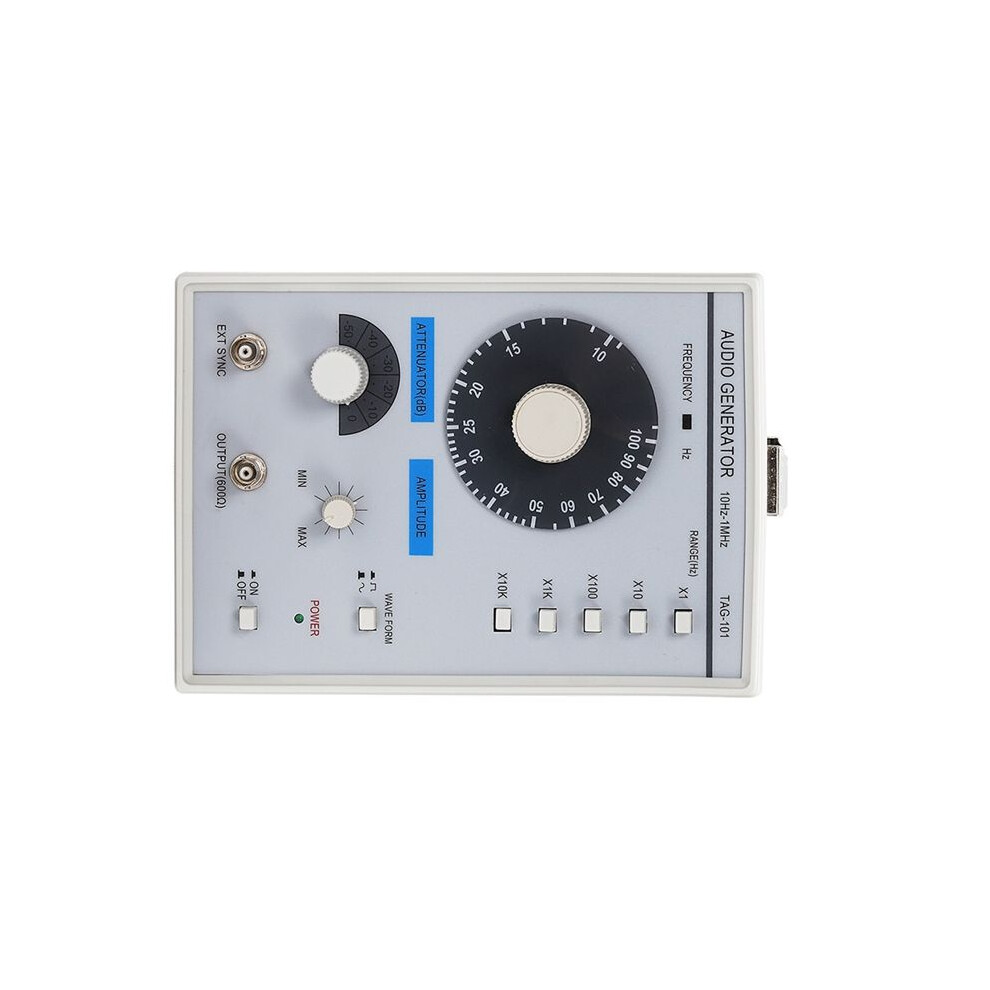

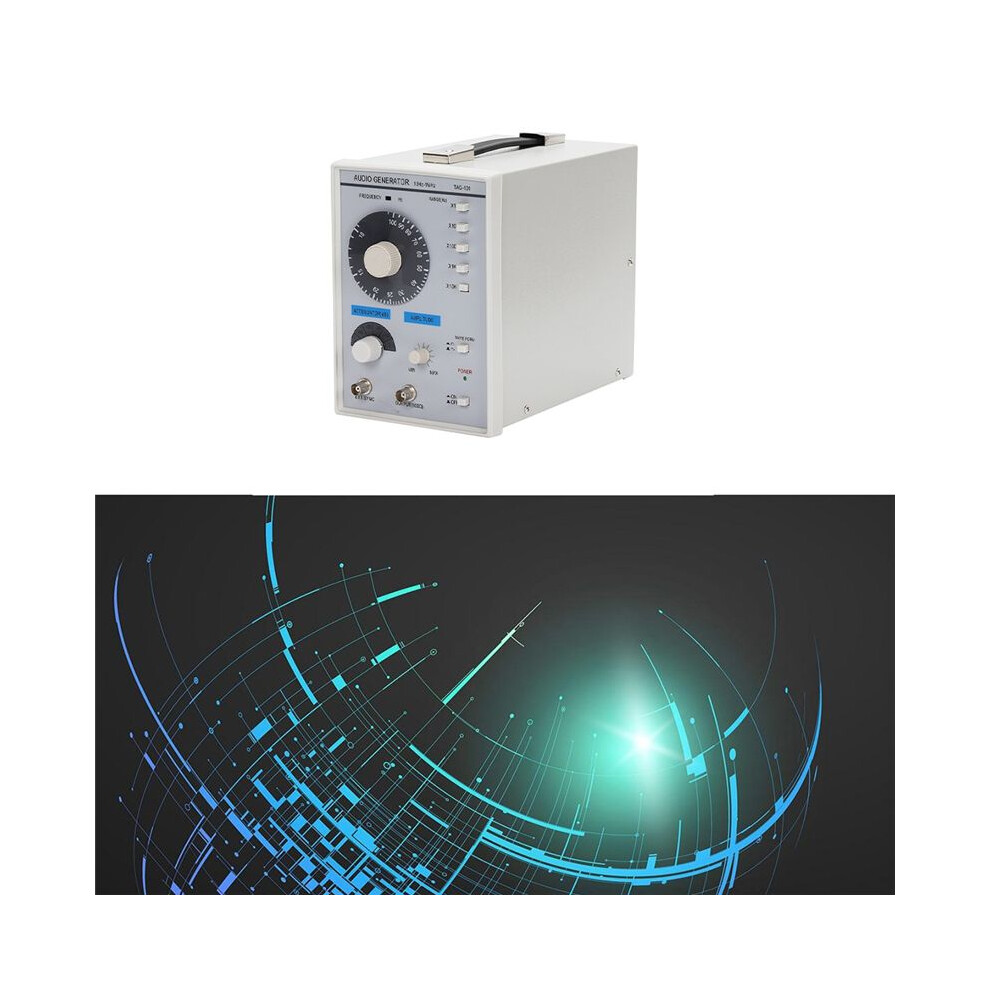

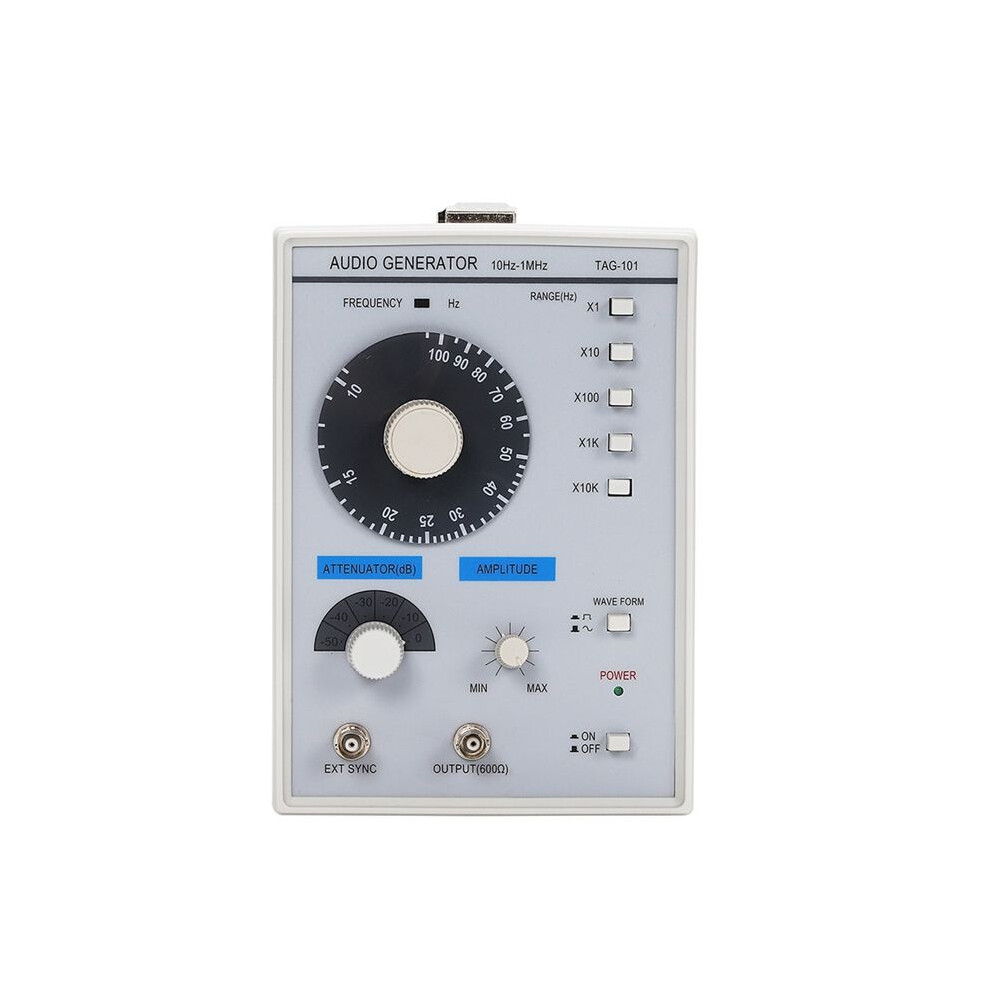

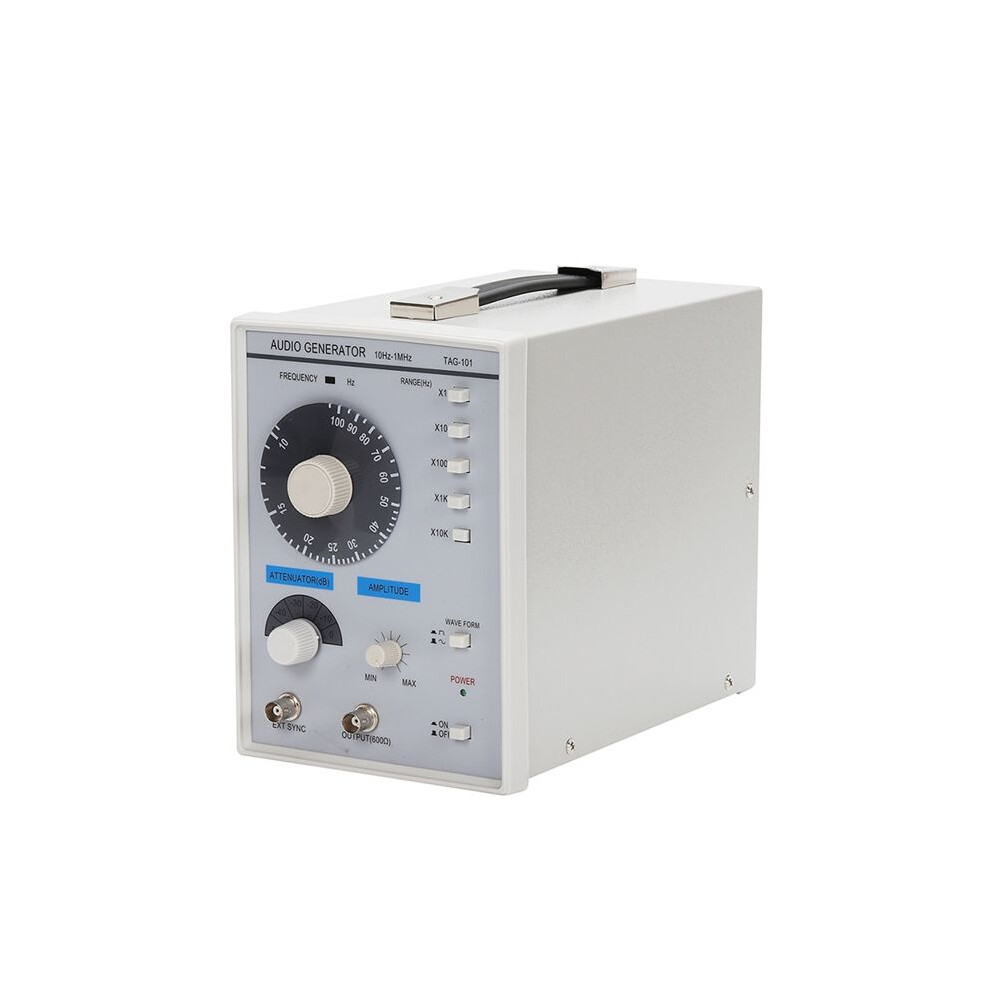

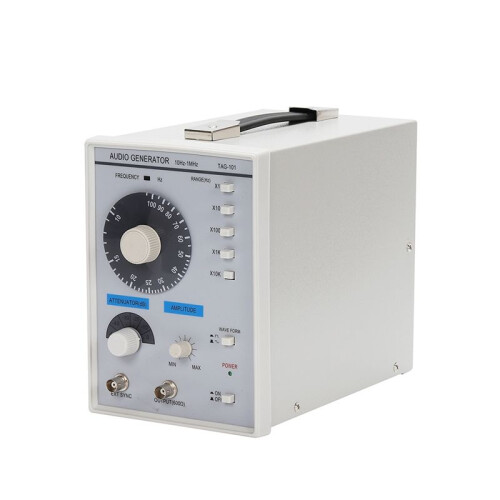

TAG-101 Audio Signal Generator 10Hz-1MHz Low Frequency Generator for Electronics Maintenance Testing EU Plug

TAG-101 Audio Signal Generator 10Hz-1MHz Low Frequency Generator for Electronics Maintenance Testing EU Plug Περιγραφή

It can generate 10Hz to 1MHz signal, and the signal output distortion is very small
The output voltage is from 0dB to 60dB and is attenuated step by step every 10dB
As a signal source, it is popular among production lines, amateurs and maintenance
Professional manufacturing, high reliability, convenient to use and has long service life
It is equipped with a terminal that synchronizes with the external signal, so that a very small signal can control the output of a strong signal

Item Type: Signal Generator
Frequency Range: 10Hz to 1MHz, 5 Measuring Ranges
Accuracy: 5% of full scale
Output Impedance: 600Ω
Output Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB fine adjustment.
Distortion:
400Hz-20kHz, no more than 0.1%
50Hz-500kHz, no more than 0.5%
Output Smoothness: Take 1 for reference, 1.5dB
Square Wave Output:
Range: 10Hz-1MHz
Output Level: 10V Value
Rise : 0.25μs
(The product printed words may vary depending the batch, but this does not affect use)
Voltage: AC100-240V.

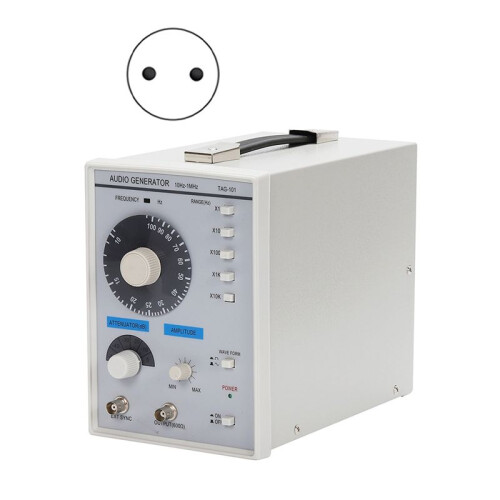

Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so
Color: As Shown
Material: ABS

Package Contents:
1 x Signal Generator
1 x adapter
