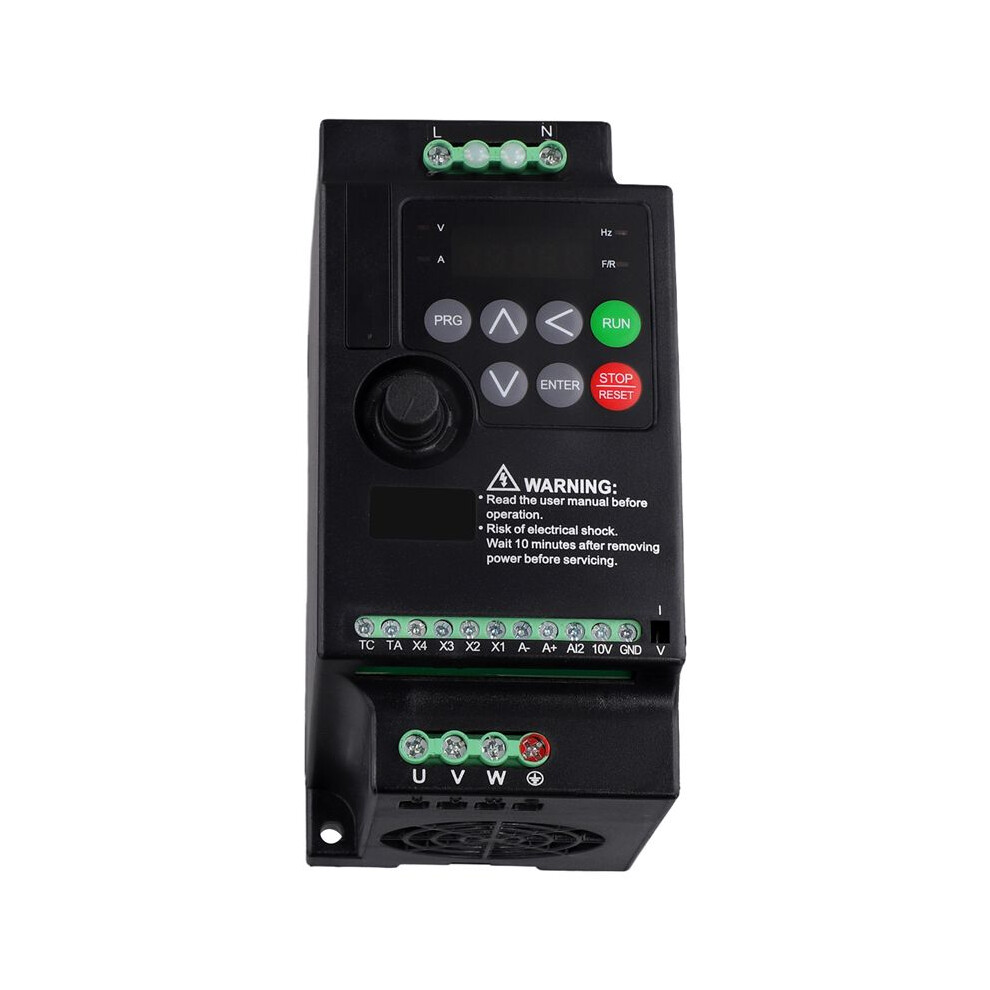

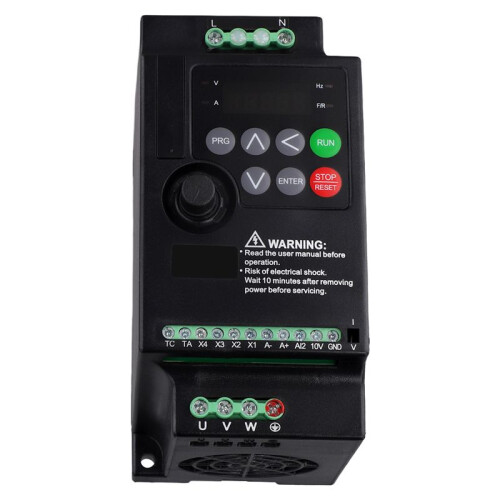

Universal Frequency Converter 220 to 380 Vfd Single Phase Input Three Phase Output 2.2KW Motor Governor

Universal Frequency Converter 220 to 380 Vfd Single Phase Input Three Phase Output 2.2KW Motor Governor Περιγραφή

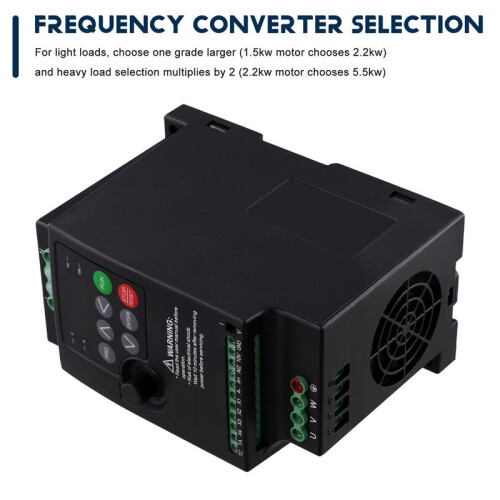

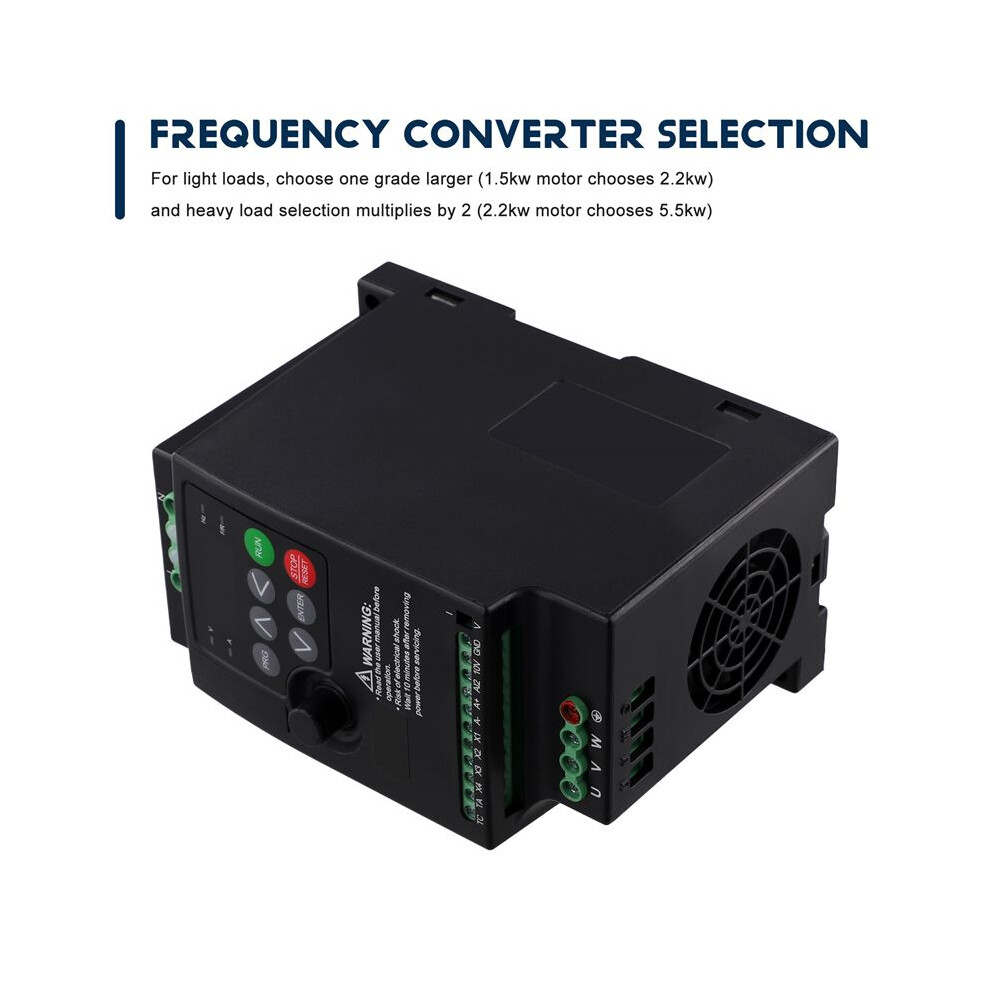

Frequency converter selection
For light loads, choose one grade larger (1.5kw motor chooses 2.2kw) and heavy load selection multiplies by 2 (2.2kw motor chooses 5.5kw). Because the voltage needs to be changed, the pressure the inverter is relatively high, so choose to leave enough margin

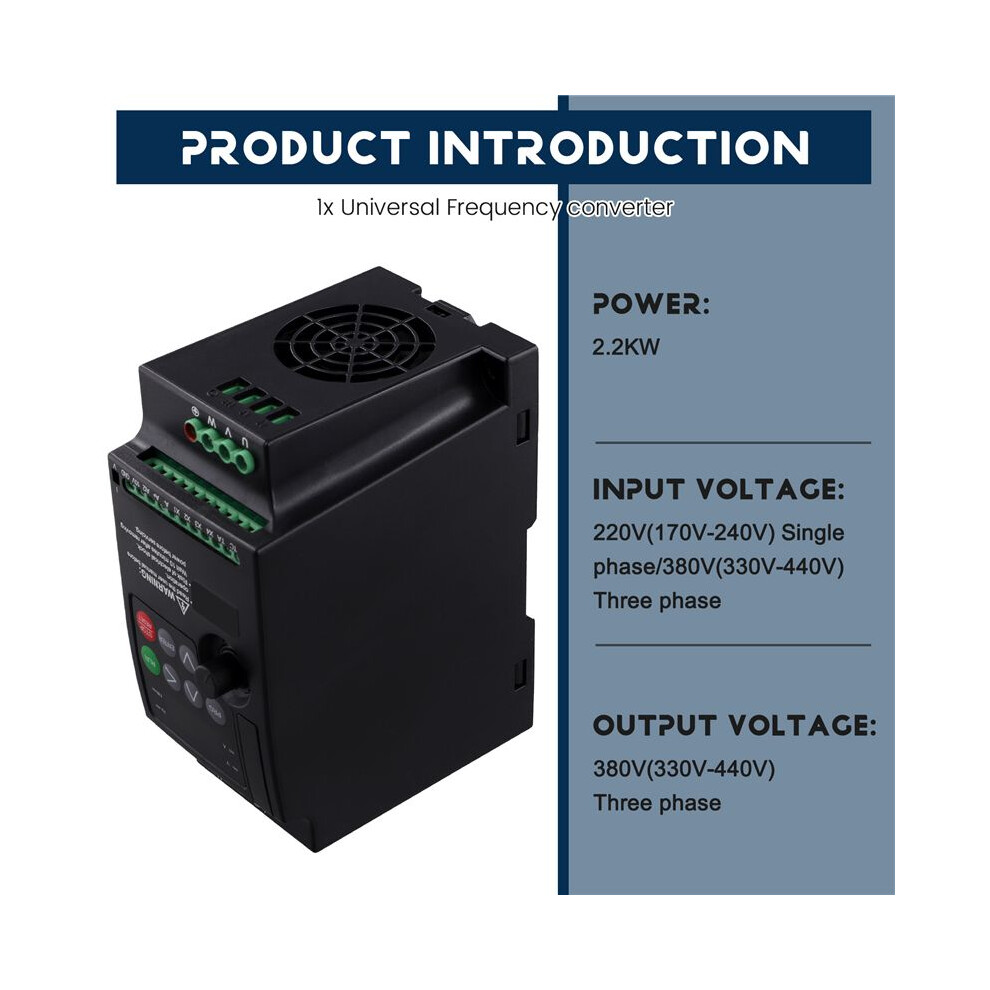

Power: 2.2KW
Input voltage: 220V(170V-240V) Single phase/380V(330V-440V) Three phase
Output voltage: 380V(330V-440V) Three phase

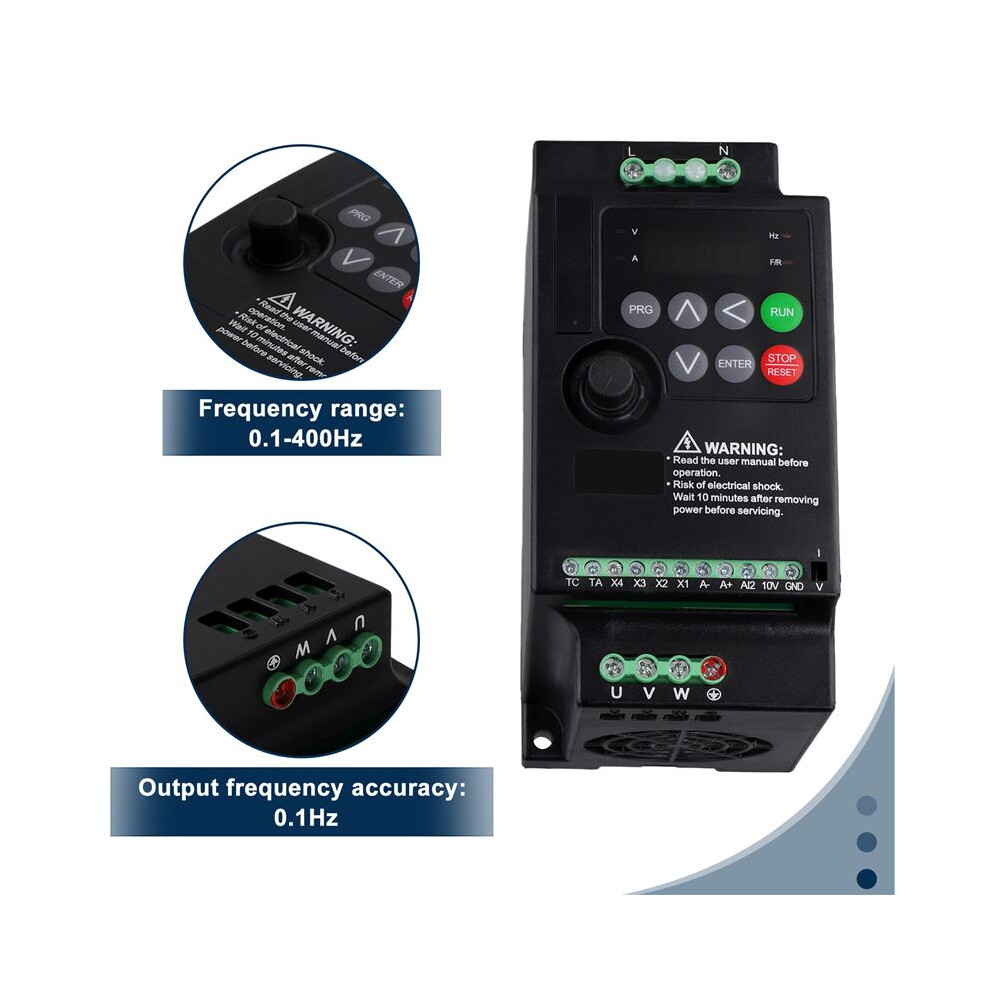

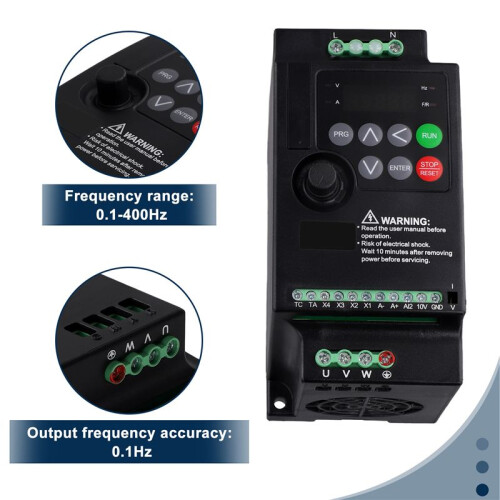

Frequency range: 0.1-400Hz
Output frequency accuracy: 0.1Hz
Control mode: space vector, V/F control
V/F control: V/F curve can be set arbitrarily to meet the needs of different loads.
PID controller: built-in PID controller
RS485: standard RS485 (MODBUS) communication function
Protective function
Overload protection: constant torque 150%/1 min, variable torque 120%/1 min.
Overvoltage protection: Overvoltage protection can be configured.
Undervoltage protection: protection can be set
Other protections: short circuit protection, over current protection, parameter lock, etc.
Colour:Black

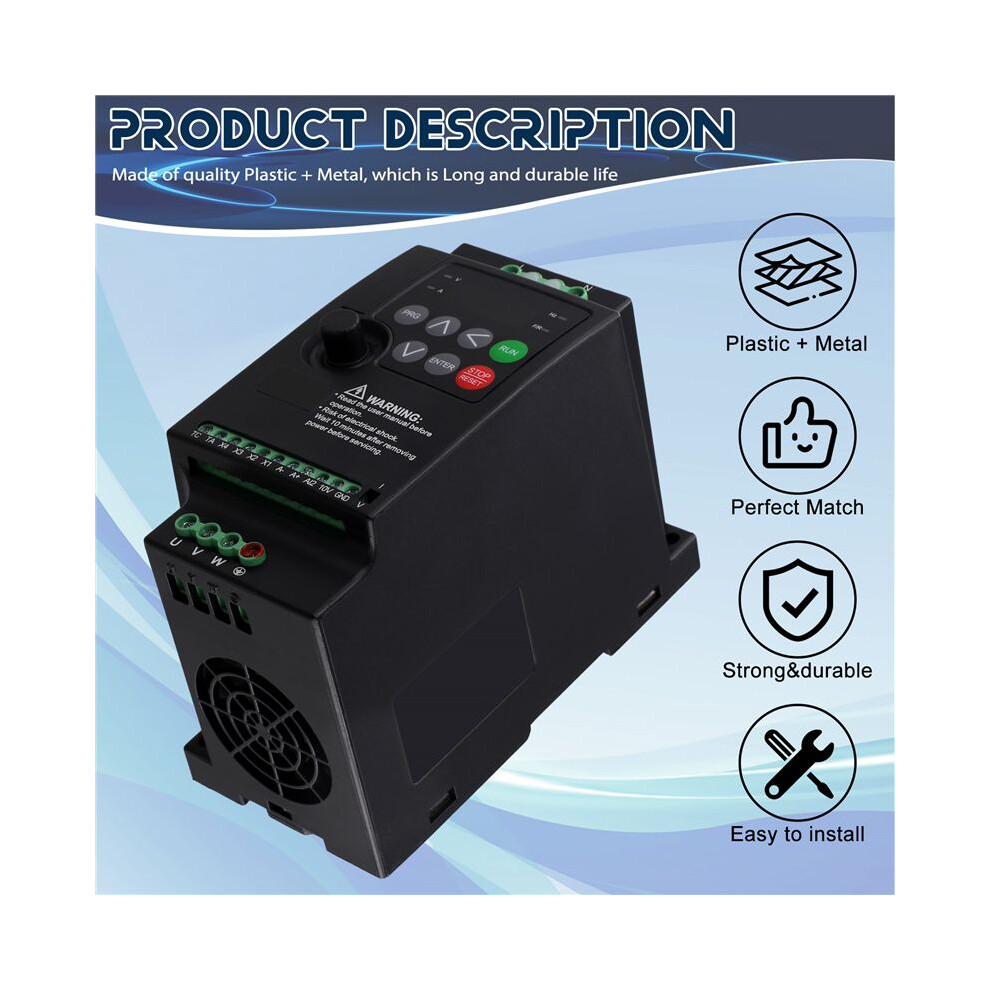

Material:Plastic + Metal

Package Contents:
1x Universal Frequency converter
