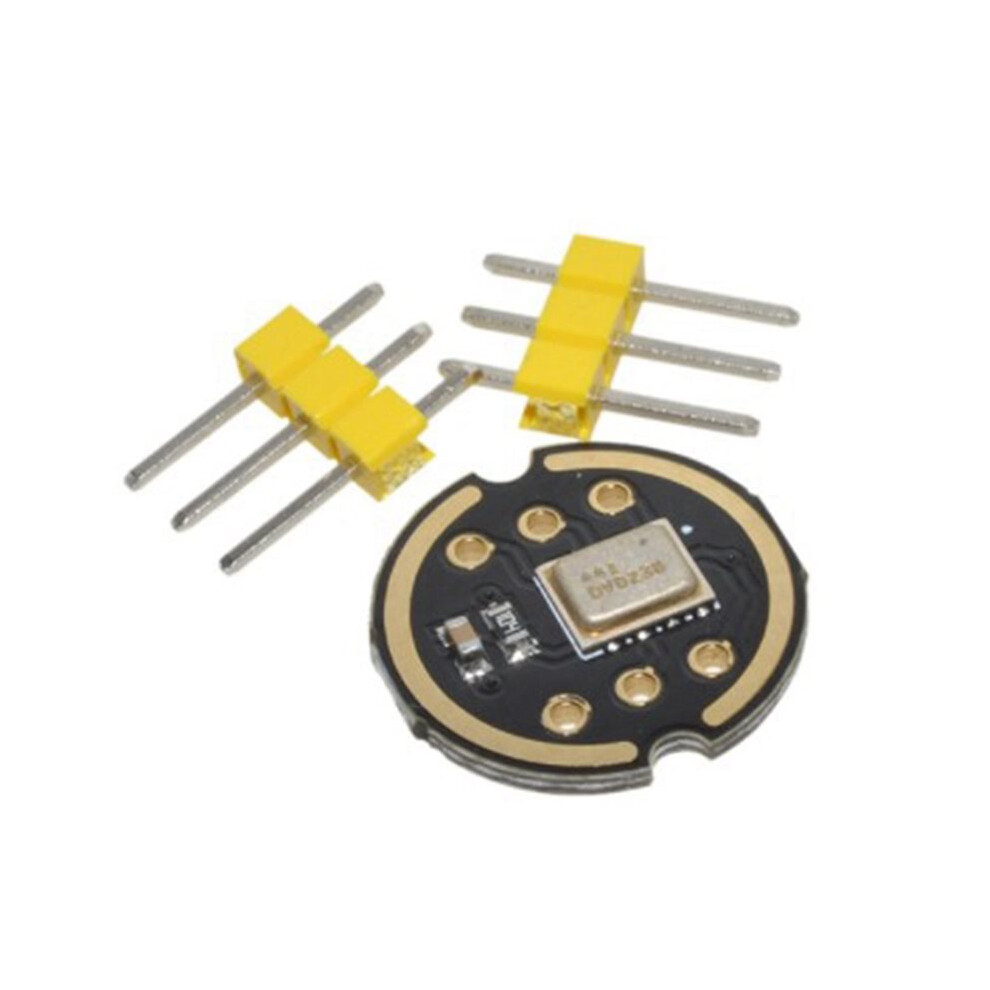

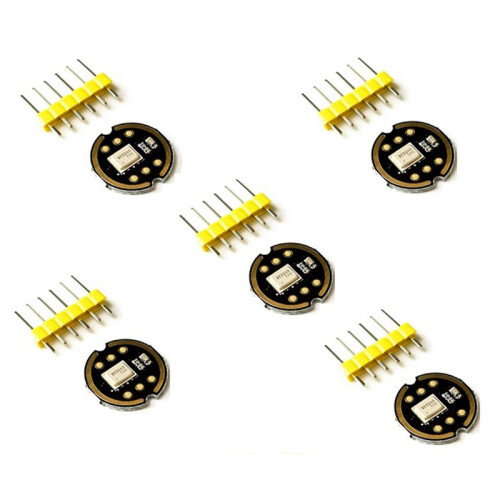

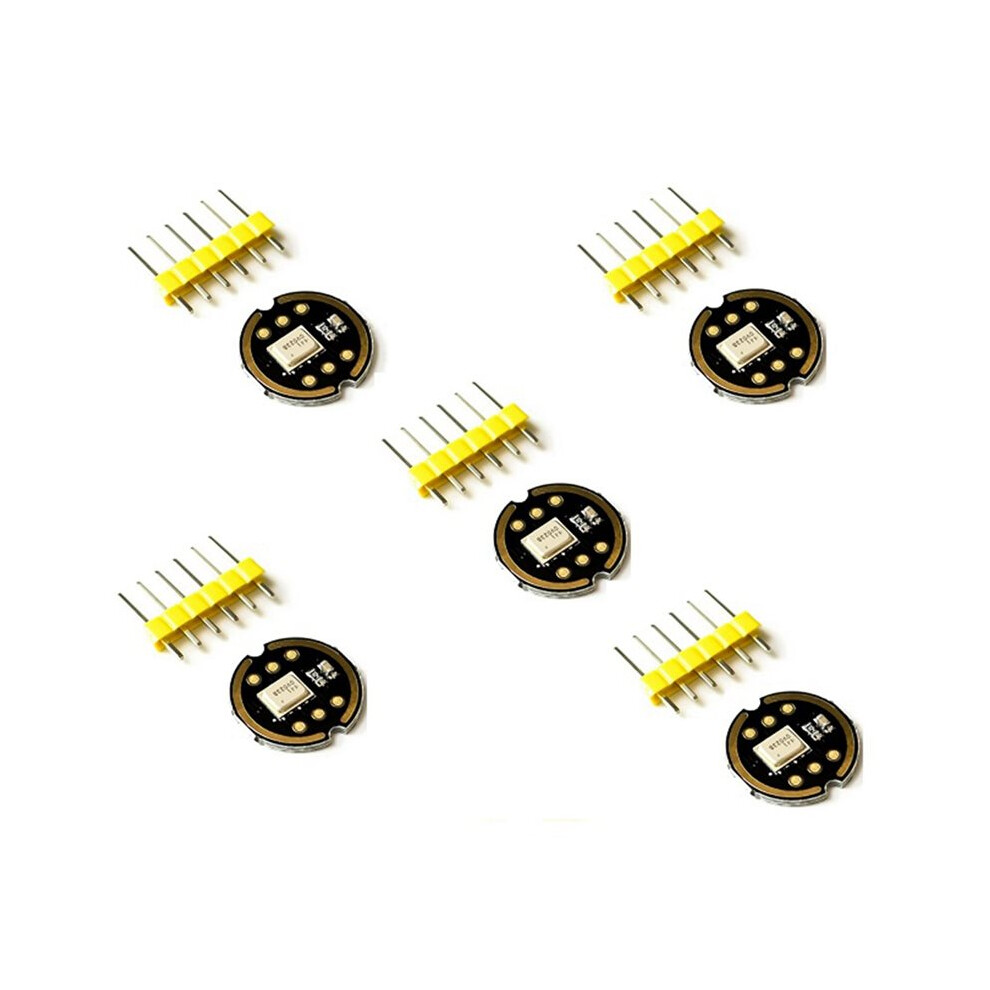

25Pcs INMP441 Omnidirectional Microphone Module MEMS High Precision Low Power I2S Interface Support ESP32

25Pcs INMP441 Omnidirectional Microphone Module MEMS High Precision Low Power I2S Interface Support ESP32 leírása

Product introduction:
The INMP441 is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The
The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be connected directly to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system.
The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.

Product Features:
Digital I2S interface with high precision 24-bit data
2. High signal-to-noise ratio is 61 dBA
3. High sensitivity-26 dBFS
4. Stable frequency response from 60Hz to 15kHz
Low power consumption: low power consumption 1.4 mA
6.High PSR: -75 dBFS
Interface definition:
SCK: Serial data clock for I2S interface
WS: Serial data word selection for I2S interface
L / R: Left / Right channel selection.
When set to low, the microphone outputs a signal the left channel of the I2S frame.
When set to high level, the microphone outputs signals the right channel
: Serial data output from the I2S interface.
VCC: Input power, 1.8 V to 3.3 V.
GND: power ground
Connect to ESP32:
INMP441 ESP32
SCK--GPIO14
--GPIO32
WS--GPIO15
L / R--GND
GND--GND
VDD--VDD3.3
Colour:Black
Material:ABS

Package Contents:

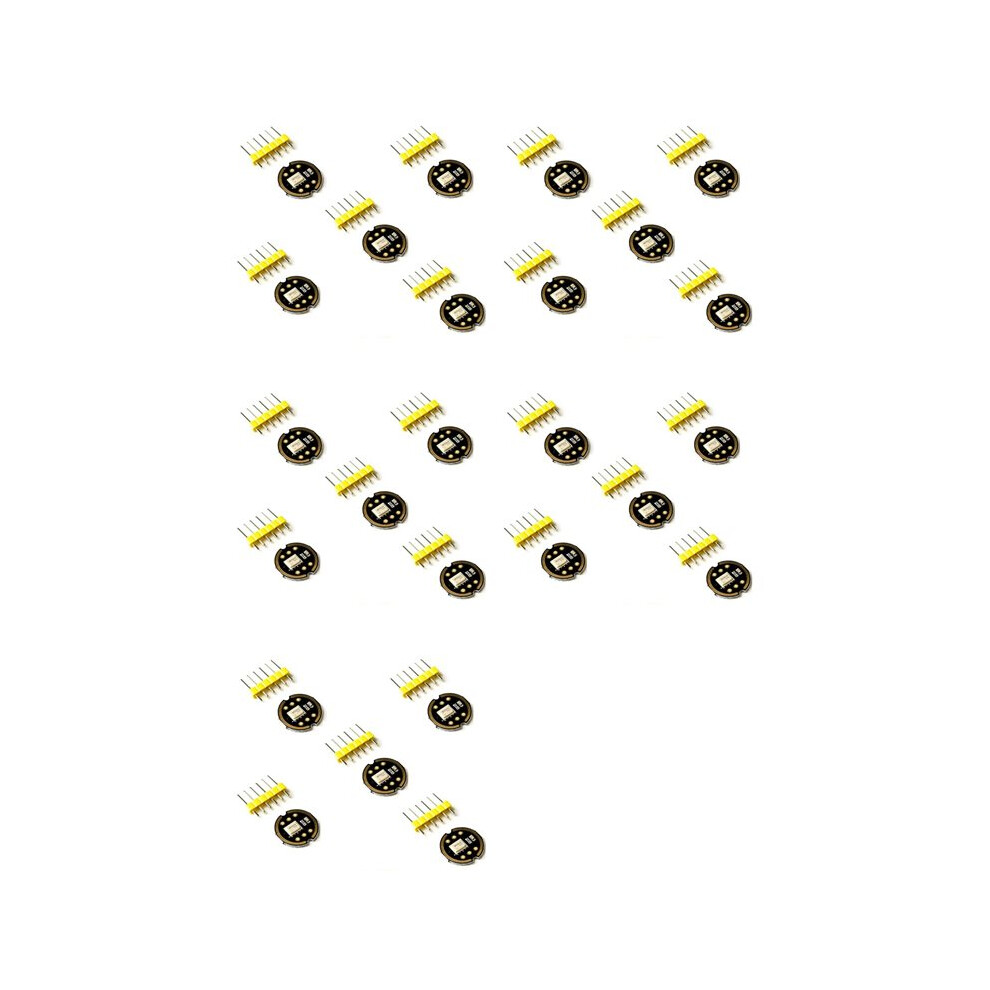

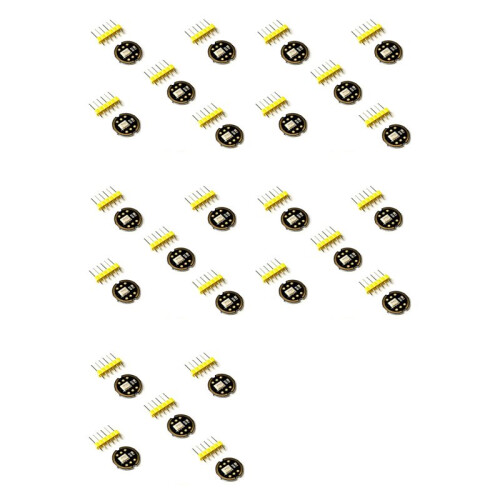

25 x Omnidirectional Microphone Module
