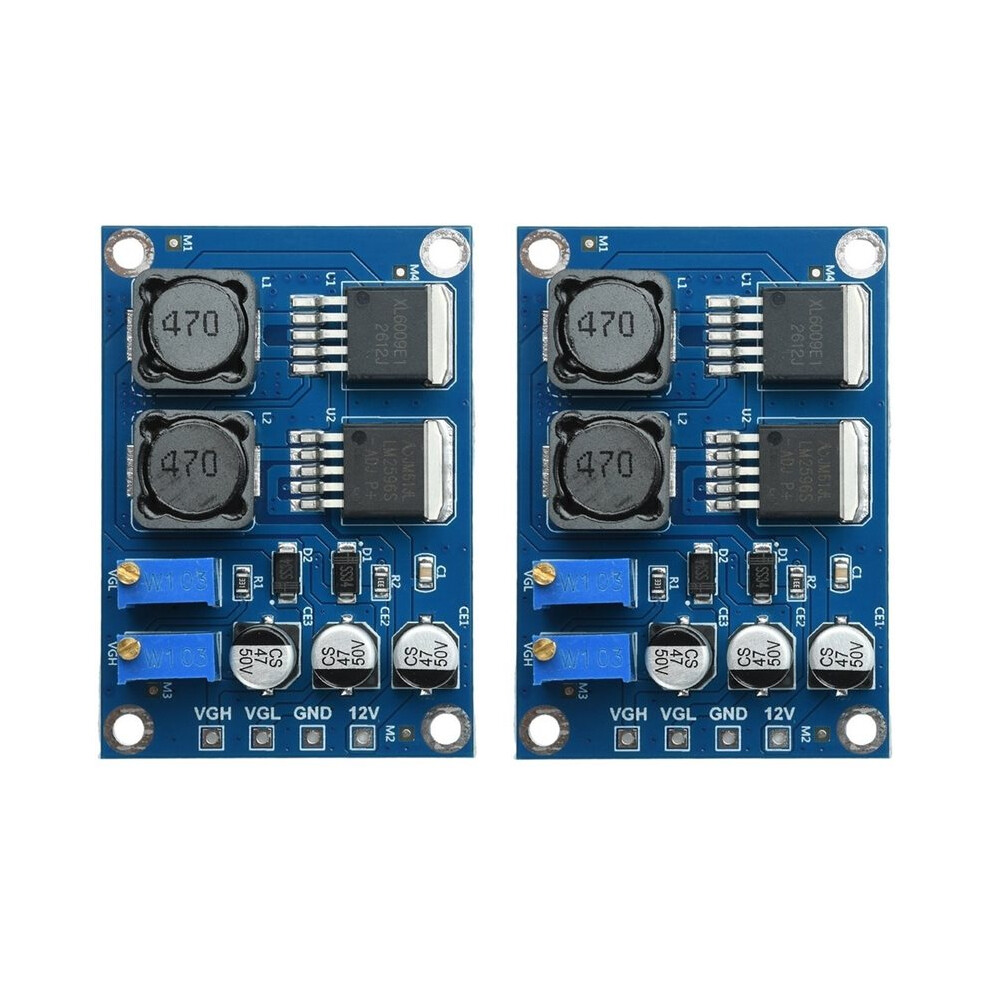

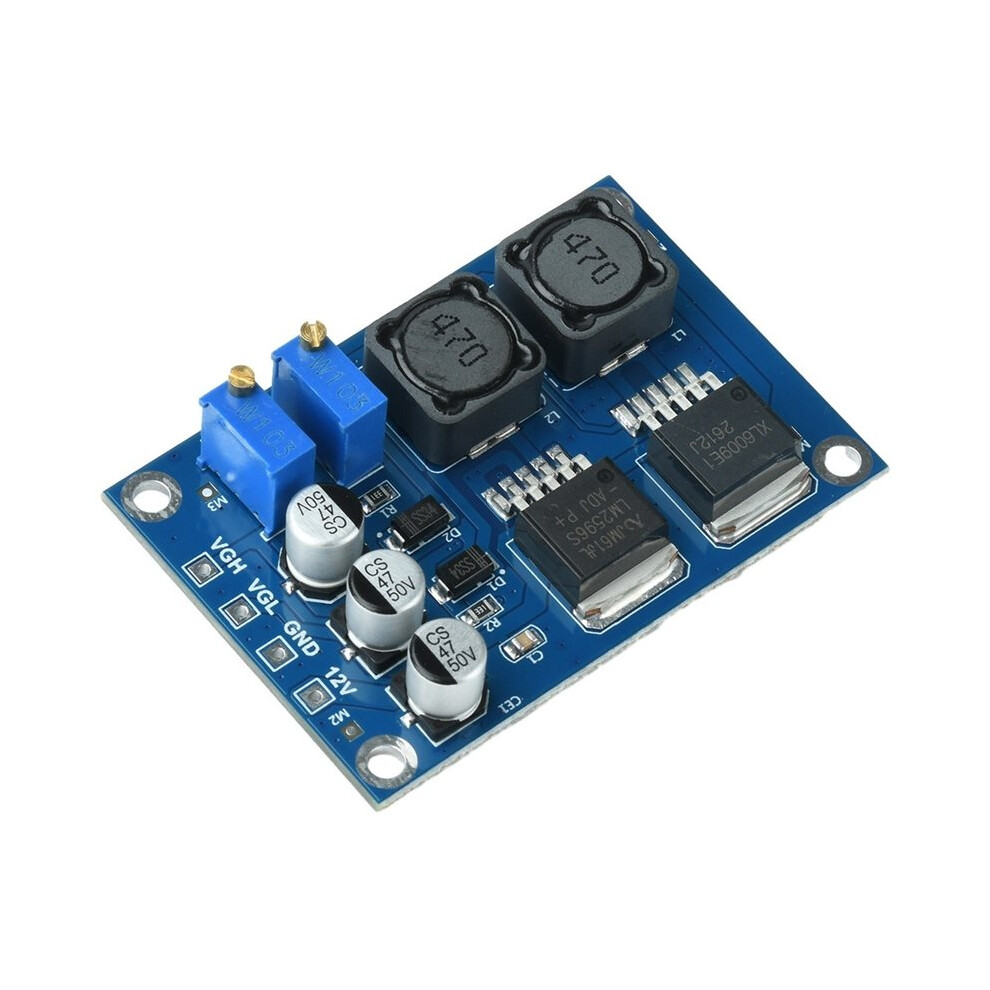

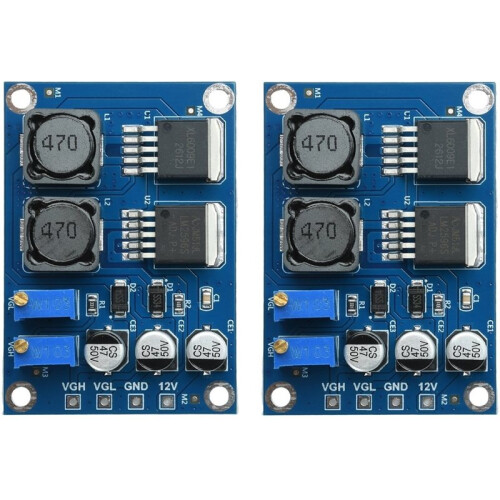

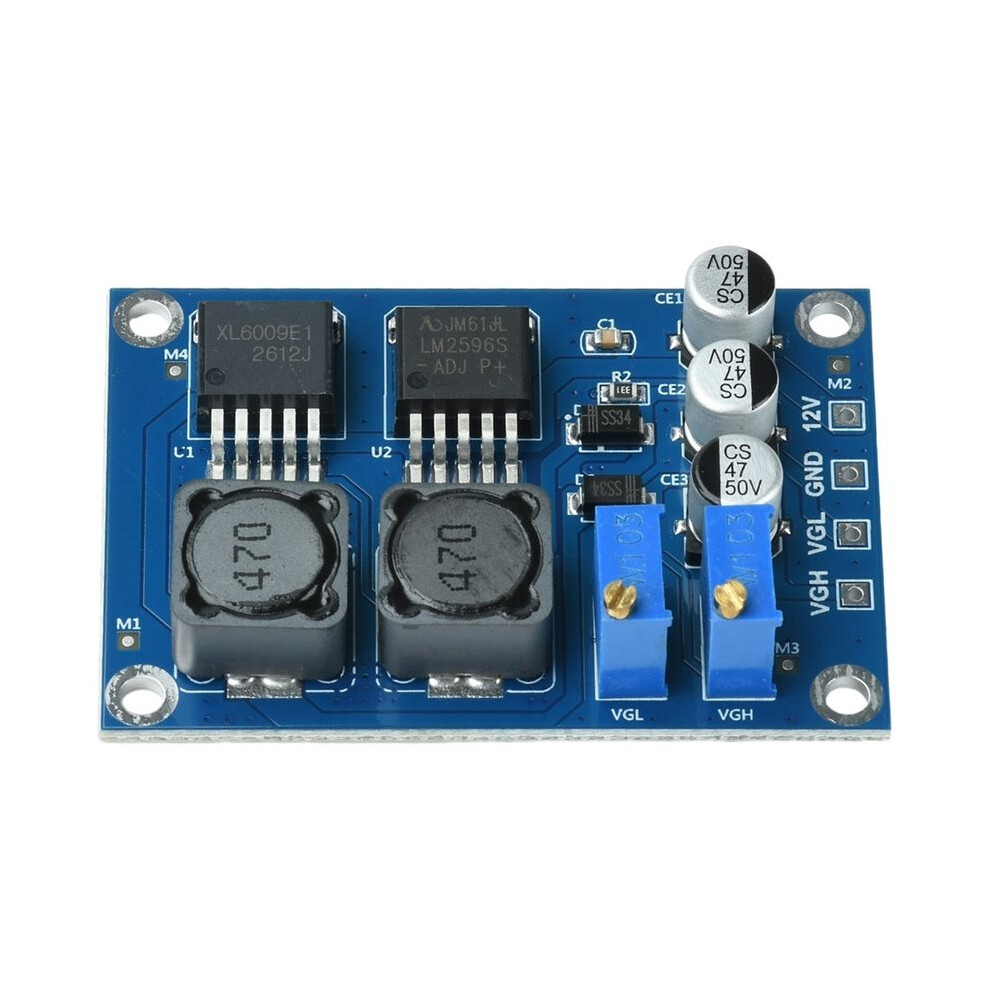

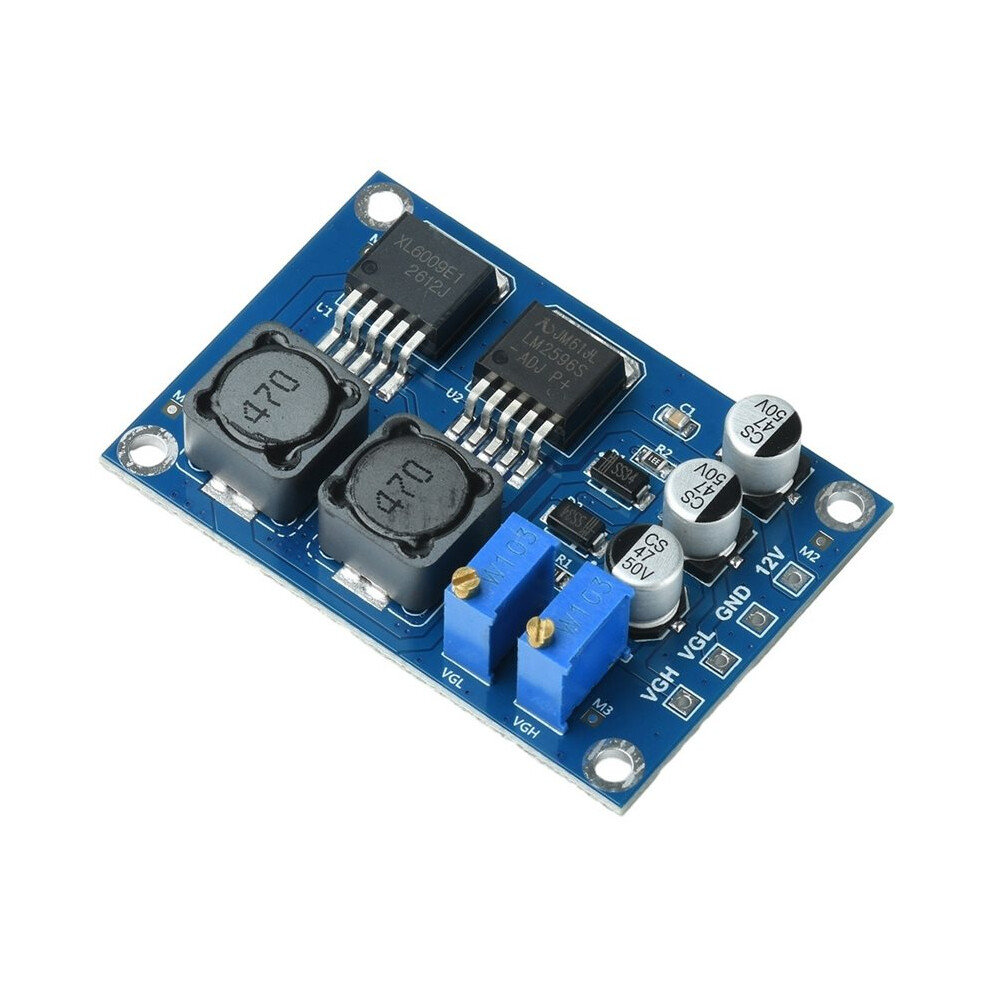

2PCS VGH VGL Module Repair LCD Panel Broken Y Color Abnormal Horizontal LCD Screen Technical Modification

2PCS VGH VGL Module Repair LCD Panel Broken Y Color Abnormal Horizontal LCD Screen Technical Modification leírása

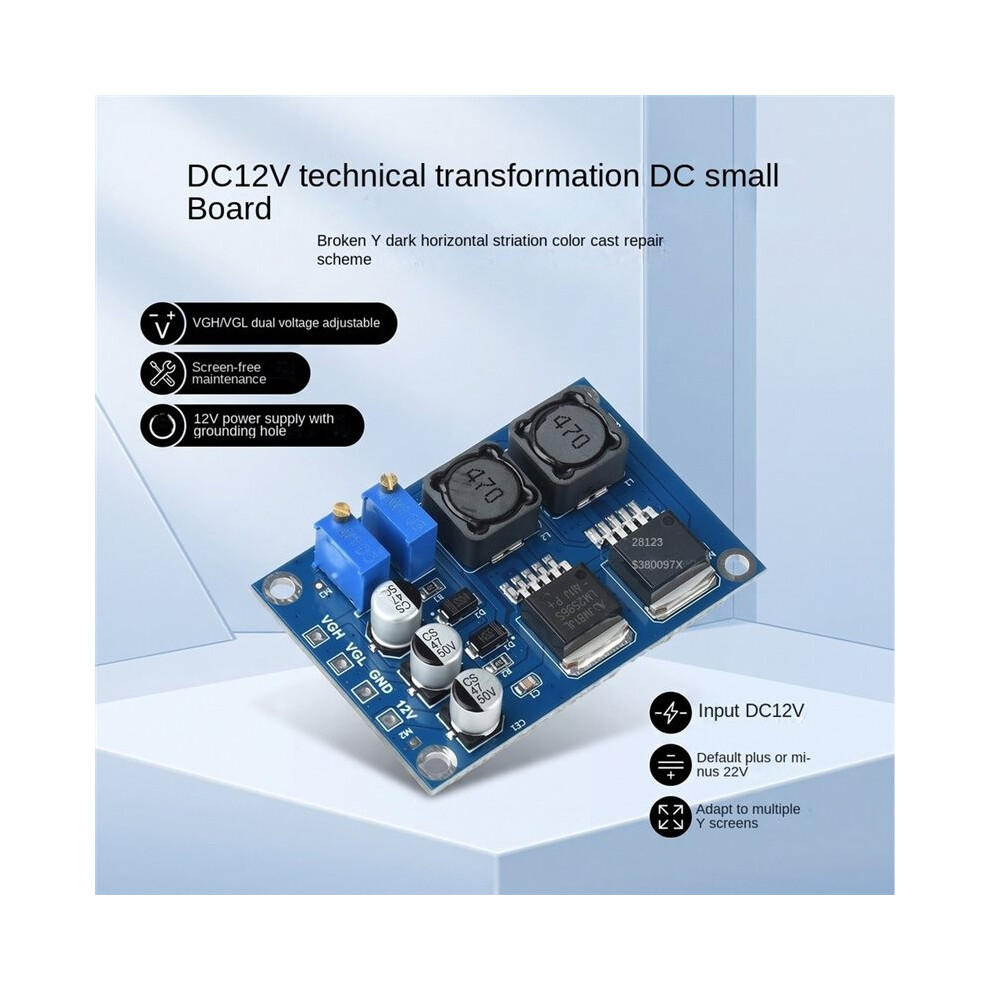

1. Specifically designed to fix issues caused by broken "Y-signals" (gate signals), such as dimness, horizontal lines, and color distortion; replaces faulty boost circuits, saving repair costs by avoiding the need to replace the screen.
2. Independent adjustability for VGH and VGL voltages; clockwise rotation increases voltage, while counter-clockwise rotation decreases it, ensuring compatibility with various screens.
3. Compatible with panels from multiple brands; suitable for use with integrated boards (all-in-one) or independent T-Con (logic) boards.
4. Wide voltage adjustment range; stable, filtered output ensures a clean signal, eliminating ripples for a more refined and detailed display.
5. 12V power supply with a grounding screw hole; clearly labeled interfaces make wiring simple, allowing even beginners to get started quickly.

New and High Quality!
Suitable for faulty machine Y-break use.
Suitable for most logic board integrated strips and integrated motherboard V-break technical transformation.
Specifications:
Input Power: 12V

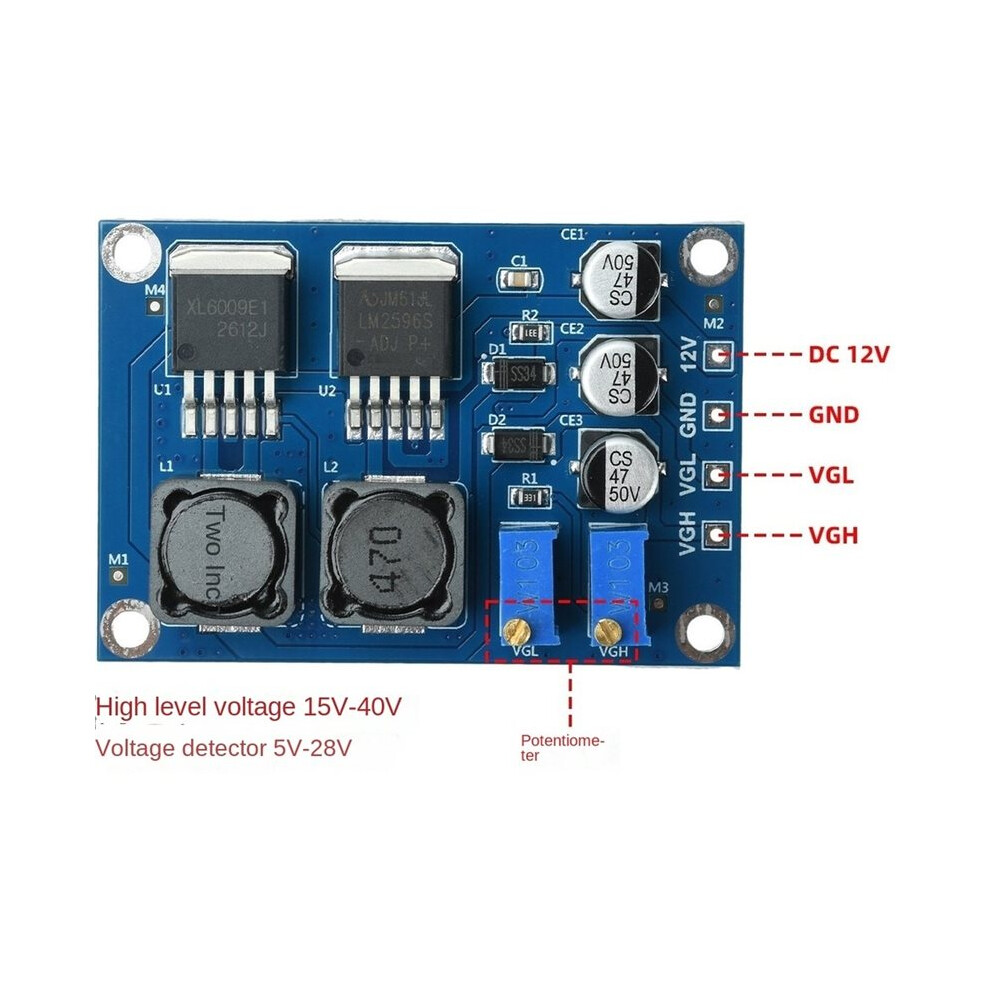

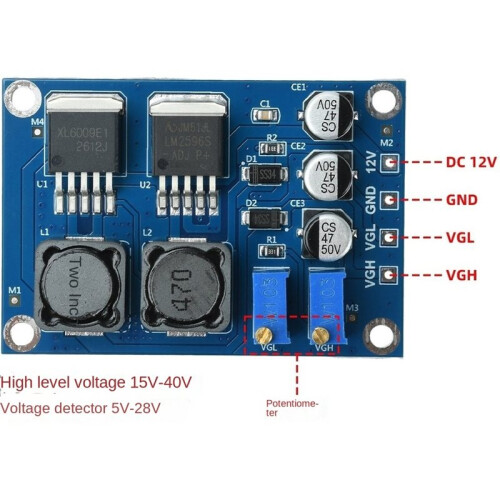

Adjustable Voltage: VGH 15V-40V, VGL 5V-28V
Default Output: Approx. 22V

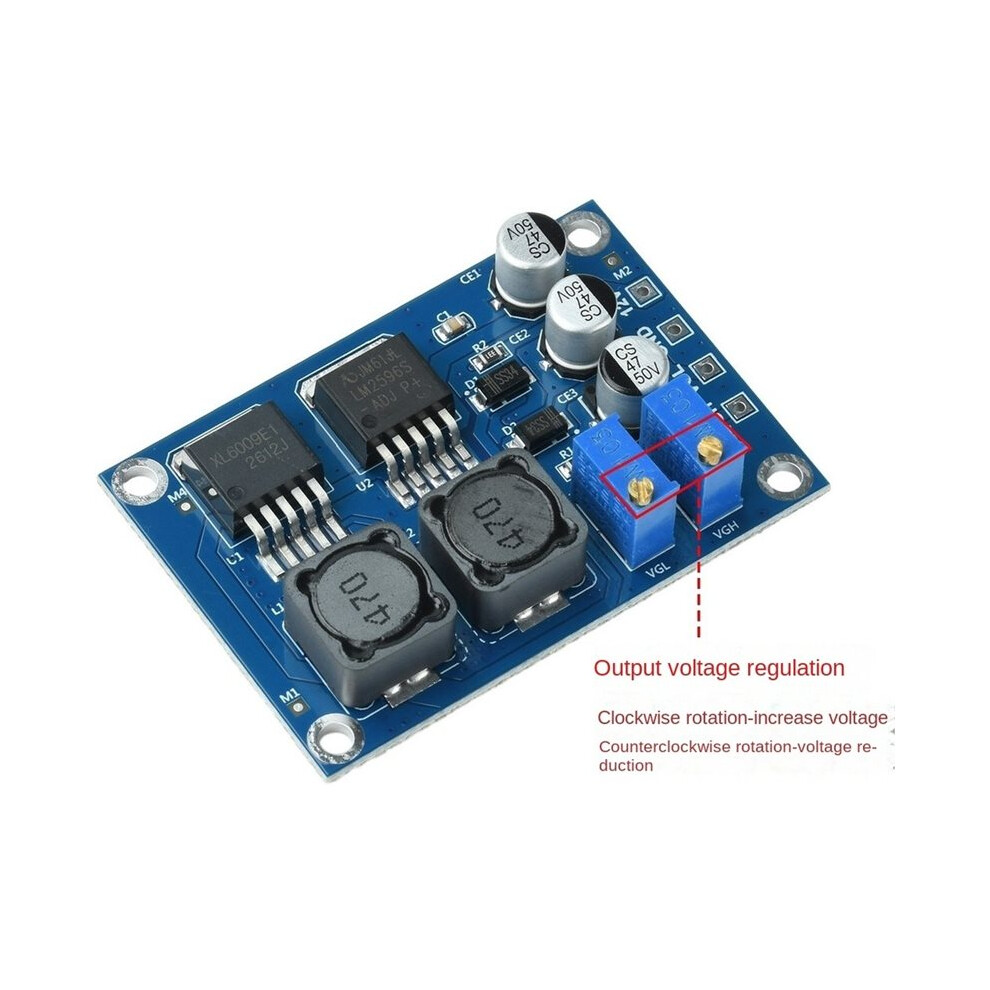

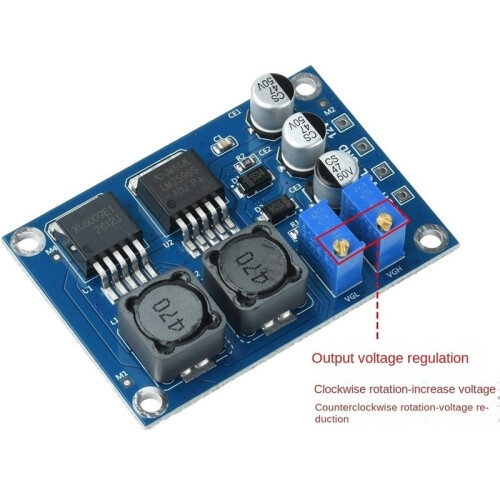

Output Voltage Adjustment: Clockwise to increase voltage / Counter-clockwise to decrease voltage
Compatible Board Types: Integrated Main/Logic boards, Integrated Side-strip/Logic boards, Independent T-Con boards
Mounting Structure: Includes mounting hole for grounding screw
Core Functions: Repairs faults caused by broken Y-signals, such as dimness, coarse horizontal lines, color distortion/missing colors, and grayscale anomalies.
NOTE:
Installation guide not included, we strongly recommend you seek professional installation.
If you are not professional for use, please don't buy this product, we will not provide any technical support.
Color:
M
