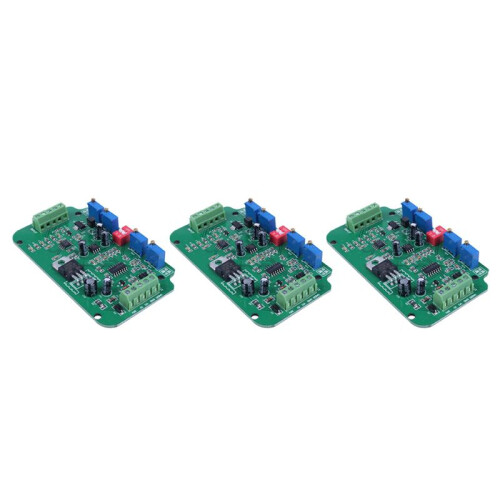

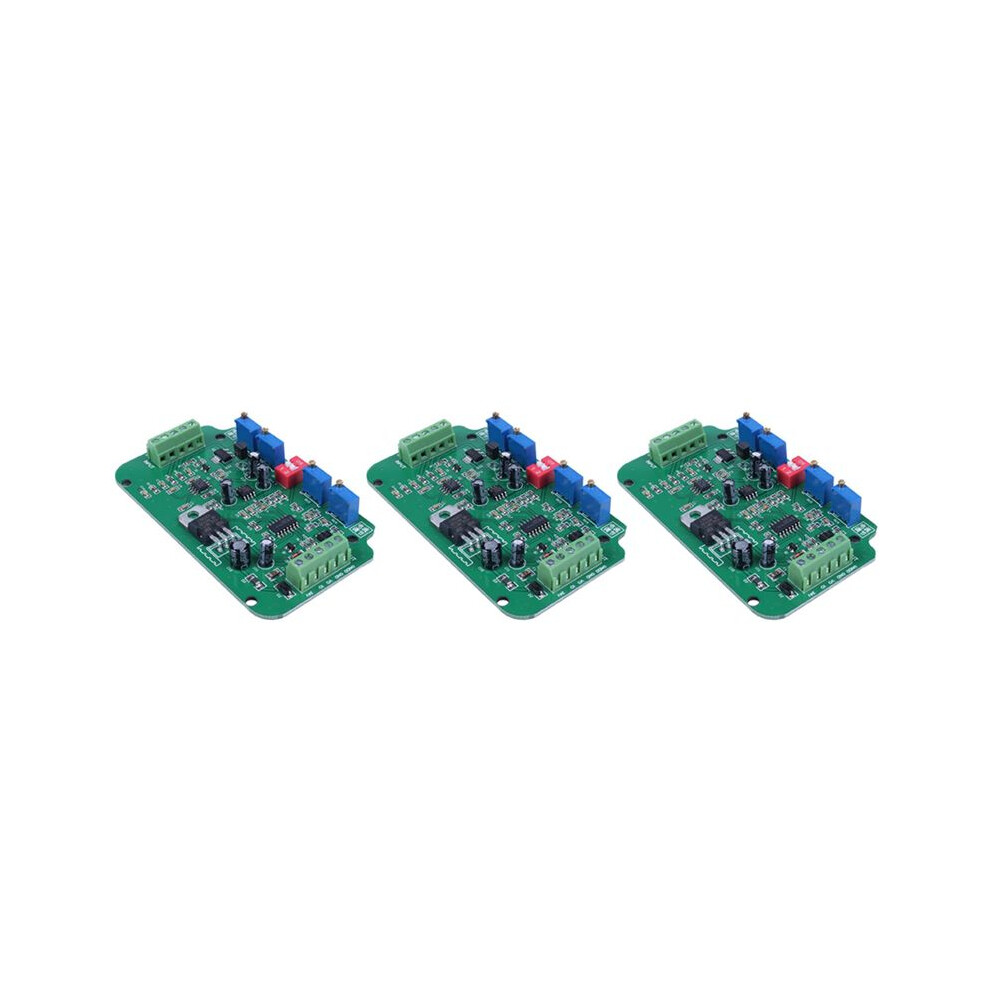

3X 0-10V Load Cell Sensor Amplifier Transmitter Weight Sensor

3X 0-10V Load Cell Sensor Amplifier Transmitter Weight Sensor leírása

Color:green
Material:CCL
Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
beautiful, durable, anti-jamming performance

Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Working voltage: 12VDC- 24VDC
Sensor Sensitivity: 2.0MV / V
Excitation output: Output excitation voltage 5V (E +).
Output signal: 0-10V
Operating temperature range: -20 - 80
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.2% F.S
Precision is better than 0.05% F.S
DIP No. 1 is appropriated for OFF, VO output 0-5V, when No. 1 to the , VO output 0-10V, when DIP No. 1 and No. 2 are appropriated for OFF.
1. Zero adjustment
1: voltage regulation, first the system is unloaded, the regulated voltage zero potentiometer (Vzero) to adjust the zero point. Measured with a multimeter voltage output terminal VO, let indication as close to zero indication.
2: The current adjustment, first the system is unloaded, the current zero adjustment potentiometer (Izero), with a multimeter block measuring the current output of the current IO, try to let it close to 4mA.
The re-examination
The system is unloaded, the measured zero output; load a certain weight values, measured output voltage is expected magnification. If you do not match, adjust again.

Package Contents:3 x 0-10V Load Cell Sensor Transmitter
