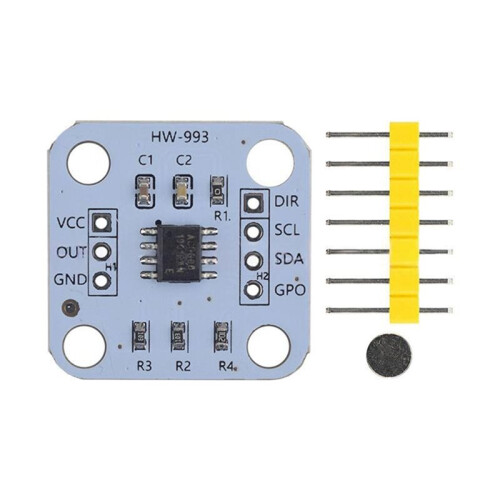

5Pcs AS5600 Magnetic Encoder Induction Angle Measurement Sensor Module 12-Bit Magnetic Encoder Module for Servo Motor

5Pcs AS5600 Magnetic Encoder Induction Angle Measurement Sensor Module 12-Bit Magnetic Encoder Module for Servo Motor leírása

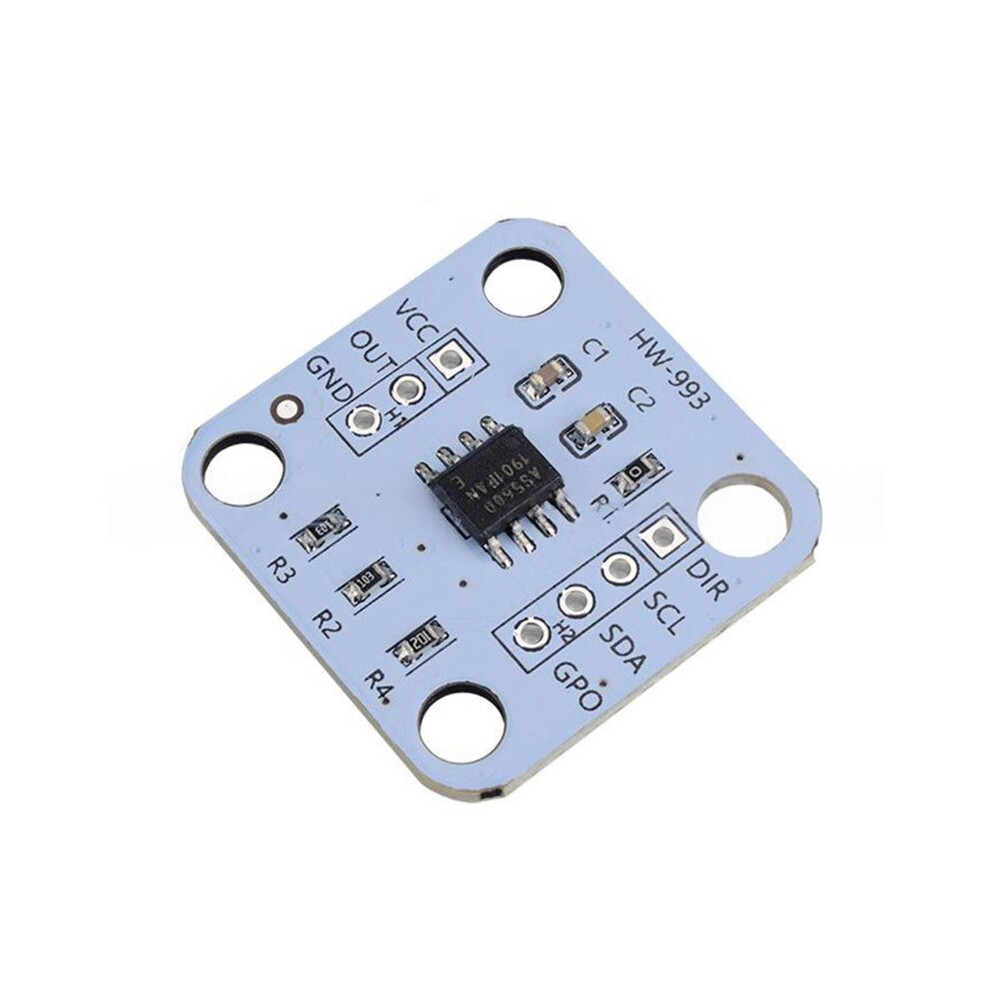

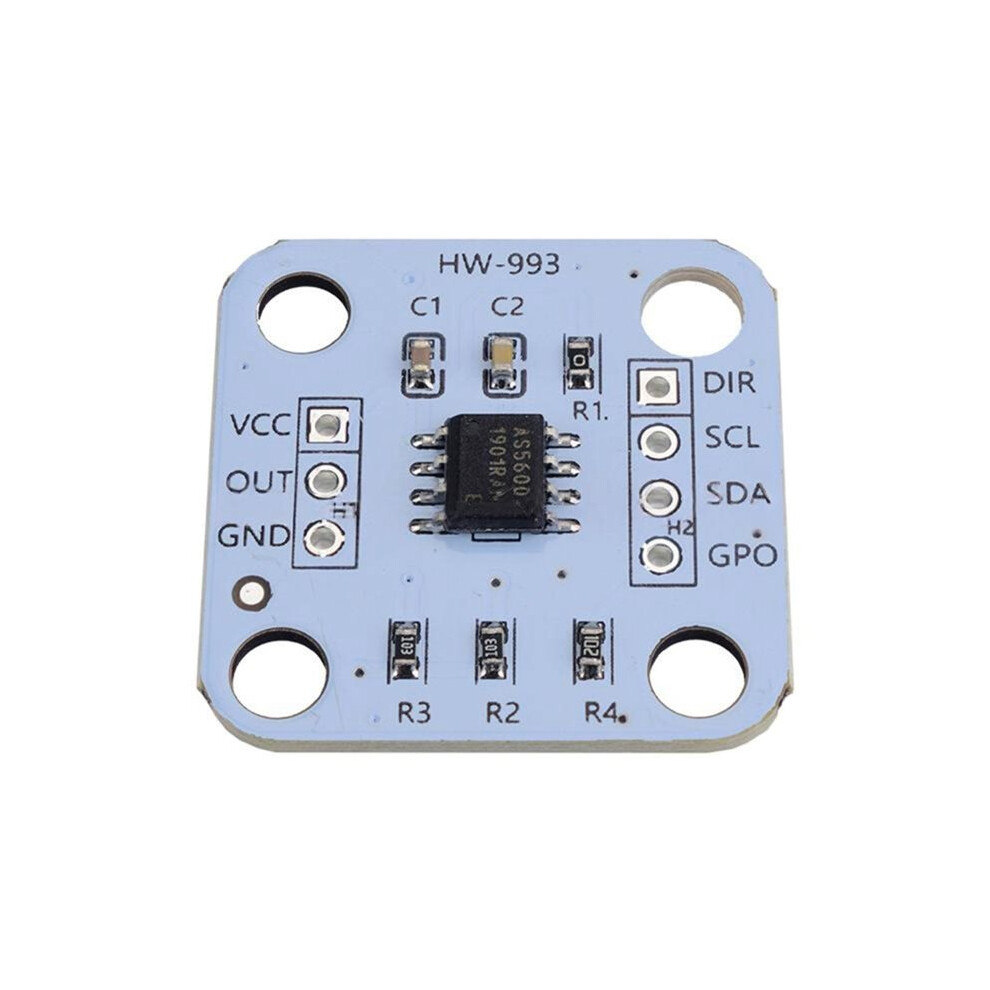

High-Precision AS5600 Magnetic Encoder.This module integrates the AS5600 12-bit magnetic encoder chip to provide high-resolution angle measurement to 4096 steps per revolution. Ideal for accurate rotation and position detection in robotics, motor control, and DIY electronics projects.
Non-Contact Induction Angle Measurement.Using non-contact magnetic induction technology, the sensor measures the rotational angle of a magnet placed above the chip. This design greatly reduces mechanical wear, improves reliability, and ensures long-term stable performance in demanding environments.
12-Bit Resolution & High Stability.The 12-bit resolution offers fine-grained angle data, making it suitable for precise control applications. The AS5600 features excellent linearity, low noise, and high repeatability, helping to achieve smooth motion and accurate feedback.
Multiple Output Interface Options.The module supports both analog voltage output and digital PWM output, allowing flexible integration with a wide range of microcontrollers and control systems. It is compatible with popular platforms such as , STM32, ESP32, and other development boards.

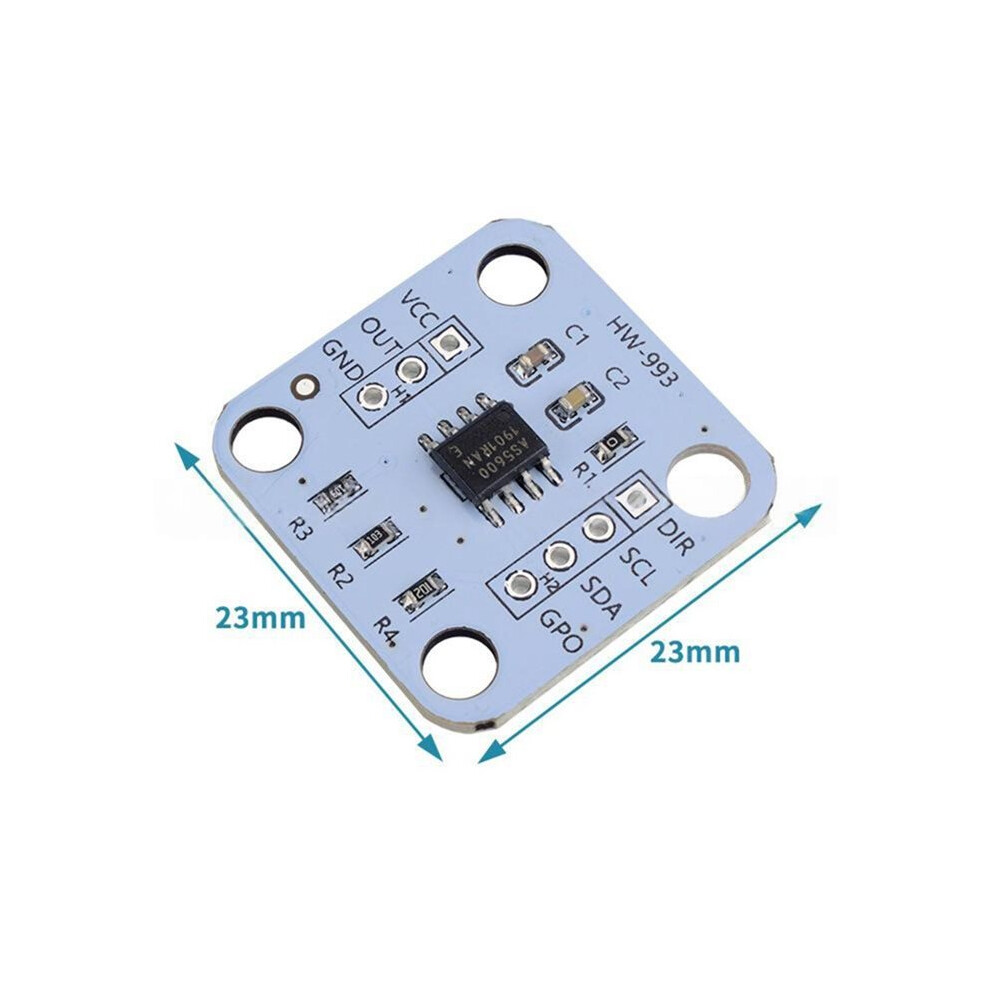

Compact PCB Design & Easy Mounting.The compact PCB layout with clearly labeled pins allows quick wiring and installation. It can be mounted close to rotating shafts or magnets in small spaces, such as servos, gimbals, 3D printers, and home devices.

Color: As Shown
Material: PCB

Package Contents:

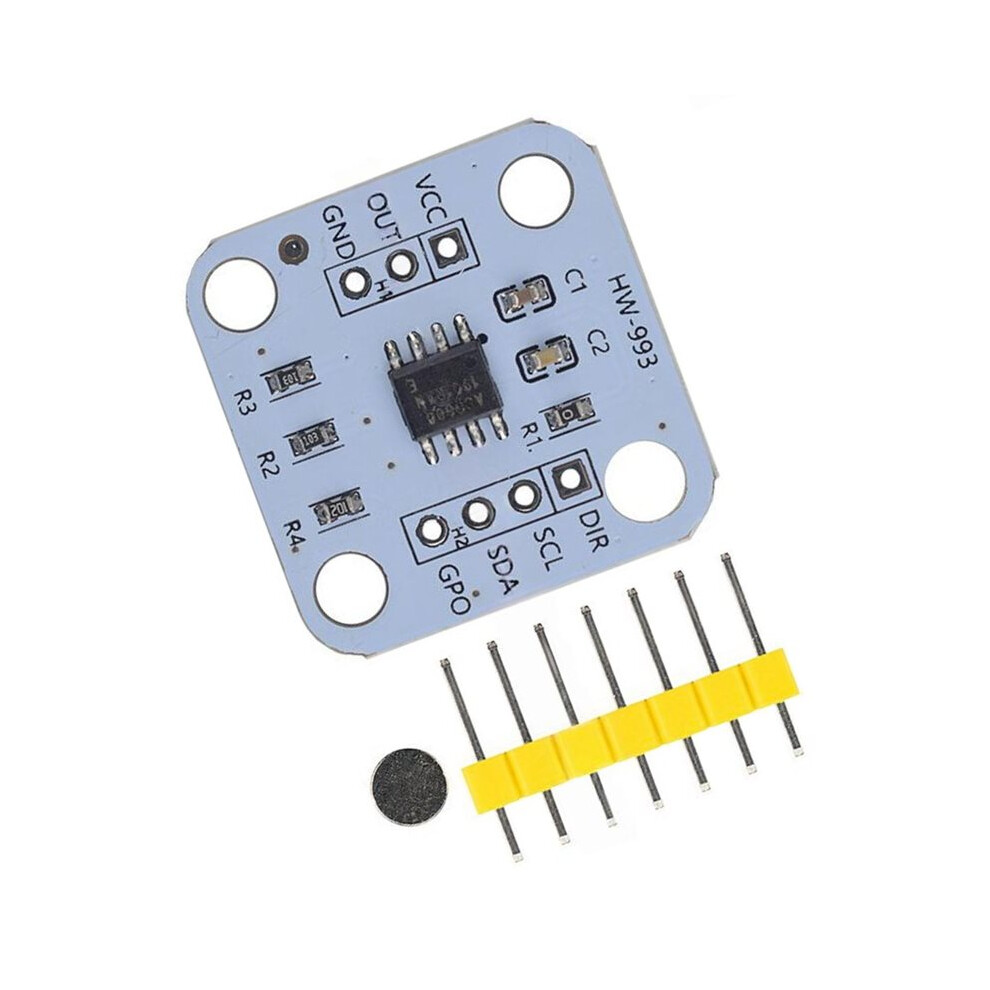

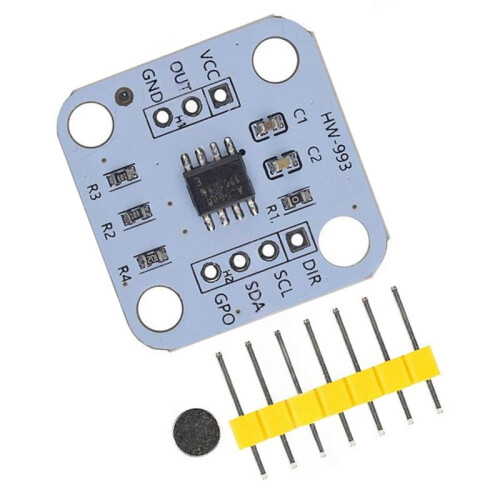

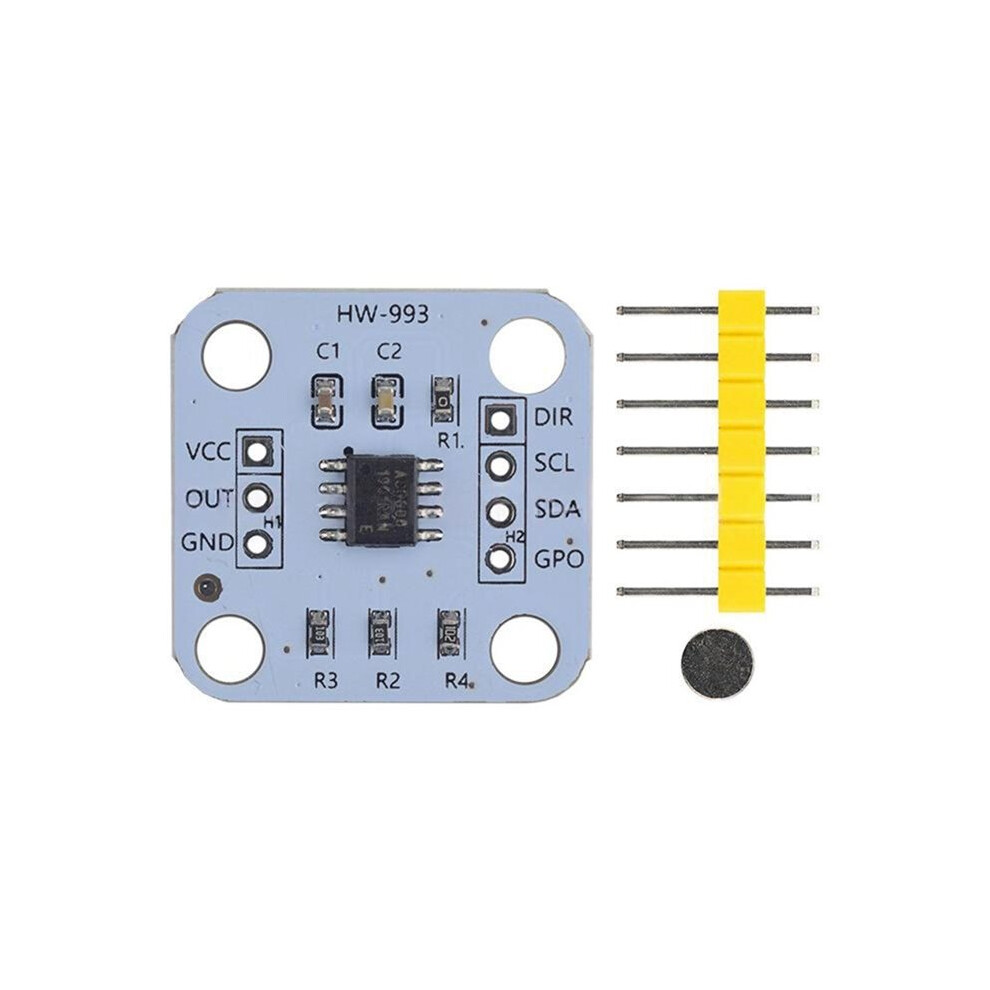

5x AS5600 Magnetic Encoder
5x Pin Header
5x Magnet
