9-DoF IMU Sensor Module LSM6DS3TR-C + LIS3MDL 9 Axis Accelerometer Gyro Magnetometer I2C SPI for Robot Projects

9-DoF IMU Sensor Module LSM6DS3TR-C + LIS3MDL 9 Axis Accelerometer Gyro Magnetometer I2C SPI for Robot Projects leírása

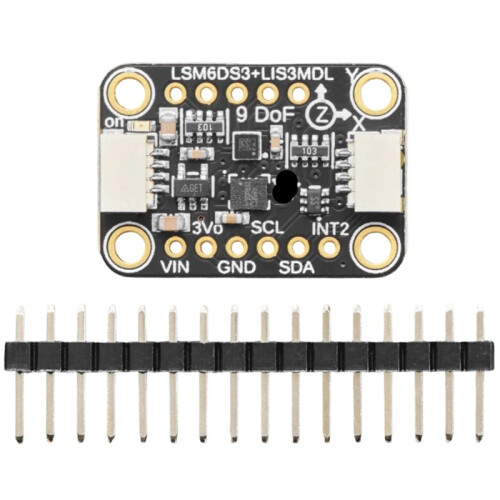

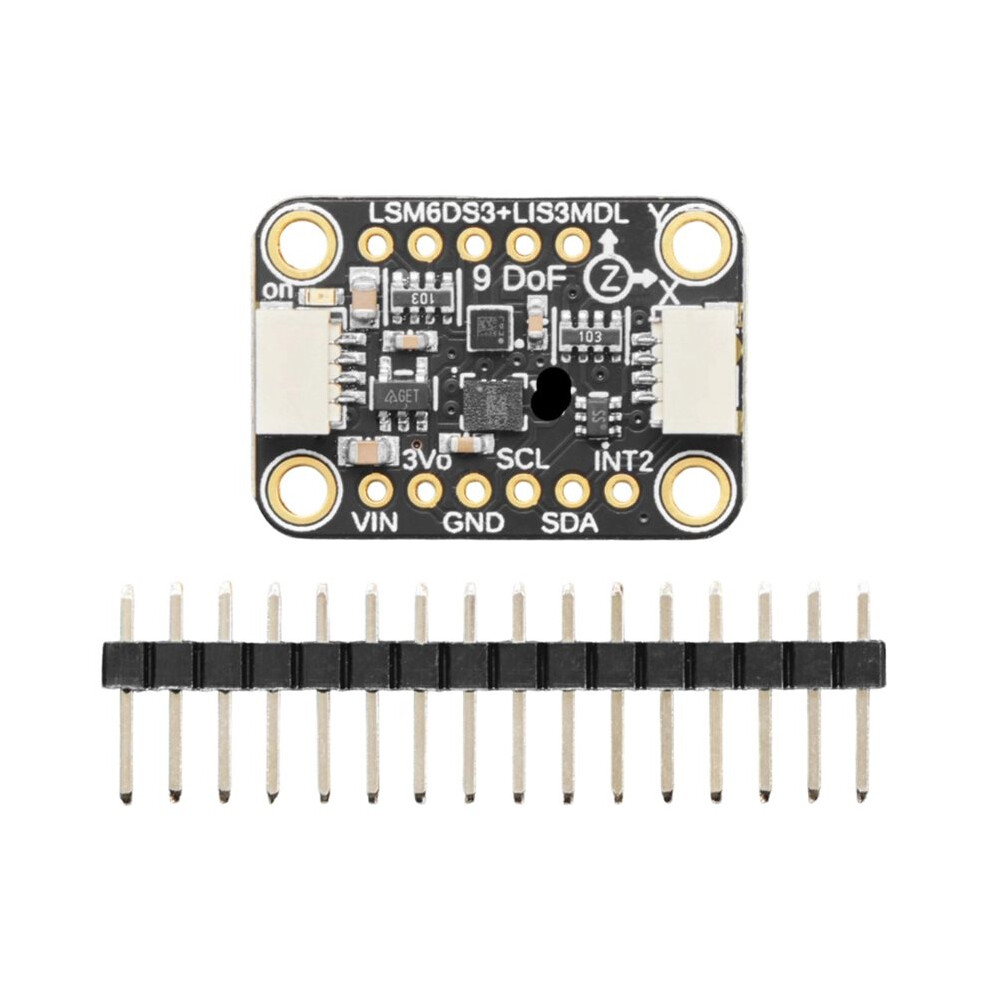

Add high-quality motion, direction, and orientation sensing to your project with this all-in-one 9 Degree of Freedom (9-DoF) sensor with sensors from ST. This little breakout contains two chips that sit side-by-side to provide 9 degrees of full-motion data.
The board includes an ST LSM6DS3TR-C (a.k.a LSM6DS3), a great entry-level 6-DoF IMU accelerometer + gyro. The 3-axis accelerometer can tell you which direction is down towards the Earth (by measuring gravity) or how fast the board is accelerating in 3D space. The 3-axis gyroscope can measure spin and twist.
It also includes a LIS3MDL 3-axis magnetometer that can sense where the strongest magnetic force is coming from, generally used to detect magnetic north. The three triple-axis sensors add to 9 degrees of freedom, by combining this data you can the board.
To make getting started fast and easy, we placed the sensors a compact breakout board with voltage regulation and level-shifted inputs. That way you can use them with 3V or 5V power/logic devices without worry. To make usage simple, we expose only the I2C interface and some interrupt pins from each chip.

Color: As Shown
Material: PCB

Package Contents:
1*Module
