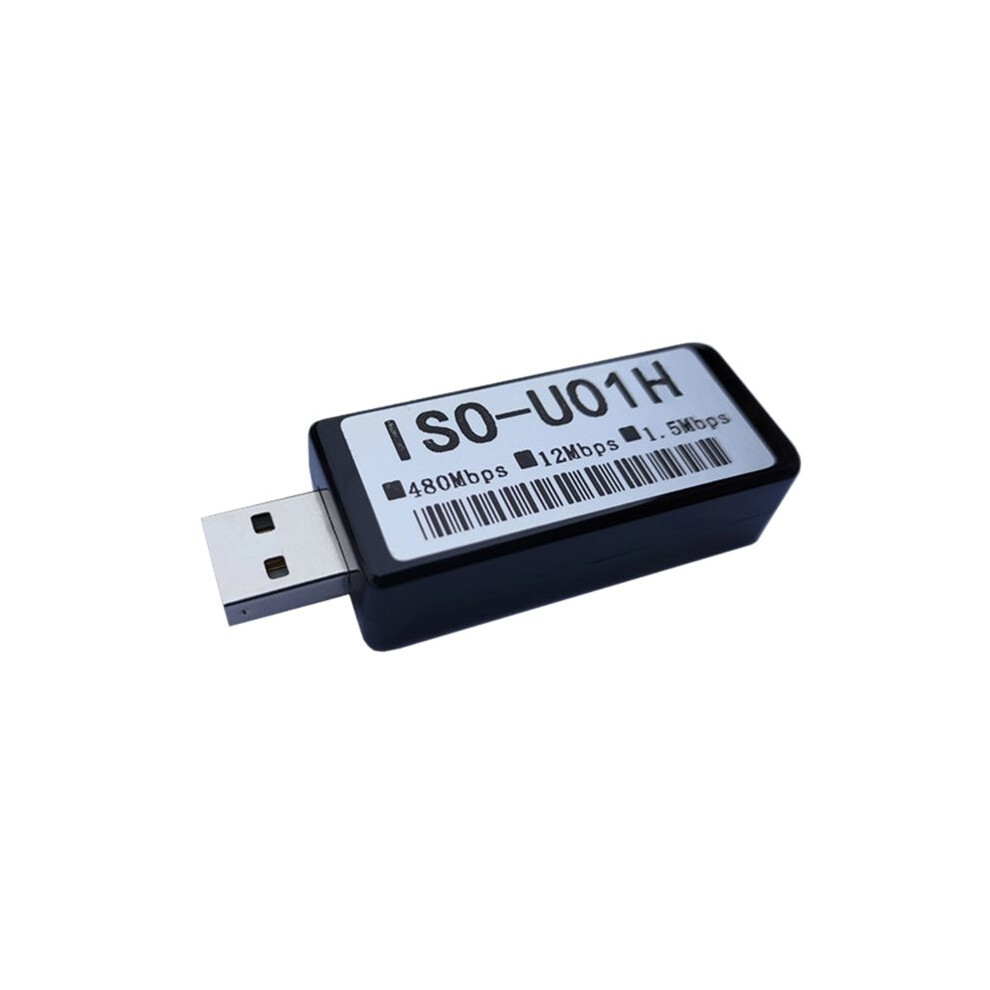

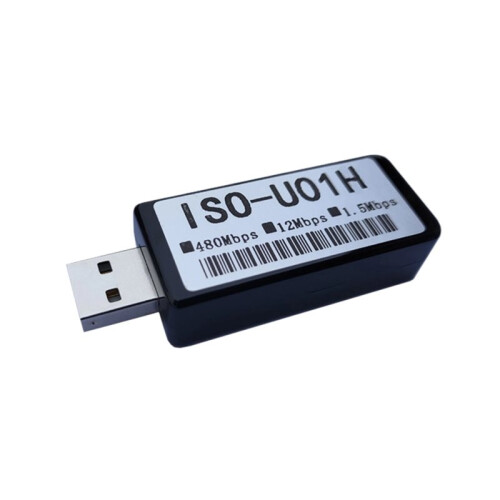

ADUM3165 USB Digital Isolator 480Mbps USB High-Speed Isolator Voltage USB HUB DAC Decoder Audio Elimination Current

ADUM3165 USB Digital Isolator 480Mbps USB High-Speed Isolator Voltage USB HUB DAC Decoder Audio Elimination Current leírása

Supports USB2.0 high speed 480Mbps, USB1.1 full speed 12Mbps, and USB1.0 low speed 1.5Mbps.
Isolation voltage of 1500VDC ensures safety in sensitive environments.
Output current of 400mA for reliable performance.
Driver-free operation for convenient plug and usage.
Ideal for noise-sensitive areas and environments with strong electrical interference, ensuring safe and effective communication.
Transfer speed: Support USB2.0 high speed 480Mbps, USB1.1 full speed 12Mbps, USB1.0 low speed 1.5Mbps.
Isolation voltage: 1500VDC
Output current: 400mA
Power supply: USB input DC5V/1A, output DC5V/0.4A
Usage environment: Working environment temperature -20~85
Support: Bcontrol rmsmision, batch transmission, interrupt transmission, synchronous/isochronous transmission.

1. Noise sensitive areas
As we all know, computers are a source of noise. In noise-sensitive areas, we can use this device to isolate the USB interface from communication. Such as high-precision USB data acquisition system, HIFI sound system, DAC decoder.

2. With strong electricity and strong interference scenes
Some circuits contain strong electricity and strong interference (such as high-voltage electricity, frequency converters, motor drives, etc.). When connected to a computer, they must be isolated to ensure the safety of the computer and personal safety.
Color: Black
Material: Plastic

Package Contents:
1*USB Isolator
