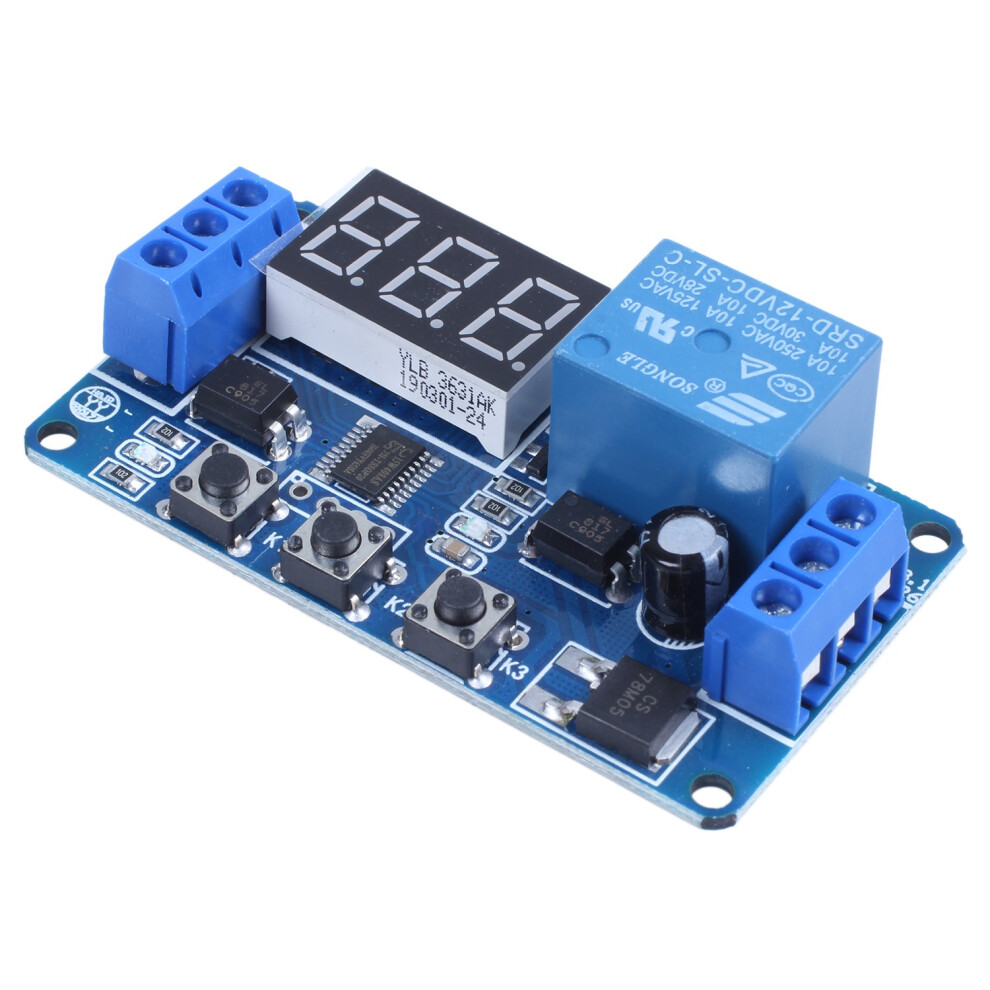

Automation 12V LED Display Digital Delay Timer Control Relay Module

Automation 12V LED Display Digital Delay Timer Control Relay Module leírása

Increase the supply anti- reverse function.
Set parameter after power for perdurable memories.
Signal terminal voltage signal can be maintained for a longtime.
To ensure the stability of industrial grade board, class PLC.
Size: 64.2mm x 34.8mm x 18.5mm/ 25.28" x 13.7" x 7.28"
Working mode selection:After power ,long press K12 seconds later into the select function mode,P1-1~P1-4 for choose.
P1-1 operating modes:a signal to trigger relay, is ,the relay disconnect users,You can set relay T,click the hundred digital tube starts flashing,then press K3,the hundred digital change;click ten digital tube starts flashing,then press K3,ten digit changes;click
bit digital tube starts flashing,then press K3,single-digit change;then click ,digital pipe does not blink,then press the K3,shifting the decimalpoint,the decimal pointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimal poin trepresents 0-999
seconds;goodchoice,bringing the setting is completed.
P1-2 operating modes:Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then close.
Users can set the relay X,Y;P1-1different settings similar to the lights that set
the relay , light indicates setting relay off .
P1-3 operating modes:Open X seconds,disconnect Yseconds,infinite loop.Users can set the relay ,Y; setting similar to P1-2.
Relay Specifications:AC 220V 10A or 30V 10A.
Quiescent Current:20mA,Operating Current:50mA.
Working voltage:10~16V(if other ranges can be customized).
Signal voltage:4V~20V(if other ranges can be customized).
Life:about 100,000 times
Working temperature:-40~85'C.
Material: printed circuit board
Package Includes:
1 x DC12V Delay Timer Control Module
Note:Light shooting and different displays may cause the color of the item in the picture a little different f
